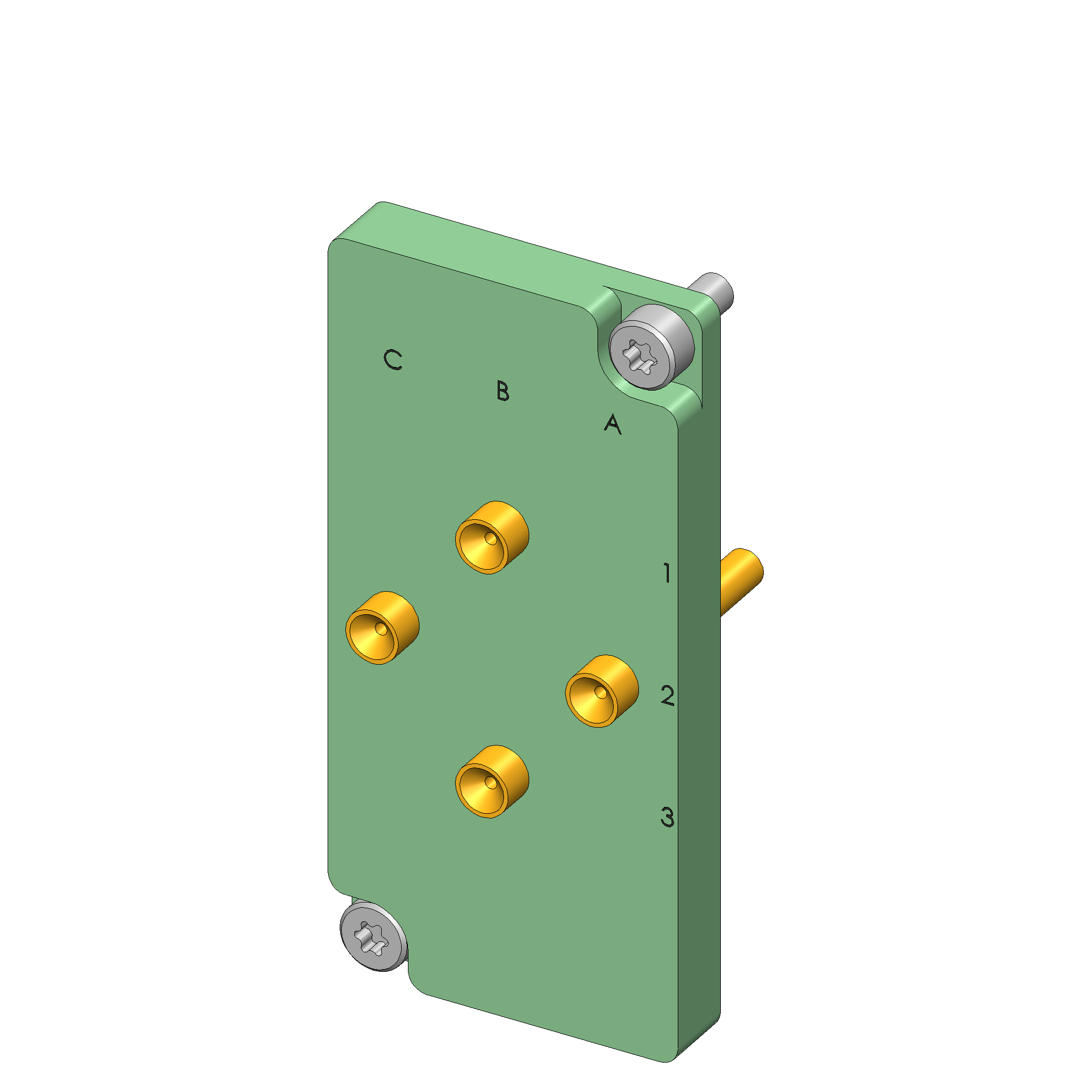

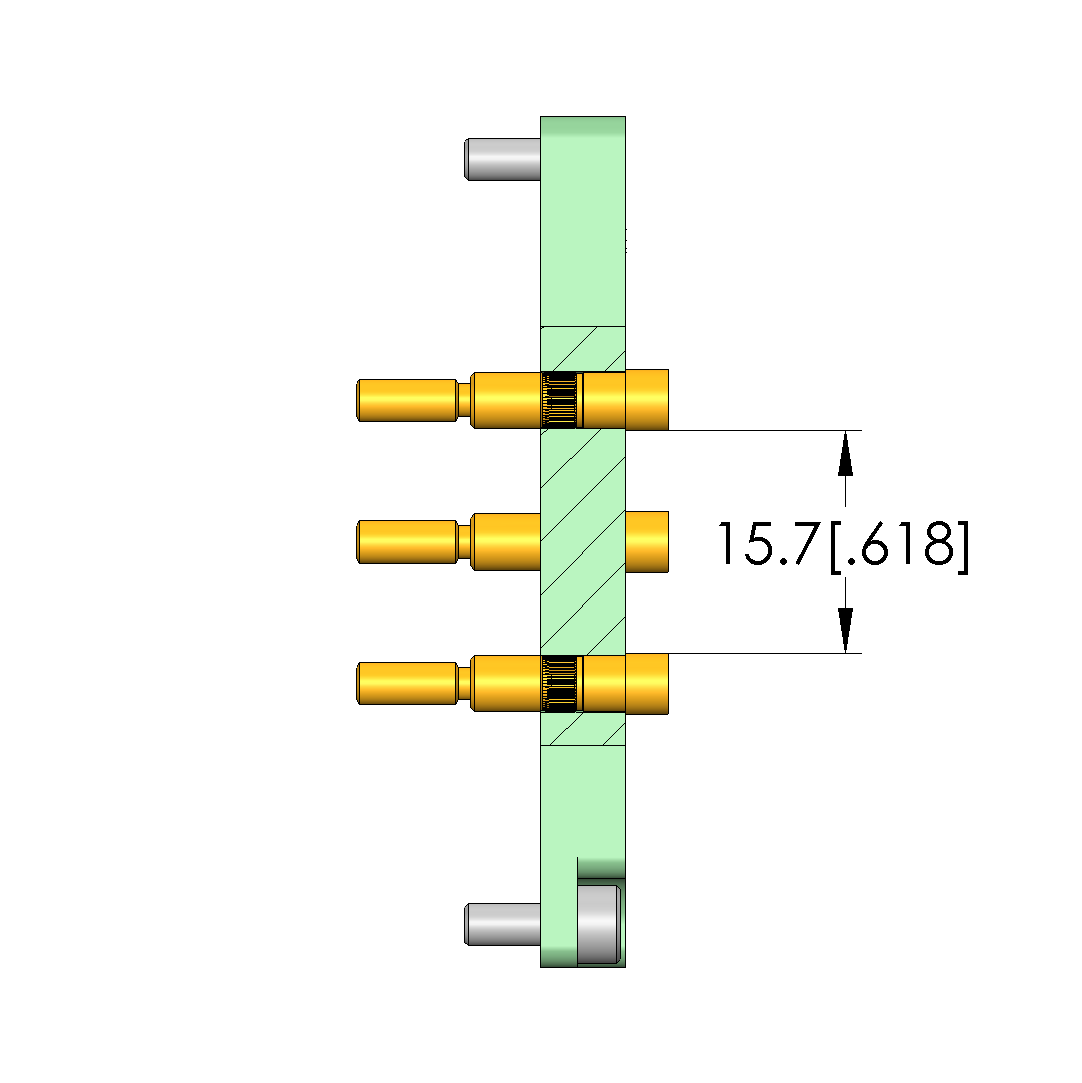

Interface block SB-P-HS-004-50A-1,0 Item 37698
Interface block SB-P-HS-004-50A-1,0 Item 37698
Please log in to show the price
Login
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible.
Shipping costs
* The prices are rounded to two decimal places.

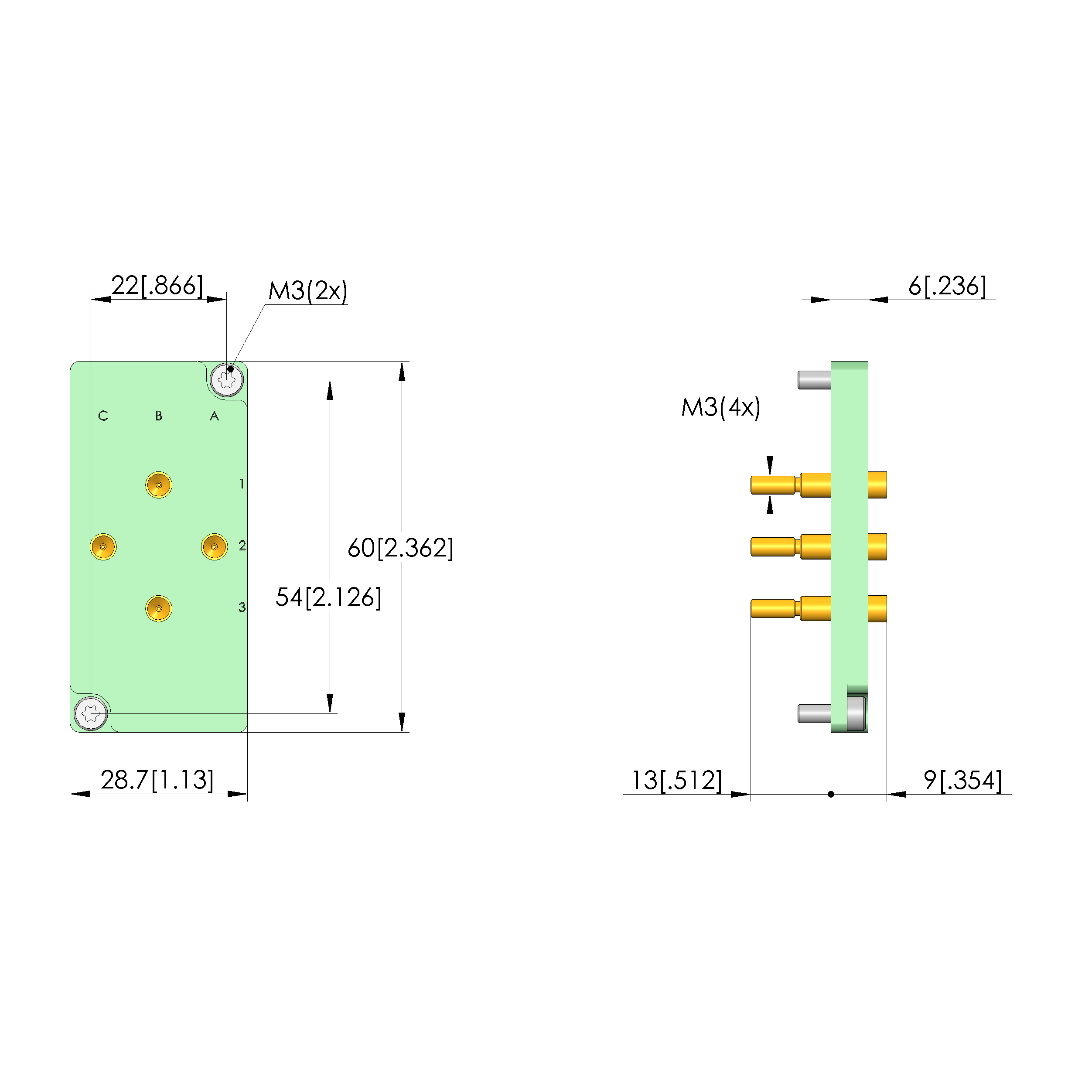

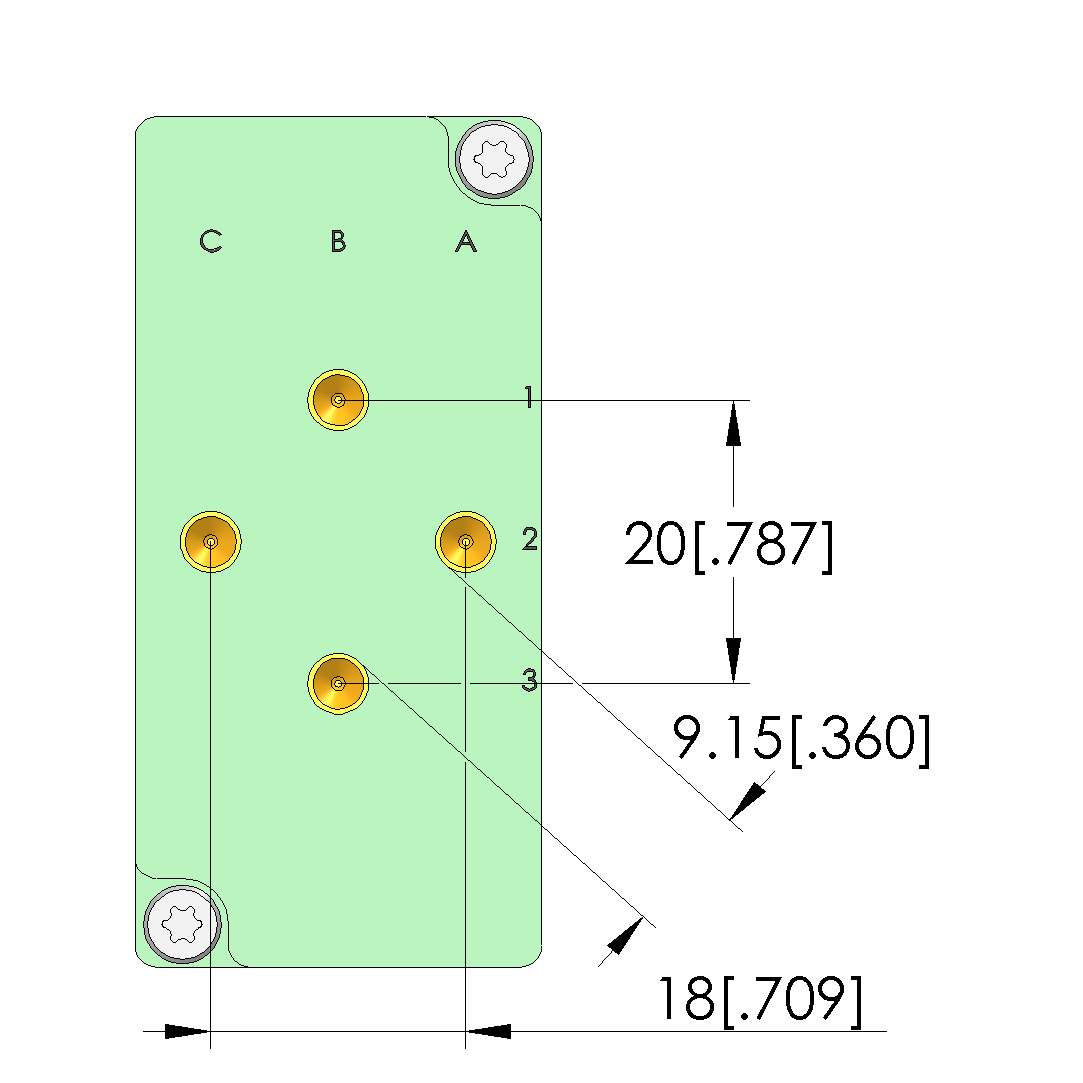

Technical data
| Product group : | Interface blocks (SB) |
|---|---|
| Series : | SB-HS |
| Type : | High-current block |
| Version : | Device under test (DUT) side |
| Accessory type : | Customising accessory |
| Component assembly : | KT-150L3E03M3 (M3) |
| Weight : | 0.029 kg |
| Min. temperature : | - 30 °C |
| Max. temperature : | + 120 °C |
| RoHS-compliant : | RoHS-3;6c |
| Typical resistance (Ri) of one GKS : | < 5 mOhm |
|---|
| Working distance : | 15.1 +/- 0.5 mm |
|---|---|
| Centring pin : | - mm |
| Connection : | M3 thread-post |
| Number of poles : | 4 (fixe Pos.) |
| Air distance (not wired) : | 9.1 mm |
| Max. current of one GKS : | 50 A |
| Max. current of all GKS : | 35 A |
| Max. voltage : | 6000 V |
| Max. power loss : | 25 W |
| Min. line cross-section : | 6 mm² |
| Compatible mating part 1 : | SB-T-HS-004-50A |
|---|---|
| MA exchangeable kits (ATS MA) : | ATS MAxx |
| VA exchangeable kits (ATS VA) : | ATS VIN2040, ATS VIN2040-2 |
| PA exchangeable kits (ATS PA) : | ATS PAZ100 |
