Manual test fixture MA 2114/D/H/S-10/PYLON-12 Item 48980
- Manual test fixtures with parallel closing drive mechanism for testing medium PCB quantities with the highest quality and precision
- Interchangeable test fixtures with and without pre-configured test system interface
- Standard, ESD, and RF exchangeable kits that can be installed without tools and used without readjustment
- Modularly configurable signal transmission using interface blocks, which can be quickly detached
- Detailed accompanying documents (e.g., customising guidelines)
- Maximum opening angle may vary due to the length tolerance of +/- 2 mm of the gas spring
Manual test fixture MA 2114/D/H/S-10/PYLON-12 Item 48980
Please log in to show the price
Login
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible.
Shipping costs
* The prices are rounded to two decimal places.
Technical data
| Product group : | Manual test fixtures (MA) |
|---|---|
| Main series : | MA xxxx |
| Subseries : | MA 21xx |
| Series : | MA 2114 |
| Size : | xx14 |
| Test fixture type : | Exchangeable test fixture |
| Contact stroke generation : | Manual |
| Housing type : | Desk housing |
| Max. interface signals : | 1700 |
| Interface blocks required : | Device under test (DUT) side |
| Max. internal interface blocks : | 10 |
| Contacting direction : | Single-sided (bottom) |
| Max. contact force : | 2000 N |
| Approx. parallel contact stroke : | 15 mm |
| Test system interface : | Rohde & schwarz pylon |
| Min. temperature : | + 10 °C |
| Max. temperature : | + 60 °C |
| Low voltage : | Yes, with suitable additional option |
| ESD-compliant : | Yes, with suitable exchangeable kit |
| RoHS-compliant : | RoHS-3;6c |
| Test probe installation height, top : | 16 mm |
|---|---|
| Test probe installation height, bottom : | 10.5 mm |
| Test probe installation height, dual-stage, bottom : | 16 mm |
| Free space above PCB : | 58 mm |
| Force of gas pressure springs : | 500 N (L: 200 N / R: 300 N) |
| Pressure frame closing force : | 120 N |
| Pressure frame opening angle : | 69 ° |
| Standard version : | Yes, with suitable exchangeable kit |
| Useable area, standard (WxD) : | 540 x 310 mm |
| ESD version : | Yes, with suitable exchangeable kit |
| Useable area, ESD (WxD) : | 540 x 310 mm |
| Radio frequency version : | No |
| Rigid pin version : | No |
| Dual-stage version : | Yes, with suitable additional option |
| Useable area, dual-stage (WxD) : | 540 x 310 mm |
| Additional contacting unit (ZSK), top : | Yes, with suitable additional option |
| Outer dimensions, open (WxDxH) : | 754 x 609 x 645 mm |
| Outer dimensions, closed (WxDxH) : | 754 x 663 x 262 mm |
MA exchangeable kits
Exchangeable kit
ATS MA14
Item 45985-KIT
- Quick, tool-free set-up, can be used without readjustment
- Available in standard, ESD, and RF versions, with or without internal interface
- Modularly configurable signal transmission with internal interfaces
- Pressure plate unit and probe plate unit can be screwed together with stacking screws to form a unit with protected probe field
- Robust, durable design
- Can be customised using functional units for individual configurations
- Detailed accompanying documents (e.g., customising guidelines)
Exchangeable kit
ATS MA14/S-10/ESD
Item 46242-KIT
- Quick, tool-free set-up, can be used without readjustment
- Available in standard, ESD, and RF versions, with or without internal interface
- Modularly configurable signal transmission with internal interfaces
- Pressure plate unit and probe plate unit can be screwed together with stacking screws to form a unit with protected probe field
- Robust, durable design
- Can be customised using functional units for individual configurations
- Detailed accompanying documents (e.g., customising guidelines)
Exchangeable kit
ATS MA14/ESD
Item 46257-KIT
- Quick, tool-free set-up, can be used without readjustment
- Available in standard, ESD, and RF versions, with or without internal interface
- Modularly configurable signal transmission with internal interfaces
- Pressure plate unit and probe plate unit can be screwed together with stacking screws to form a unit with protected probe field
- Robust, durable design
- Can be customised using functional units for individual configurations
- Detailed accompanying documents (e.g., customising guidelines)
Exchangeable kit
ATS MA14/S-10/HF/AL/ESD
Item 154114
- Reliable, interference-free radio frequency contacting and measurement of radio frequency signals
- Outstanding shielding attenuation > 60 dB in the frequency range up to 6 GHz
- Radio-frequency and RF-compatible shielding from external and internal interference signals
- Safe to use in MA xxxx basic units
- Quick, tool-free set-up - ready for use without readjustment
Exchangeable kit
ATS MA14/S-10/CRS
Item 108814
- Reliable ICT/FCT tests in the fully automated inline test system and in the manual test fixture
- Replacement kit for CRS test system SMART-Inline, IPS 19-2 and manual test fixture MA 2114, MA 3214
- Modularly configurable signal transmission with internal interfaces
- Quick, tool-free set-up, can be used without readjustment
- Pressure plate unit and probe plate unit can be screwed together with stacking screws to form a unit with protected probe field
- Designed for tooling pins with head length = 16 mm (FS-X,XX-RD-16-02)
Exchangeable kit
ATS MA14/HF/AL/ESD
Item 154014
- Reliable, interference-free radio frequency contacting and measurement of radio frequency signals
- Outstanding shielding attenuation > 60 dB in the frequency range up to 6 GHz
- Radio-frequency and RF-compatible shielding from external and internal interference signals
- Safe to use in MA xxxx basic units
- Quick, tool-free set-up - ready for use without readjustment
Exchangeable kit
ATS MA14/S-10
Item 45983-KIT
- Quick, tool-free set-up, can be used without readjustment
- Available in standard, ESD, and RF versions, with or without internal interface
- Modularly configurable signal transmission with internal interfaces
- Pressure plate unit and probe plate unit can be screwed together with stacking screws to form a unit with protected probe field
- Robust, durable design
- Can be customised using functional units for individual configurations
- Detailed accompanying documents (e.g., customising guidelines)
Interface blocks
Interface block
SB-P-HF-004-18GHz-03
Item 55753
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-LL-045-DM2,3
Item 29448
- Equipped with INGUN contact terminals
- Suitable for test fixtures with internal or external Pylon interface
- High contact reliability and transmission quality
- Reliable transmission of fibre optic signals within the scope of the specification
Interface block
SB-P-HF-016-0,7GHz-12
Item 38159
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-06-Z
Item 38180
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-0,7GHz-03
Item 38168
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-07-Z
Item 38179
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-004-18GHz-01
Item 55751
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
INGUN SELECTION
Interface block
SB-P-HS-008-50A-1,0
Item 35929
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
Interface block
SB-P-HF-016-0,7GHz-05
Item 38166
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
INGUN SELECTION
Interface block
SB-P-PN-008-PK3-A
Item 37821
- Equipped with pneumatic contact terminals
- Suitable for test fixtures with internal or external Pylon interface
- High contact reliability and transmission quality
- Reliable transfer of compressed air within the scope of the specification
Interface block
SB-P-SO-026-IDC Buchse
Item 56698
- Populated with 26-pole IDC plug connector STV-IDC2,54-M-026-WW-G-Q
- Can be used in test fixtures with Pylon interface for use on the test specimen side
- Reliable signal transmission within the scope of the specification
Interface block
SB-P-HF-008-6GHz-05-Z
Item 42706
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-0,7GHz-07
Item 38164
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-0,7GHz-09
Item 38162
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HS-034-20A-1,0
Item 31009
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
INGUN SELECTION
Interface block
SB-P-SI-040-4A-0,6
Item 37074
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
Interface block
SB-P-SO-002-Polklemme
Item 35910
- Populated with pole terminal STV-PK4-M4-RT/SW
- Can be used in test fixtures with Pylon interface for use on the test specimen side
- Reliable signal transmission within the scope of the specification
Interface block
SB-P-HF-016-4GHz-08-Z
Item 38178
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HS-004-50A-1,0
Item 37698
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
Interface block
SB-P-MB-20/20-30A/DM2,3
Item 45305
- Equipped with INGUN contact terminals
- Suitable for test fixtures with internal or external Pylon interface
- High contact reliability and transmission quality
- Reliable signal transmission within the scope of the specification
Interface block
SB-P-HF-016-0,7GHz-01
Item 38170
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-SI-136-4A-0,6-Z
Item 109467
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
Interface block
SB-P-HF-016-0,7GHz-04
Item 38167
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-SI-062-4A-25
Item 109434
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
INGUN SELECTION
Interface block
SB-P-SI-170-4A-0,6
Item 13515
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
Interface block
SB-P-HF-016-4GHz-04-Z
Item 38182
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-13-Z
Item 38173
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-SO-016-IDC Buchse
Item 56990
- Populated with 16-pole IDC plug connector STV-IDC2,54-M-016-WW-G-Q
- Can be used in test fixtures with Pylon interface for use on the test specimen side
- Reliable signal transmission within the scope of the specification
INGUN SELECTION
Interface block
SB-P-HS-024-30A-1,0
Item 27620
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
Interface block
SB-P-HS-045-30A-1,0-Z
Item 38698
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
Interface block
SB-P-HF-016-4GHz-03-Z
Item 38183
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-SO-020-IDC Buchse
Item 56694
- Populated with 20-pole IDC plug connector STV-IDC2,54-M-020-WW-G-Q
- Can be used in test fixtures with Pylon interface for use on the test specimen side
- Reliable signal transmission within the scope of the specification
Interface block
SB-P-HF-016-0,7GHz-15
Item 38156
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
INGUN SELECTION
Interface block
SB-P-SI-170-4A-0,6-Z
Item 38692
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
Interface block
SB-P-HF-008-6GHz-01-Z
Item 42717
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-Z
Item 34571
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-SO-002-USB-3-Buchse
Item 45557
- Populated with USB3.0 A/B socket STV-USB3.0A/B-F-EB-SR-REV
- Can be used in test fixtures with Pylon interface for use on the test specimen side
- Reliable signal transmission within the scope of the specification
Interface block
SB-P-LL-024-DK1,5-Z
Item 30211
- Equipped with INGUN contact terminals
- Suitable for test fixtures with internal or external Pylon interface
- High contact reliability and transmission quality
- Reliable transmission of fibre optic signals within the scope of the specification
INGUN SELECTION
Interface block
SB-P-SI-085-4A-0,6
Item 44271
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
Interface block
SB-P-HF-008-6GHz-06-Z
Item 42629
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-LL-045-DM1,0
Item 41020
- Equipped with INGUN contact terminals
- Suitable for test fixtures with internal or external Pylon interface
- High contact reliability and transmission quality
- Reliable transmission of fibre optic signals within the scope of the specification
Interface block
SB-P-HF-008-6GHz-04-Z
Item 42707
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-0,7GHz-11
Item 38160
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-15-Z
Item 38171
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-008-6GHz-03-Z
Item 42708
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-12-Z
Item 38174
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-SO-010-IDC Buchse
Item 37662
- Populated with 10-pole IDC plug connector STV-IDC2,54-M-010-WW-G-Q
- Can be used in test fixtures with Pylon interface for use on the test specimen side
- Reliable signal transmission within the scope of the specification
Interface block
SB-P-HF-016-0,7GHz-06
Item 38165
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
INGUN SELECTION
Interface block
SB-P-PN-008-PK3
Item 27622
- Equipped with pneumatic contact terminals
- Suitable for test fixtures with internal or external Pylon interface
- High contact reliability and transmission quality
- Reliable transfer of compressed air within the scope of the specification
INGUN SELECTION
Interface block
SB-P-HS-045-30A-1,0
Item 16900
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
INGUN SELECTION
Interface block
SB-P-HS-024-30A-1,0-Z
Item 38700
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
Interface block
SB-P-HF-016-0,7GHz-08
Item 38163
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-SI-085-4A-0,6-Z
Item 42344
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
Interface block
SB-P-HF-016-0,7GHz-10
Item 38161
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-14-Z
Item 38172
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-01-Z
Item 38185
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
INGUN SELECTION
Interface block
SB-P-SI-040-4A-0,6-Z
Item 42339
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
Interface block
SB-P-HF-016-0,7GHz-13
Item 38158
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-09-Z
Item 38177
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-SO-002-USB-RJ45
Item 54752
- Populated with USB2.0A, RJ45 socket STV-USB2.0A/RJ45CAT05-F-EB-SR
- Can be used in test fixtures with Pylon interface for use on the test specimen side
- Reliable signal transmission within the scope of the specification
Interface block
SB-P-HF-008-6GHz-02-Z
Item 42716
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-VA-001-PG16
Item 109725
- Equipped with PG16 quick-release fitting
- Suitable for use in all test fixtures with Pylon interface
- Reliable transfer of vacuum within the scope of the specification
Interface block
SB-P-HF-016-0,7GHz
Item 31002
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-SO-009-SUB-D
Item 35909
- Populated with Sub-D plug connector STV-SUBD-F-009-WW-G13
- Can be used in test fixtures with Pylon interface for use on the test specimen side
- Reliable signal transmission within the scope of the specification
Interface block
SB-P-HF-016-4GHz-05-Z
Item 38181
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-SI-170-4A-0,6-RD
Item 52313
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
Interface block
SB-P-HF-008-6GHz-Z
Item 42627
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-004-18GHz
Item 35532
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-MB-20/4-30A/PK3-A
Item 50581
- Populated with INGUN (and pneumatic) contact terminals
- Suitable for test fixtures with internal or external Pylon interface
- High contact reliability and transmission quality
- Reliable signal transmission within the scope of the specification
Interface block
SB-P-MB-20/4-30A/PK3
Item 31867
- Populated with INGUN (and pneumatic) contact terminals
- Suitable for test fixtures with internal or external Pylon interface
- High contact reliability and transmission quality
- Reliable signal transmission within the scope of the specification
INGUN SELECTION
Interface block
SB-P-SI-136-4A-0,6
Item 33665
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
Interface block
SB-P-HS-002-50A-1,0
Item 31550
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
Interface block
SB-P-HF-016-0,7GHz-02
Item 38169
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-008-6GHz-07-Z
Item 42628
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-11-Z
Item 38175
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-0,7GHz-14
Item 38157
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-02-Z
Item 38184
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
Interface block
SB-P-HF-016-4GHz-10-Z
Item 38176
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification

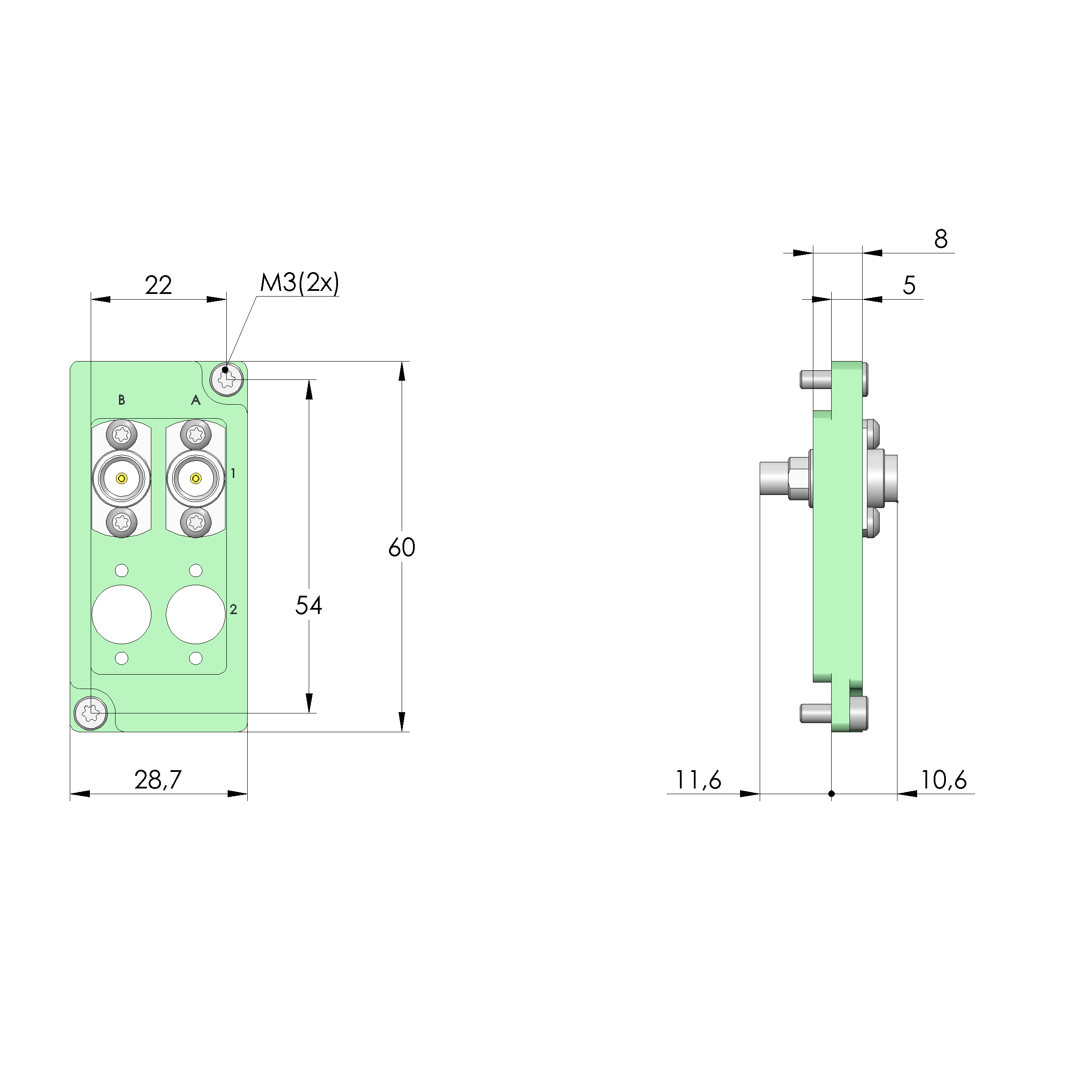

Interface block
SB-P-HF-004-18GHz-02
Item 55752
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of radio-frequency signals within the scope of the specification
