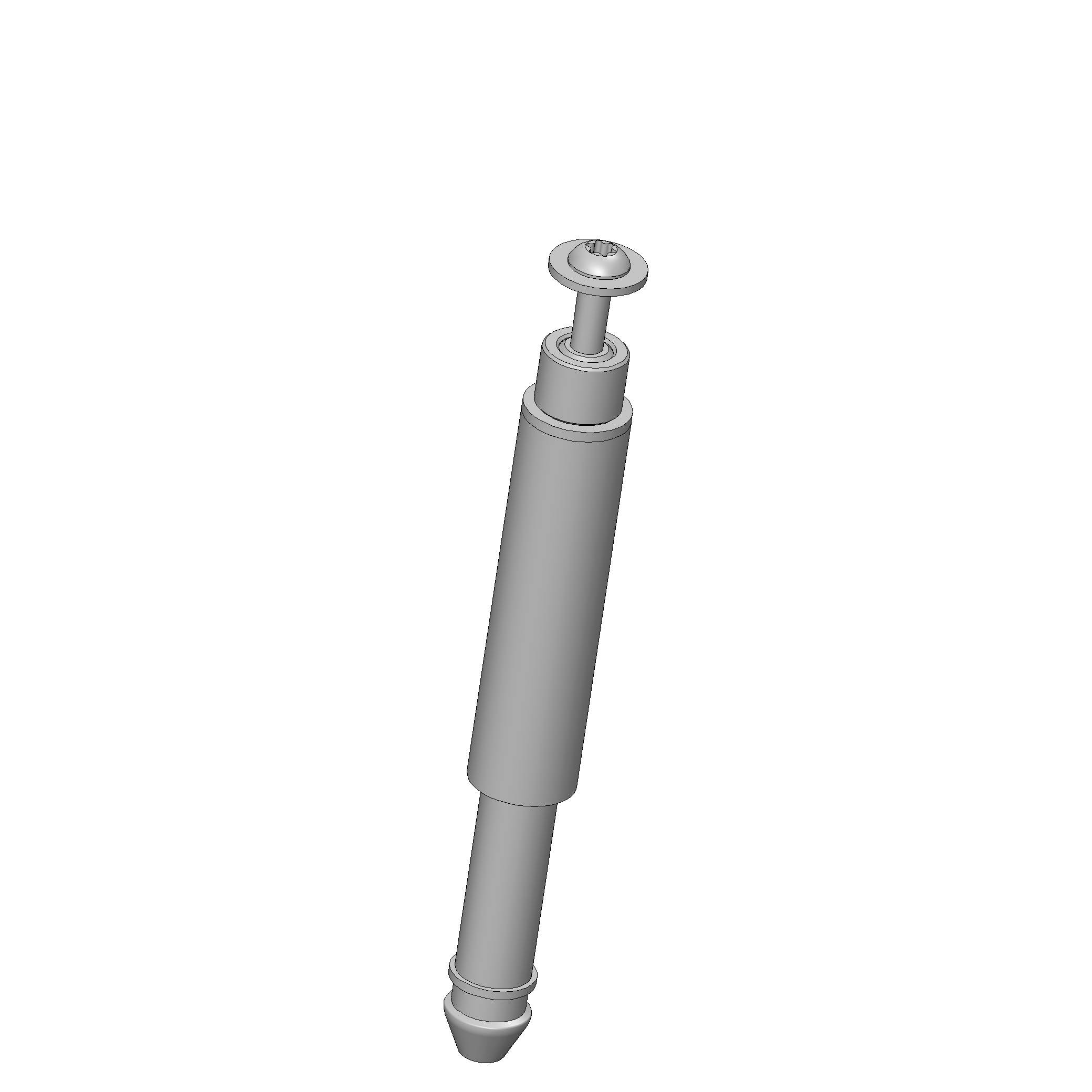

Mechanic bending pin MBS-60-08-2,5-06,8 Item 42731

Mechanic bending pin MBS-60-08-2,5-06,8 Item 42731

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Document (42731__Kundenzeichnung.PDF)
CAD file (INGUN_42731.STEP)
Product datasheet (EN|pdf)
Choose version
MBS-60-08-2,5-06,8 (42731)
MBS-60-08-2,5-06,8 (42731)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Mechanical accessory
Series : MBS
Type : Bending pin
Version : Single-stage contacting
Accessory type : Additional function
Weight : 0.01 kg
Min. temperature : + 10 °C
Max. temperature : + 60 °C
RoHS-compliant : RoHS-3;6b
Technical data
Force : 1 N

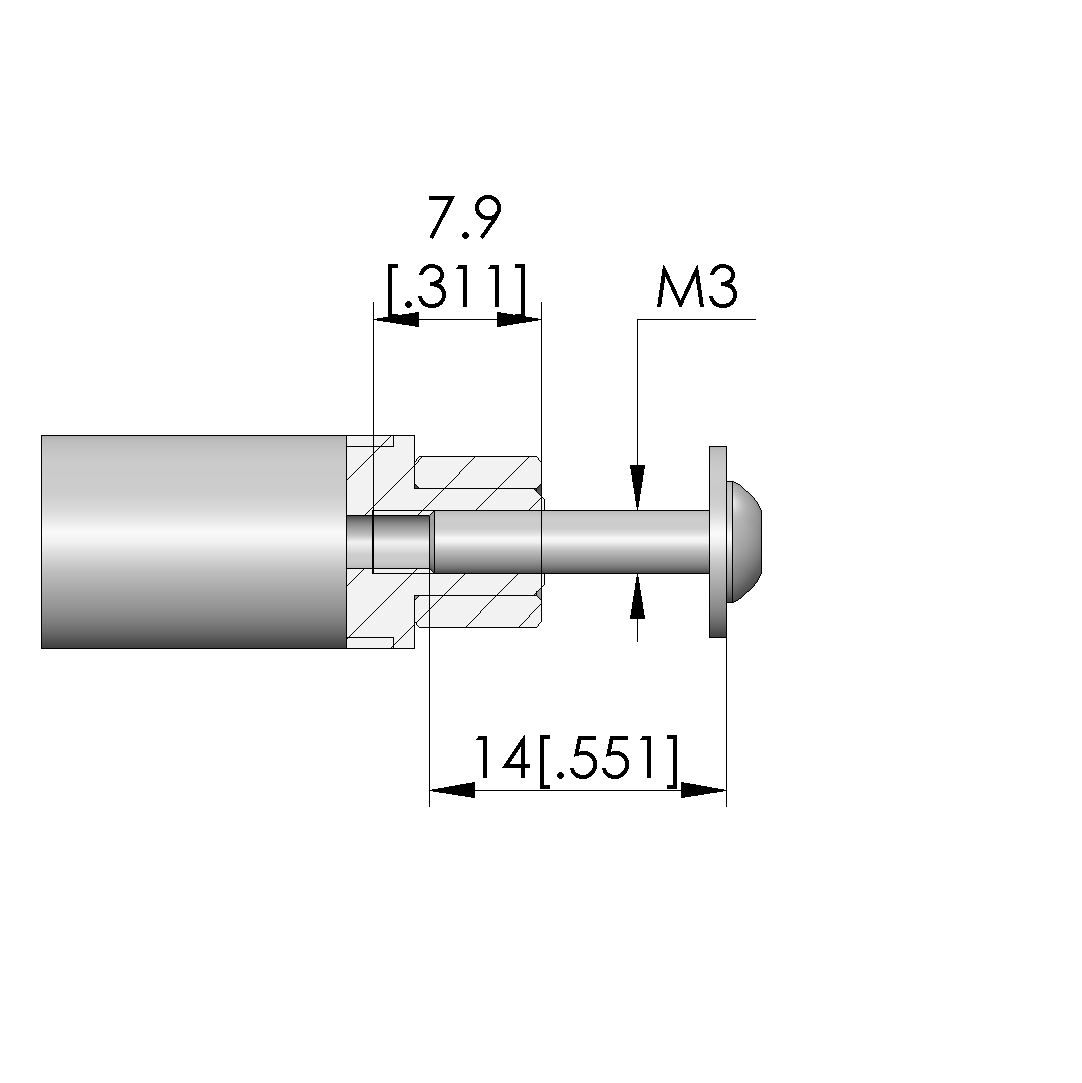

Installation : Thread M3

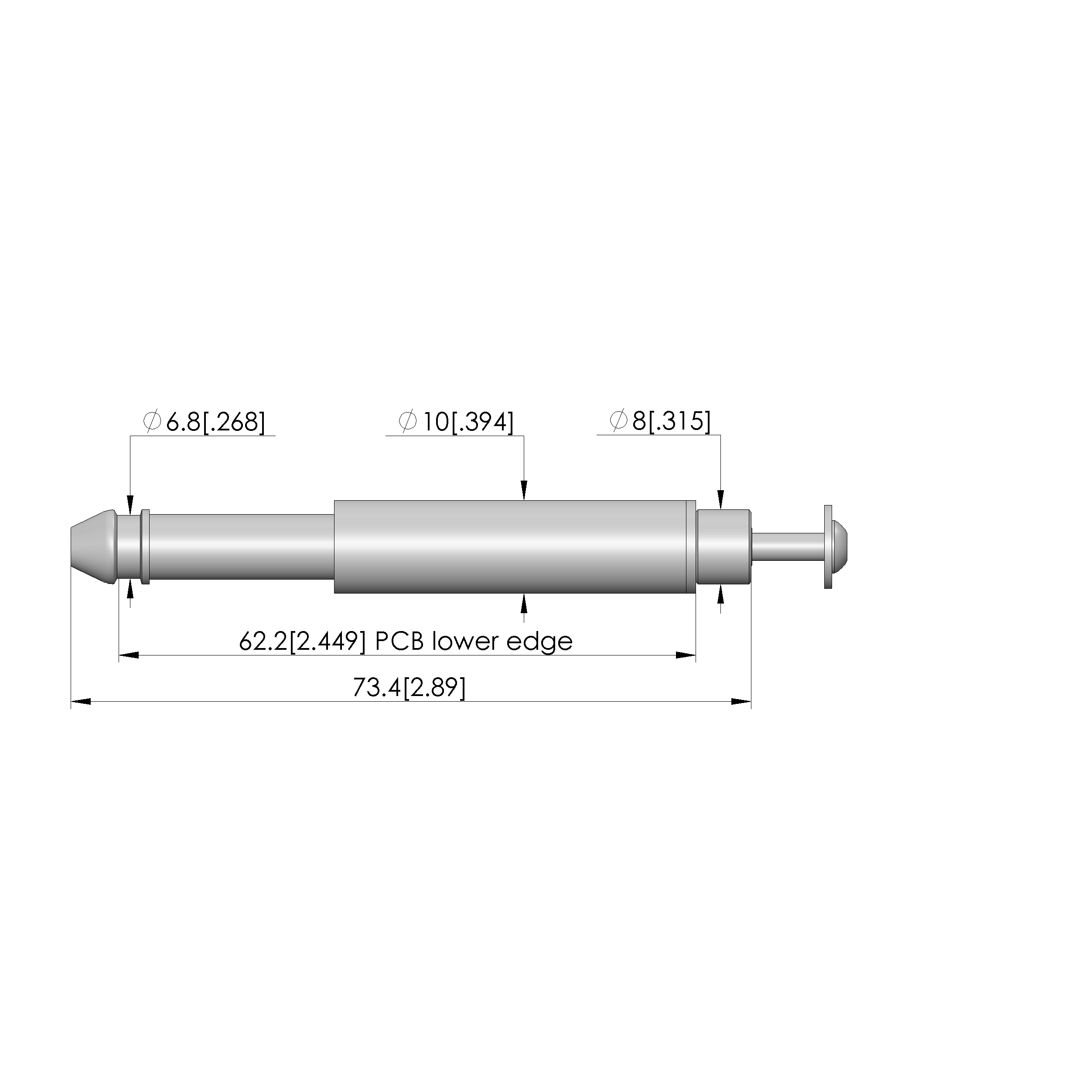

Length : 83.8 mm
Diameter : 10.0 mm
Compatible with
Exchangeable kits version : No limitations
