High-current probe HSS-552 306 400 A 2003 M Item HSS-552-0001

Downloads
Conformation of RoHS compliance (EN|PDF)
CAD file (INGUN_HSS-552_306_400_A_xx03_M.STEP)
Product datasheet (EN|pdf)
Choose version
HSS-552 306 400 A 2003 M (HSS-552-0001) INGUN SELECTION
HSS-552 302 400 A 2003 M (HSS-552-0004) HSS-552 306 400 A 2003 M (HSS-552-0001) INGUN SELECTION
Here you can optionally configure a new variant:
Technical data
General data
Product group : High-current test probe
Sub-product group : Short stroke HSS
Series : HSS-552 M screw-in
Grid : 5.08 mm
Contacting from : Pin, Post, Flat contact
Magnetic : Yes
Installation type : Screw-in
Quick-exchange system : Yes
Adjustable installation height : No
Non-rotating : No
Screw-in torque : 10 - 20 cNm
Compatible receptacle(s) : KS-552 M
Min. temperature : - 100 °C
Max. temperature : + 200 °C
RoHS-compliant : RoHS-3;6c
Electrical data
Current load capacity / rated current : 50 A
Typical resistance (Ri) : < 10 mOhm
Mechanical data
Total length : 17.1 mm
Barrel diameter : 3.5 mm
Maximum stroke : 2.5 mm

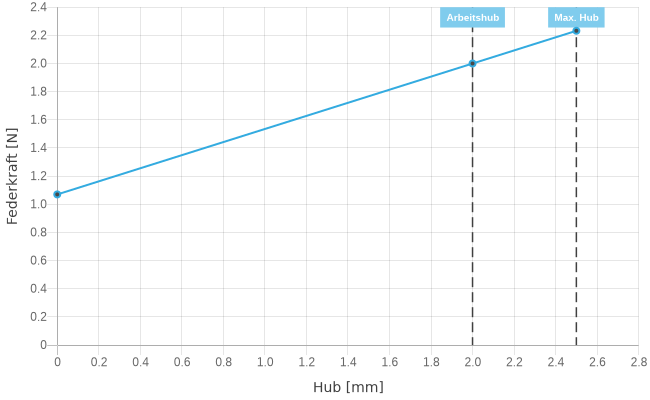

Spring pre-load : 0.89 N
Collar height : 03
Spring force at working stroke : 2 N
Working stroke : 2 mm
Tip style data
Tip style : 06 serrated
Tip diameter : 4 mm
Tip style surface : A gold
Tip style material : 3 CuBe

Receptacles for installation height 7.50 mm
