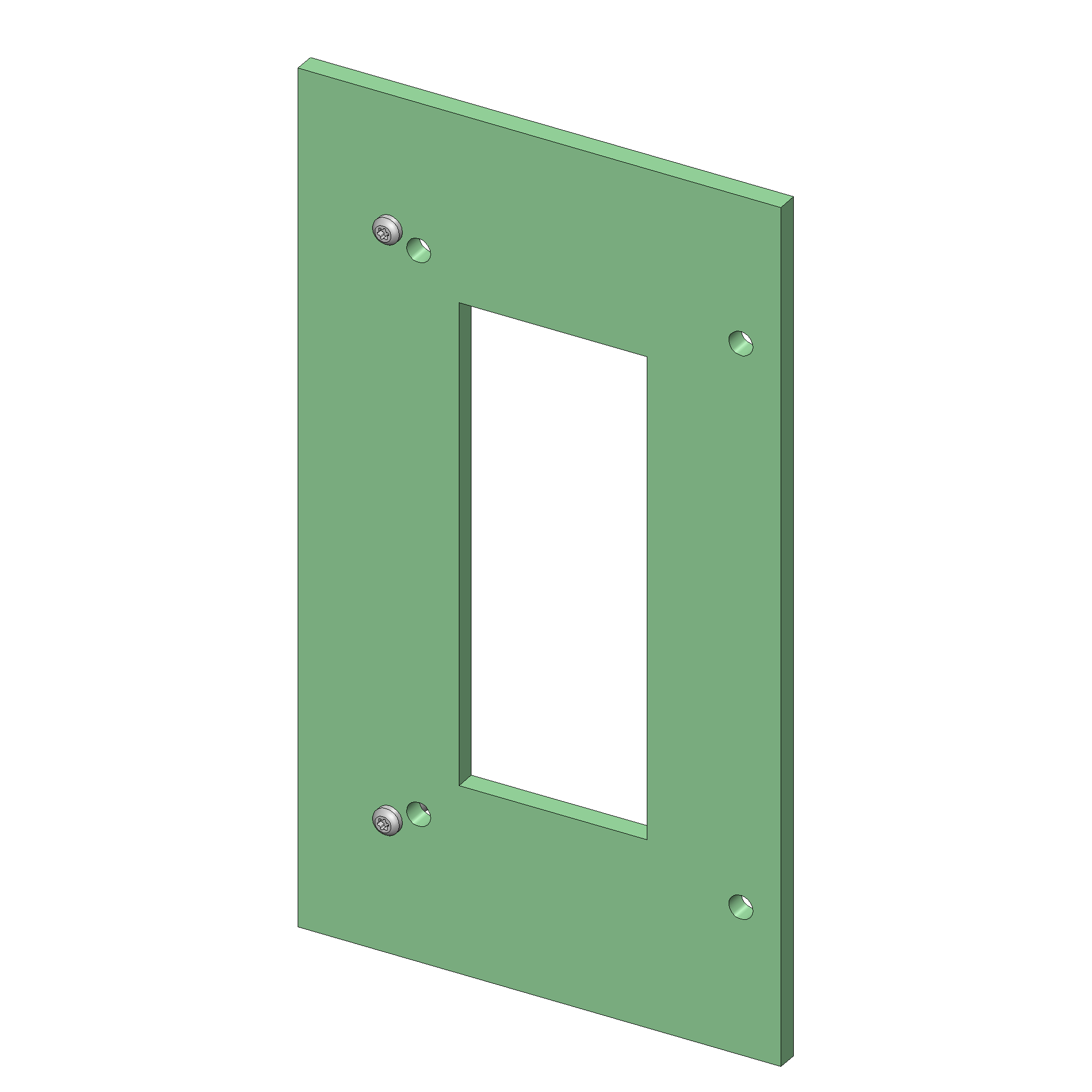

Tool, drilling jig WZ-BL-194-FB-ADT-MAxxxx Item 114957

  • Drilling jig for functional unit push button box (FB-ADT-MAxxxx)
Show more Show less

Tool, drilling jig WZ-BL-194-FB-ADT-MAxxxx Item 114957

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Document (114957__Kundenzeichnung.PDF)
Product datasheet (EN|pdf)
CAD file (INGUN_114957.STEP)
Choose version
WZ-BL-194-FB-ADT-MAxxxx (114957)
WZ-BV-001-FB-VER-xxx (113951) WZ-AZ-001-FB-OSA-E-Maxxxx (114221) WZ-BL-194-FB-ADT-MAxxxx (114957) WZ-BV-138-FB-ABF-G-S-MAxxxx (114940) WZ-BV-137-FB-KSG-MAxxxx (114954)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Mechanical accessory
Series : WZ
Type : Tool
Version : Drilling jig
Accessory type : Customising accessory
Scope of delivery : Assembled
Material : FR4
Width : 90 mm
Height : 4 mm
Weight : 0.08 kg
Min. temperature : + 10 °C
Max. temperature : + 60 °C
RoHS-compliant : RoHS-3
Technical data
Length : 160 mm

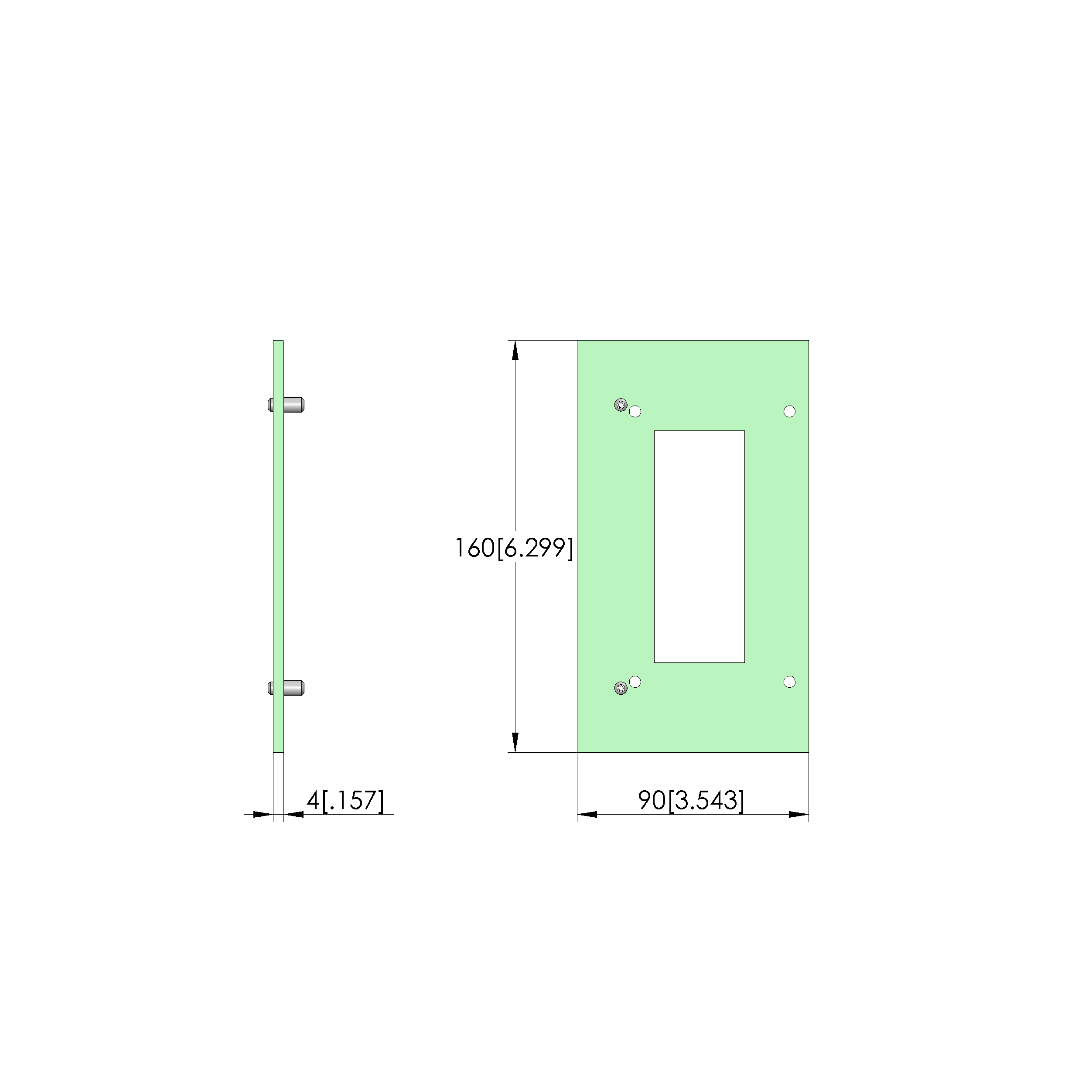

Outer dimensionS (WxDxH) : 160 x 90 x 4 mm
Compatible with
Manual test fixtures (MA) : MA xxxx, MA xxxxT
Accessories : FB-ADT-MAxxxx
