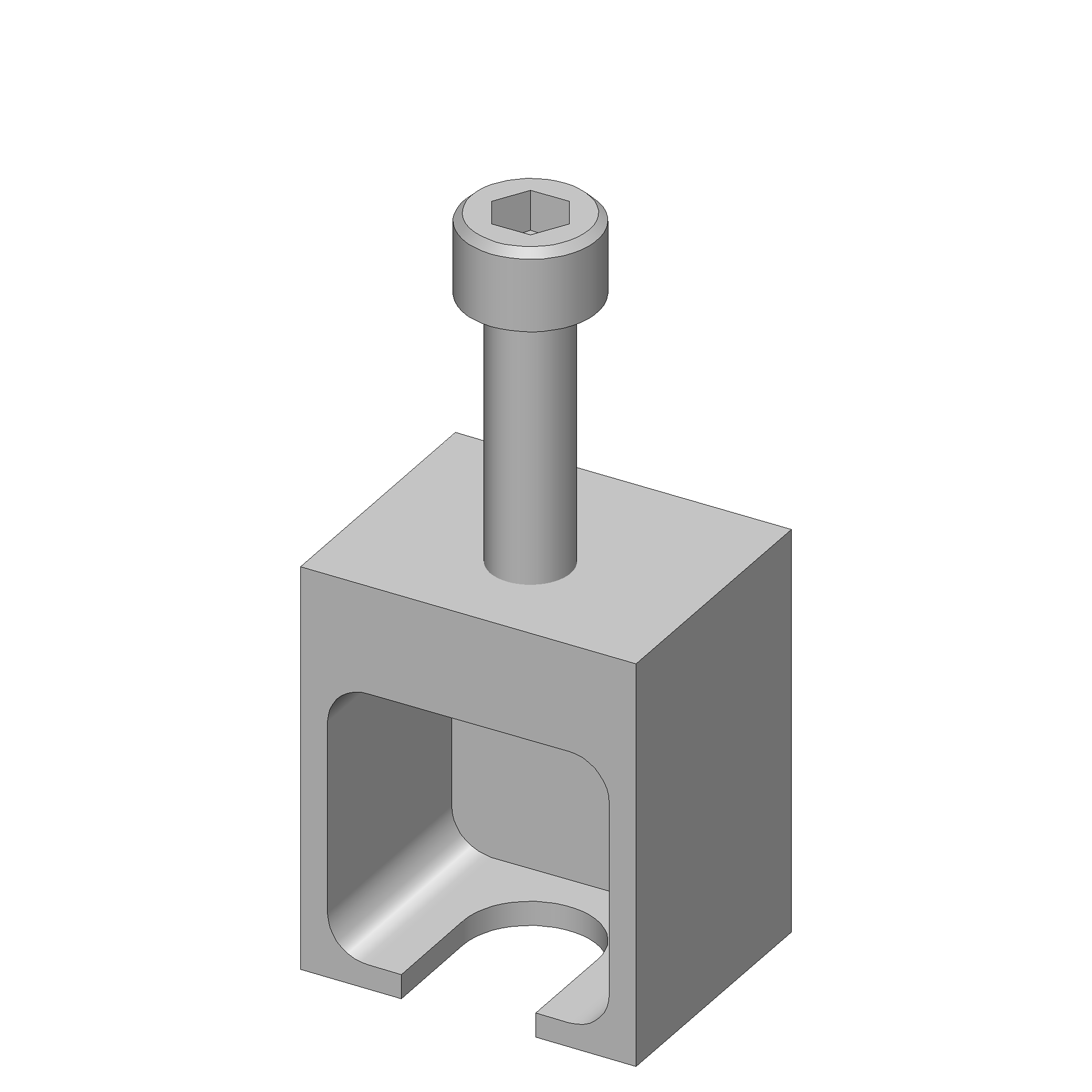

Tool, extraction device WZ-AZ-001-FB-OSA-E-Maxxxx Item 114221

Downloads
Conformation of RoHS compliance (EN|PDF)
CAD file (INGUN_114221.STEP)
Document (114221__Kundenzeichnung.PDF)
Product datasheet (EN|pdf)
Choose version
WZ-AZ-001-FB-OSA-E-Maxxxx (114221)
WZ-BV-001-FB-VER-xxx (113951) WZ-AZ-001-FB-OSA-E-Maxxxx (114221) WZ-BL-194-FB-ADT-MAxxxx (114957) WZ-BV-138-FB-ABF-G-S-MAxxxx (114940) WZ-BV-137-FB-KSG-MAxxxx (114954)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Mechanical accessory
Series : WZ
Type : Tool
Version : Extraction device
Accessory type : Customising accessory
Scope of delivery : Assembled
Material : 1.0037, nickel-plated

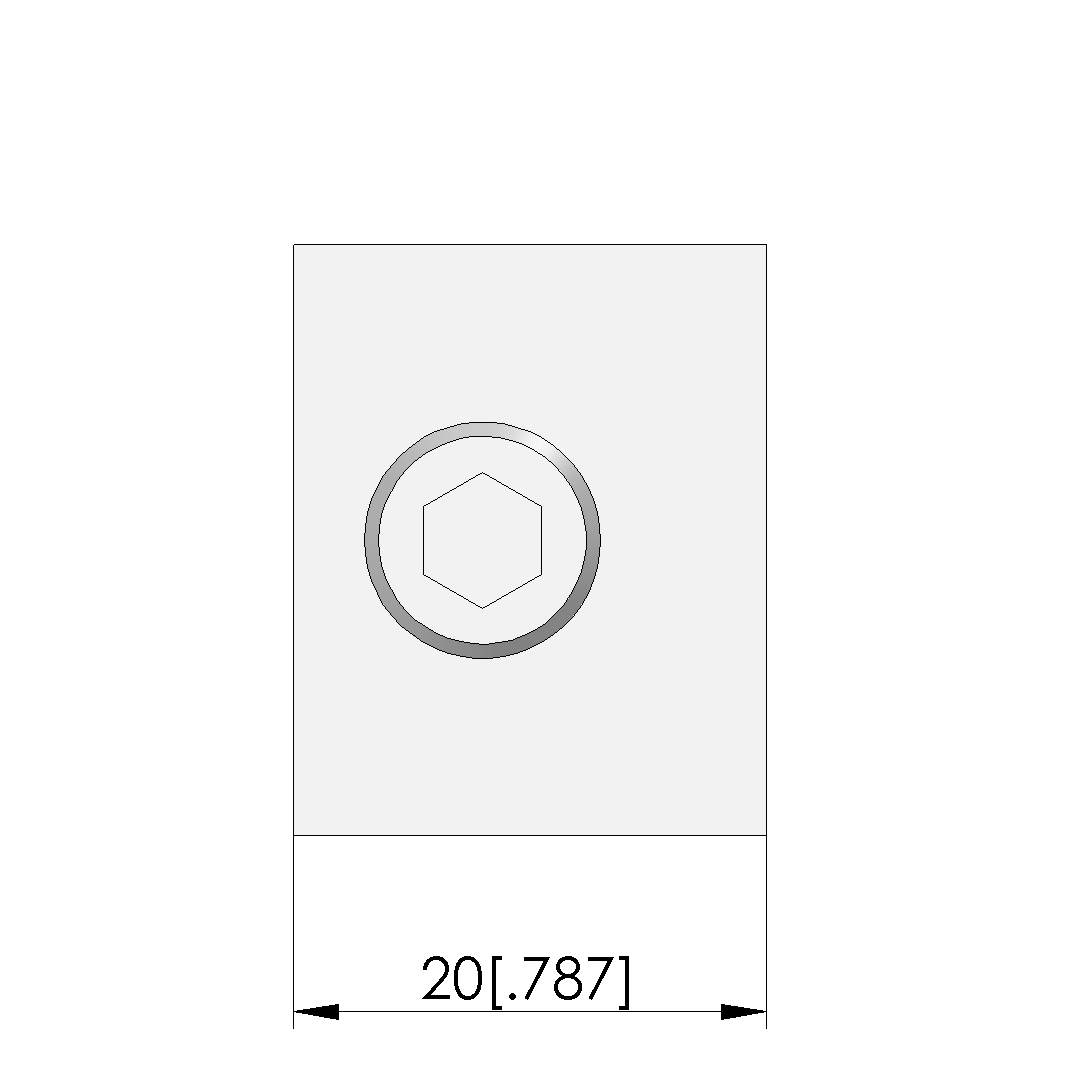

Width : 20 mm

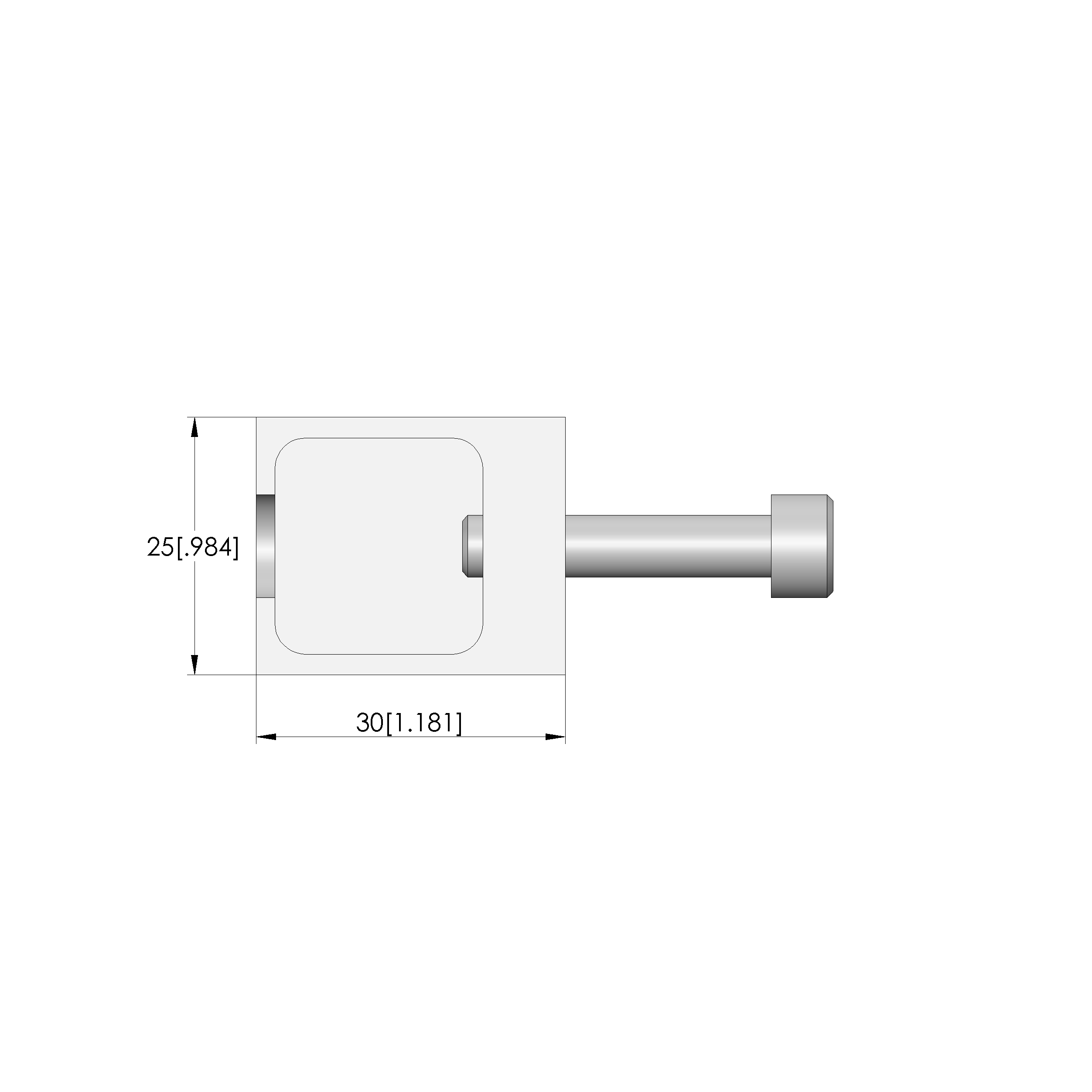

Height : 30 mm
Weight : 0.08 kg
Min. temperature : + 10 °C
Max. temperature : + 60 °C
RoHS-compliant : RoHS-3
Technical data
Length : 25 mm
Outer dimensionS (WxDxH) : 25 x 20 x 30 mm
Compatible with
Manual test fixtures (MA) : MA xxxx, MA xxxxT
Accessories : FB-OSA-E-MAxxxx
