Pre-centring pin VZ-R-08-26-M-X Item 2518

Downloads
Conformation of RoHS compliance (EN|PDF)
CAD file (INGUN_2518.STEP)
Document (2518__Kundenzeichnung.PDF)
Product datasheet (EN|pdf)
Choose version
VZ-R-08-26-M-X (2518)
VZ-R-06-13-K (25519) VZ-R-12-22-K-ESD (23056) INGUN SELECTION VZ-R-12-22-K-X (42295) INGUN SELECTION VZ-R-12-28-K (19462) VZ-R-12-42-K-ESD (44253) VZ-R-08-26-M-X (2518) VZ-R-10-13-K (21628) INGUN SELECTION VZ-R-12-19-K (20616) VZ-R-12-22-K (13781) INGUN SELECTION VZ-R-08-41-M-X (2519) VZ-R-12-35-K (50021) VZ-R-12-50-K (46758)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Pre-centering pins
Series : VZ
Type : Not ESD compliant
Version : Round, eccentric
Accessory type : Customising accessory
Material : 1.0037, galvanised
RoHS-compliant : RoHS-3
Technical data
Installation : Full dog point M4
Length : 26 mm
Diameter : 8 mm
Compatible with
Exchangeable kits version : No limitations
Manual test fixtures (MA) : MA 2009, MA 2011, MA 2012, MA 2013, MA 2013T, MA 2014
Vacuum test fixtures (VA) : VA xxxx
MA exchangeable kits (ATS MA) : ATS MAxx, ATS MAxxx
VA exchangeable kits (ATS VA) : ATS VINxxx
PA exchangeable kits (ATS PA) : ATS PAZxxx, ATS PAxxxx

Vacuum test fixtures

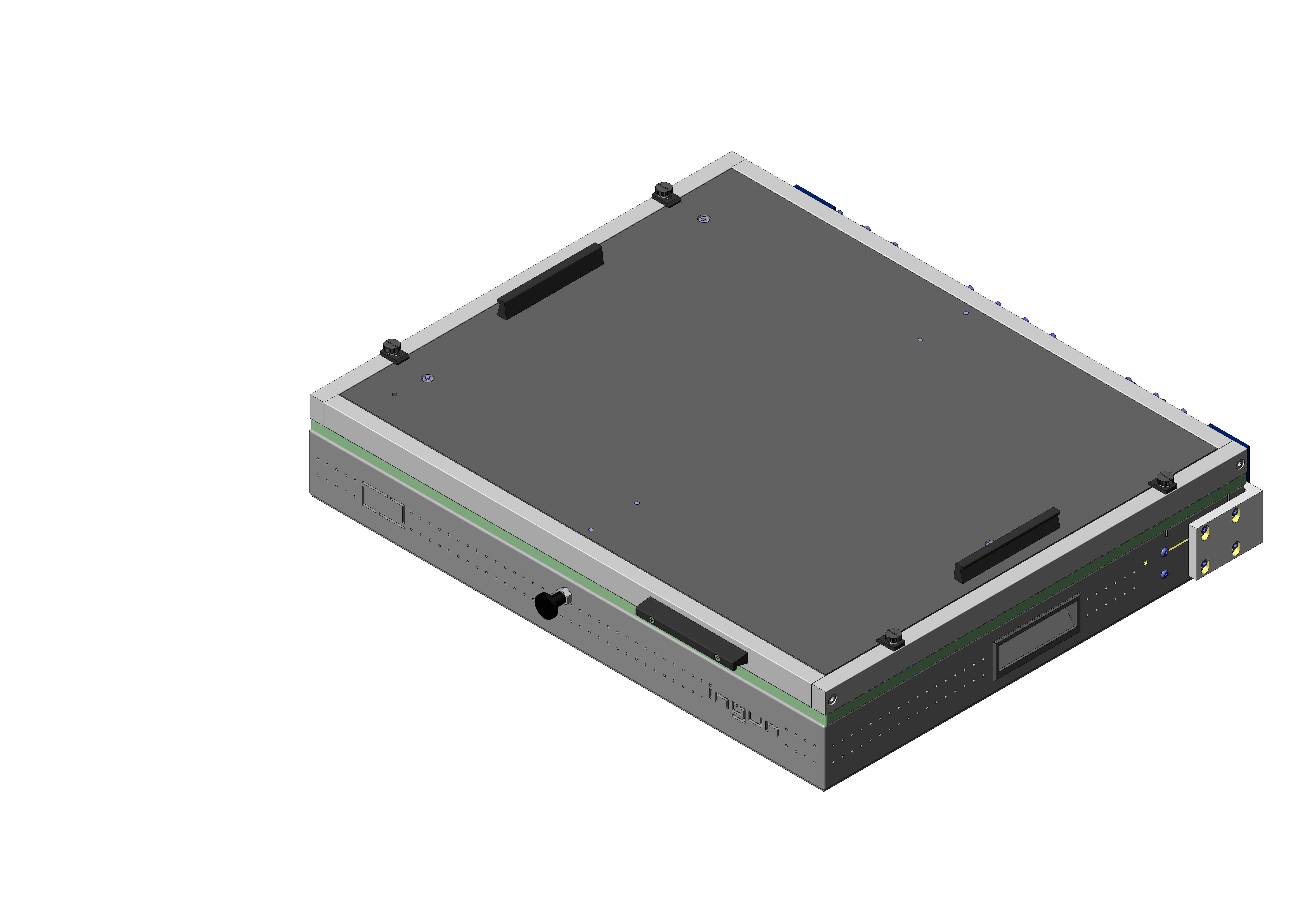

Vacuum test fixture VA 2073L/i3070-5 Item 8326
  • Vacuum test fixture with parallel closing vacuum cassette for testing large PCB quantities
  • Robust, maintenance-friendly design with outstanding service life
  • Stand-alone test fixtures with pre-configured test system interface
  • Available for Keysight i3070 test system
  • Increased operating convenience without significant closing forces
  • Single-stage and dual-stage versions
  • Detailed accompanying documents (e.g., customising guidelines)

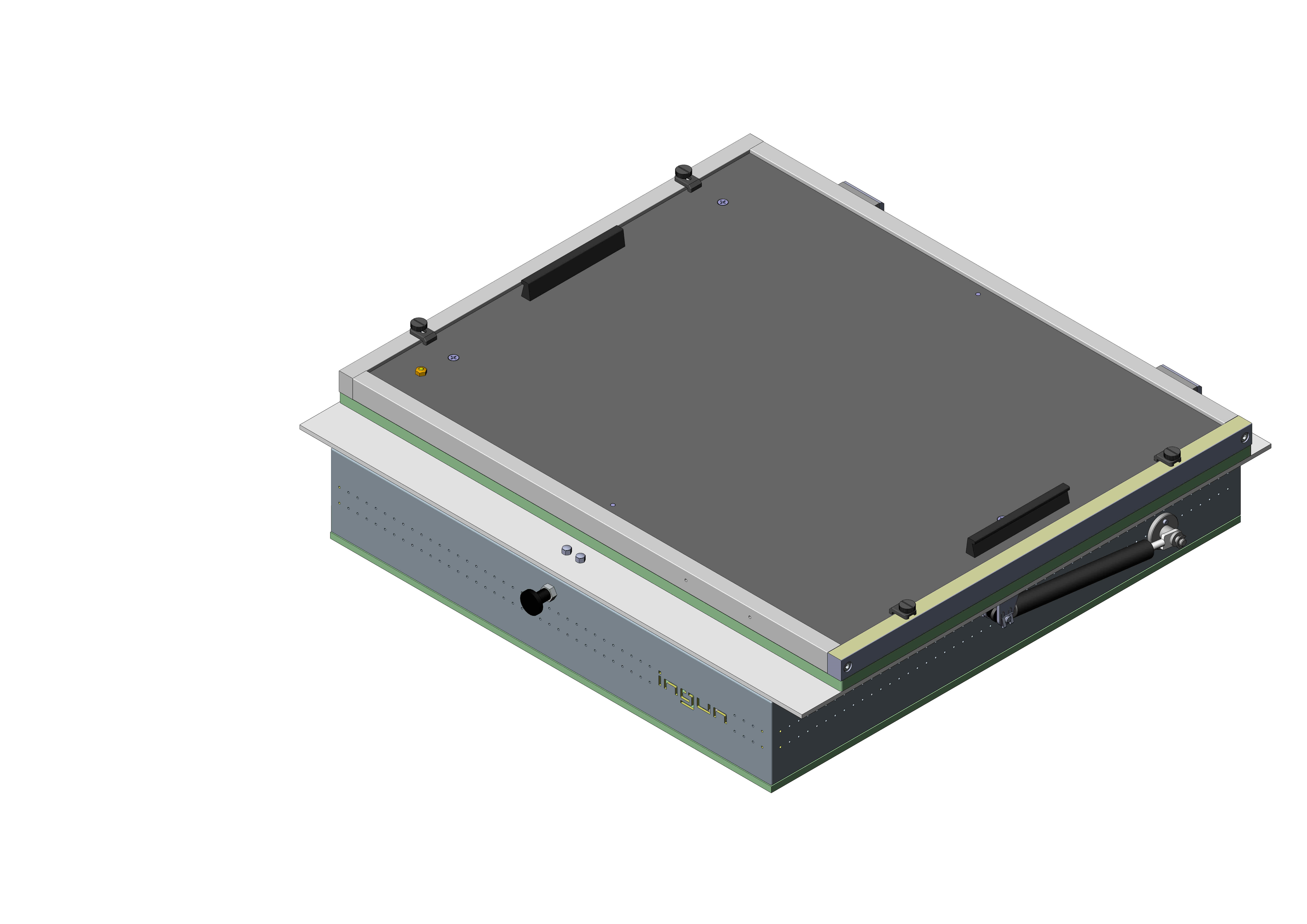

Vacuum test fixture VA 2070S/i3070-5 Item 4844-KIT
