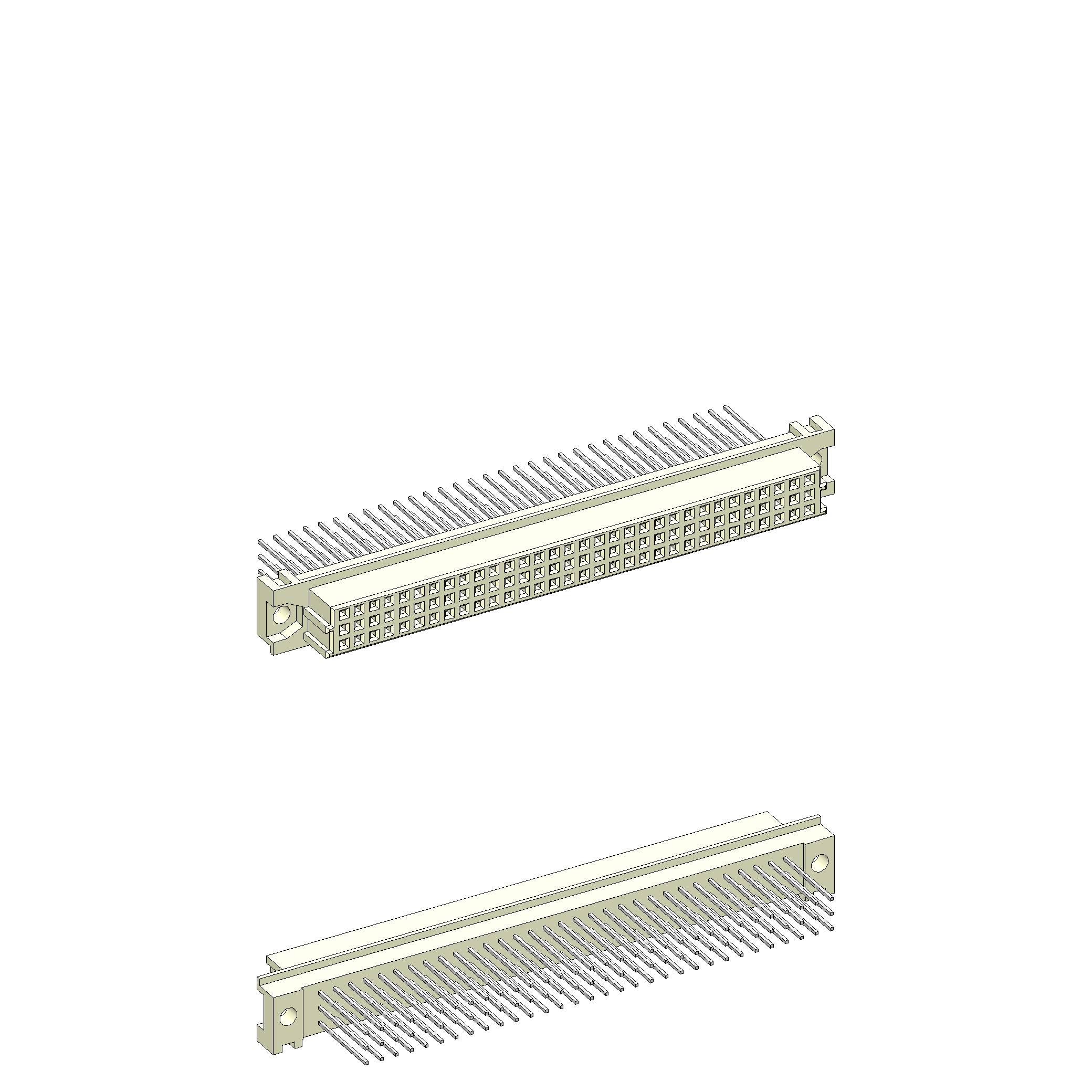

Connector - multipole female STV-VG96abc-F-WW-G Item 8257

  • Trusted connectors for multi-pole electrical signal transmission
  • Available as male and female multipoint connectors with 64 or 96 poles
  • Available with wire-wrap and solder connection
Show more Show less

Connector - multipole female STV-VG96abc-F-WW-G Item 8257

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Product datasheet (EN|pdf)
CAD file (INGUN_8257.STEP)
Choose version
STV-VG96abc-F-WW-G (8257)
STV-VG32ac-M-WW-G13-Q (13001) STV-VG64ac-F-L-G04 (4865) STV-VG64ac-M-WW-G13-Q (11438) STV-VG96abc-M-WW-G13 (5195) STV-VG64ac-M-WW-G13 (4864) LAB-PB-096-abc-WW-BL-VG (13133) STV-VG96abc-F-WW-G (8257) STV-VG64ac-F-T-G13 (8256) STV-VG96abc-F-L-G04 (10422)
Here you can optionally configure a new variant:
Technical data
General data
Product group : VG-multipoint connectors
Series : VG
Type : Female socket connector
Version : C, straight
Accessory type : Customising accessory
Material : Contacts, gold-plated
Component assembly : abc
RoHS-compliant : RoHS-3
Technical data
Connection : Wire-wrap posts
Current rating : 2 A
Number of poles : 96
Installation grid : 2.54 mm
Post length : 13 mm
Compatible with
Exchangeable kits version : Standard # ESD
MA exchangeable kits (ATS MA) : ATS MAxxx
Side approach mechanism : SAM-M-14-300N-202-145, SAM-M-14-300N-268-145
Accessories : FB-VGL-96-ATSMAxxx
