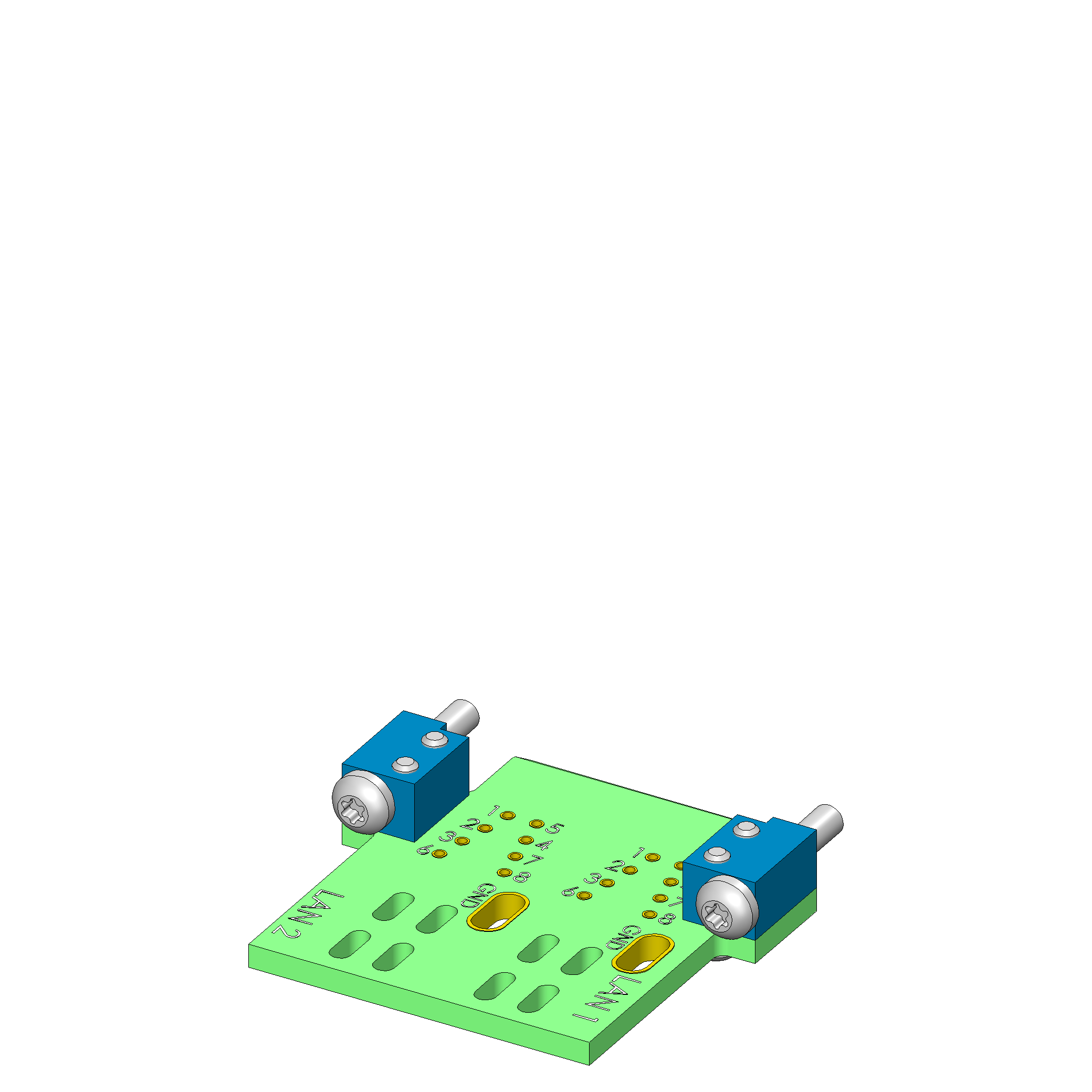

Connector - HSD-SB STV-HSD-SB-T-LAN-002 Item 116695

New
  • LAN HSD connector for test-side HSD interface block SB-T-HSD-005
  • Reliable transmission of LAN signals
  • HSD signal transmission via an interface (serial additional HSD interface blocks not yet possible)
  • Two independent LAN channels for signal transmission
  • Signal connection by soldering of commercially available LAN cables, separated on one side, to 8 free solder vias with ground.
  • Colour-coded assignment of the HSD connectors, green for HSD interface block on the test system side
  • Consistently stable signal quality throughout
  • Gross data rate up to 1 Gbit/s
  • PoE (power over Ethernet) compatible, in accordance with IEEE 802.3
Show more Show less

Connector - HSD-SB STV-HSD-SB-T-LAN-002 Item 116695

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Product datasheet (EN|pdf)
Document (116695__Kundenzeichnung.PDF)
CAD file (INGUN_116695.STEP)
Choose version
STV-HSD-SB-T-LAN-002 (116695)
STV-USB2.0A-F-EB-SR (54751) STV-2,54STL-M-072-PS-WW-G13 (24685) STV-BL17-F-C (115189) SBZ-B-SI (115476) STV-HSD-SB-P-USBC (116166) STV-HSD-SB-P-USBA3.1 (116356) STV-HSD-SB-T-USBC (116167) STV-HSD-SB-T-USBA3.1 (116352) STV-HSD-SB-P-LAN-002 (116714) STV-USB2.0A/B-F-EB-SR-REV (27418) STV-BMA/SMA-M/F-18GHz-50OHM-FS (37065) STV-PK4-M4-SW (3645) STV-HSD-SB-T-LAN-002 (116695) STV-BL12-F-C (116059) STV-PK4-M4-RT (8847) STV-RJ45CAT05-F-EB-SR (54750) STV-SUBD-F-009-WW-G13 (29629) STV-2,54STL-M-072-T-WW-G13 (28078) STV-BL10-F-C (43377) STV-BMA/SMA-F/F-18GHz-50OHM-FL (35533)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Electric accessory
Series : STV
Type : HSD-SB connector
Version : LAN (test system side)
Accessory type : Customising accessories
Scope of delivery : Includes installation accessories
Component assembly : 2x 8 Lötvias
Colour : Grün
Width : 28 mm
Height : 7 mm
Weight : 0.01 kg
Min. temperature : + 10 °C
Max. temperature : + 60 °C
RoHS-compliant : RoHS-3
Technical data
Connection : Solder connection (vias)
Installation : Screw M2
Number of poles : 2
Gross data rate : 1 Gbit/s
Length : 28.5 mm

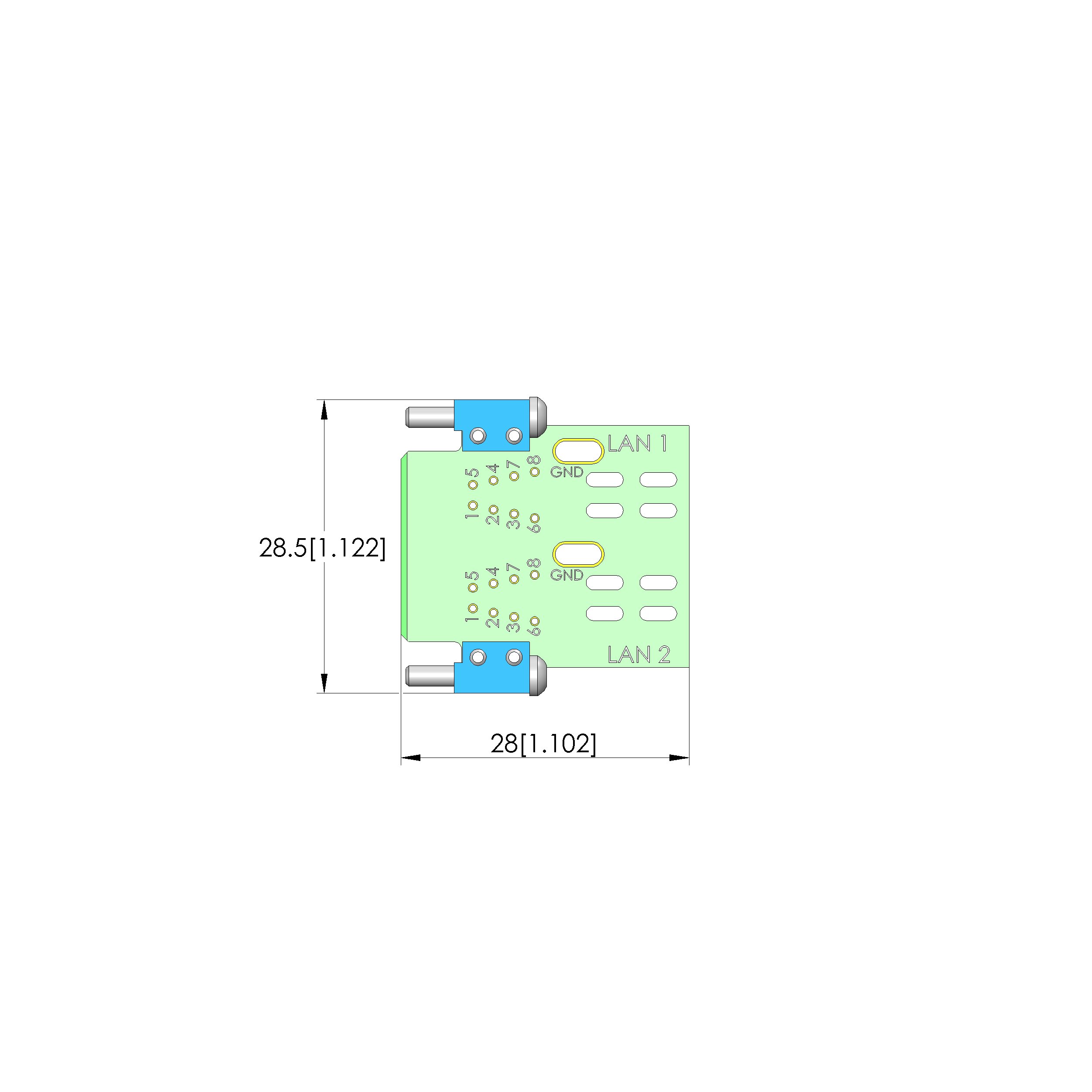

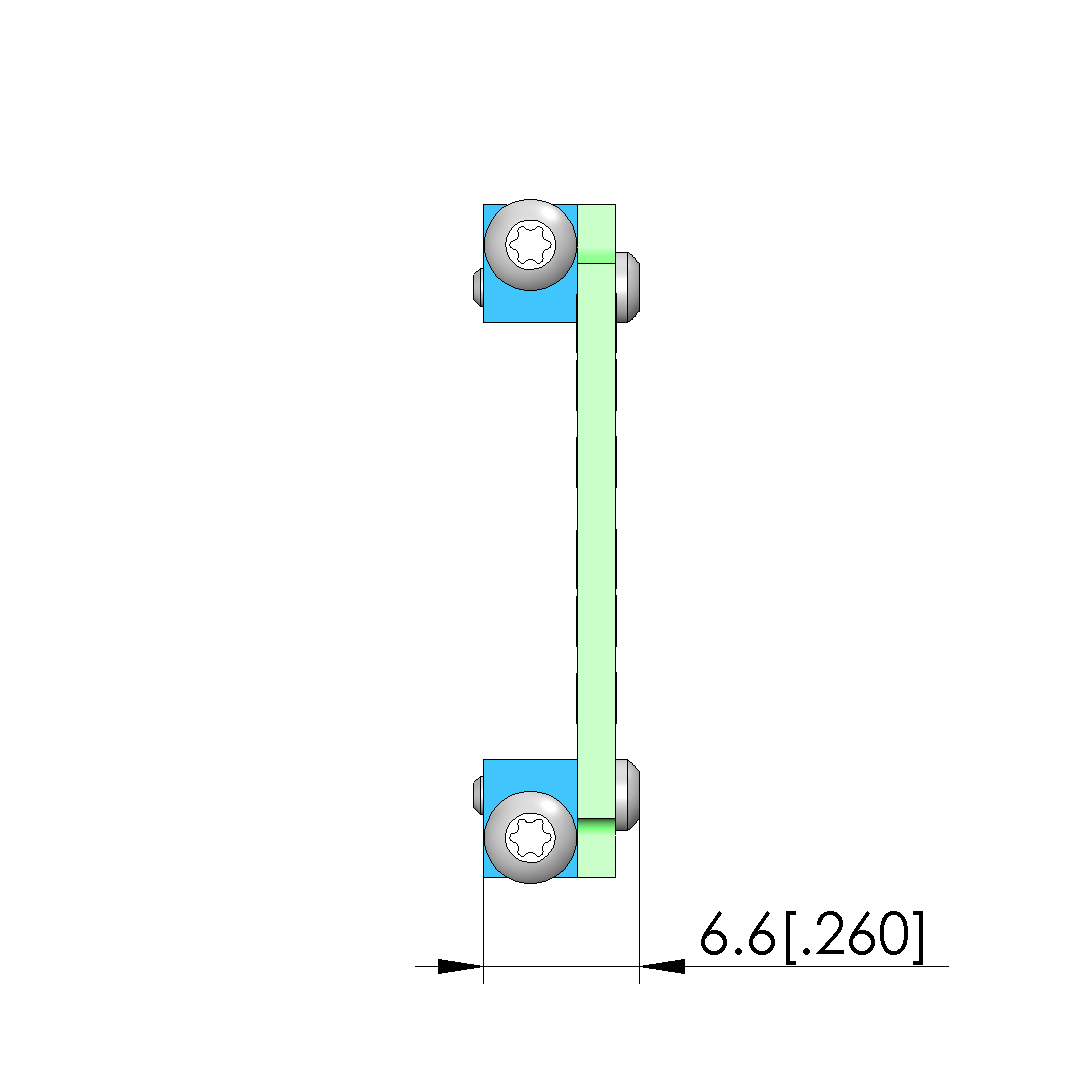

Outer dimensionS (WxDxH) : 28.5 x 28.0 x 7.0 mm
Compatible with
Interface blocks (SB) : SB-T-HSD-005
