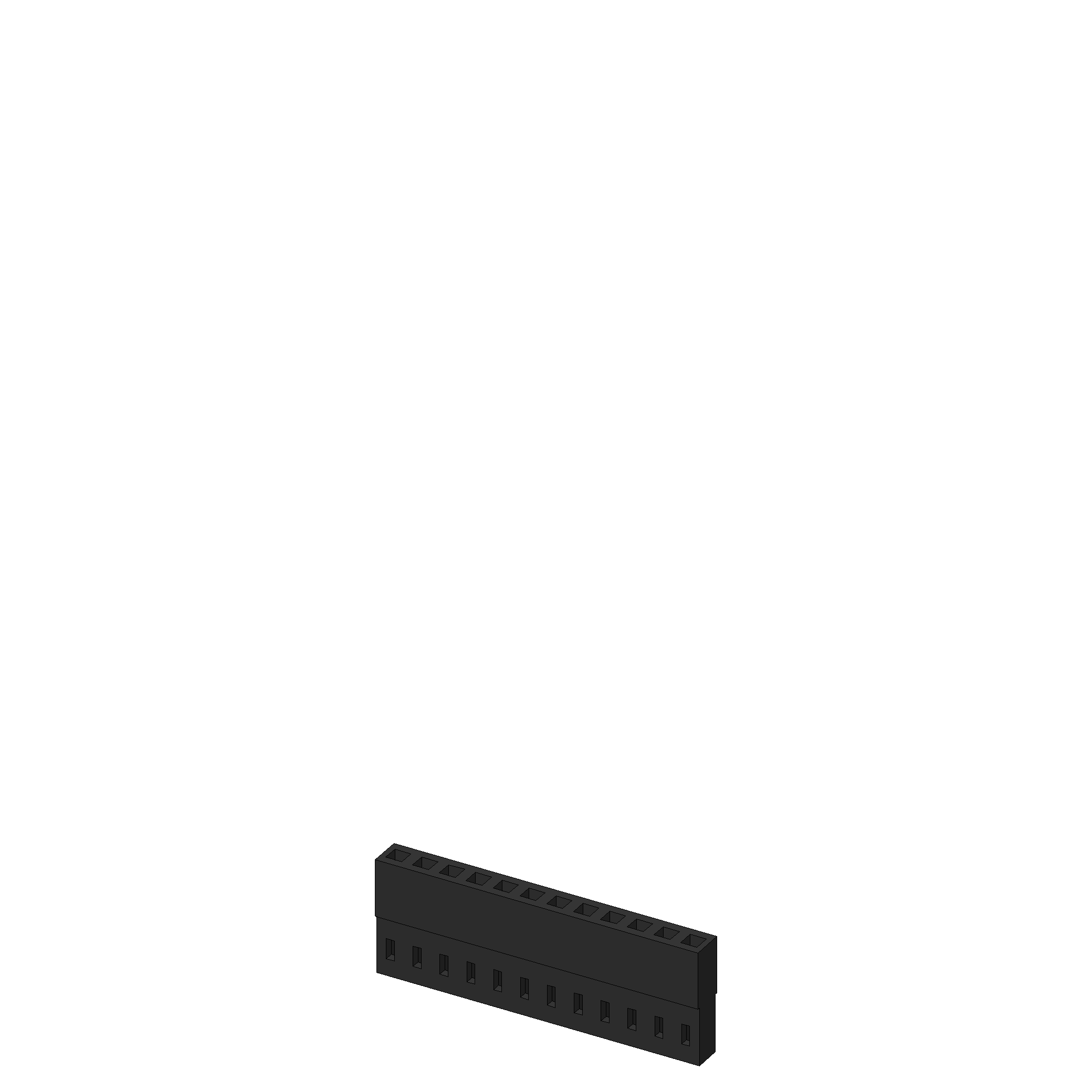

Connector housing STV-BL12-F-C Item 116059

  • Single-row connector housing for use with stranded wires with crimp connection
  • Consistently precise external dimensions
Show more Show less

Connector housing STV-BL12-F-C Item 116059

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
CAD file (INGUN_116059.STEP)
Document (116059__Kundenzeichnung.PDF)
Product datasheet (EN|pdf)
Choose version
STV-BL12-F-C (116059)
STV-USB2.0A-F-EB-SR (54751) STV-2,54STL-M-072-PS-WW-G13 (24685) STV-BL17-F-C (115189) SBZ-B-SI (115476) STV-HSD-SB-P-USBC (116166) STV-HSD-SB-P-USBA3.1 (116356) STV-HSD-SB-T-USBC (116167) STV-HSD-SB-T-USBA3.1 (116352) STV-HSD-SB-P-LAN-002 (116714) STV-USB2.0A/B-F-EB-SR-REV (27418) STV-BMA/SMA-M/F-18GHz-50OHM-FS (37065) STV-PK4-M4-SW (3645) STV-HSD-SB-T-LAN-002 (116695) STV-BL12-F-C (116059) STV-PK4-M4-RT (8847) STV-RJ45CAT05-F-EB-SR (54750) STV-SUBD-F-009-WW-G13 (29629) STV-2,54STL-M-072-T-WW-G13 (28078) STV-BL10-F-C (43377) STV-BMA/SMA-F/F-18GHz-50OHM-FL (35533)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Electric accessory
Series : STV
Type : Connector housing
Version : Single-row
Accessory type : Customising accessories
Scope of delivery : Unpopulated, without crimp connection
Component assembly : female
Material : Plastic
Colour : Schwarz
Width : 8.5 mm
Height : 2.5 mm
Min. temperature : - 40 °C
Max. temperature : + 105 °C
RoHS-compliant : RoHS-3
Technical data
Connection : Plug connection
Number of poles : 12

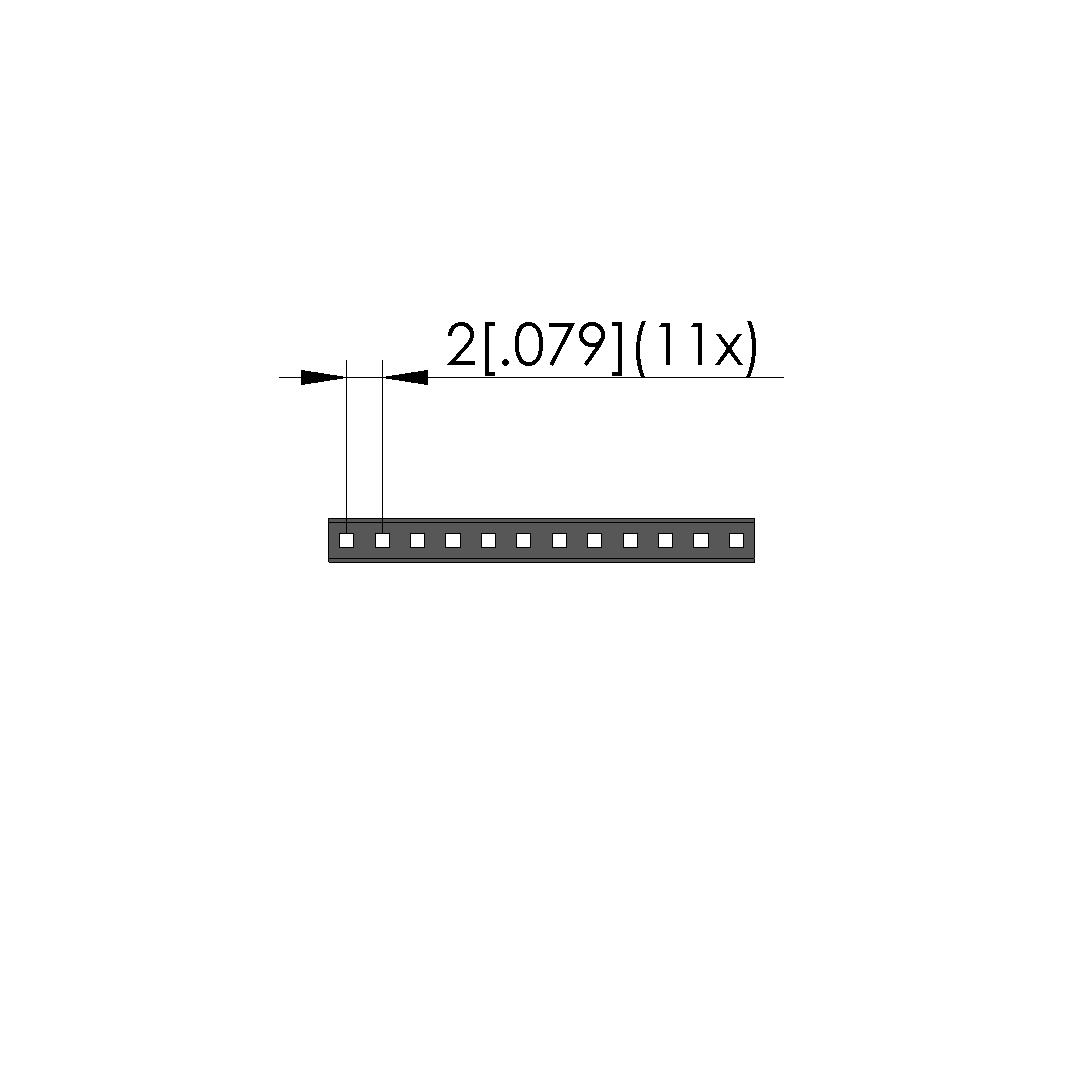

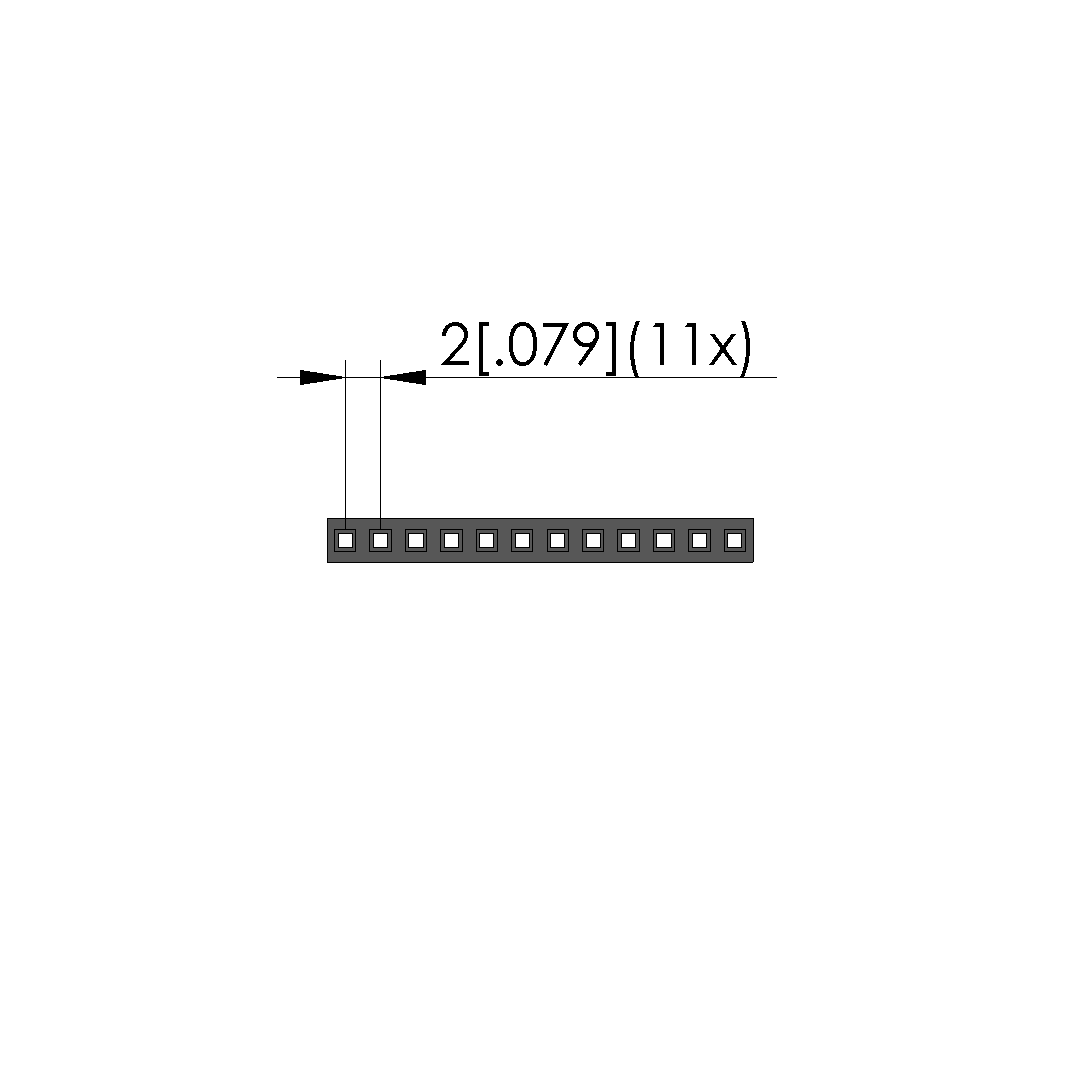

Installation grid : 2 mm
Length : 24.1 mm

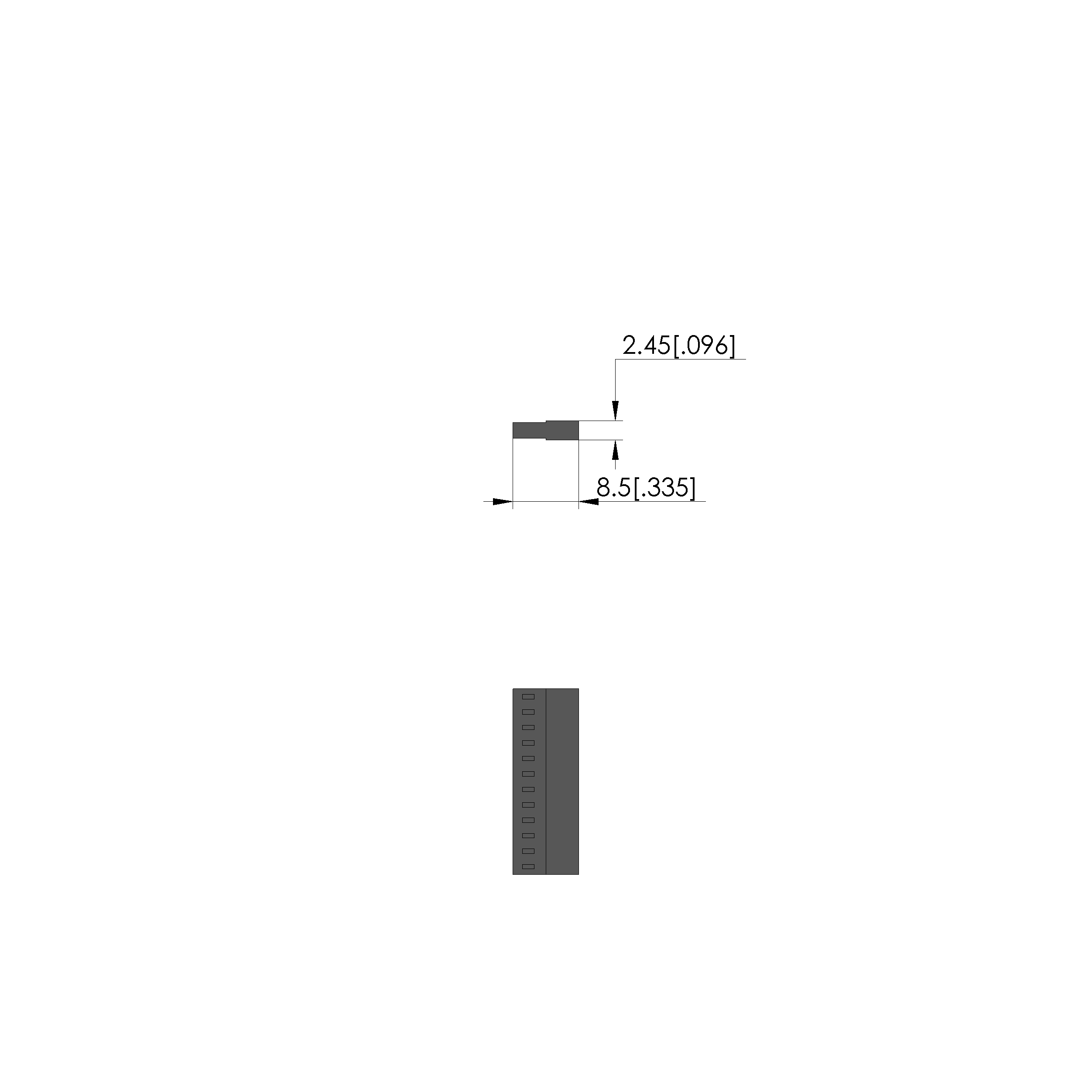

Outer dimensionS (WxDxH) : 24.05 x 8.5 x 2.45 mm
Compatible with
Interface blocks (SB) : SB-T-SI-216
Interface blocks (SB) 2 : SB-P-SI-216
Accessories : SLL-CK-2.0-AWG26
