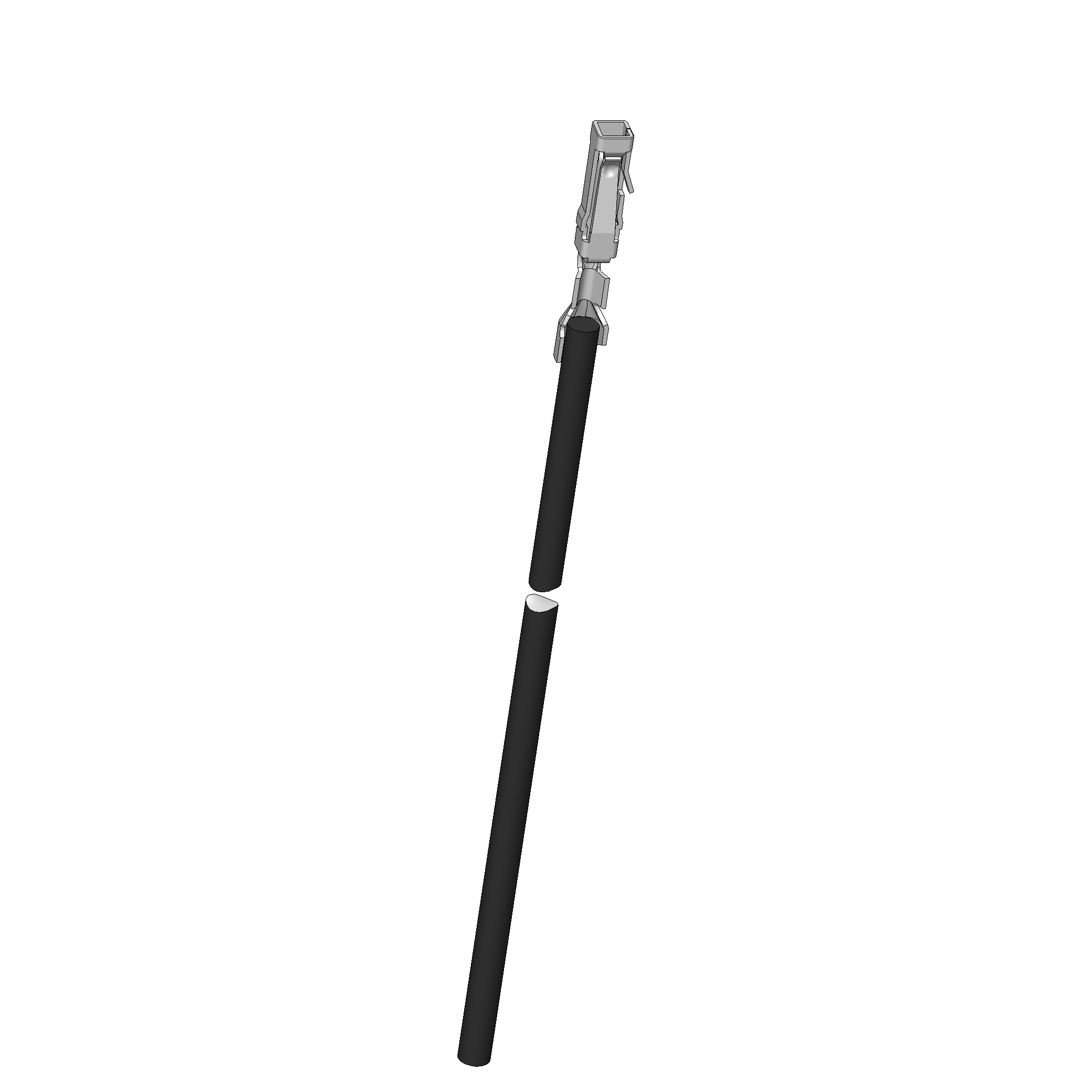

Signal line strand SLL-CK-AWG26-SW-700 Item 43373

  • Stranded wire with crimp connection for 10-pole/17-pole connector housing
  • Consistently stable signal quality throughout
  • Flexible stranded wire for the greatest possible freedom of movement
  • Crimp connection with internal stop and contact blade which ensures secure clamping with high retention force
Show more Show less

Signal line strand SLL-CK-AWG26-SW-700 Item 43373

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Product datasheet (EN|pdf)
Document (43373__Kundenzeichnung.PDF)
CAD file (INGUN_43373.STEP)
Choose version
SLL-CK-AWG26-SW-700 (43373)
SLL-CK-2.0-AWG26-SW-700 (116049) SLL-CK-AWG26-RT-700 (43375) SLL-CK-AWG26-SW-700 (43373) SLL-CK-AWG26-GE-700 (43374) SLL-CK-2.0-AWG26-RT-700 (116052) SLL-CK-2.0-AWG26-GE-700 (116054) SLL-CK-2.0-AWG26-GN-700 (116050) SLL-CK-AWG26-GN-700 (43376)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Electric accessory
Series : SLL
Type : Stranded wire
Version : Crimp connection
Accessory type : Customising accessory
Scope of delivery : Pre-wired
Material : Copper stranded wire, zinc plated
Colour : Schwarz
Min. temperature : - 20 °C
Max. temperature : + 80 °C
RoHS-compliant : RoHS-3
Electrical data
Typical resistance (Ri) of one GKS : 85 mOhm
Technical data
Connection : Plug / solder /crimp connection
Force : 2 N
Max. current : 3.6 A
Max. voltage : 250 V
Installation grid : 2.54 mm
Diameter : AWG26 mm
Cable length : 700 mm
Compatible with
Accessories : STV-BL10-F-C, STV-BL17-F-C
