Interface block SB-P-HS-008-50A-1,0-L Item 111830

  • Equipped with INGUN test probes
  • Suitable for test fixtures with internal or external Pylon interface
  • Consistently low contact resistances and replicable measured values
  • High contact reliability and transmission quality
  • Reliable transmission of high current signals
Show more Show less

Interface block SB-P-HS-008-50A-1,0-L Item 111830

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)

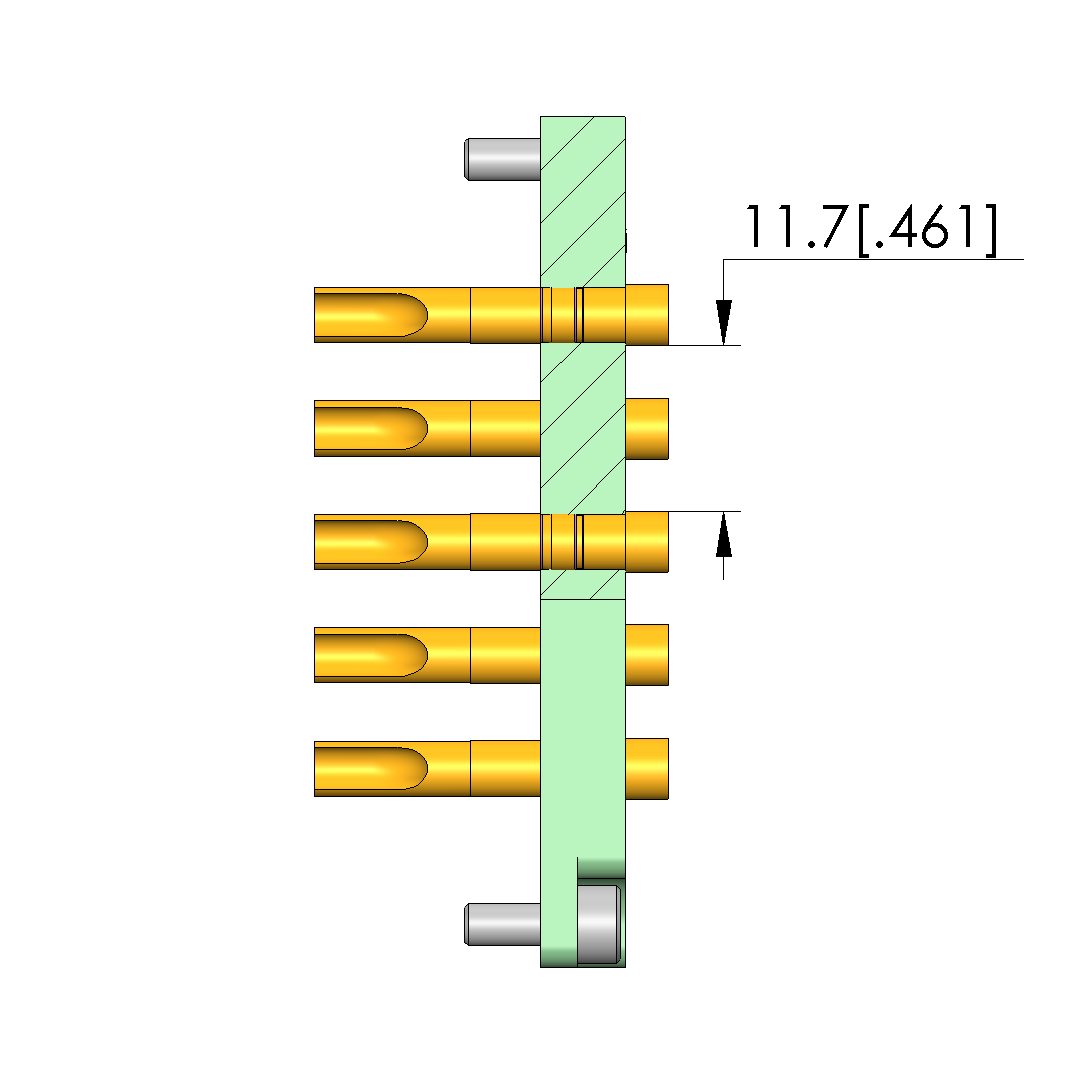

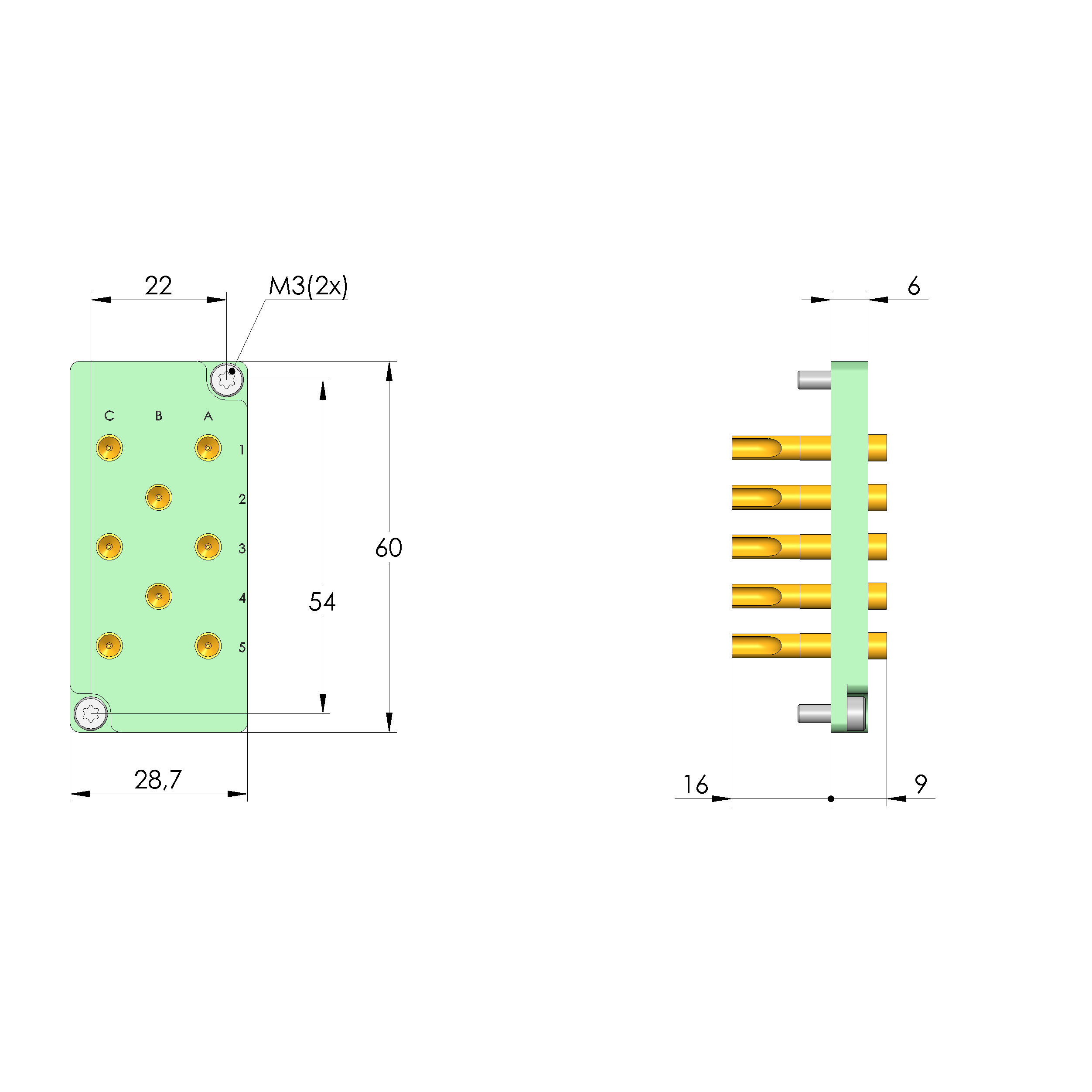

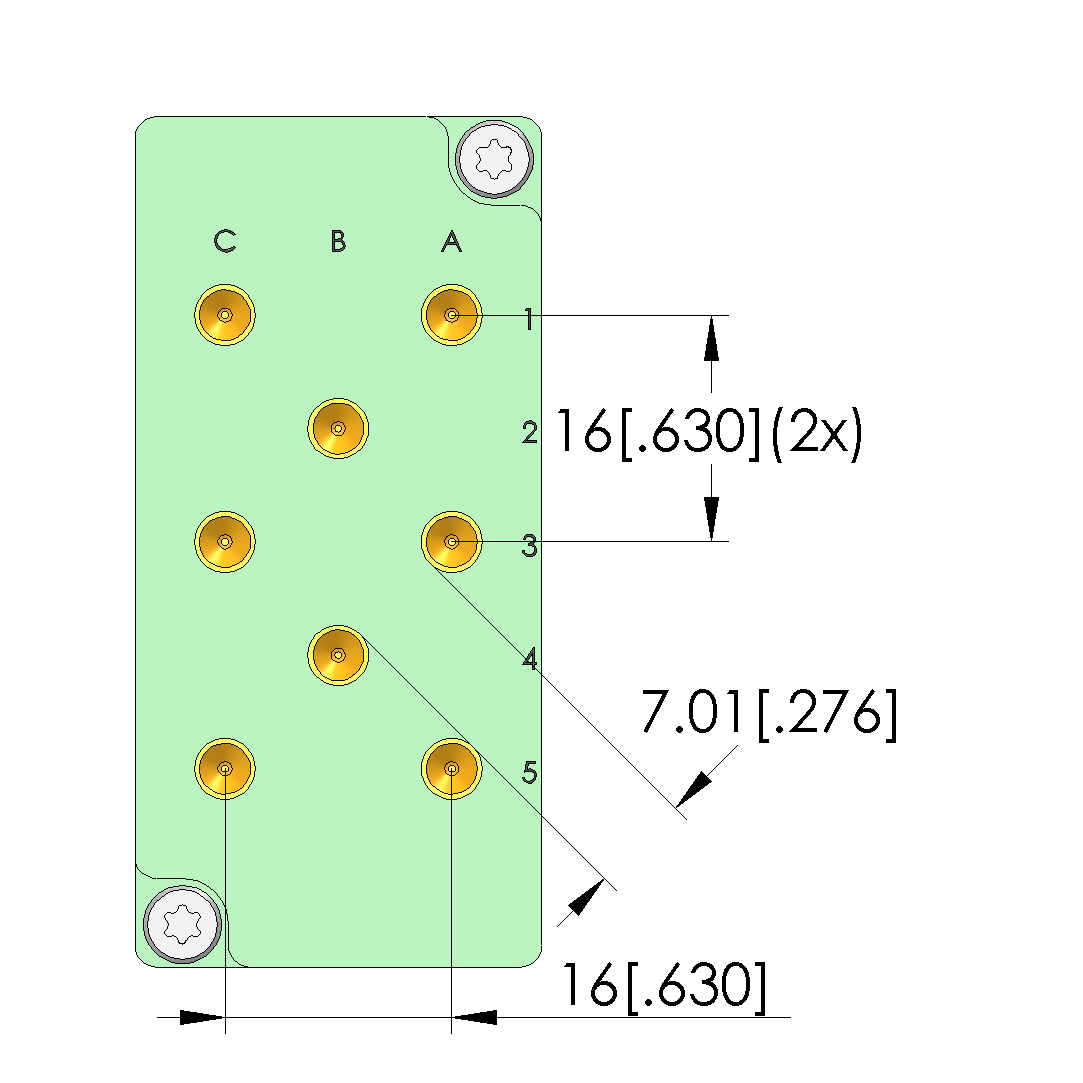

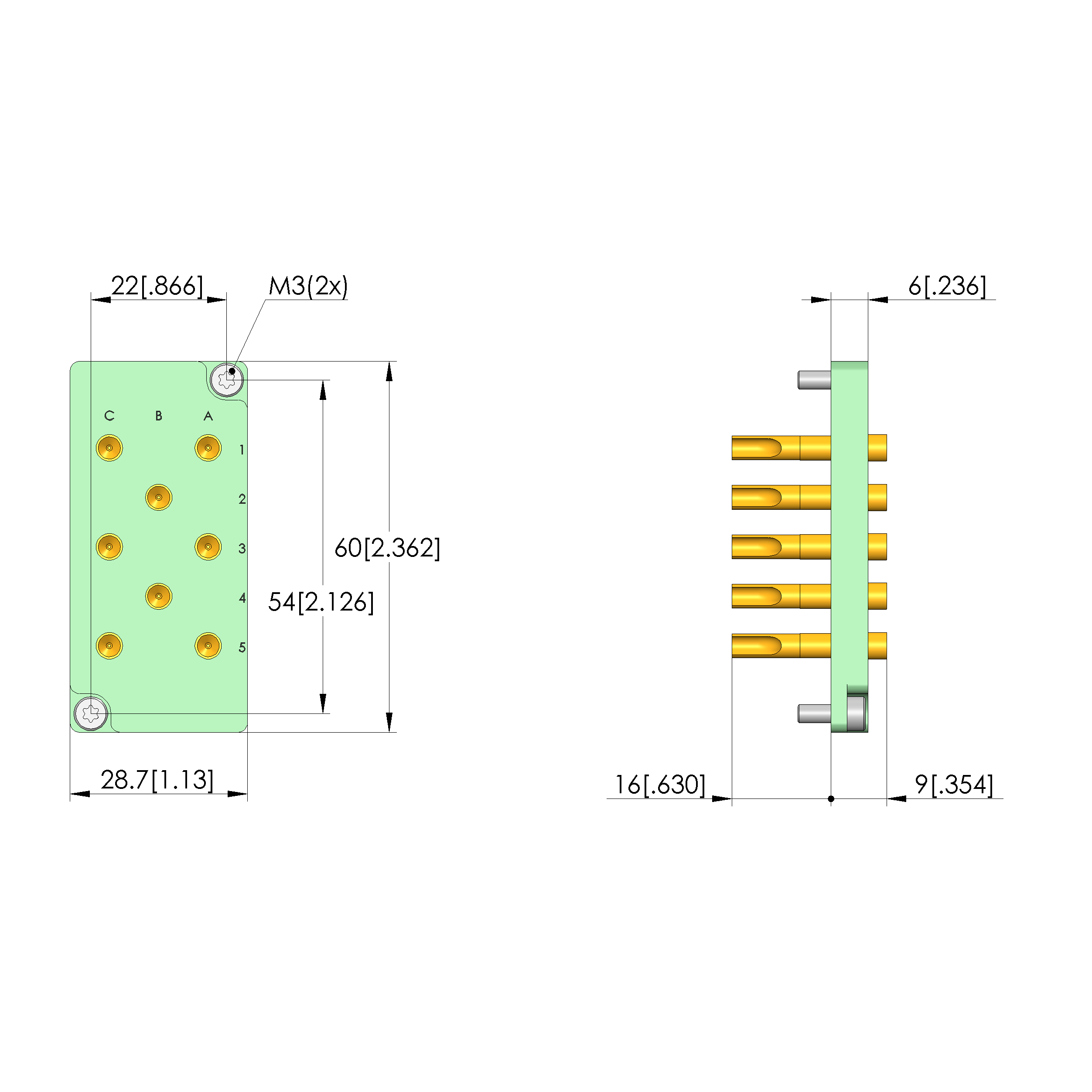

Document (111830__Kundenzeichnung.PDF)
CAD file (INGUN_111830.STEP)
Product datasheet (EN|pdf)
Choose version
SB-P-HS-008-50A-1,0-L (111830)
SB-P-HS-002-50A-1,0 (31550) SB-P-HS-004-50A-1,0 (37698) SB-P-HS-024-30A-1,0-Z (38700) INGUN SELECTION SB-T-HS-004-50A (37699) SB-T-HS-034-20A (31011) SB-T-HS-045-30A (30963) INGUN SELECTION SB-P-HS-008-50A-1,0 (35929) INGUN SELECTION SB-P-HS-045-30A-1,0 (16900) INGUN SELECTION SB-T-HS-002-50A (31549) SB-T-HS-008-50A (35549) INGUN SELECTION SB-T-HS-024-30A-Z (38699) INGUN SELECTION SB-T-HS-045-30A-Z (38697) INGUN SELECTION SB-P-HS-008-50A-1,0-L (111830) SB-T-HS-008-50A-L (111831) SB-P-HS-024-30A-1,0 (27620) INGUN SELECTION SB-P-HS-034-20A-1,0 (31009) SB-P-HS-045-30A-1,0-Z (38698) INGUN SELECTION SB-T-HS-024-30A (27628) INGUN SELECTION
Here you can optionally configure a new variant:
Technical data
General data
Product group : Interface blocks (SB)
Series : SB-HS
Type : High-current block
Version : Device under test (DUT) side
Accessory type : Customising accessories
Component assembly : KT-150L3E03-30S (solder)
Weight : 0.038 kg
Min. temperature : - 30 °C
Max. temperature : + 120 °C
RoHS-compliant : RoHS-3;6c
Electrical data
Typical resistance (Ri) of one GKS : < 5 mOhm
Technical data
Working distance : 15.1 +/- 0.5 mm
Centring pin : nein mm
Connection : Solder cup
Number of poles : 8 (fixe Pos.)
Air distance (not wired) : 7 mm
Max. current of one GKS : 50 A
Max. current of all GKS : 35 A
Max. voltage : 6000 V
Max. power loss : 25 W
Min. line cross-section : 6 mm²
Compatible with
Compatible mating part 1 : SB-T-HS-008-50A-L
MA exchangeable kits (ATS MA) : ATS MAxx
