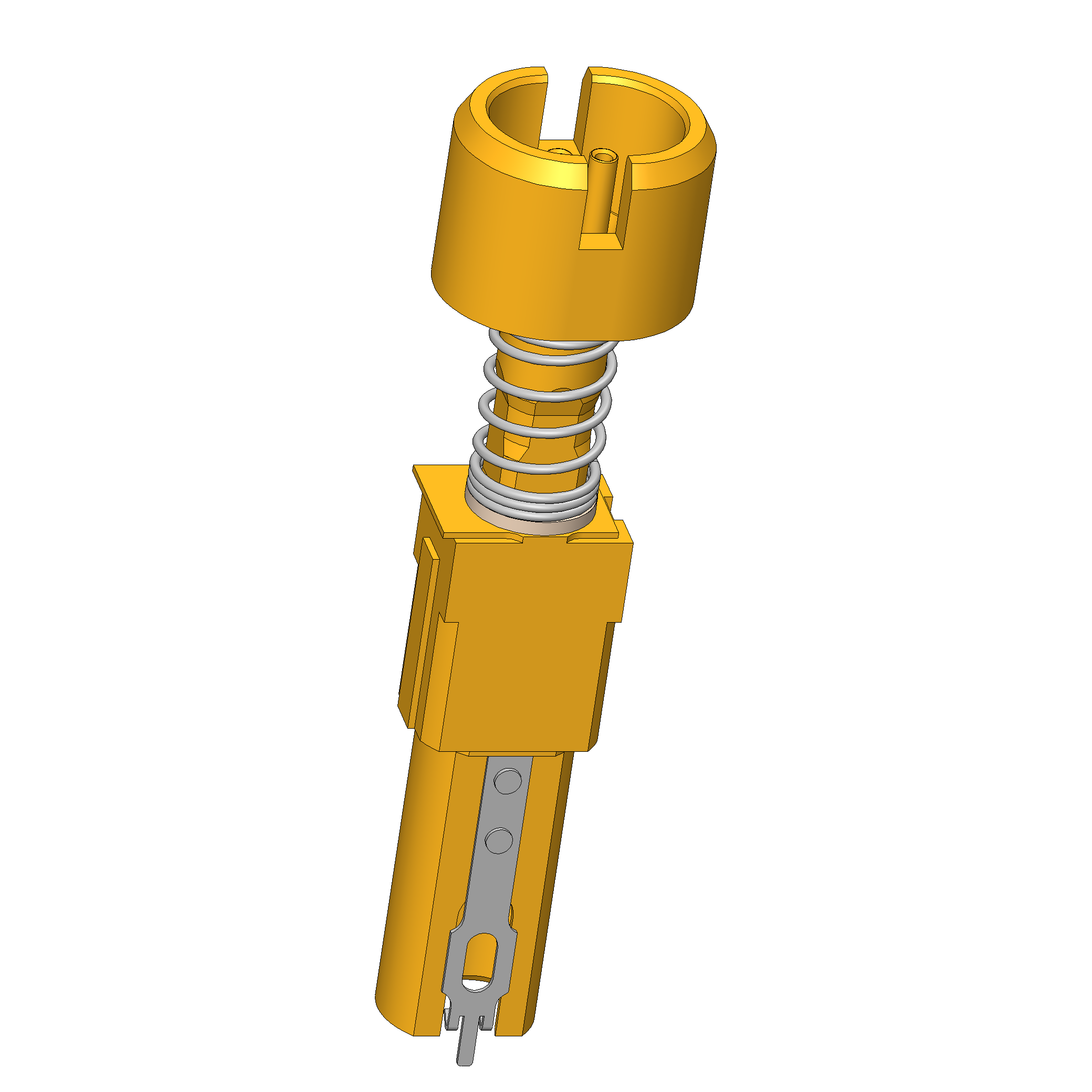

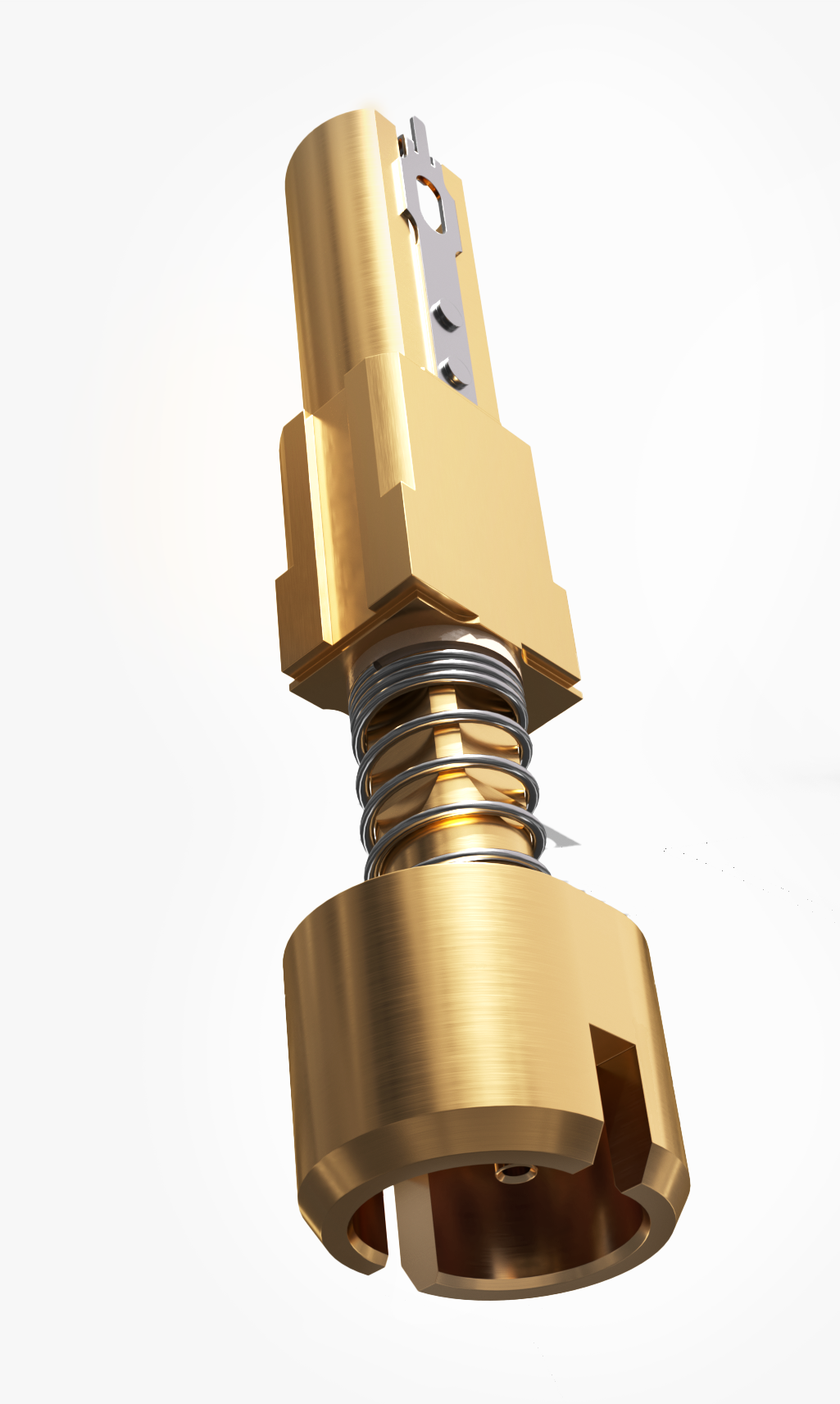

Radio-frequency probe HFS-802 314 051 A 8042 HMTD-W Item HFS-802-0002

Utility
Model

For testing differential connectors (e.g. LV 214 / USCAR)
Used mainly in future technologies for the automotive market (e.g. autonomous driving)
Consistent radio-frequency performance for data transmission
Modular design, test probe combination for single, double, or quadruple housing
Cable interface H-MTD

Radio-frequency probe HFS-802 314 051 A 8042 HMTD-W Item HFS-802-0002

Please log in to show the price Login

The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.

Downloads

Conformation of RoHS compliance (EN|PDF)

Product datasheet (EN|pdf)

Choose version

HFS-802 314 051 A 8042 HMTD-W (HFS-802-0002)

HFS-802 314 051 A 8042 HMTD-W (HFS-802-0002) HFS-802 381 084 A 8042 HMTD-F (HFS-802-0003) HFS-802 314 051 A 8042 HMTD (HFS-802-0001) INGUN SELECTION

Here you can optionally configure a new variant:

Technical data

General data
Product group :	HFS radio-frequency test probes
Series :	HFS-802
Sub-series :	HFS-802
Grid :	20 mm
DUT / contact :	H-MTD® Rosenberger (waterproof, single)
Installation type :	Plug-in
DUT interface gender :	M signal conductor male / pin
Floating mount :	Yes
Non-rotating :	Yes
Continuous plunger :	Yes
Interface of compatible assembly :	HMTD
Compatible assembly interface gender :	M signal conductor male / pin
KS sub-series :	KS-802 HMTD, press-in version
Min. temperature :	- 40 °C
Max. temperature :	+ 80 °C
RoHS-compliant :	RoHS-3;6c

Outer conductor data

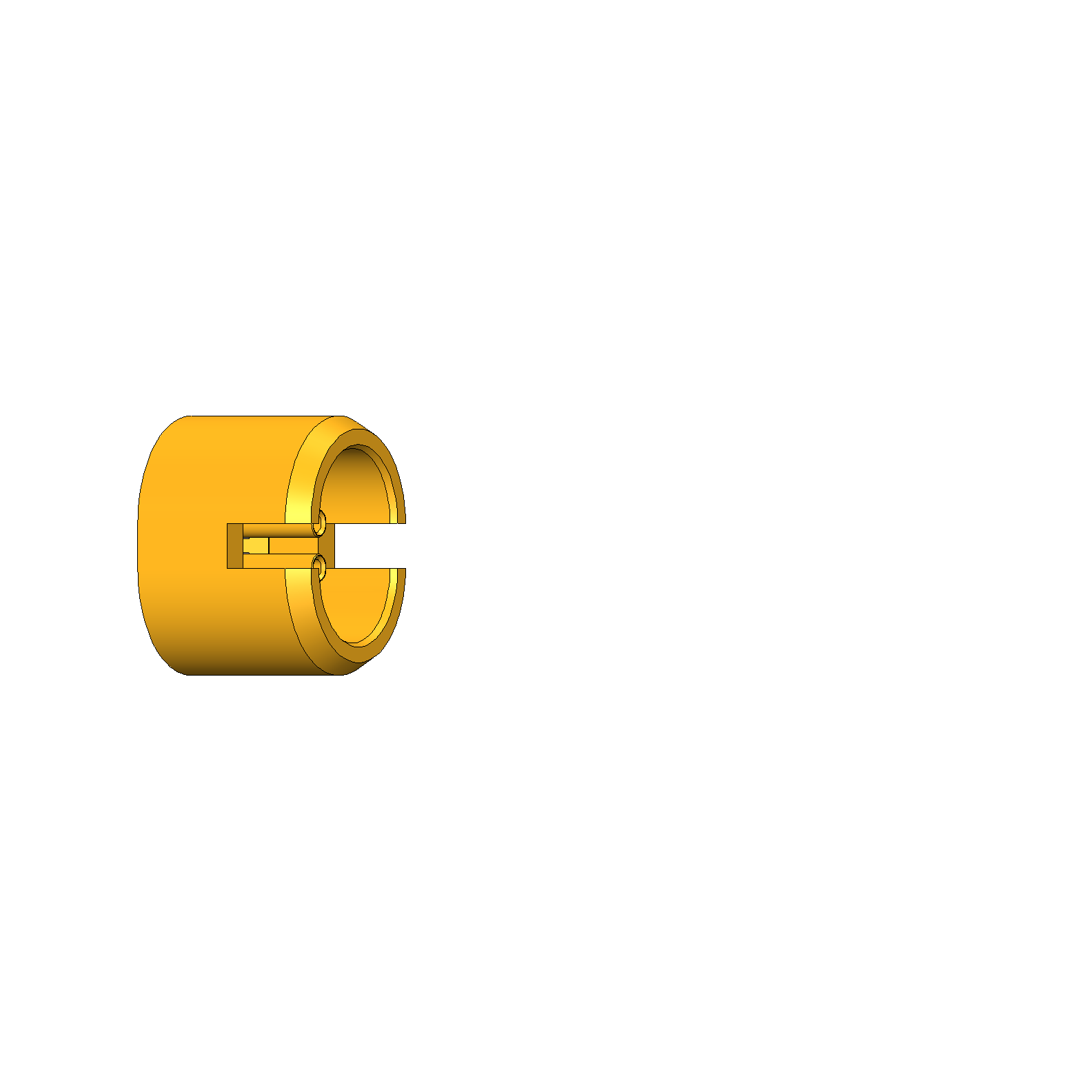

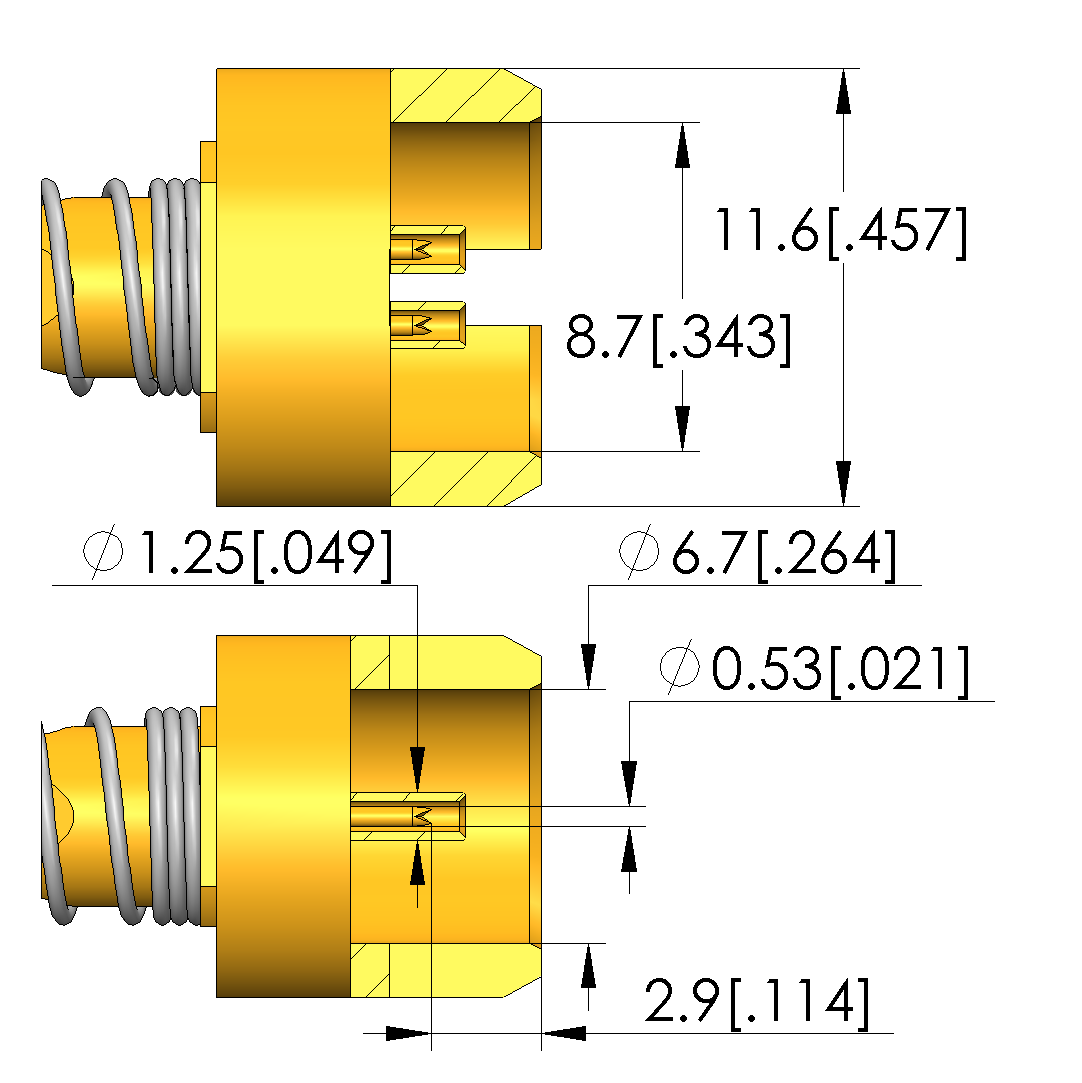

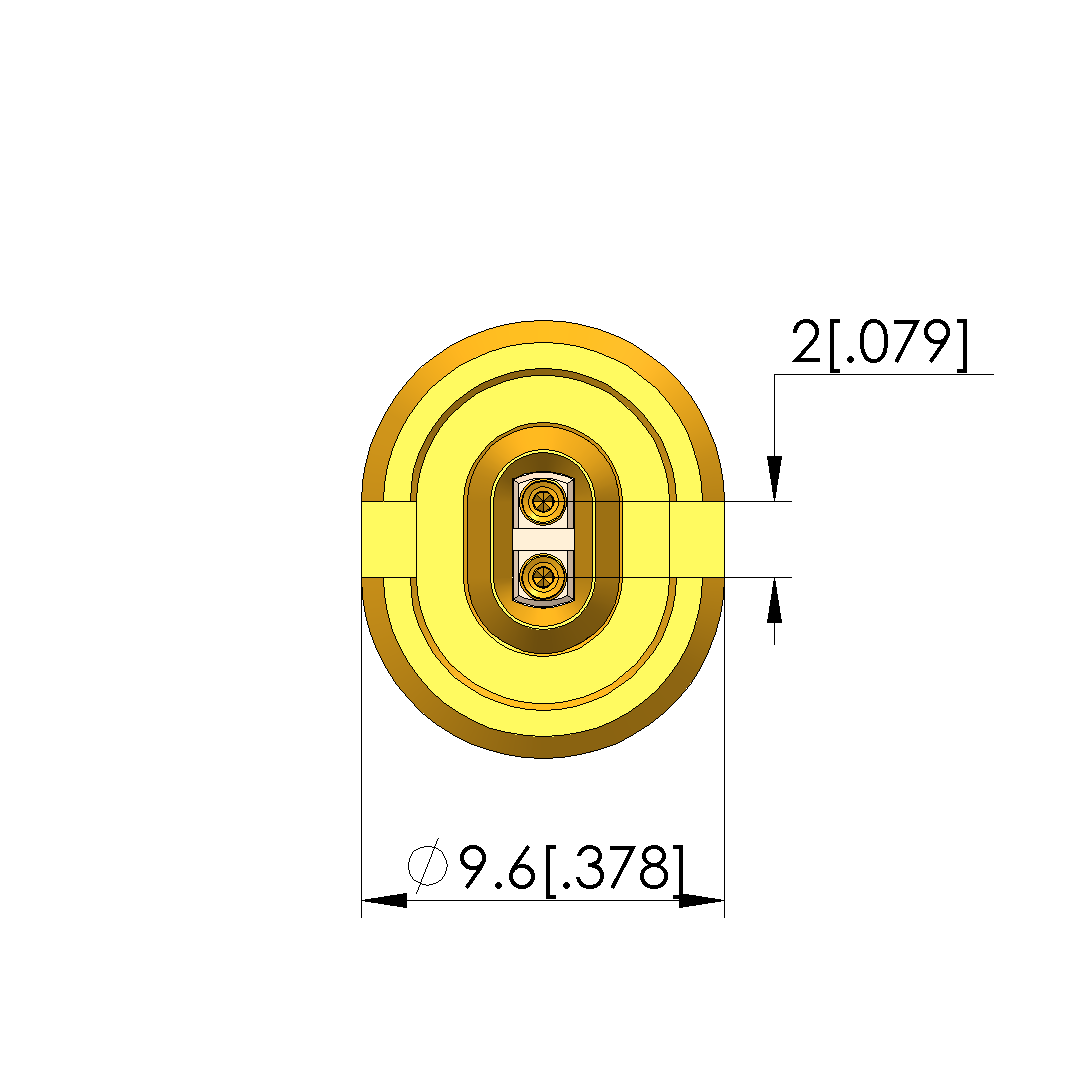

Outer conductor tip style :	42 centring for inner side of plug connector
Outer conductor tip style diameter :	11.6 mm
Spring force of entire outer conductor at working stroke :	6 N
Outer conductor working stroke :	4 mm
Outer conductor maximum stroke :	5 mm
Exchangeable outer conductor :	No
Outer conductor max. current load capacity :	10 A

Inner conductor data
Inner conductor tip style :	14 4-point crown, self-cleaning
Inner conductor tip style diameter :	0.51 mm
Inner conductor tip style material :	3 CuBe
Inner conductor tip style surface :	A gold
Number of inner conductors :	2 1 differential pair
Exchangeable inner conductor :	No
Inner conductor working stroke :	2.2 mm
Spring force of each inner conductor at working stroke :	1 N
Inner conductor maximum stroke :	2.8 mm
Inner conductor max. current load capacity :	2 A

Electrical data
Frequency range up to :	3 GHz
Impedance :	100 Ohm

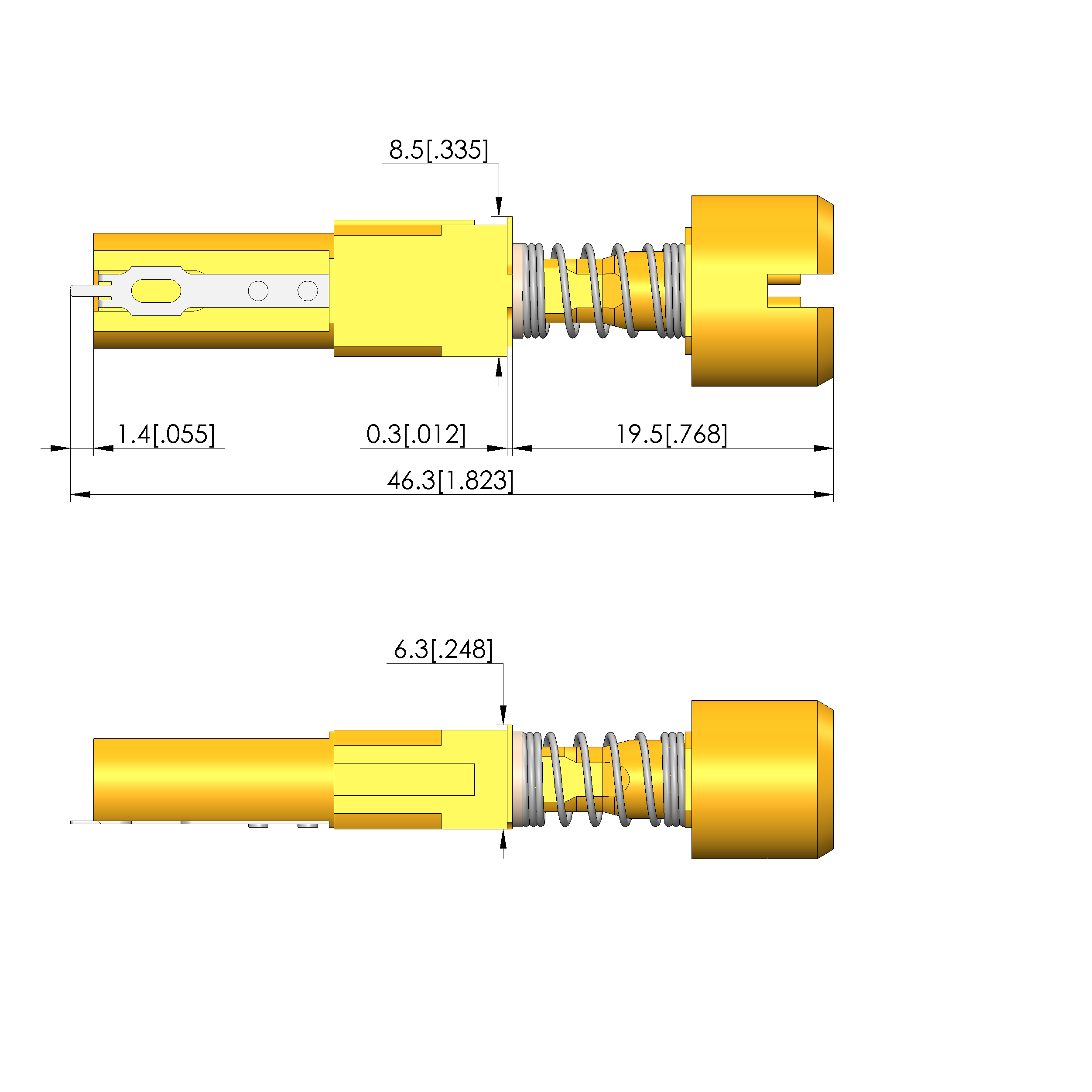

Mechanical data
Total spring force at working stroke :	8 N
Total length :	45.9 mm
Barrel diameter :	8 mm
Installation height without receptacle :	19.8 mm
