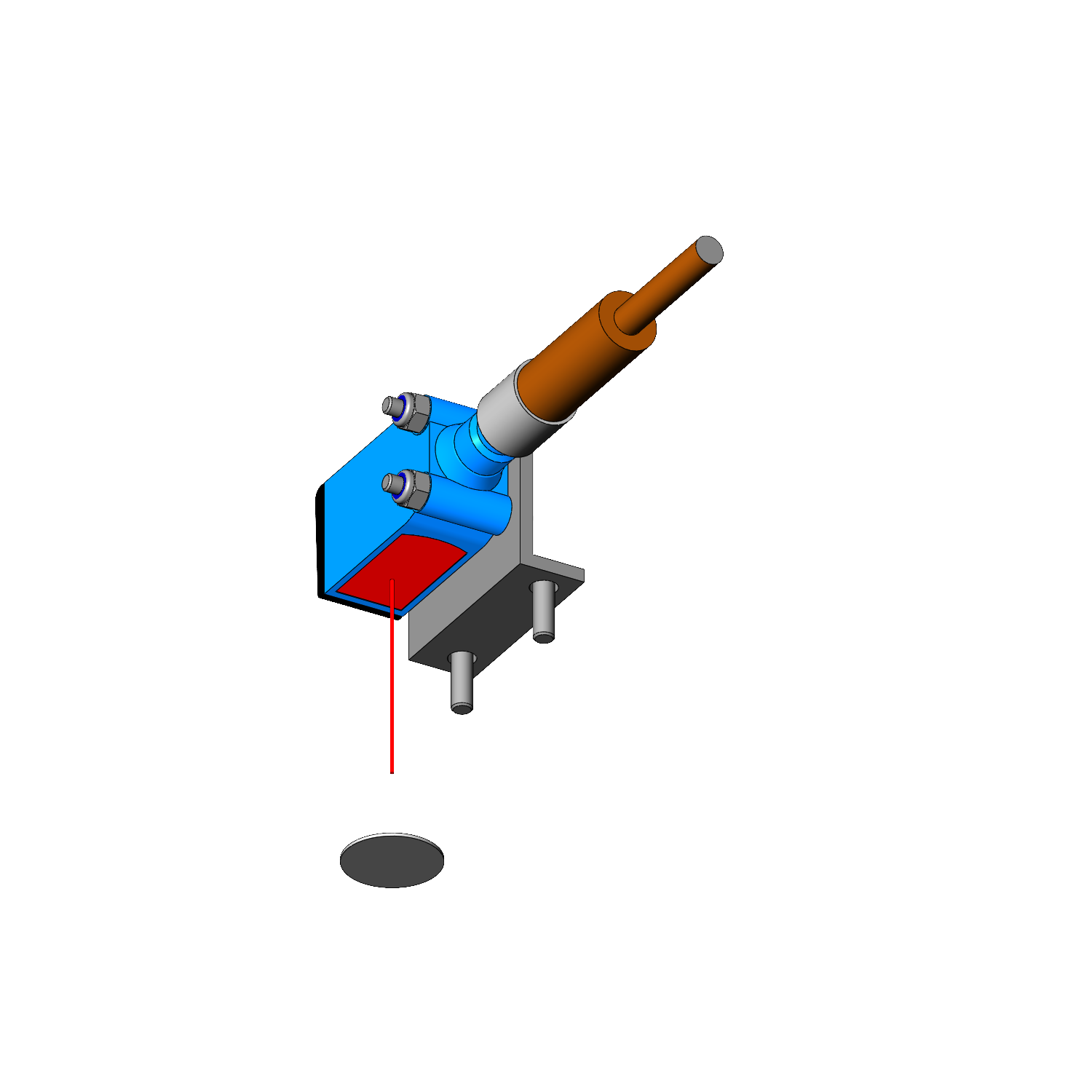

Detectiion of DUT - present FB-ABF-A-O-10-30VDC Item 116667

  • Detectiion of PCB - present
  • Functional unit for individually configurable upgrade
  • Suitable for inline interchageable kits WS ASYS/ATH01/173,5 and WS ASYS/ATH01/210,5
  • Quick, easy installation on the pressure frame plate
Show more Show less

Detectiion of DUT - present FB-ABF-A-O-10-30VDC Item 116667

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Product datasheet (EN|pdf)
Document (116667__Kundenzeichnung.PDF)
CAD file (INGUN_116667.STEP)
Choose version
FB-ABF-A-O-10-30VDC (116667)
FB-ABF-K-HMK-ASYS (116668) FB-KSB-016-WS-SP-3030 (53337) FB-KSB-048-WS-KS-i3070-5i (48149) FB-KTP-TOP-WS-TD-TSH5x (111448) FB-ADP-TOP-WS-i1000FE (110013) FB-ABF-A-O-10-30VDC (116667) FB-ADP-TOP-WS-i7090 (113126) FB-VSL-WSP-SP-3030 (52742) FB-ADP-TOP-WS-i3070-5i-4M (110006) FB-HZO-OM-WS (48137) FB-ALS-WS-SP-3030 (60290) FB-ABF-A-O-10V (101615) FB-VSL-WSO-SP-3030 (52741)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Functional units
Series : FB-WS
Type : Detection unit
Version : DUT detection, photoelectric sensor
Accessory type : Additional function
Scope of delivery : Must be installed upon delivery, installation accessories included
Width : 28 mm
Height : 25 mm
Weight : 0.02 kg
Min. temperature : + 10 °C
Max. temperature : + 60 °C
RoHS-compliant : RoHS-3
Technical data
Installation : Thread M3
Max. voltage : 30 VDC
Length : 41.8 mm
Cable length : 2000 mm
Outer dimensionS (WxDxH) : 41.8 x 28 x 25 mm
Compatible with
Interchangeable kits (WS) : Interchangeable kit (WS) ASYS/ATH01/...
