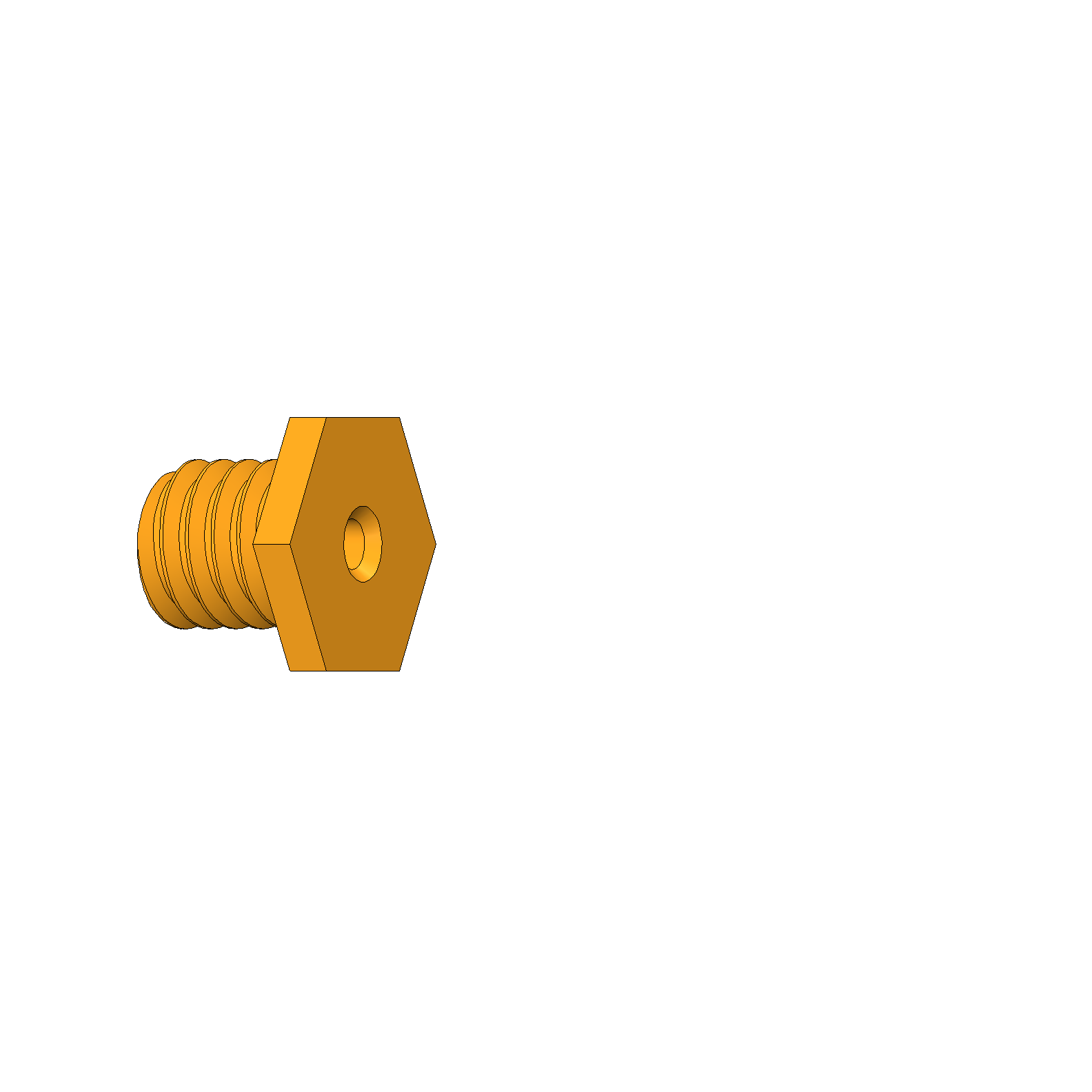

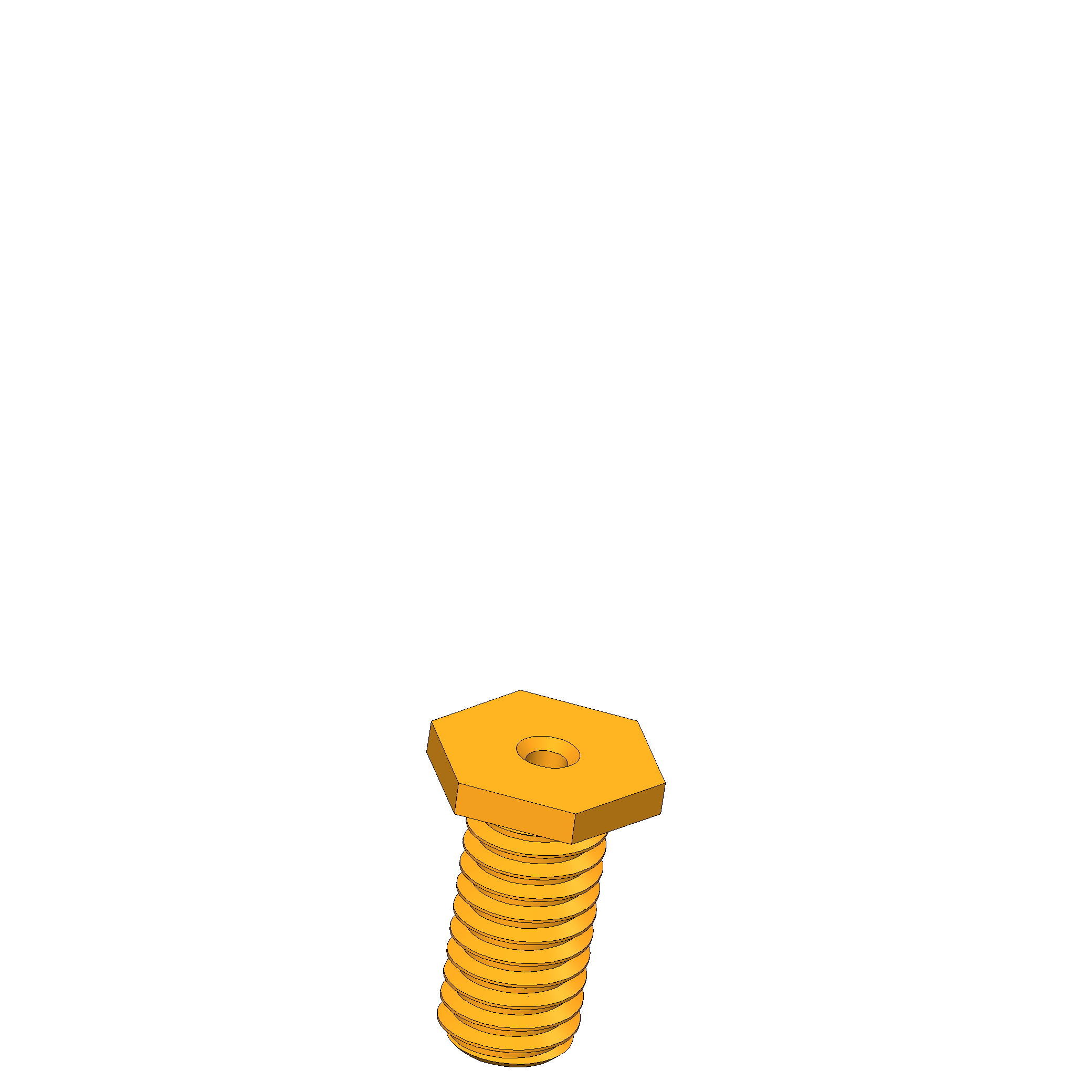

Earthing screw EKT-MS-M4-09,3-SW06-B Item 41880

  • Earth screw for safe electrical connection
  • Ideally designed for internal ATS interface
Show more Show less

Earthing screw EKT-MS-M4-09,3-SW06-B Item 41880

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Product datasheet (EN|pdf)
CAD file (INGUN_41880.STEP)
Document (41880__Kundenzeichnung.PDF)
Choose version
EKT-MS-M4-09,3-SW06-B (41880)
EKT-M-005A-WW-VPC-QP (24595) EKT-F-015A-L-GR228x (3609) EKT-B-LL2,4 (22042) EKT-MS-M4-09,3-SW06-B (41880) EKT-CK-0,64-C-AWG26 (115204) EKT-M-065A-L-VPC-MP (22911) EKT-R-04,3-C6,0-GE (35925)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Electric accessory
Series : EKT
Type : ESD-Masseschraube
Version : KTE ATSMAxx
Accessory type : Customising accessory
Scope of delivery : Unassembled
Material : 2.0402
Weight : 0.01 kg
Min. temperature : + 10 °C
Max. temperature : + 60 °C
RoHS-compliant : RoHS-3;6c
Technical data

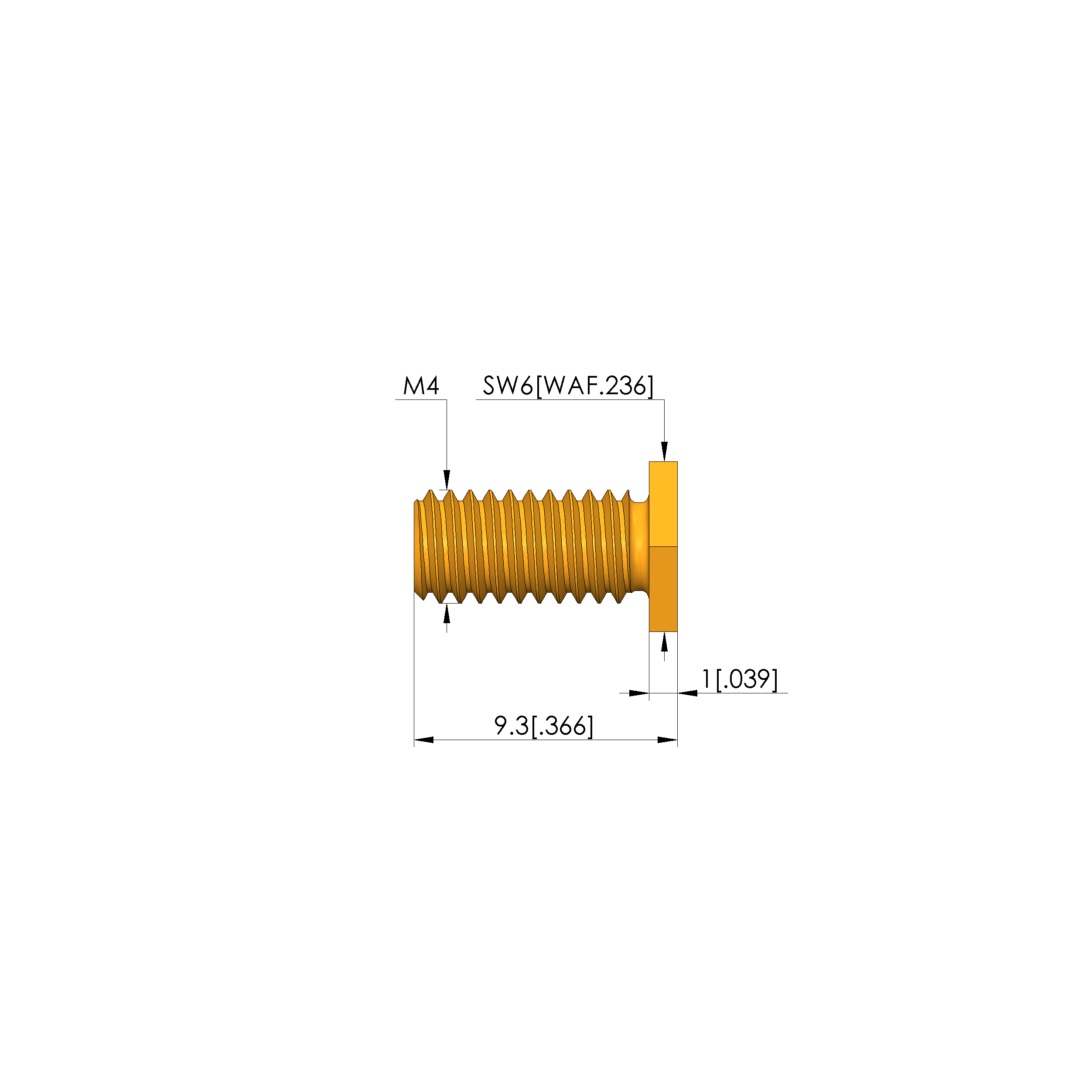

Installation : Thread M4
Length : 9.3 mm
Compatible with
Exchangeable kits version : No limitations
MA exchangeable kits (ATS MA) : ATS MAxx
