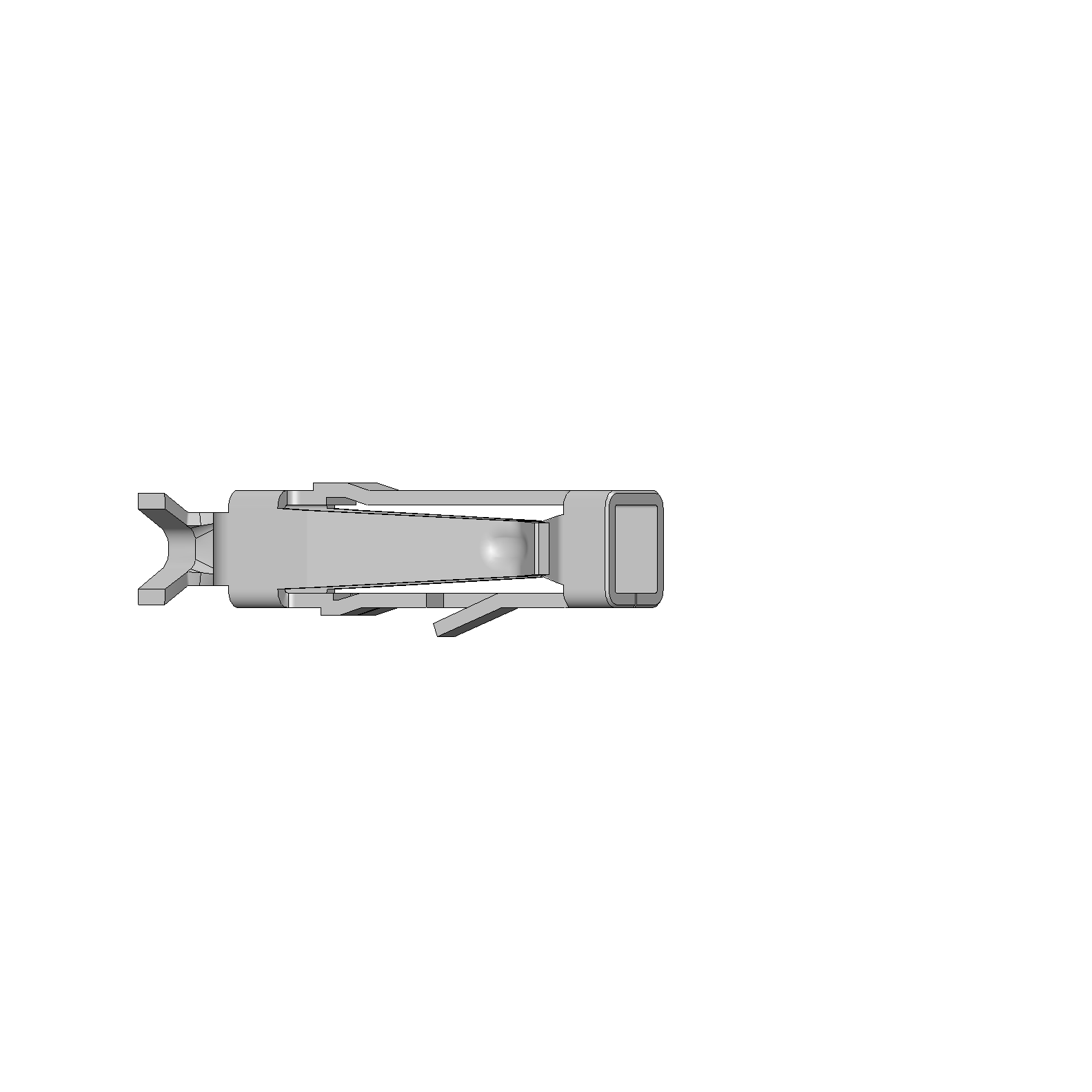

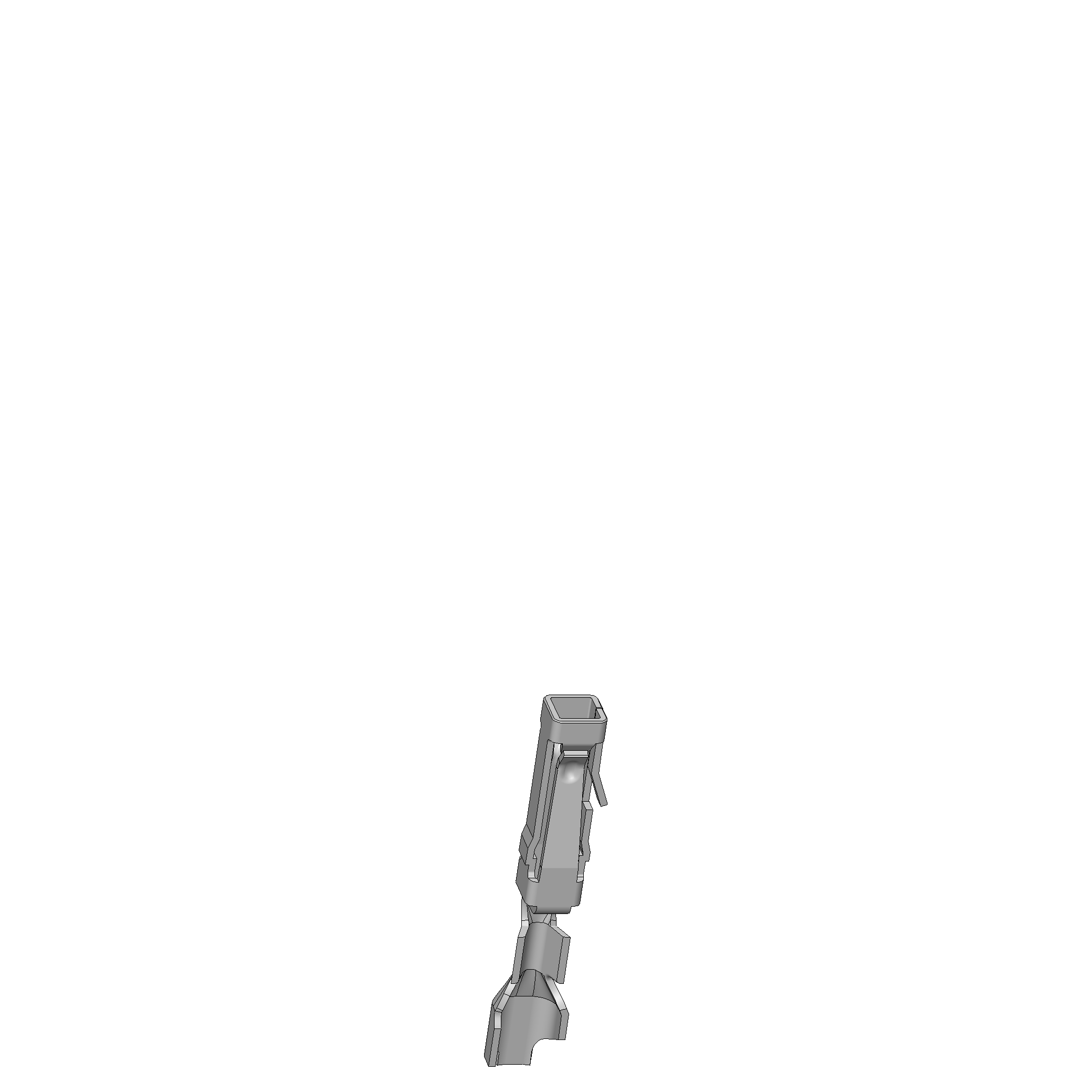

Crimp connection EKT-CK-0,64-C-AWG26 Item 115204

Crimp connection with internal stop and contact blade which ensures secure clamping with high retention force

Crimp connection EKT-CK-0,64-C-AWG26 Item 115204

Please log in to show the price Login

The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.

Downloads

Conformation of RoHS compliance (EN|PDF)

Document (115204__Kundenzeichnung.PDF)

CAD file (INGUN_115204.STEP)

Product datasheet (EN|pdf)

Choose version

EKT-CK-0,64-C-AWG26 (115204)

EKT-F-015A-L-GR228x (3609) EKT-M-005A-WW-VPC-QP (24595) EKT-B-LL2,4 (22042) EKT-MS-M4-09,3-SW06-B (41880) EKT-M-065A-L-VPC-MP (22911) EKT-R-04,3-C6,0-GE (35925) EKT-CK-0,64-C-AWG26 (115204)

Here you can optionally configure a new variant:

Technical data

General data
Product group :	Electric accessory
Series :	EKT
Type :	Crimp connection
Version :	Spring clamp, inner stop
Accessory type :	Customising accessories
Scope of delivery :	Unpopulated, without stranded wire
Material :	Copper, tin-plated
Min. temperature :	- 65 °C
Max. temperature :	+ 125 °C
RoHS-compliant :	RoHS-3

Electrical data
Typical resistance (Ri) of one GKS :	2 mOhm

Technical data
Connection :	Crimp connection AWG26 - AWG22
Force :	2 N
Max. current :	3.6 A
Max. voltage :	250 V

Compatible with
Accessories :	STV-BL10-F-C, STV-BL17-F-C
