Connection cable ASK-BL10-F-G-0400-BL10-F-G-GE Item 115174

  • Connection cable for signal interface blocks (SB-T/P-SI)
  • Low-wear connection that can be quickly plugged and unplugged without tools
  • Consistently stable signal quality throughout
  • Flexible stranded wires for the greatest possible freedom of movement
  • Crimp connection with internal stop and contact blade which ensures secure clamping with high retention force
Show more Show less

Connection cable ASK-BL10-F-G-0400-BL10-F-G-GE Item 115174

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
Document (115174__Kundenzeichnung.PDF)
CAD file (INGUN_115174.STEP)
Product datasheet (EN|pdf)
Choose version
ASK-BL10-F-G-0400-BL10-F-G-GE (115174)
ASK-BL10-F-G-0700-AWG26-GN (43372) ASK-BL10-F-G-0400-BL10-F-G-SW (115172) ASK-BL10-F-G-0400-BL10-F-G-GE (115174) ASK-BL10-F-G-0700-AWG26-SW (115176) ASK-BL17-F-G-0400-BL17-F-G-RT (115185) ASK-BL10-F-G-0700-AWG26-GE (43371) ASK-BL16-F-G-0700-AWG28-64 (33175) ASK-ME-G-325-AWG20-002 (109474) ASK-BL10-F-G-0400-BL10-F-G-GN (53129) ASK-BL17-F-G-0700-AWG26-GE (115179) ASK-BL17-F-G-0700-AWG26-RT (115180) ASK-BL17-F-G-0700-AWG26-GN (115181) ASK-BL17-F-G-0400-BL17-F-G-GN (115186) ASK-VG34-F-W-0280-SUBD-037-F-W (115256) ASK-BL12-F-G-0700-AWG26-GN (116060) ASK-BL12-F-G-0700-AWG26-SW (116061) ASK-M12-F-W-2000-0,34-004 (43637) ASK-BL10-F-G-0400-BL10-F-G-RT (115175) ASK-BL10-F-G-0700-AWG26-RT (115177) ASK-BL17-F-G-0700-AWG26-SW (115178) ASK-BL17-F-G-0400-BL17-F-G-SW (115183) ASK-BL17-F-G-0400-BL17-F-G-GE (115184) ASK-VG34-F-W-0180-SUBD-037-F-W (115279) ASK-BL12-F-G-0700-AWG26-GE (116063) ASK-BL12-F-G-0700-AWG26-RT (116062)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Electric accessory
Series : ASK
Type : Stranded cable
Version : Connector housing, single row
Accessory type : Customising accessory
Scope of delivery : Pre-wired
Component assembly : 2x Steckergehäuse
Material : Copper stranded wire, zinc plated
Colour : Yellow, pin 1 brown
Min. temperature : - 20 °C
Max. temperature : + 80 °C
RoHS-compliant : RoHS-3
Electrical data
Typical resistance (Ri) of one GKS : 91 mOhm
Technical data
Connection : Plug connection
Force : 20 N
Max. current : 3.6 A
Installation : Plug connector
Max. voltage : 250 V
Number of poles : 10

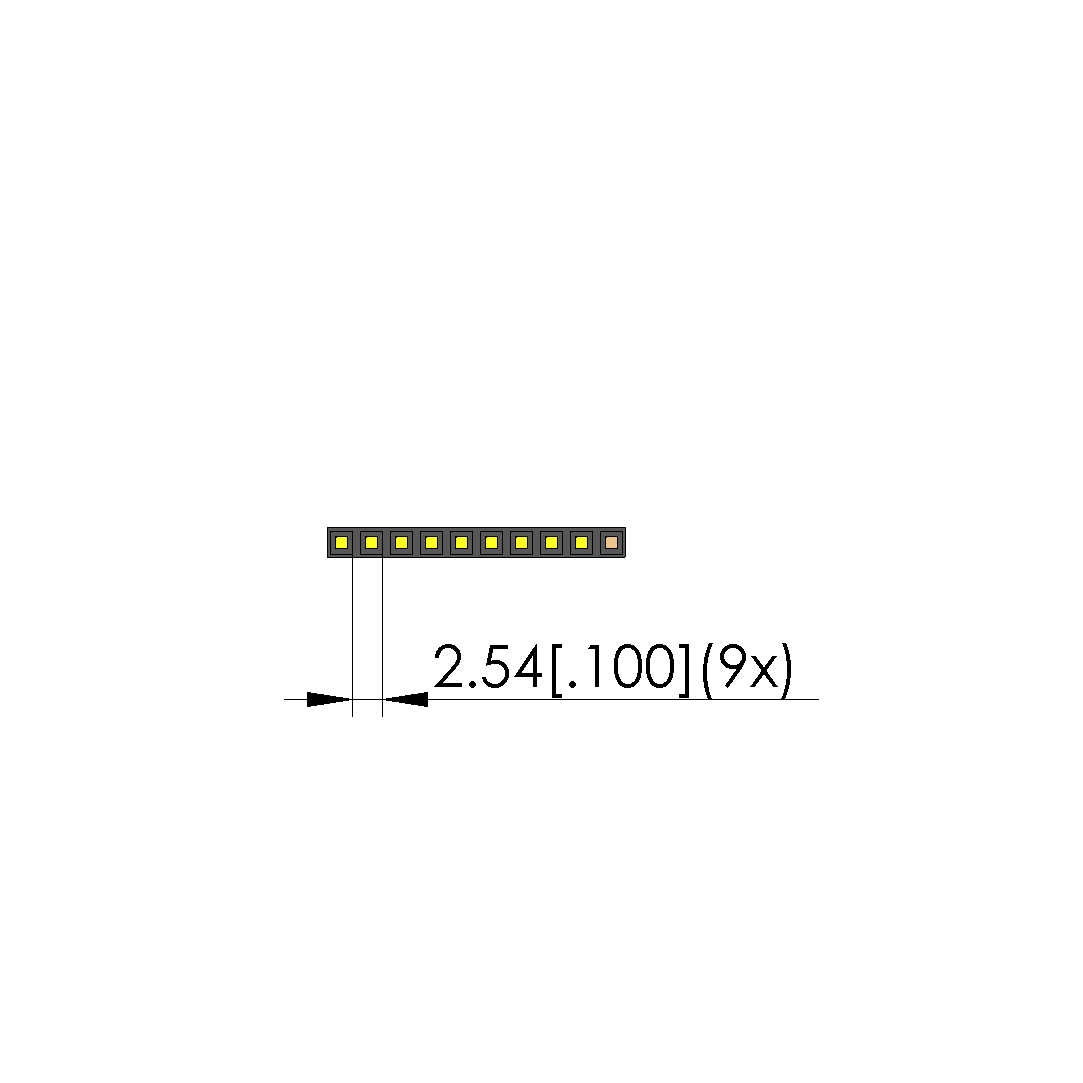

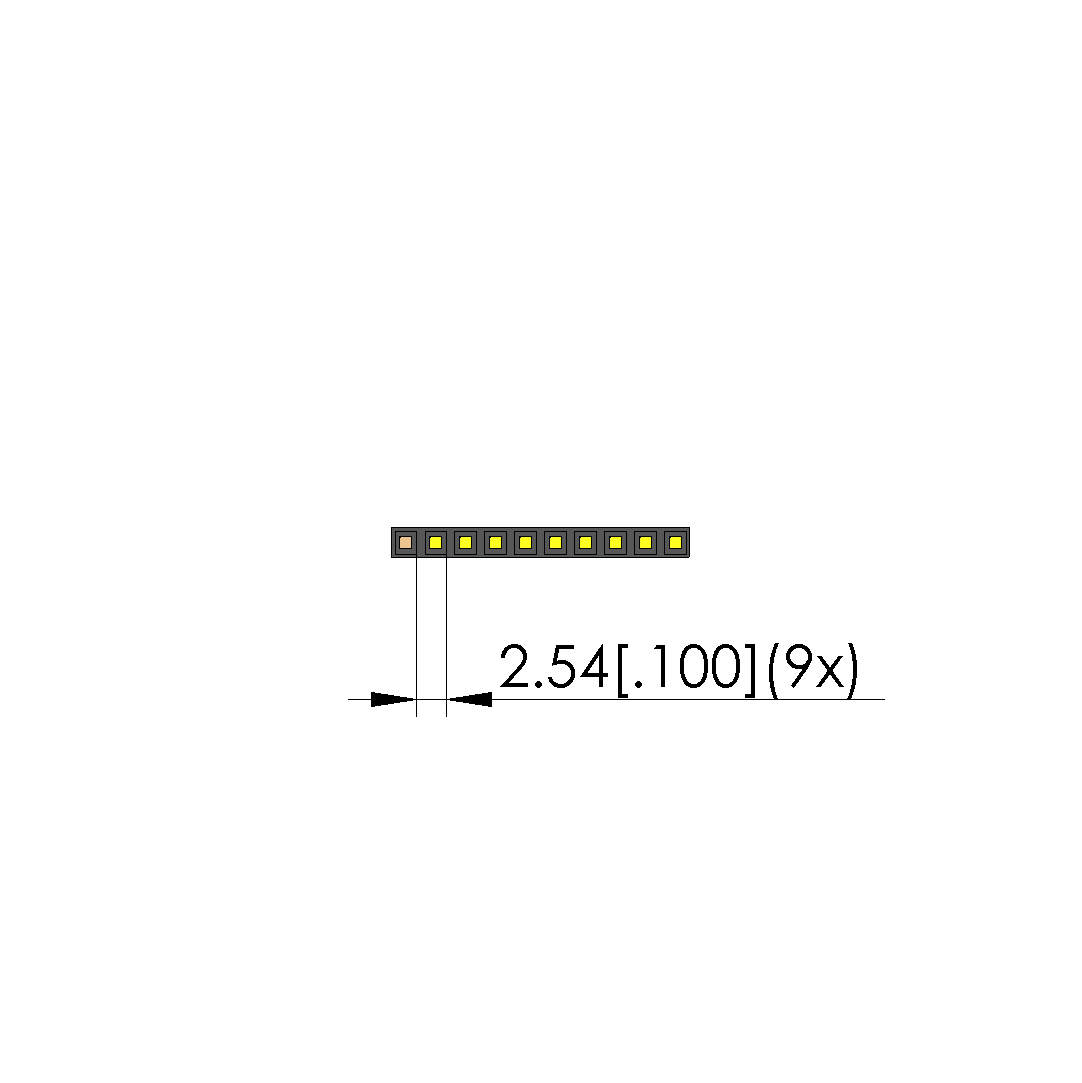

Installation grid : 2.54 mm
Diameter : AWG26 mm

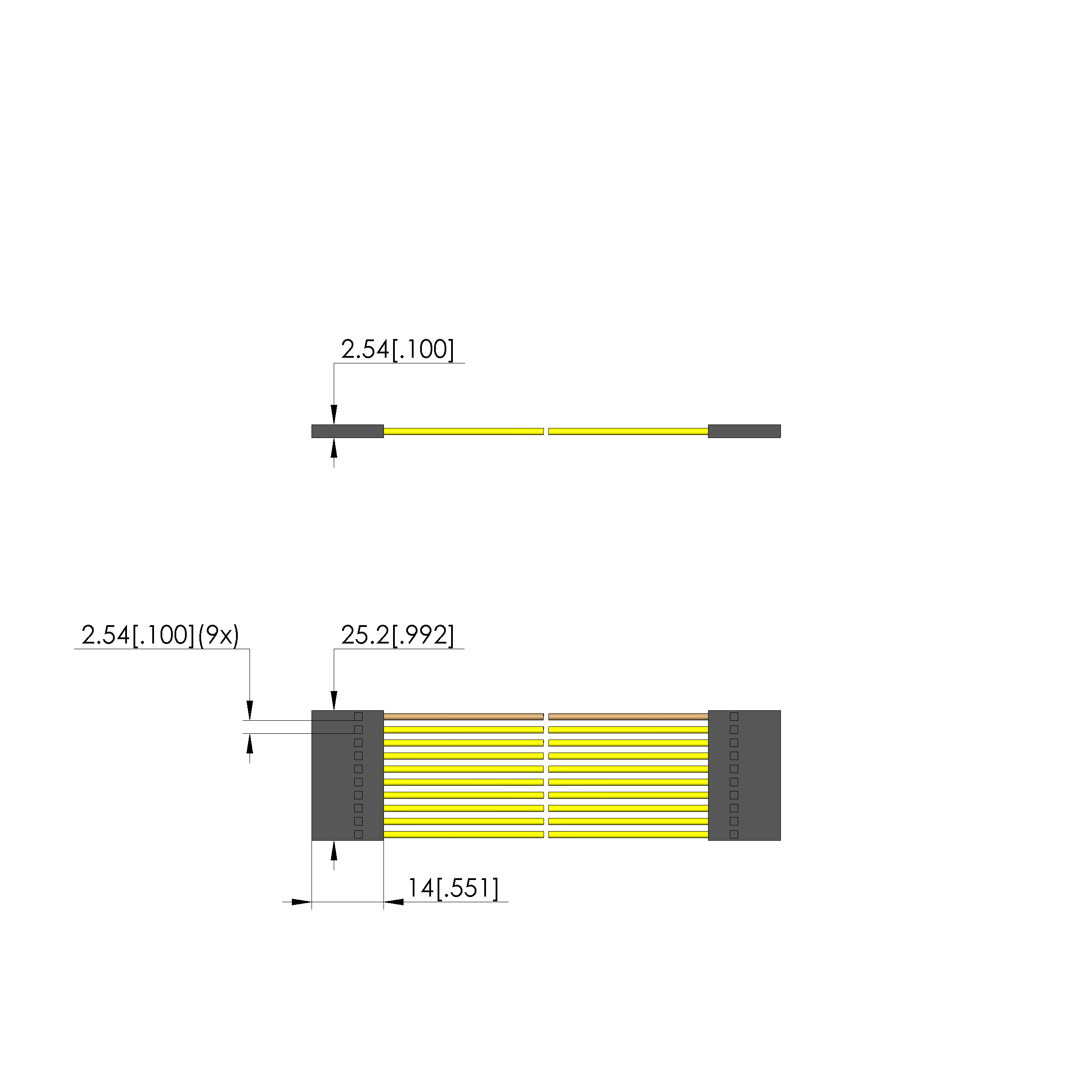

Cable length : 400 mm
Compatible with
Interface blocks (SB) : SB-SI-170/085
