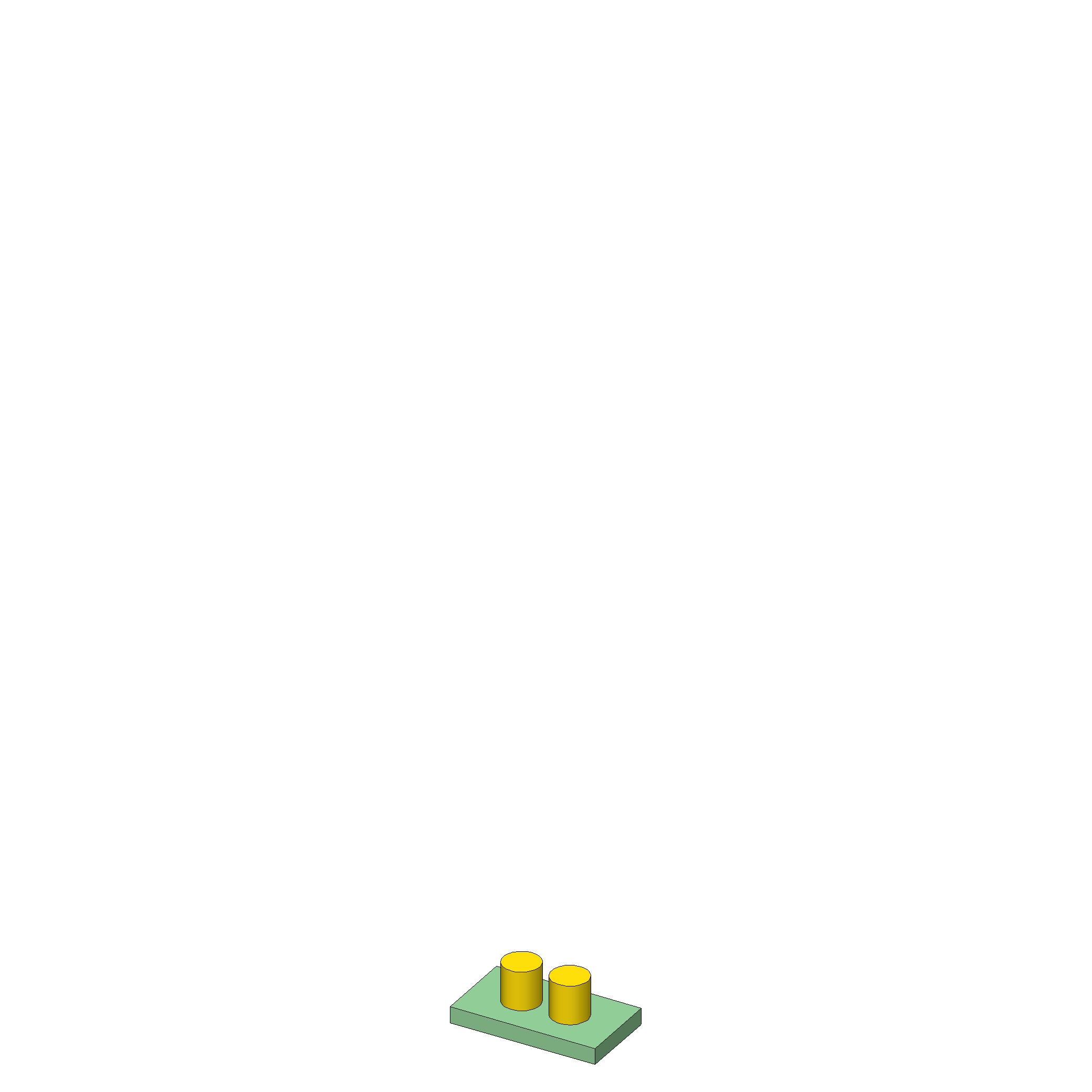

Product information "OTC-SP-ES-SP-005-009"
- Component for the Opens test, for capacitive testing of semiconductor chips for open circuits, short circuits and soldering faults
- Suitable for SPEA test systems
| Accessory type: | Customising accessories |
|---|---|
| Height: | 3.4 mm [.133 in] |
| Interchangeable kits (WS): | WS SPEA |
| Length: | 9 mm [.354 in] |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 5 x 9 x 3.4 mm [.196 x .354 x .133 in] |
| Product group: | Opens tests |
| RoHS-compliant: | Yes |
| Scope of delivery: | Sensor plate Escan Captor11 |
| Series: | OTC |
| Type: | SPEA opens test |
| Version: | Open Pin check |
| Weight: | 0.01 kg [.022 lbs] |
| Width: | 5 mm [.196 in] |
Login
Product details
- Component for the Opens test, for capacitive testing of semiconductor chips for open circuits, short circuits and soldering faults
- Suitable for SPEA test systems
Other products in this series:
Technical data
General data
- Product group: Opens tests
- Series: OTC
- Type: SPEA opens test
- Version: Open Pin check
- Accessory type: Customising accessories
- Scope of delivery: Sensor plate Escan Captor11
- Width: 5 mm [.196 in]
- Height: 3.4 mm [.133 in]
- Weight: 0.01 kg [.022 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Interchangeable kits (WS): WS SPEA
Technical data
- Length: 9 mm [.354 in]
- Outer dimensionS (WxDxH): 5 x 9 x 3.4 mm [.196 x .354 x .133 in]
