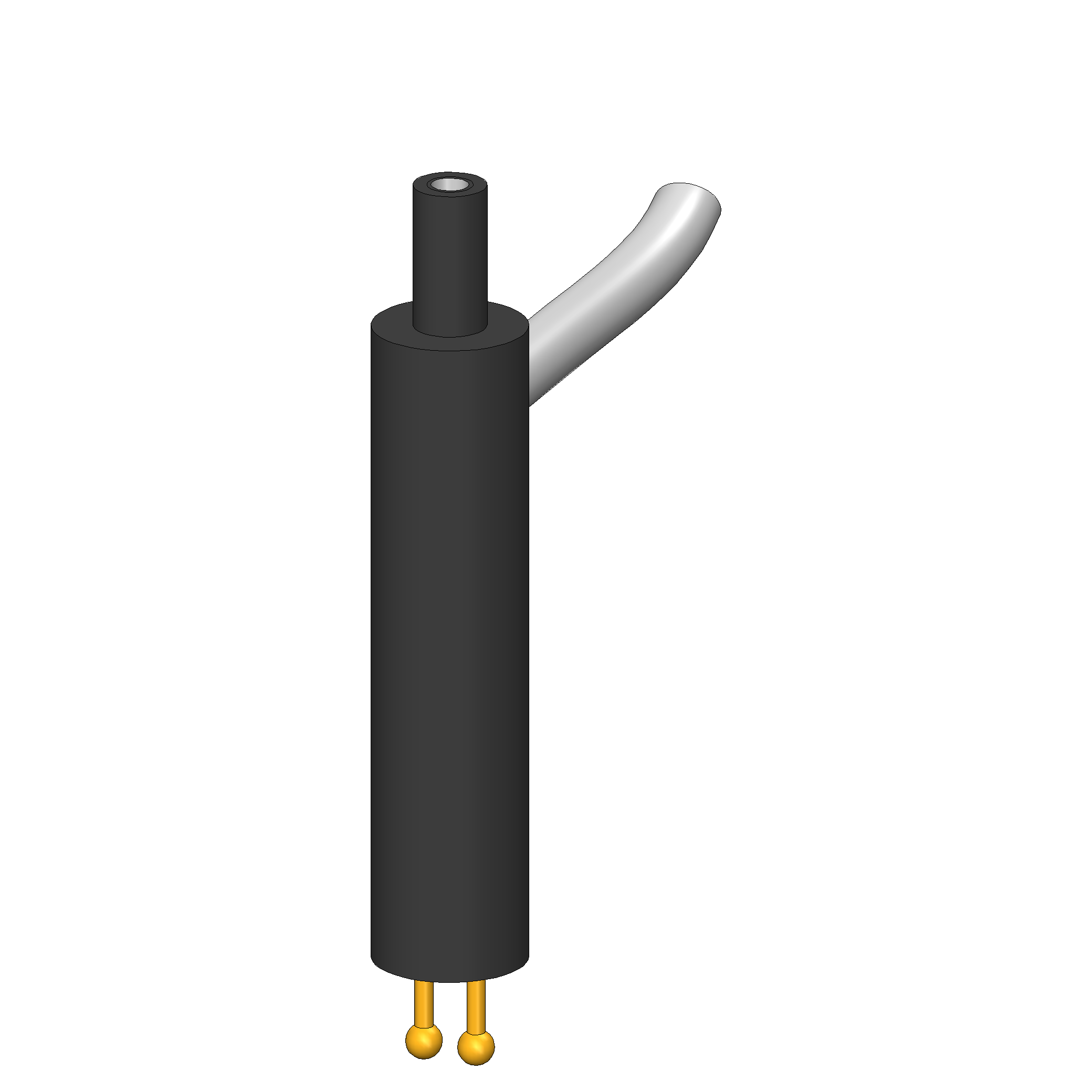

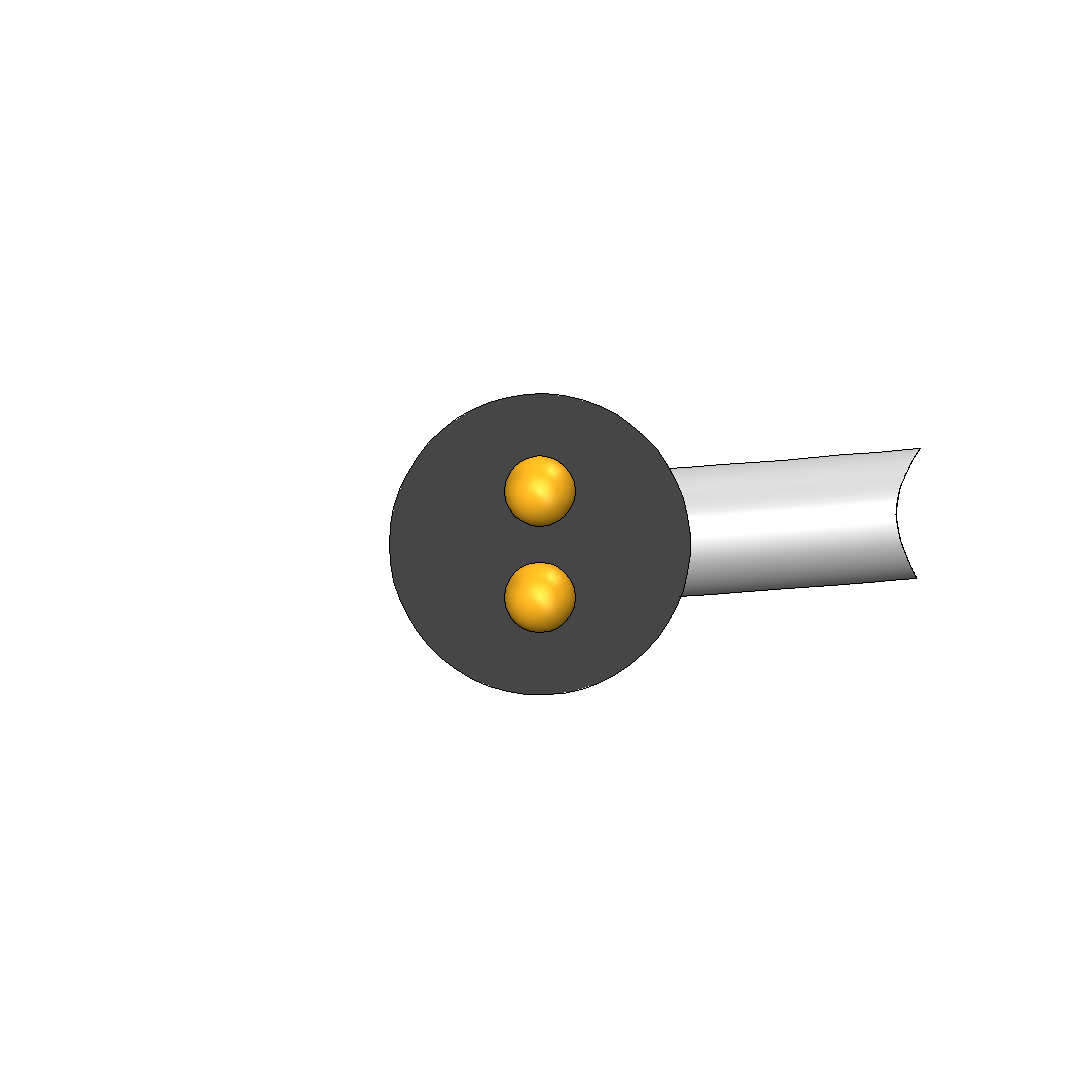

Product information "OTC-SP-ES-EP-L800"
- Component for the Opens test, for capacitive testing of semiconductor chips for open circuits, short circuits and soldering faults
- Suitable for SPEA test systems

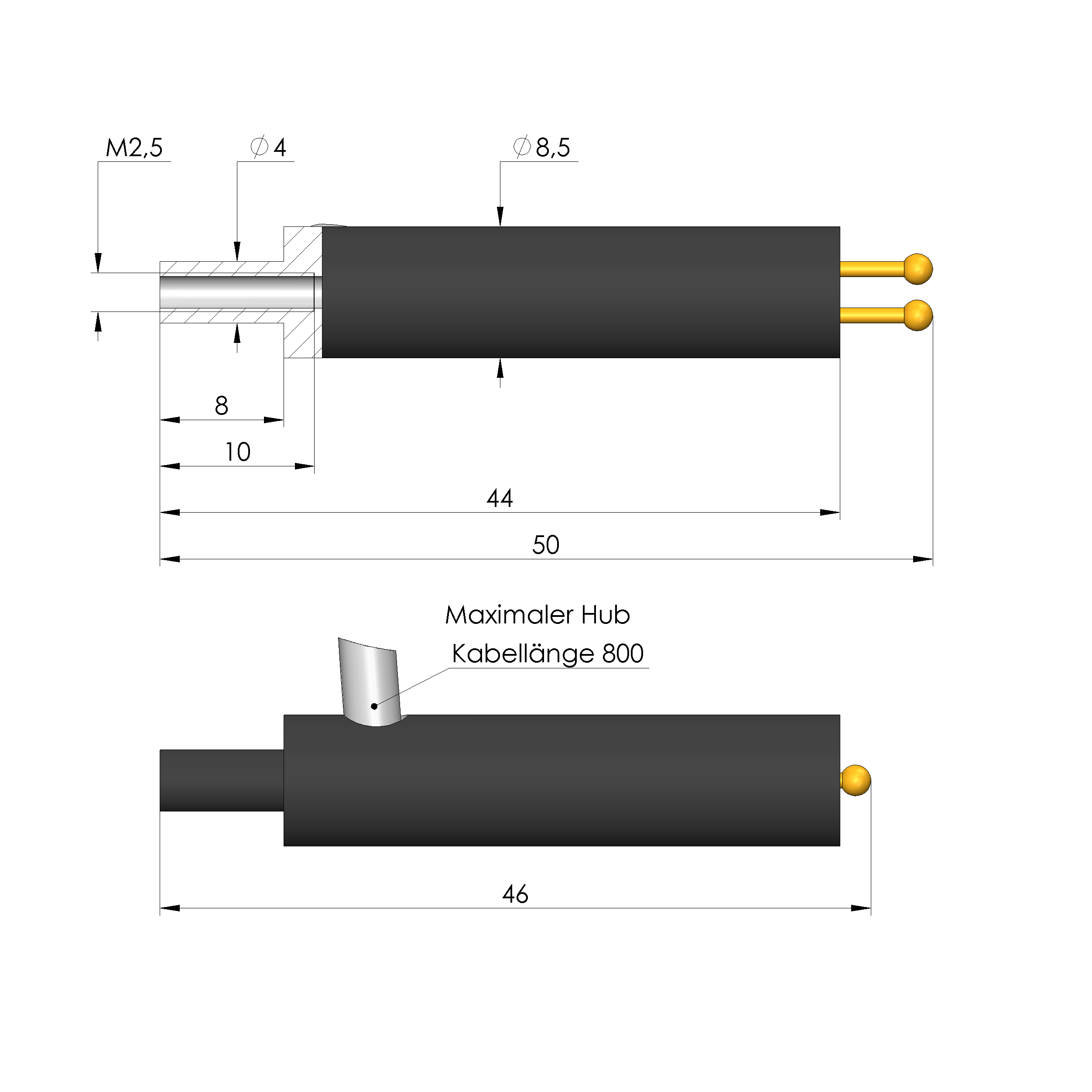

| Accessory type: | Customising accessories |
|---|---|
| Cable length: | 800 mm [31.4 in] |
| Diameter: | 8.5 mm [.334 in] |
| Height: | 50 mm [1.96 in] |
| Installation: | Thread M2.5 |
| Interchangeable kits (WS): | WS SPEA |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Number of poles: | 2 |
| Pin diameter: | 4 mm [.157 in] |
| Product group: | Opens tests |
| RoHS-compliant: | Yes |
| Scope of delivery: | Escan-probe-50 |
| Series: | OTC |
| Stroke: | 4 mm [.157 in] |
| Type: | SPEA opens test |
| Version: | Open Pin check |
| Weight: | 0.01 kg [.022 lbs] |
Login
Product details
- Component for the Opens test, for capacitive testing of semiconductor chips for open circuits, short circuits and soldering faults
- Suitable for SPEA test systems
Other products in this series:
Technical data
Technical data
- Stroke: 4 mm [.157 in]
- Installation: Thread M2.5
- Number of poles: 2
- Diameter: 8.5 mm [.334 in]
- Pin diameter: 4 mm [.157 in]
- Cable length: 800 mm [31.4 in]
General data
- Product group: Opens tests
- Series: OTC
- Type: SPEA opens test
- Version: Open Pin check
- Accessory type: Customising accessories
- Scope of delivery: Escan-probe-50
- Height: 50 mm [1.96 in]
- Weight: 0.01 kg [.022 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Interchangeable kits (WS): WS SPEA
