Product information "STV-VG96abc-F-L-G04"
- Trusted connector for multi-pole electric signal transmission
- Reliable connection and signal transmission
- Quick, easy, space-saving installation
| Accessories: | FB-VGL-96-ATSMAxxx |
|---|---|
| Accessory type: | Customising accessories |
| Bestückung: | abc |
| Connection: | Solder connection |
| Current rating: | 2 A |

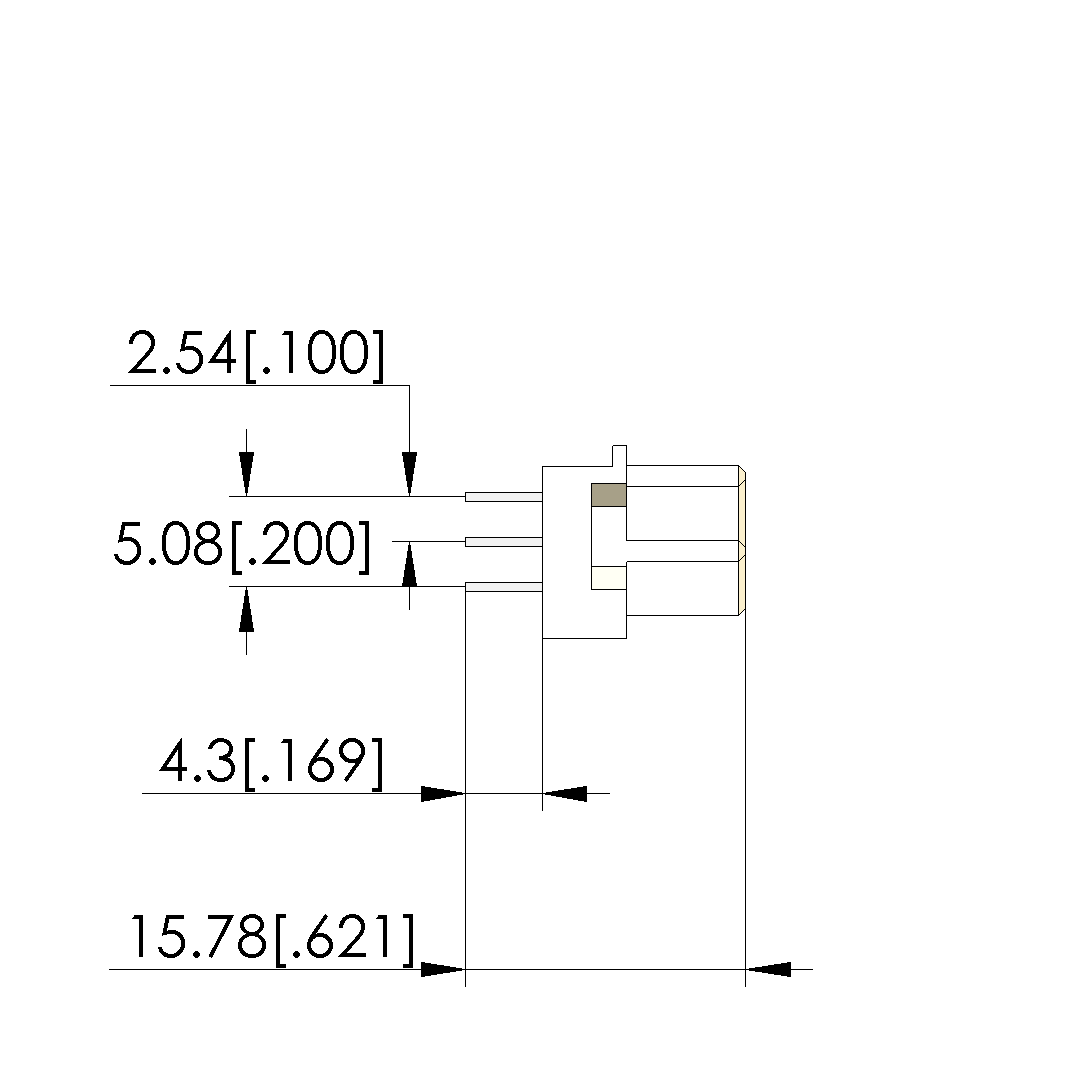

| Height: | 15.8 mm [.622 in] |
| Installation: | Bore D = 2.9 mm |
| Installation grid: | 2.54 mm [.1 in] |
| Length: | 95 mm [3.74 in] |
| Material: | Contacts, gold-plated |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Number of poles: | 96 |

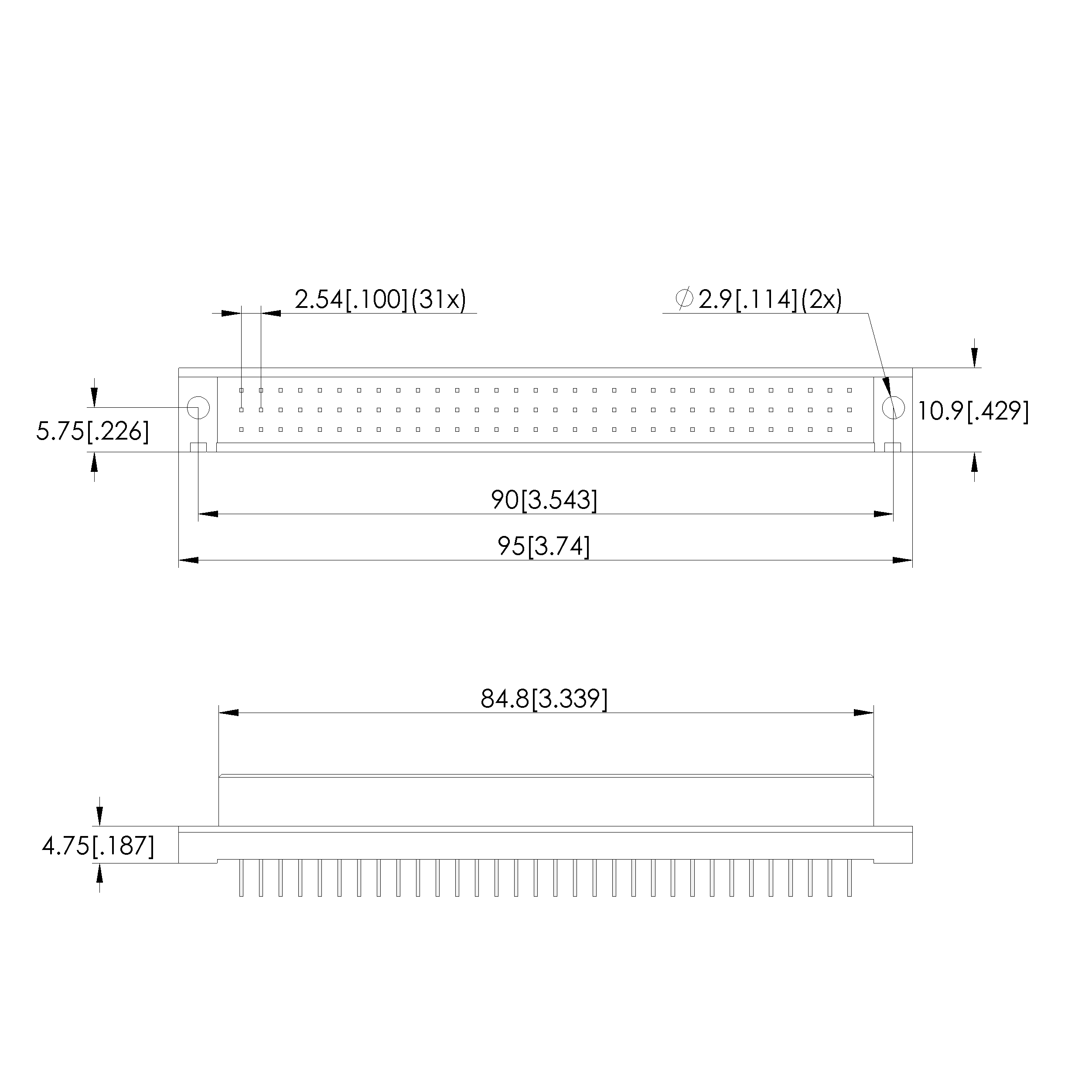

| Outer dimensionS (WxDxH): | 95 x 10.9 x 15.8 mm [3.74 x .429 x .622 in] |
| Post length: | 4 mm [.157 in] |
| Product group: | VG-multipoint connectors |
| RoHS-compliant: | Yes |
| Series: | VG |
| Side approach mechanism: | SAM-M-14-300N-202-145, SAM-M-14-300N-268-145 |

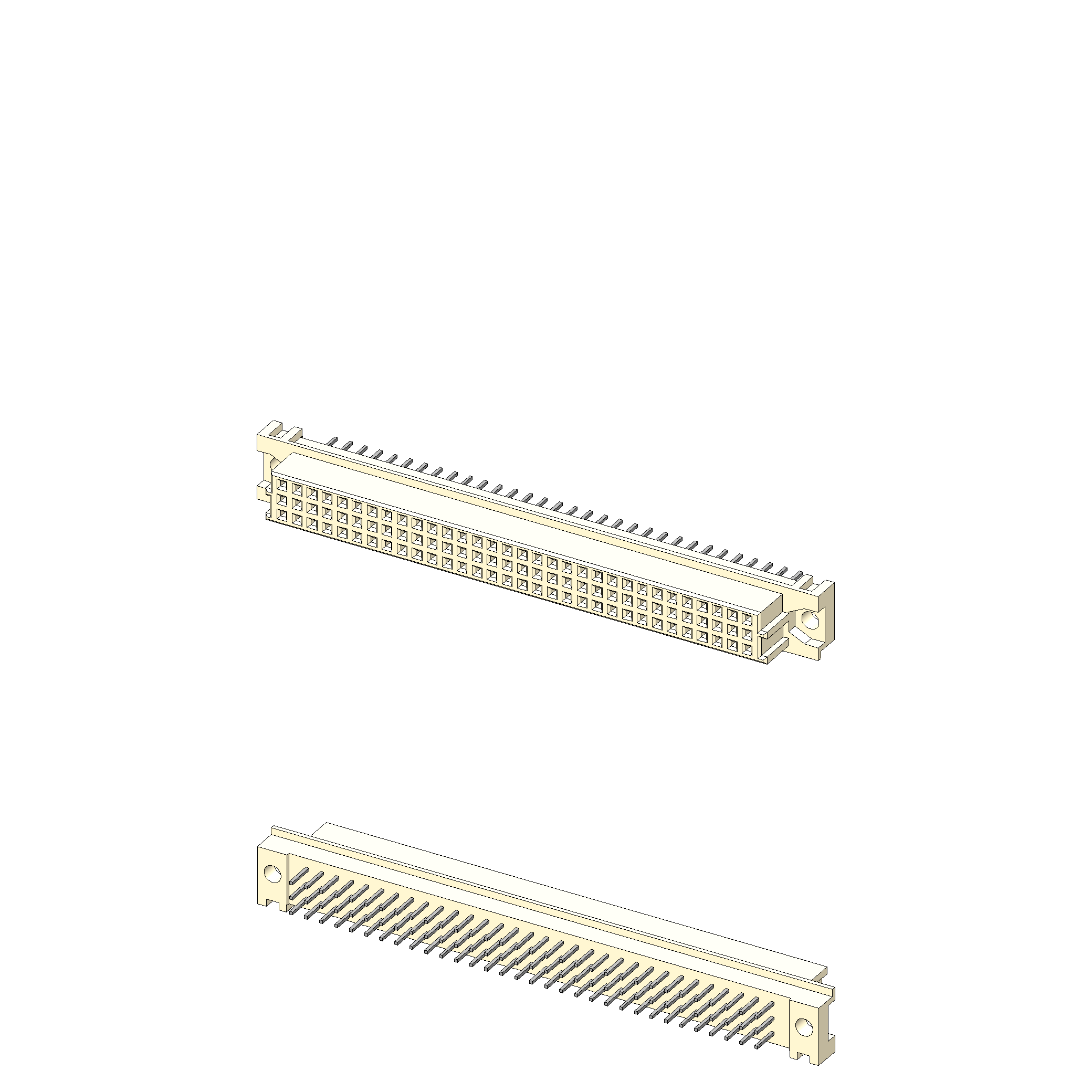

| Type: | Female socket connector |
| Version: | C, straight with axial bore |
| Weight: | 0.01 kg [.022 lbs] |
| Width: | 10.9 mm [.429 in] |
Login
Product Details
- Trusted connector for multi-pole electric signal transmission
- Reliable connection and signal transmission
- Quick, easy, space-saving installation
Other products in this series:
Technical data
Technical data
- Number of poles: 96
- Current rating: 2 A
- Installation grid: 2.54 mm [.1 in]
- Length: 95 mm [3.74 in]
- Outer dimensionS (WxDxH): 95 x 10.9 x 15.8 mm [3.74 x .429 x .622 in]
- Post length: 4 mm [.157 in]
- Installation: Bore D = 2.9 mm
- Connection: Solder connection
Compatible with
- Side approach mechanism: SAM-M-14-300N-202-145
- Side approach mechanism: SAM-M-14-300N-268-145
- Accessories: FB-VGL-96-ATSMAxxx
General data
- Max. temperature: 60 °C [140 °F]
- Version: C, straight with axial bore
- Accessory type: Customising accessories
- Type: Female socket connector
- Min. temperature: 10 °C [50 °F]
- Product group: VG-multipoint connectors
- RoHS-compliant: Yes
- Height: 15.8 mm [.622 in]
- Bestückung: abc
- Material: Contacts, gold-plated
- Series: VG
- Width: 10.9 mm [.429 in]
- Weight: 0.01 kg [.022 lbs]
