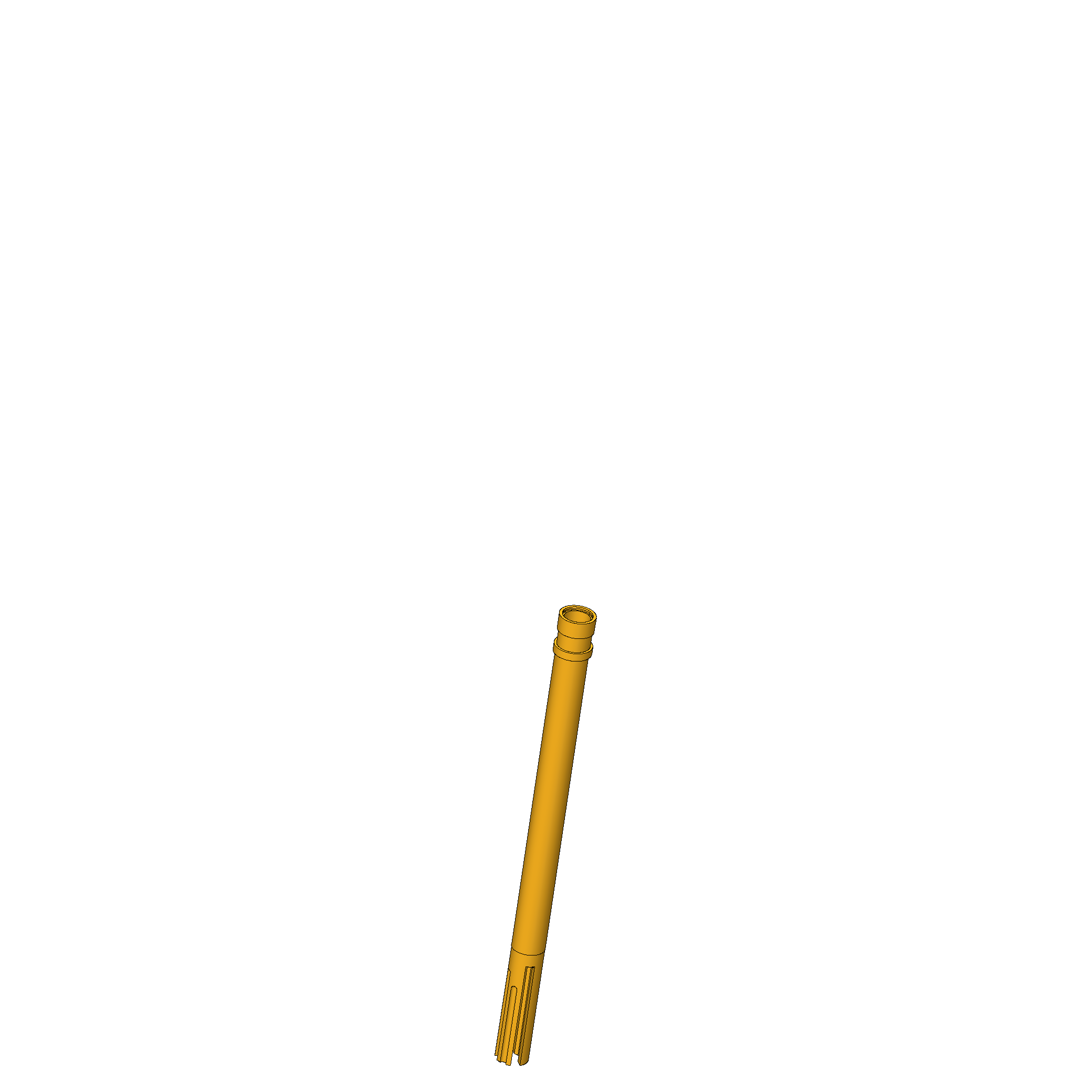

Product information "KS-VF25"
| Collar diameter: | 2.3 mm [.09 in] |
|---|---|
| Collar height: | 2.5 mm [.098 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 2 mm [.078 in] |
| Mounting hole in FR4: | 2 mm [.078 in] |
| Outer diameter: | 2 mm [.078 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-VF25 |
| Sub-series: | KS-VF25 press-in version with bayonet clasp |
| Surface area: | Gold |
| Total length: | 30 mm [1.18 in] |
| Type of receptacle connection: | Solder outer surface |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-VF25
- Sub-series: KS-VF25 press-in version with bayonet clasp
- Press ring: No
- Surface area: Gold
- Knurl: No
- Vacuum-tight: No
- RoHS-compliant: Yes
- Collar diameter: 2.3 mm [.09 in]
- Type of receptacle connection: Solder outer surface
- Collar height: 2.5 mm [.098 in]

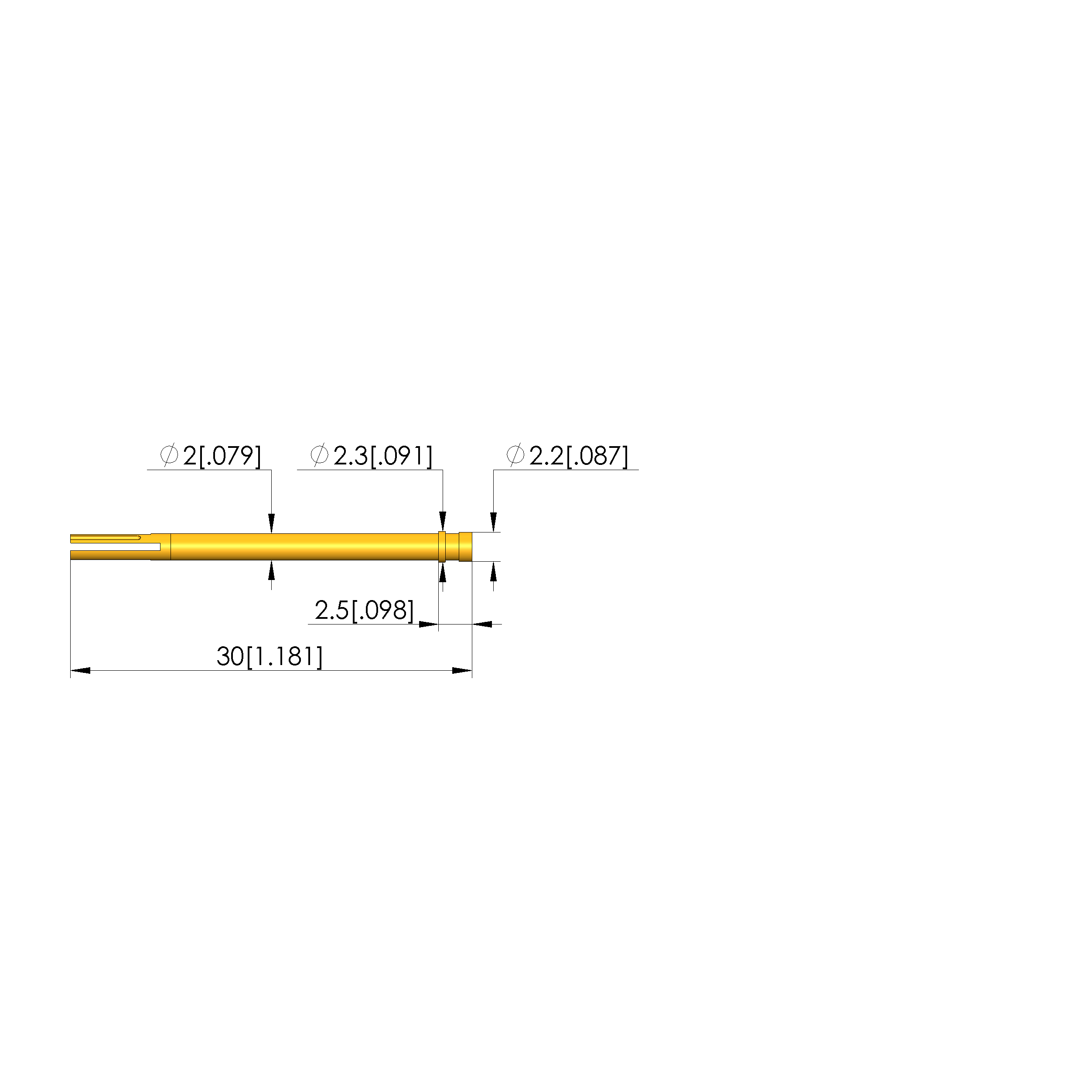

Mechanical data
- Total length: 30 mm [1.18 in]
- Outer diameter: 2 mm [.078 in]
Mounting hole
- Mounting hole in CEM1: 2 mm [.078 in]
- Mounting hole in FR4: 2 mm [.078 in]
