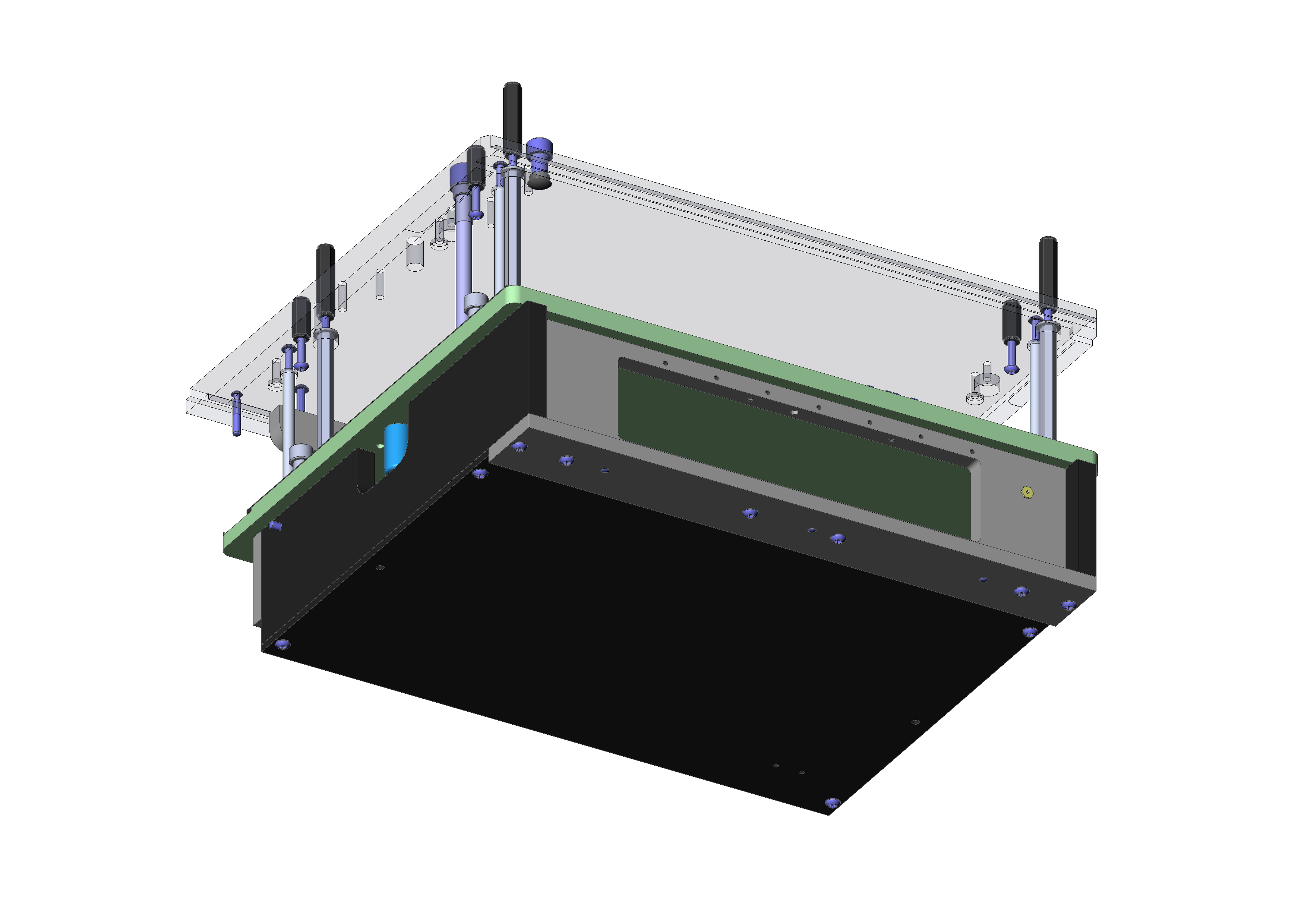

Product information "ATS MA12/S-7/CRS"
- Reliable ICT/FCT tests in the fully automated inline test system and in the manual test fixture
- Replacement kit for CRS test system SMART-Inline, IPS 19-2 and manual test fixture MA 2112, MA 3212
- Modularly configurable signal transmission with internal interfaces
- Quick, tool-free set-up, can be used without readjustment
- Pressure plate unit and probe plate unit can be screwed together with stacking screws to form a unit with protected probe field
- Designed for tooling pins with head length = 16 mm (FS-X,XX-RD-16-02)
| Double-sided contact: | Yes, with compatible additional option |
|---|---|
| Dual-stage contacting: | Yes, with compatible additional option |
| For tandem fixtures: | No |
| Free space above PCB: | 58 mm [2.28 in] |
| Interface blocks required: | Device under test (DUT) side |
| Internal interface: | Available |
| Manual test fixtures (MA): | MA x112, MA x212 |
| Max. interface signals: | 7, 1.190 |
| Max. internal interface blocks: | 7 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 336 x 293 x 213 mm [13.2 x 11.5 x 8.38 in] |
| Product group: | ATS manual test fixture (MA) |
| Pushrod length: | 60 mm [2.36 in] |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | ATS MA12 |
| Subseries: | ATS MAxx |
| Test probe installation height, bottom: | 10.5 mm [.413 in] |
| Test probe installation height, dual-stage, bottom: | 16 mm [.629 in] |
| Test probe installation height, top: | 16 mm [.629 in] |
| Test systems: | CRS IPS 19-2, CRS SMART-Inline |
| Useable area (WxD): | 285 x 240 mm [11.2 x 9.44 in] |
| Version: | With interface, CRS |
| Weight: | 5.7 kg [12.5 lbs] |
Login
Product Details
- Reliable ICT/FCT tests in the fully automated inline test system and in the manual test fixture
- Replacement kit for CRS test system SMART-Inline, IPS 19-2 and manual test fixture MA 2112, MA 3212
- Modularly configurable signal transmission with internal interfaces
- Quick, tool-free set-up, can be used without readjustment
- Pressure plate unit and probe plate unit can be screwed together with stacking screws to form a unit with protected probe field
- Designed for tooling pins with head length = 16 mm (FS-X,XX-RD-16-02)
Other products in this series:
Technical data
General data
- Max. temperature: 60 °C [140 °F]
- Dual-stage contacting: Yes, with compatible additional option
- Max. internal interface blocks: 7
- Weight: 5.7 kg [12.5 lbs]
- Version: With interface, CRS
- Scope of delivery: Unassembled
- Max. interface signals: 1.190
- Interface blocks required: Device under test (DUT) side
- Subseries: ATS MAxx
- Double-sided contact: Yes, with compatible additional option
- For tandem fixtures: No
- Internal interface: Available
- Min. temperature: 10 °C [50 °F]
- Series: ATS MA12
- Product group: ATS manual test fixture (MA)
- Max. interface signals: 7
- RoHS-compliant: Yes
Technical data
- Outer dimensionS (WxDxH): 336 x 293 x 213 mm [13.2 x 11.5 x 8.38 in]
- Test probe installation height, top: 16 mm [.629 in]
- Test probe installation height, bottom: 10.5 mm [.413 in]
- Pushrod length: 60 mm [2.36 in]
- Free space above PCB: 58 mm [2.28 in]
- Useable area (WxD): 285 x 240 mm [11.2 x 9.44 in]
- Test probe installation height, dual-stage, bottom: 16 mm [.629 in]
Compatible with
- Manual test fixtures (MA): MA x212
- Manual test fixtures (MA): MA x112
- Test systems: CRS IPS 19-2
- Test systems: CRS SMART-Inline
