Products

ATS MA12 Products

7 Products

INGUN SELECTION

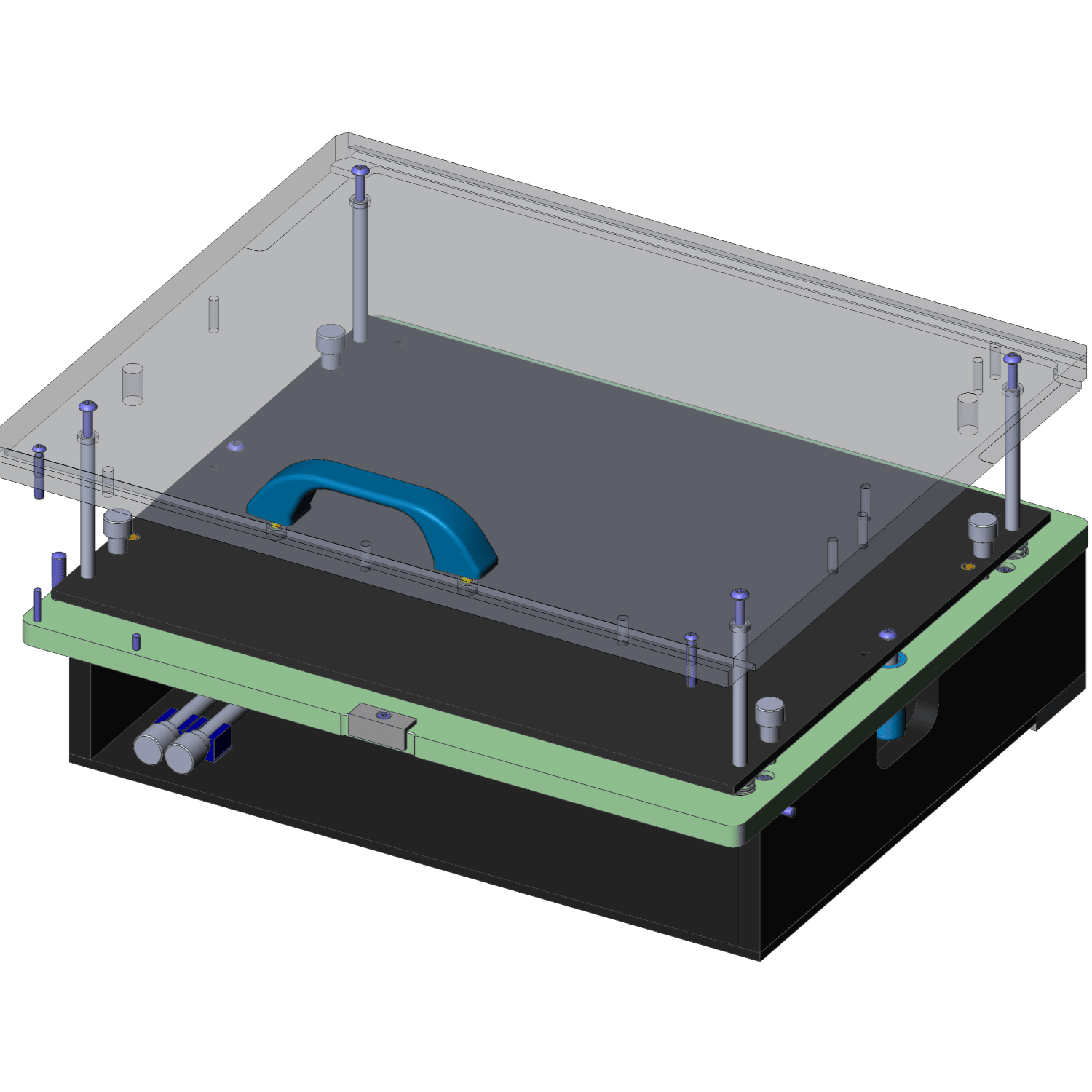

ATS MA12/S-7

Exchangeable kit

ATS MA12/S-7

Product no. 45903-KIT

Max. internal interface blocks 7
Test probe installation height, bottom 10.5 mm [.413 in]
Pushrod length 60 mm [2.36 in]
Version With interface
Useable area (WxD) 285 x 240 mm [11.2 x 9.44 in]
Max. interface signals 7
Max. interface signals 1190

INGUN SELECTION

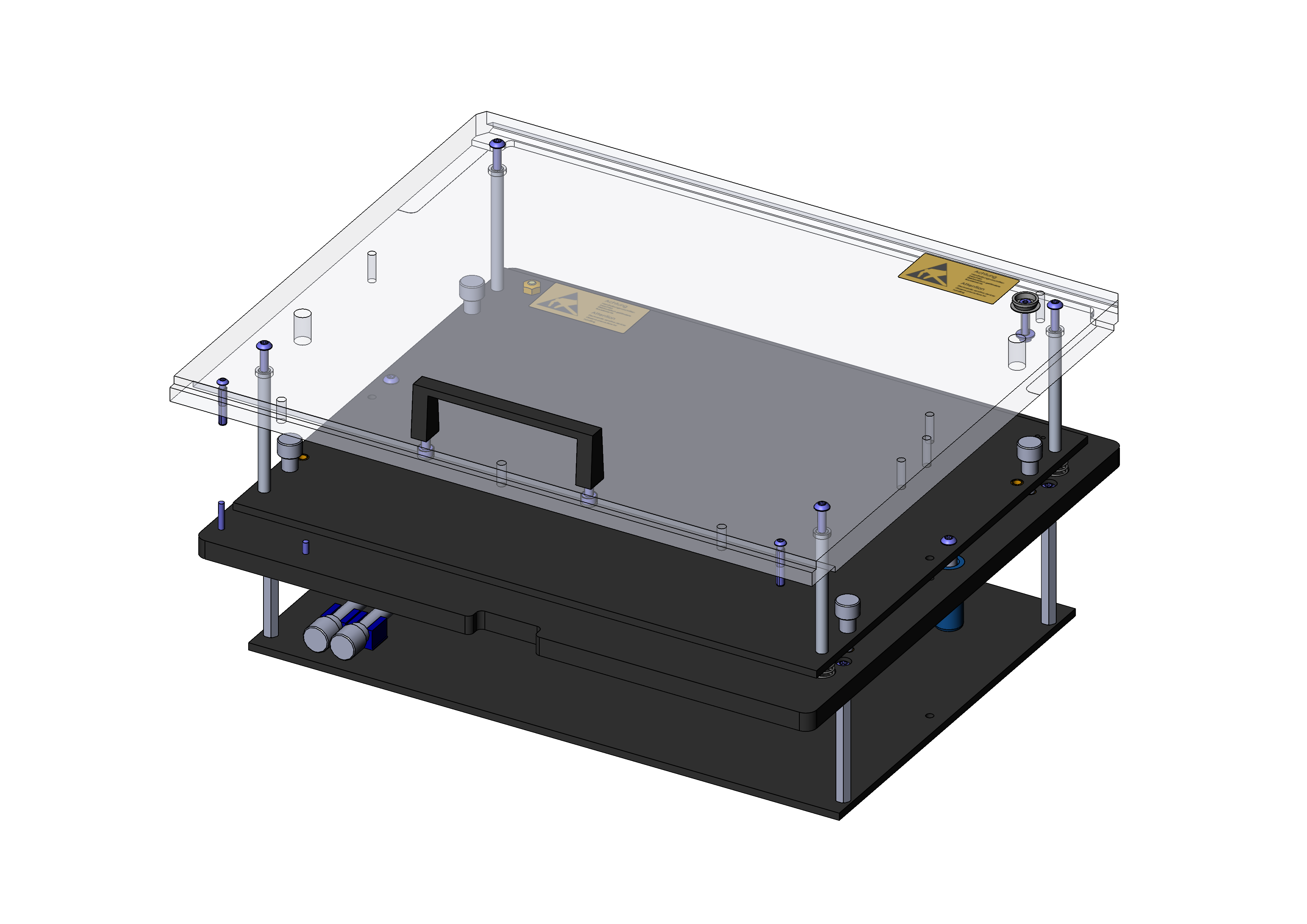

ATS MA12/ESD

Exchangeable kit

ATS MA12/ESD

Product no. 46250-KIT

Max. internal interface blocks no name
Test probe installation height, bottom 10.5 mm [.413 in]
Pushrod length 60 mm [2.36 in]
Max. interface signals no name
Useable area (WxD) 285 x 240 mm [11.2 x 9.44 in]
Version ESD without interface
Max. interface signals 1190

INGUN SELECTION

ATS MA12/S-7/HF/AL/ESD

Exchangeable kit

ATS MA12/S-7/HF/AL/ESD

Product no. 154112

Max. internal interface blocks 7
Version RF, ESD, with interface
Test probe installation height, bottom 10.5 mm [.413 in]
Pushrod length 60 mm [2.36 in]
Useable area (WxD) 220 x 180 mm [8.66 x 7.08 in]
Max. interface signals 7
Max. interface signals 1190

INGUN SELECTION

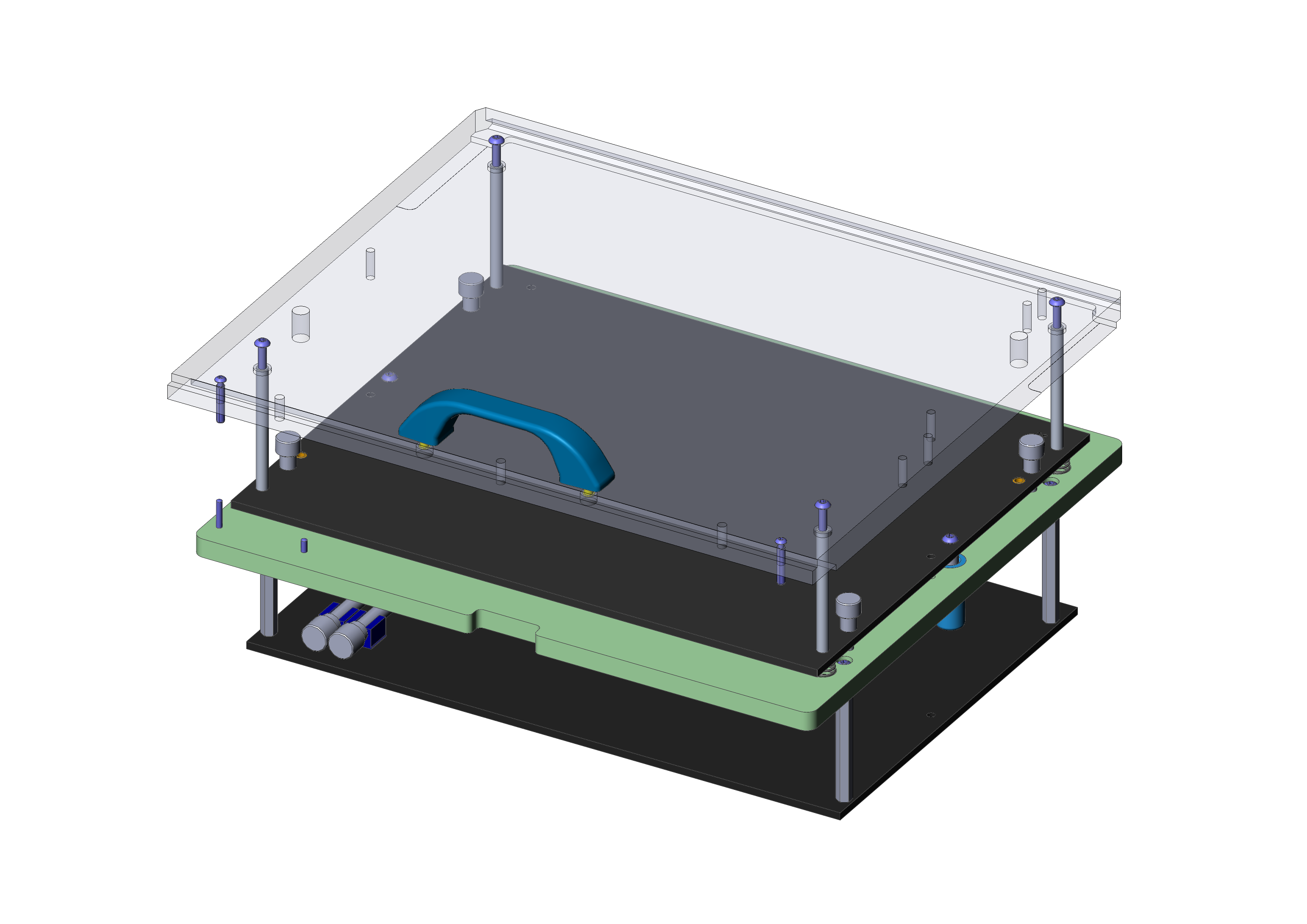

ATS MA12

Exchangeable kit

ATS MA12

Product no. 45904-KIT

Max. internal interface blocks no name
Test probe installation height, bottom 10.5 mm [.413 in]
Pushrod length 60 mm [2.36 in]
Max. interface signals no name
Version Without interface
Useable area (WxD) 285 x 240 mm [11.2 x 9.44 in]
Max. interface signals 1190

INGUN SELECTION

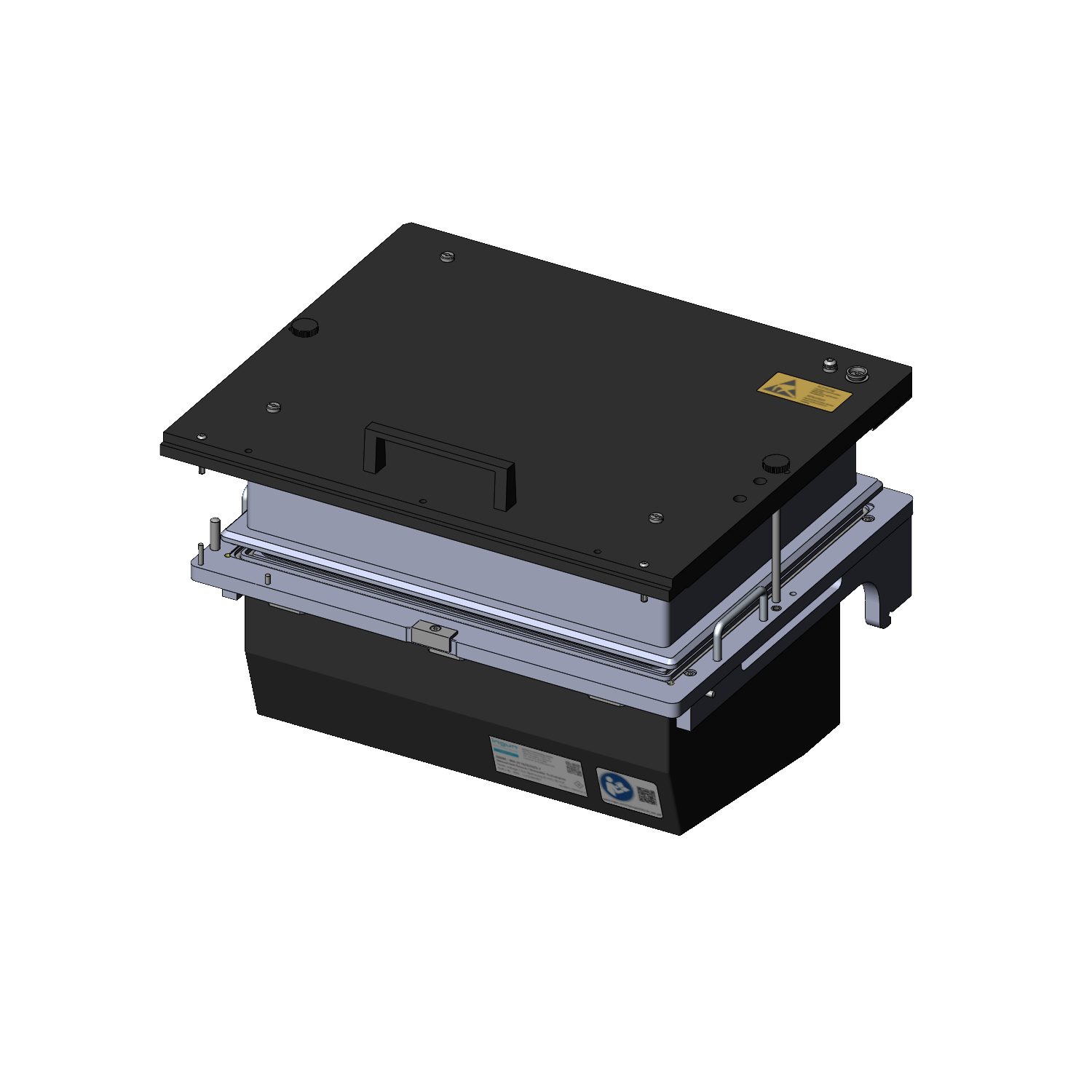

ATS MA12/HF/AL/ESD

Exchangeable kit

ATS MA12/HF/AL/ESD

Product no. 154012

Max. internal interface blocks no name
Test probe installation height, bottom 10.5 mm [.413 in]
Pushrod length 60 mm [2.36 in]
Max. interface signals no name
Version RF, ESD, without interface
Useable area (WxD) 220 x 180 mm [8.66 x 7.08 in]
Max. interface signals 1190

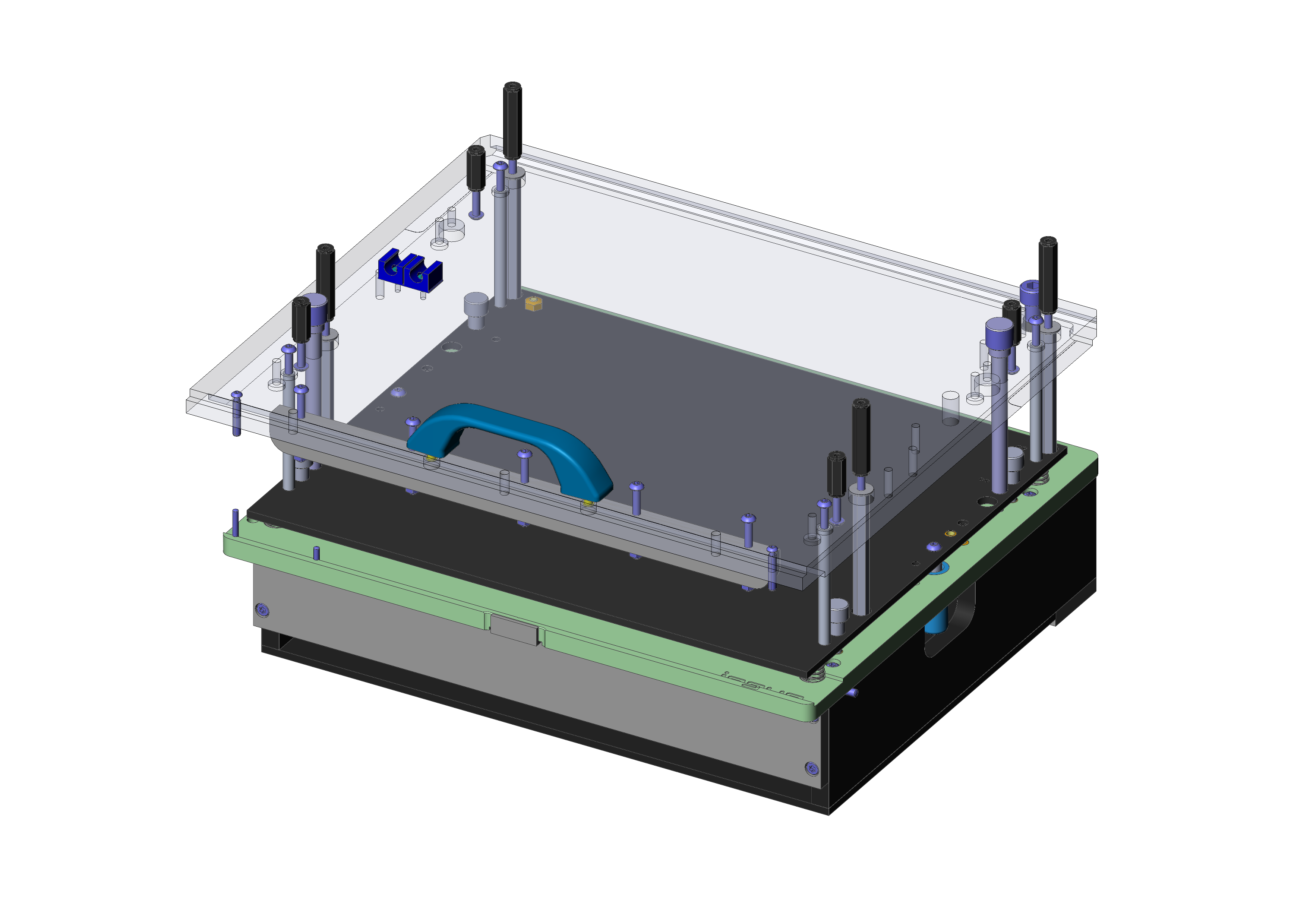

ATS MA12/S-7/CRS

Exchangeable kit

ATS MA12/S-7/CRS

Product no. 108812

Max. internal interface blocks 7
Version With interface, CRS
Test probe installation height, bottom 10.5 mm [.413 in]
Pushrod length 60 mm [2.36 in]
Useable area (WxD) 285 x 240 mm [11.2 x 9.44 in]
Max. interface signals 7
Max. interface signals 1190

INGUN SELECTION

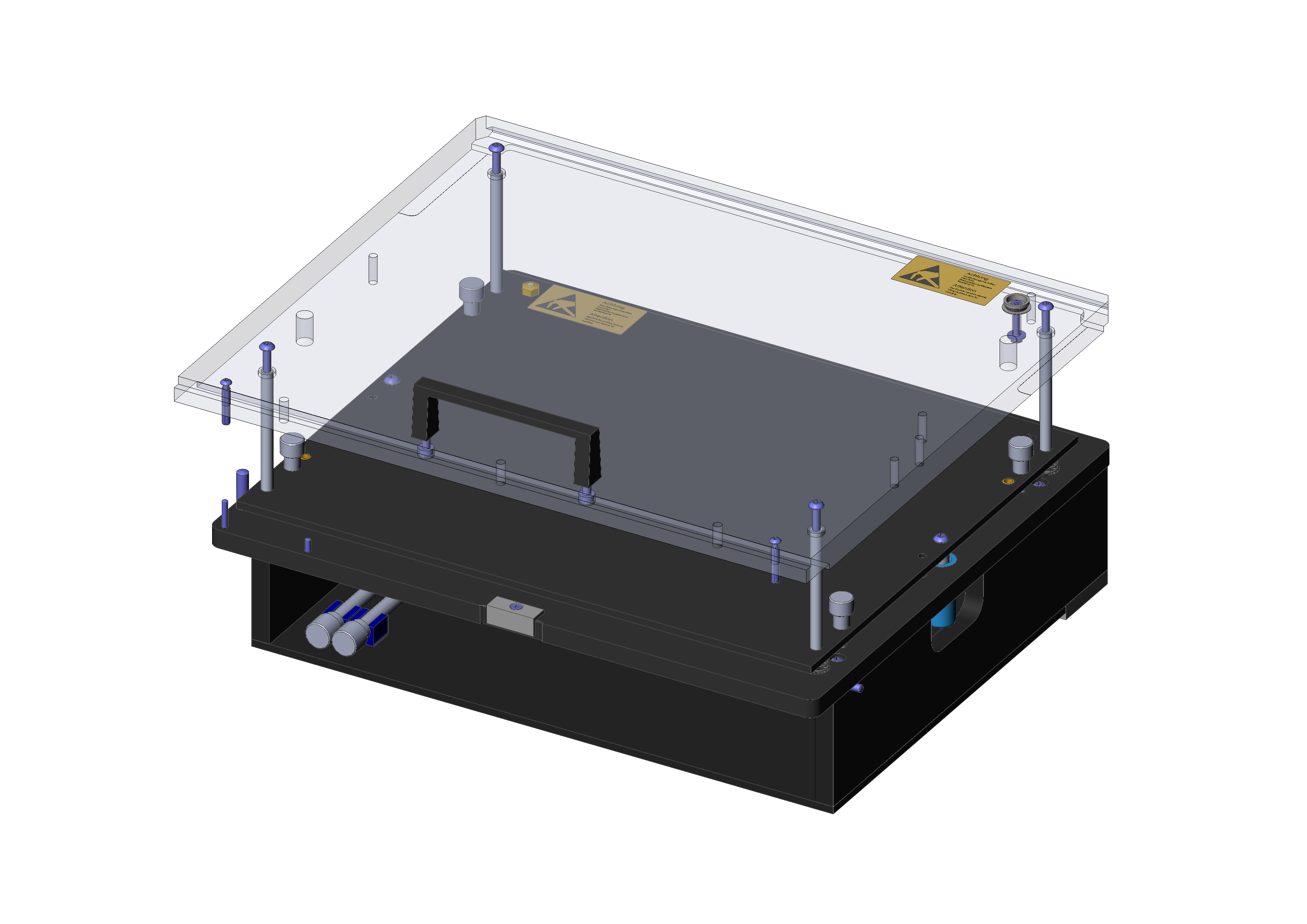

ATS MA12/S-7/ESD

Exchangeable kit

ATS MA12/S-7/ESD

Product no. 46236-KIT

Max. internal interface blocks 7
Test probe installation height, bottom 10.5 mm [.413 in]
Pushrod length 60 mm [2.36 in]
Useable area (WxD) 285 x 240 mm [11.2 x 9.44 in]
Max. interface signals 7
Version ESD with interface
Max. interface signals 1190
