H-MTD multiple modules for maximum flexibility
Cost-effective testing of entire assemblies and individual channels

When testing multi-channel connectors, multiple modules can be considered as an alternative to single-solution setups. Unused channels are often tested as well, and users have to assemble their test solution from individual components. This results in unnecessary costs and complicates adjustments. With the new H-MTD multiple modules, we combine efficiency and flexibility in a unique solution. You can choose whether you want to perform a complete test of all channels or only test the relevant connections.

Multiple modules for 2-way and 4-way connectors

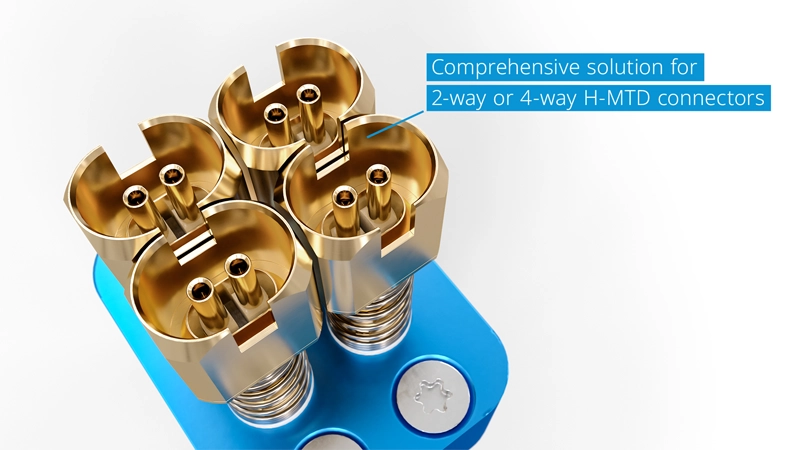

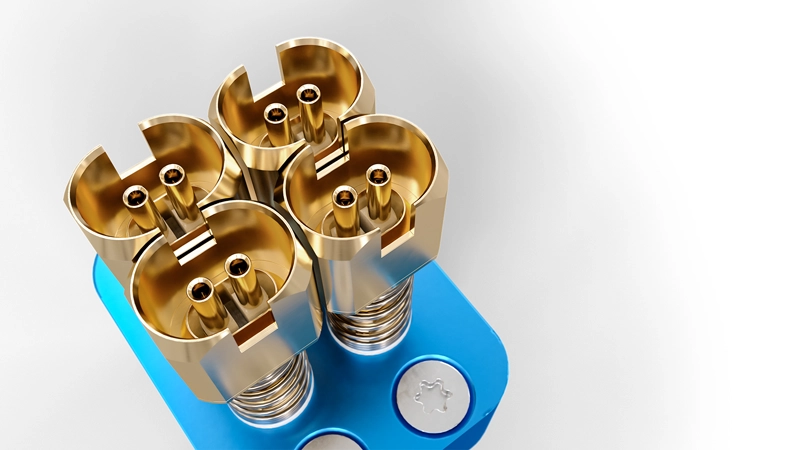

The multiple modules are ideal for cost-optimised use in fixture solutions for automotive projects where efficient overall testing is required. Whether for 2-way or 4-way connectors, you will find the right version in our portfolio.

4-way connector: HFS-802-0012 – HFS-802 314 051 A 32042 HMTD-4
2-way connector: HFS-802-0013 – HFS-802 314 051 A 16042 HMTD-2

Configuration freedom using dummy probes

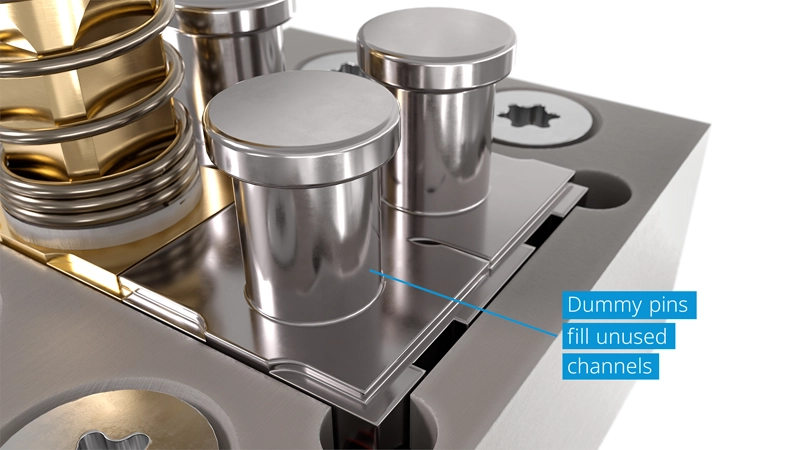

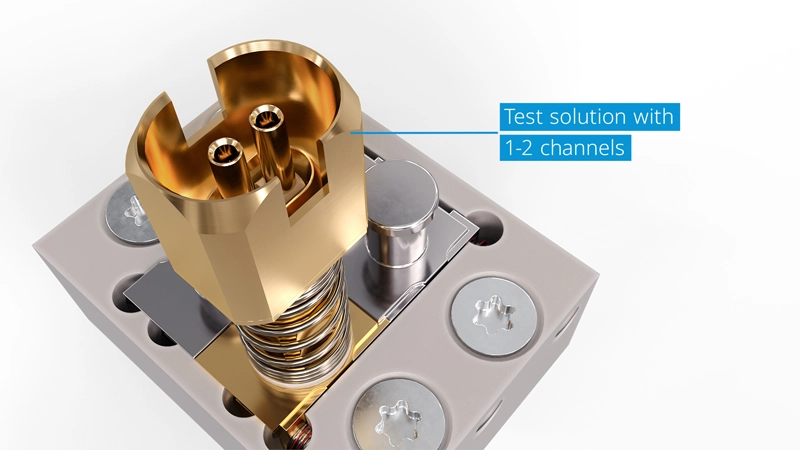

The dummy modules, on the other hand, offer maximum flexibility. Only the channels that are actually occupied are tested while unused connections are simply and cost-effectively fitted with dummy probes. You will find the following selection for 2-way and 4-way connectors to suit your application:

4-way connector: with single configuration: BKS-802-0001
4-way connector: with double configuration: BKS-802-0002
2-way connector: with single configuration: BKS-802-0003

Your benefits at a glance

Multiple modules – complete solutions for full customisation
Dummy modules – can be used as the test situation requires
Reduction of unnecessary costs thanks needs-based configuration
Maximum flexibility in test configuration
Complete portfolio from a single source; from flexible modular systems to complete assemblies
