Product information "HFS-802 314 051 A 32042 HMTD-4"
- For testing differential connectors (e.g. LV 214 / USCAR)
- Used mainly in future technologies for the automotive market (e.g. autonomous driving)
- Consistent radio-frequency performance for data transmission

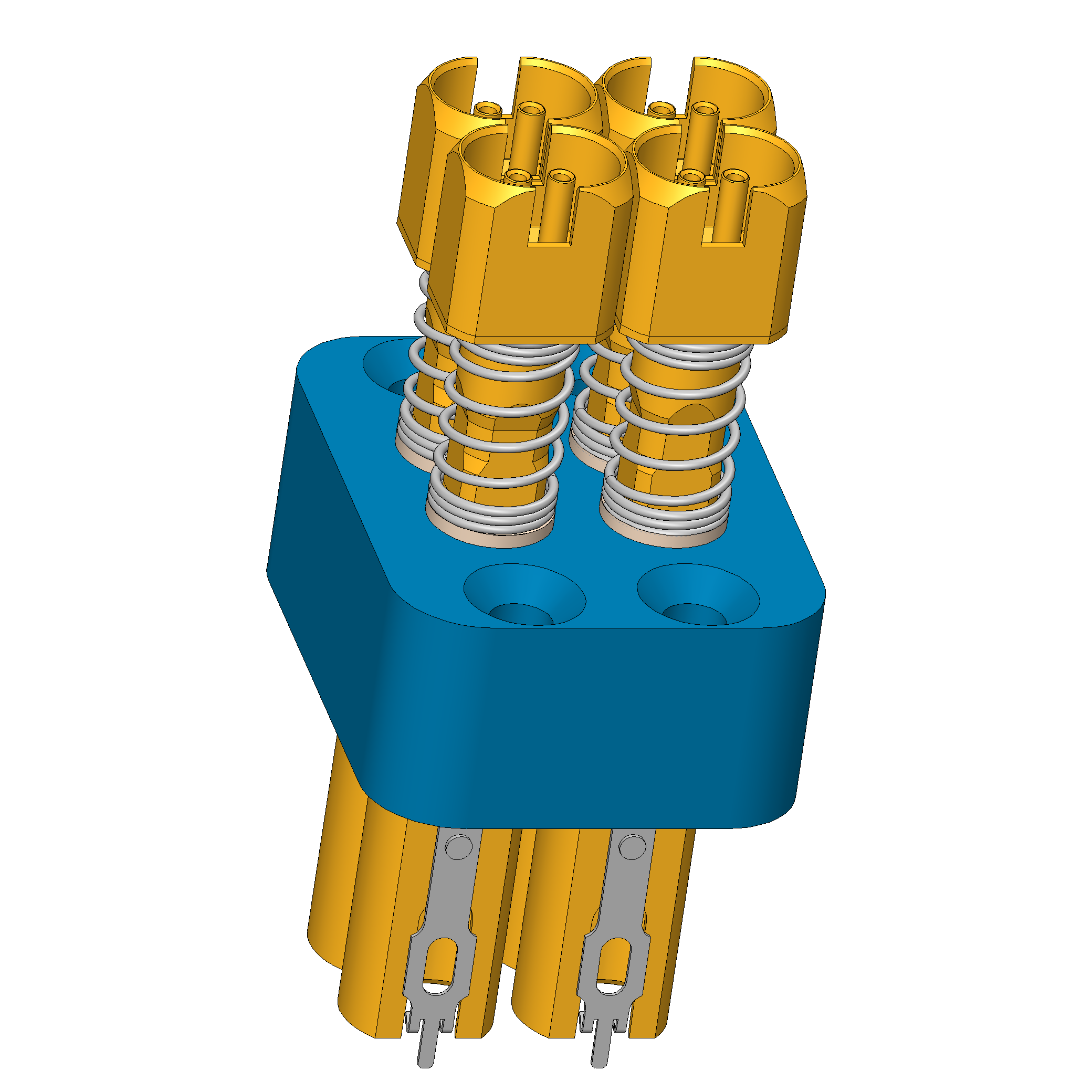

- Modular design, test probe combination for single, double, or quadruple housing
- Cable interface H-MTD
| Barrel diameter: | 8 mm [.314 in] |
|---|---|
| Compatible assembly interface gender : | M signal conductor male / pin |
| Continuous plunger: | Yes |
| DUT / contact: | H-MTD ® (Rosenberger) , Ve-NET ™(Amphenol), |
| DUT interface gender : | M signal conductor male / pin |
| Exchangeable inner conductor: | No |
| Exchangeable outer conductor: | No |
| Floating mount: | Yes |
| Frequency range up to: | 3 GHz |

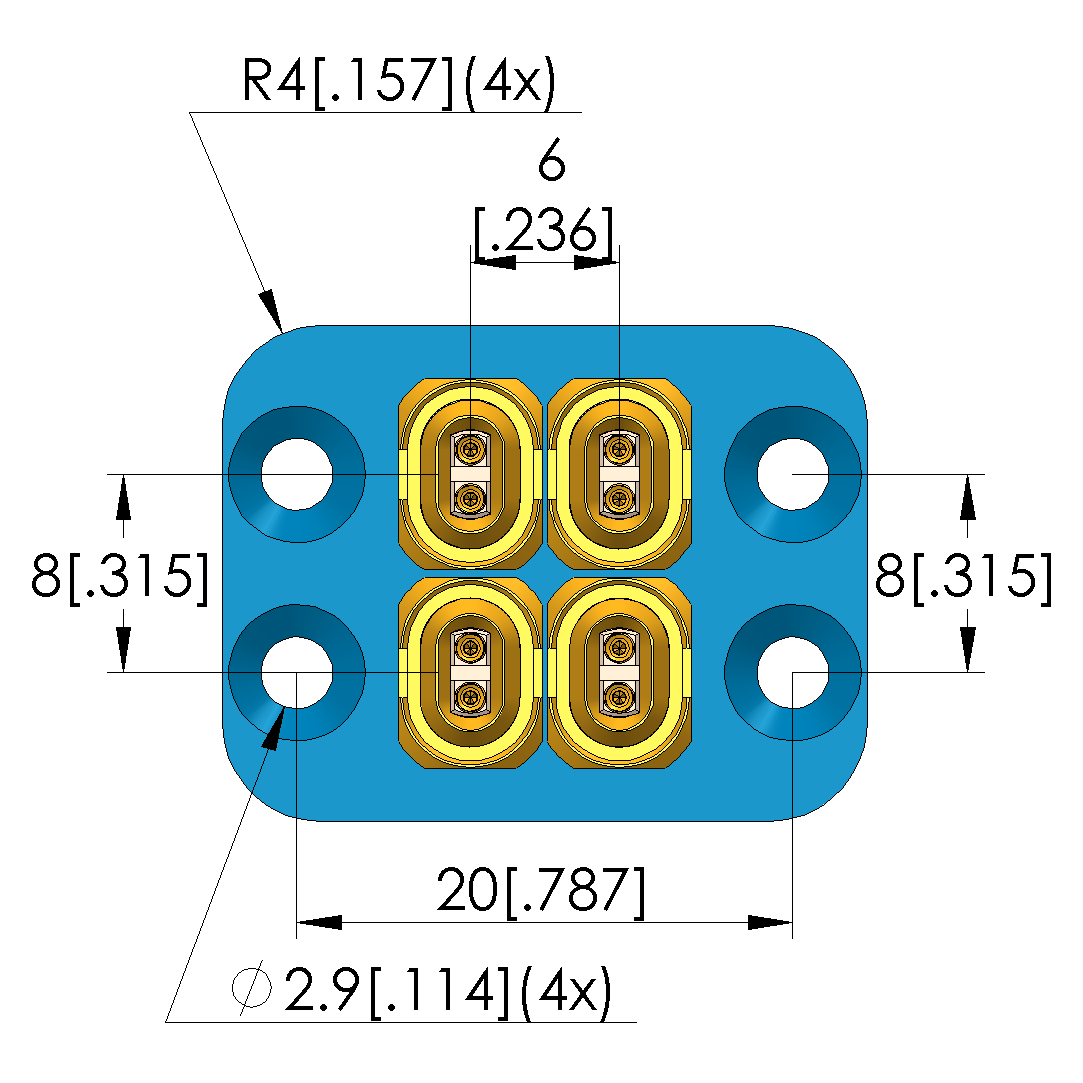

| Grid: | 20 mm [787 mil] |
| Impedance: | 100 Ohm |
| Inner conductor max. current load capacity: | 2 A |
| Inner conductor maximum stroke: | 2.8 mm [.11 in] |

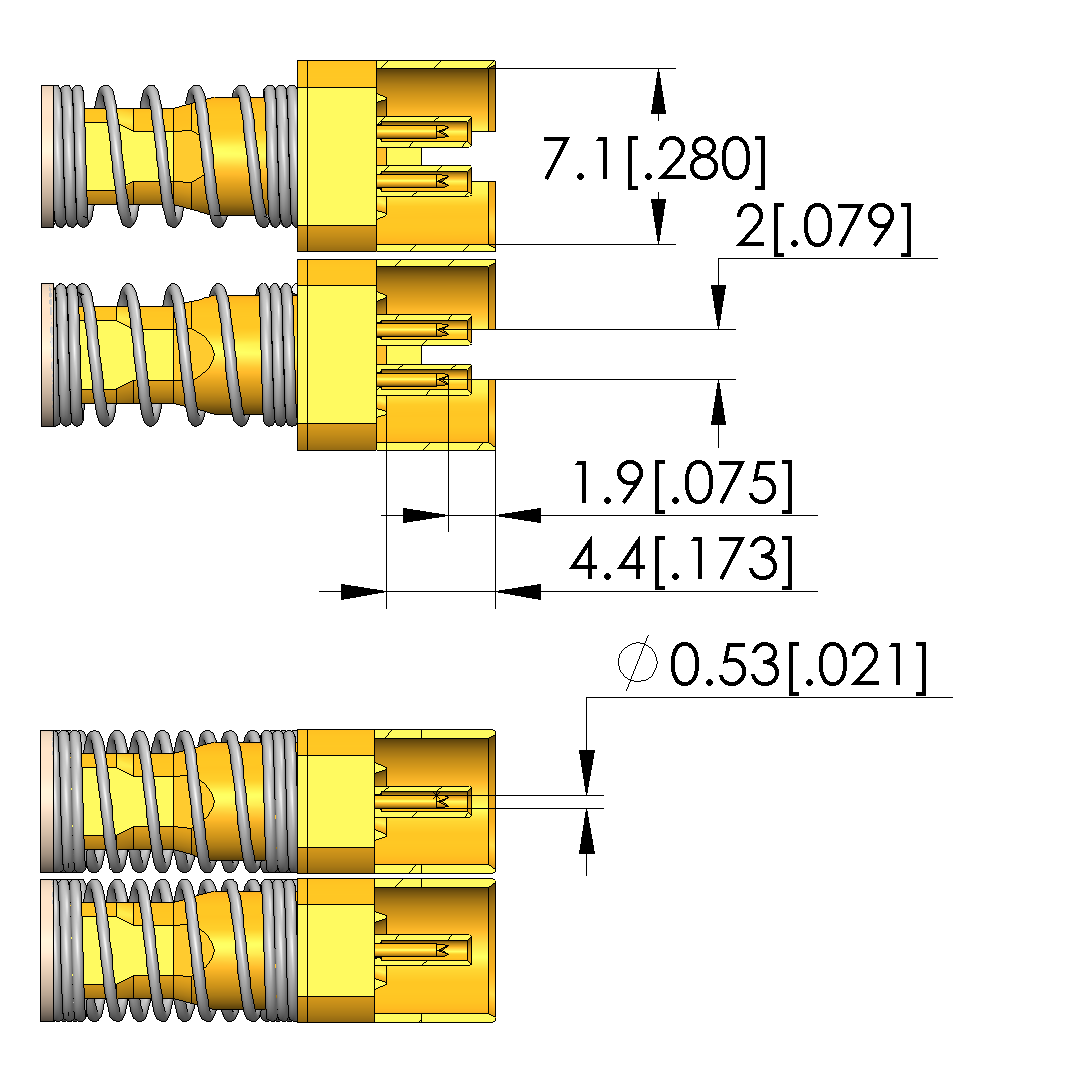

| Inner conductor tip style: | 14 4-point crown, self-cleaning |
| Inner conductor tip style diameter: | 0.51 mm [.02 in] |
| Inner conductor tip style material: | 3 CuBe |
| Inner conductor tip style surface: | A gold |
| Inner conductor working stroke: | 2.2 mm [.086 in] |
| Installation height without receptacle: | 28.8 mm [1.13 in] |
| Installation type: | Plug-in |
| Interface of compatible assembly: | HMTD |
| Max. temperature: | 80 °C [176 °F] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | Yes |
| Number of inner conductors: | 8 |
| Outer conductor max. current load capacity: | 10 A |
| Outer conductor maximum stroke: | 5 mm [.196 in] |

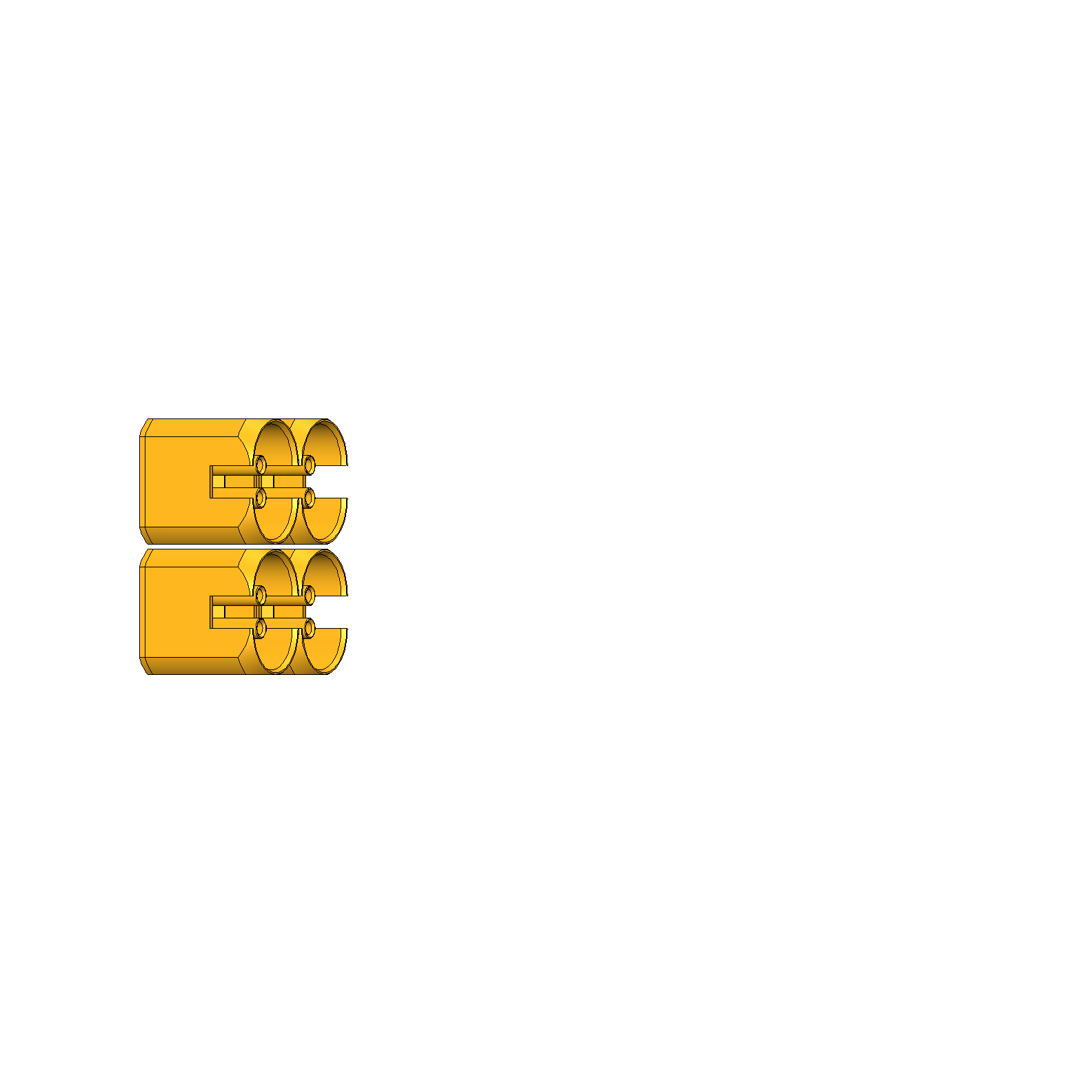

| Outer conductor tip style: | 42 centring for inner side of plug connector |
| Outer conductor tip style diameter: | 11.6 mm [.456 in] |
| Outer conductor working stroke: | 4 mm [.157 in] |
| Product group: | HFS radio-frequency test probes |
| RoHS-compliant: | Yes |
| Series: | HFS-802 |
| Spring force of each inner conductor at working stroke: | 1 N [3.59 ozf] |
| Spring force of entire outer conductor at working stroke: | 24 N [86.3 ozf] |
| Sub-series: | HFS-802 |

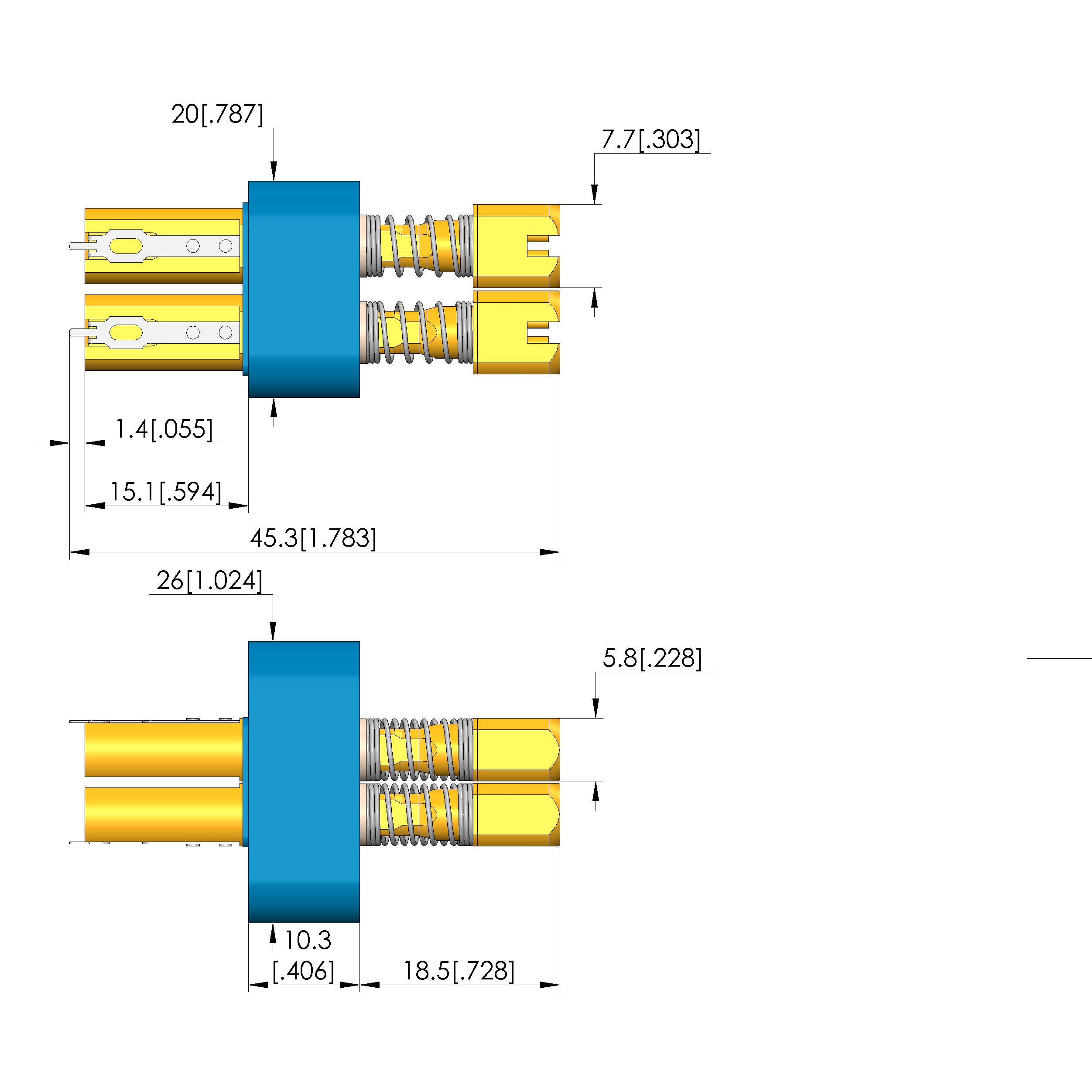

| Total length: | 45.3 mm [1.78 in] |
| Total spring force at working stroke: | 32 N [115 ozf] |
Login
Product Details
- For testing differential connectors (e.g. LV 214 / USCAR)
- Used mainly in future technologies for the automotive market (e.g. autonomous driving)
- Consistent radio-frequency performance for data transmission
- Modular design, test probe combination for single, double, or quadruple housing
- Cable interface H-MTD
Other products in this series:
Technical data
General data
- Non-rotating: Yes
- Installation type: Plug-in
- Max. temperature: 80 °C [176 °F]
- Grid: 20 mm [787 mil]
- Continuous plunger: Yes
- Series: HFS-802
- Floating mount: Yes
- Interface of compatible assembly: HMTD
- Product group: HFS radio-frequency test probes
- Sub-series: HFS-802
- Compatible assembly interface gender : M signal conductor male / pin
- RoHS-compliant: Yes
- DUT / contact: H-MTD ® (Rosenberger) , Ve-NET ™(Amphenol),
- Min. temperature: -40 °C [-40 °F]
- DUT interface gender : M signal conductor male / pin
Inner conductor data
- Number of inner conductors: 8
- Inner conductor maximum stroke: 2.8 mm [.11 in]
- Inner conductor tip style diameter: 0.51 mm [.02 in]
- Inner conductor tip style material: 3 CuBe
- Inner conductor tip style surface: A gold
- Inner conductor working stroke: 2.2 mm [.086 in]
- Exchangeable inner conductor: No
- Inner conductor max. current load capacity: 2 A
- Spring force of each inner conductor at working stroke: 1 N [3.59 ozf]
- Inner conductor tip style: 14 4-point crown, self-cleaning
Mechanical data
- Barrel diameter: 8 mm [.314 in]
- Total length: 45.3 mm [1.78 in]
- Installation height without receptacle: 28.8 mm [1.13 in]
- Total spring force at working stroke: 32 N [115 ozf]
Outer conductor data
- Exchangeable outer conductor: No
- Outer conductor maximum stroke: 5 mm [.196 in]
- Outer conductor tip style: 42 centring for inner side of plug connector
- Outer conductor max. current load capacity: 10 A
- Outer conductor working stroke: 4 mm [.157 in]
- Outer conductor tip style diameter: 11.6 mm [.456 in]
- Spring force of entire outer conductor at working stroke: 24 N [86.3 ozf]
Electrical data
- Frequency range up to: 3 GHz
- Impedance: 100 Ohm
