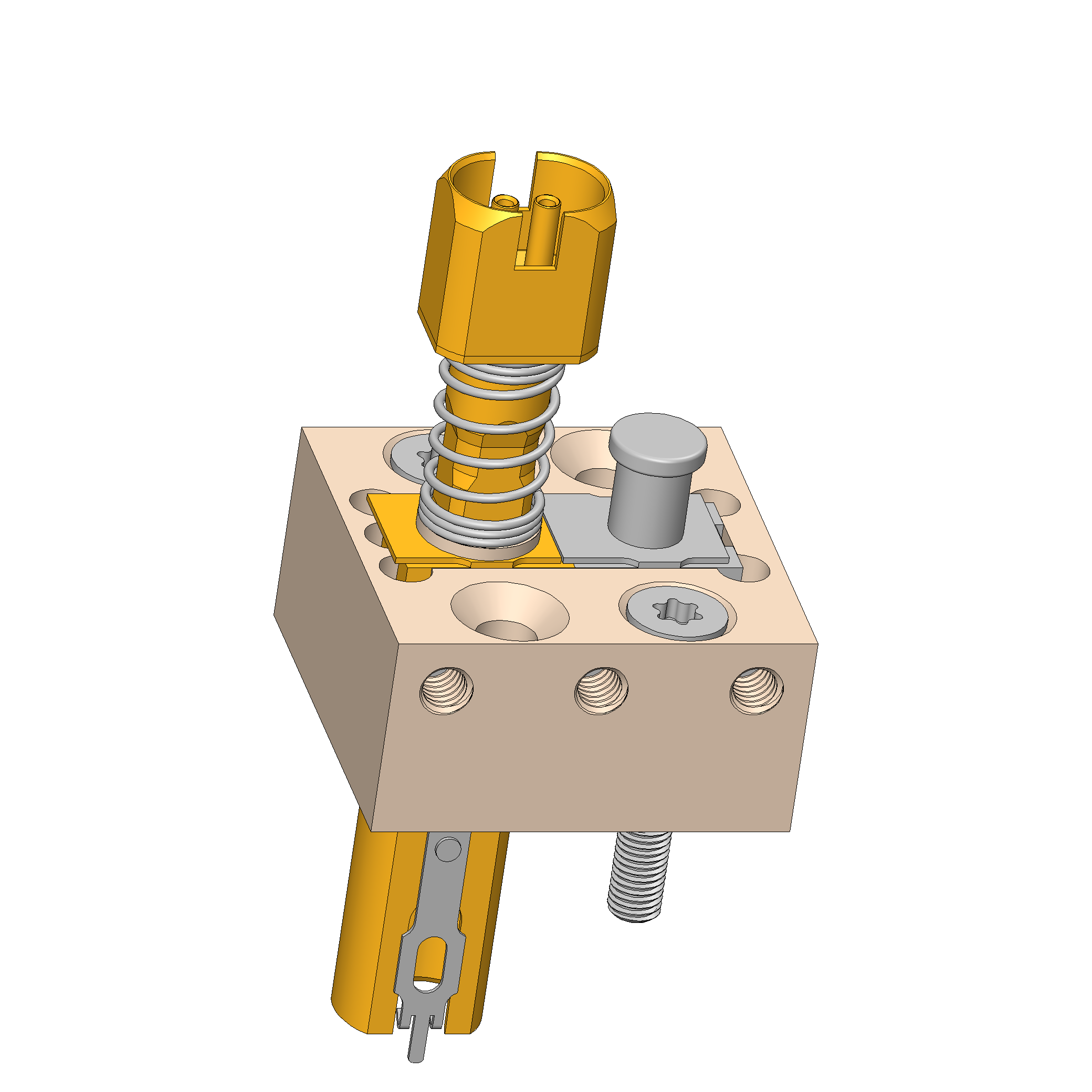

Product information "BKS-802 HMTD-2-1VS"
- Used mainly in future technologies for the automotive market (e.g. autonomous driving)
- Floating mount for HFS-807 radio-frequency probes for FAKRA mini connectors with centring range: ± 0.6 mm, angular offset: ± 2°
- The complete assembly includes the respective number of HFS-807 test probes.
- Cable interface via high- speed SMPM cable SE-FLX405- 50SMPMFG050SMAMG
- Easy replacement of the test probes from the DUT side, insert bit for screwing in: BIT-HFS-807 M-B, recommended tightening torque: 20 cNm
| Product group: | Receptacles (KS) |
|---|---|
| RoHS-compliant: | Yes |
| Series: | KS-802 |
| Sub-series: | KS-802 HMTD clamp version |

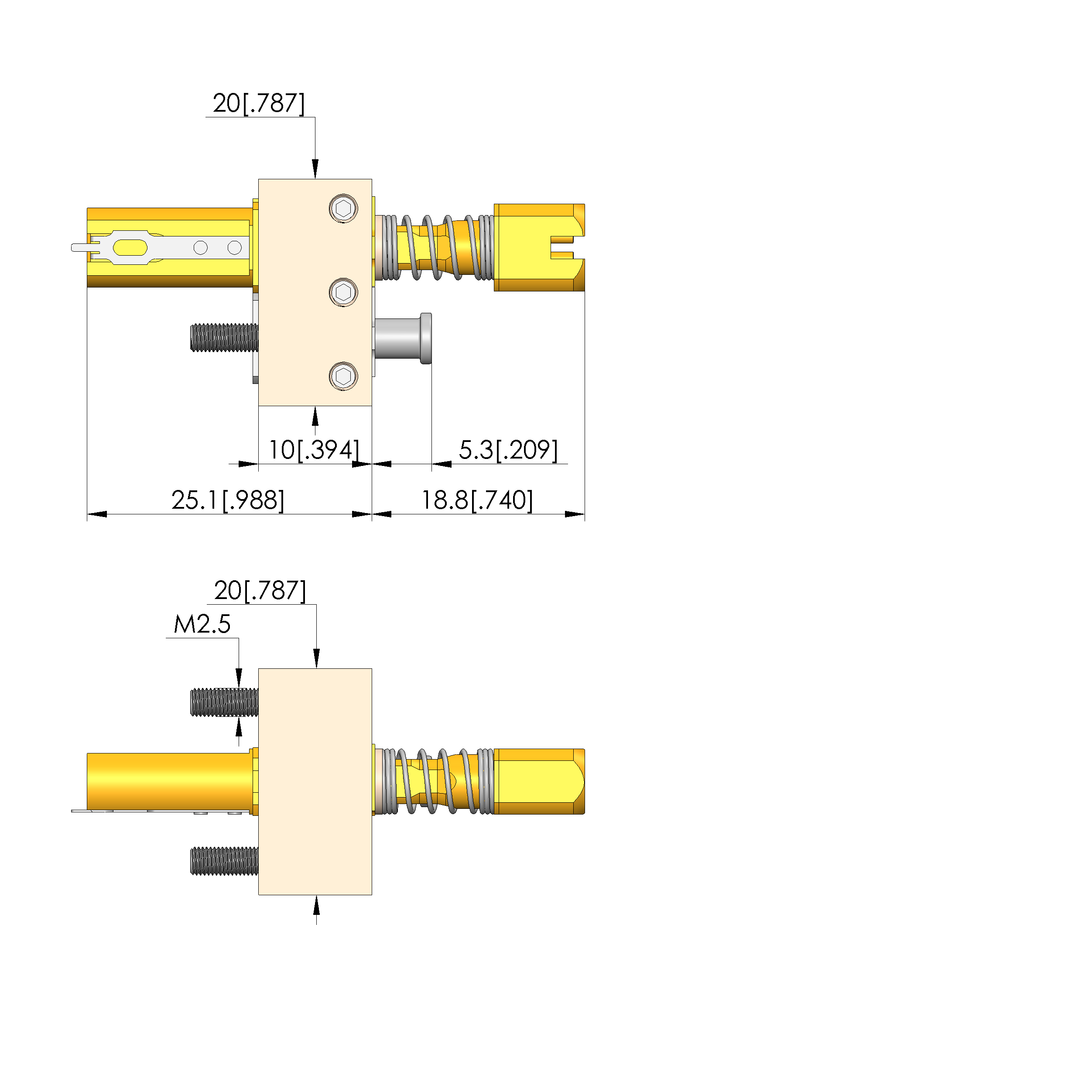

| Total length: | 43.9 mm [1.72 in] |
Login
Product Details
- Used mainly in future technologies for the automotive market (e.g. autonomous driving)
- Floating mount for HFS-807 radio-frequency probes for FAKRA mini connectors with centring range: ± 0.6 mm, angular offset: ± 2°
- The complete assembly includes the respective number of HFS-807 test probes.
- Cable interface via high- speed SMPM cable SE-FLX405- 50SMPMFG050SMAMG
- Easy replacement of the test probes from the DUT side, insert bit for screwing in: BIT-HFS-807 M-B, recommended tightening torque: 20 cNm
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-802
- Sub-series: KS-802 HMTD clamp version
- RoHS-compliant: Yes
Mechanical data
- Total length: 43.9 mm [1.72 in]
