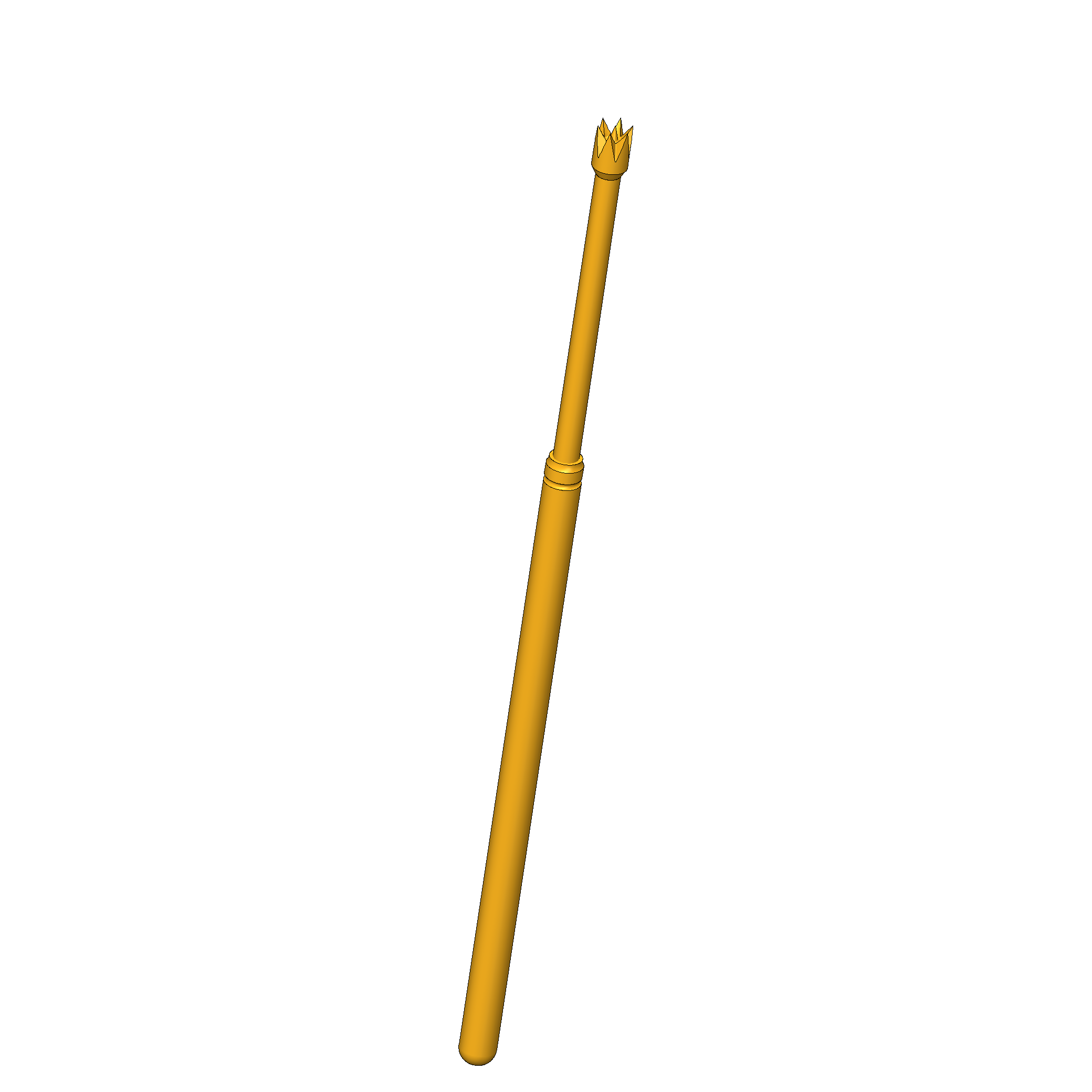

Spring-loaded test probe GKS-135 225 130 A 2000 Item GKS-135-0012
- Long-stroke test probe for implementing combined ICT and FCT in a dual-stage fixture
- For optimum contact at the test points (e.g. pads, vias, and pins), various tip styles in different diameters and finishes, as well as various spring forces are available. spring forces.
- Used for setting the optimum stroke conditions in the test fixture, various installation heights can be achieved by combining test probes and receptacles
Spring-loaded test probe GKS-135 225 130 A 2000 Item GKS-135-0012
Please log in to show the price
Login
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible.
Shipping costs
* The prices are rounded to two decimal places.
Technical data
| Product group : | ICT / FCT (in-circuit test and function test |
|---|---|
| Sub-product group : | Long stroke GKS |
| Series : | GKS-135 |
| Grid : | 2.54 mm |
| Contacting from : | Pin, posts |
| Magnetic : | Yes |
| Installation type : | Plug-in |
| Quick-exchange system : | Yes |
| Adjustable installation height : | No |
| Non-rotating : | No |
| Compatible receptacle(s) : | KS-100 |
| Min. temperature : | - 40 °C |
| Max. temperature : | + 80 °C |
| RoHS-compliant : | RoHS-3;6a |
| Current load capacity / rated current : | 5 A |
|---|---|
| Typical resistance (Ri) : | < 30 mOhm |

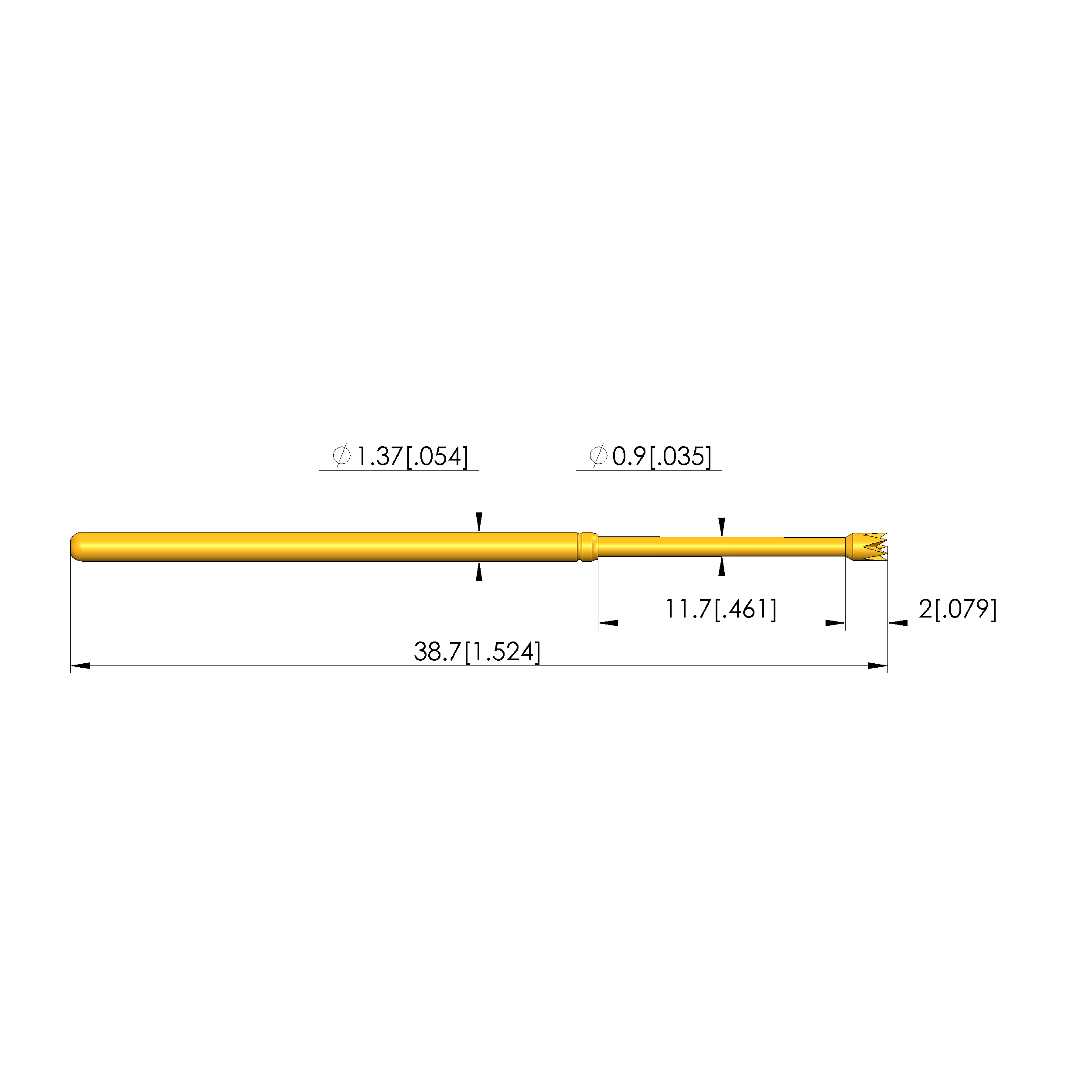

| Total length : | 38.7 mm |
|---|---|
| Barrel diameter : | 1.37 mm |
| Maximum stroke : | 11.5 mm |
| Spring pre-load : | 0.21 N |
| Collar height : | 00 |
| Spring force at working stroke : | 2 N |
| Working stroke : | 9.3 mm |

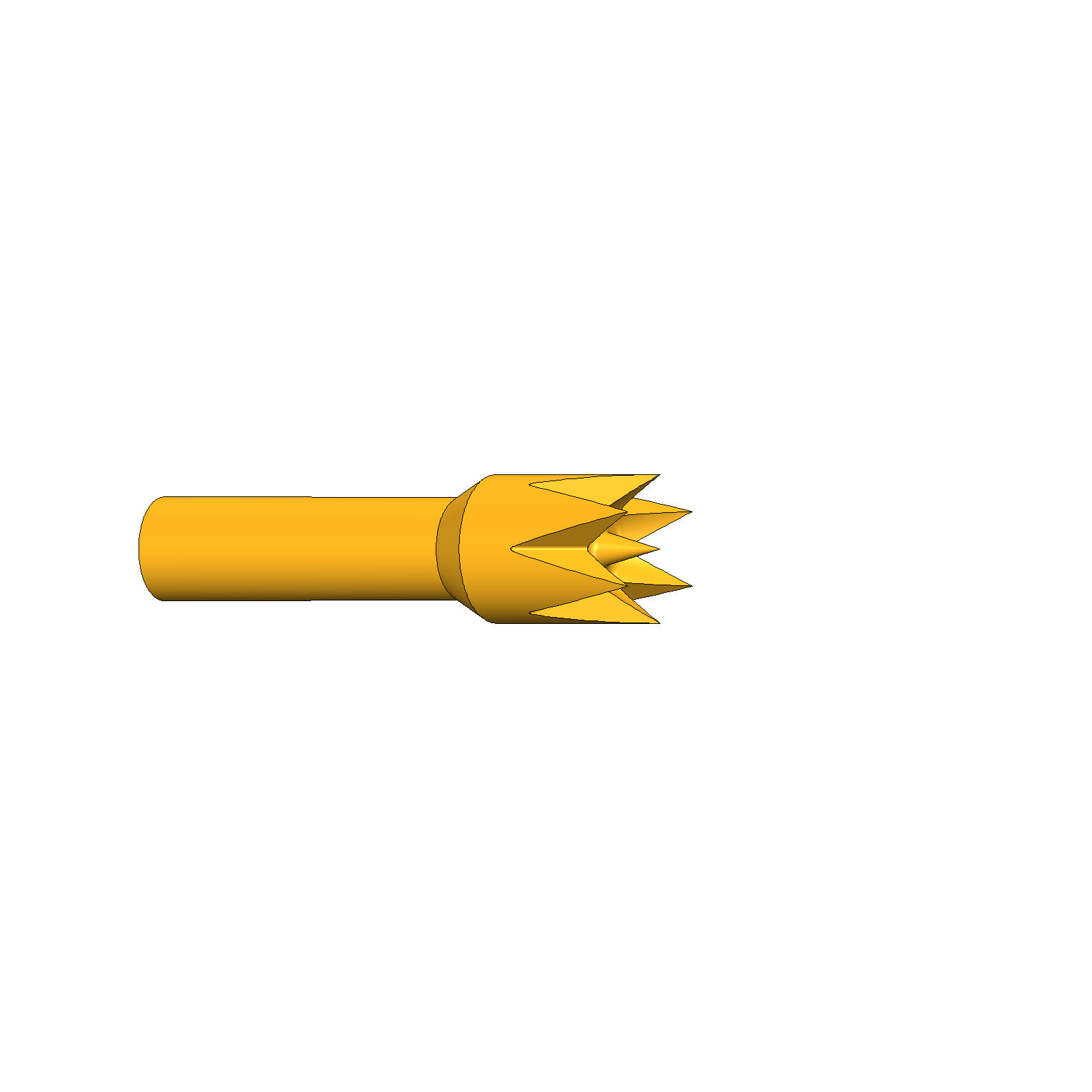

| Tip style : | 25 6-point crown with middle point, self-cleaning |
|---|---|

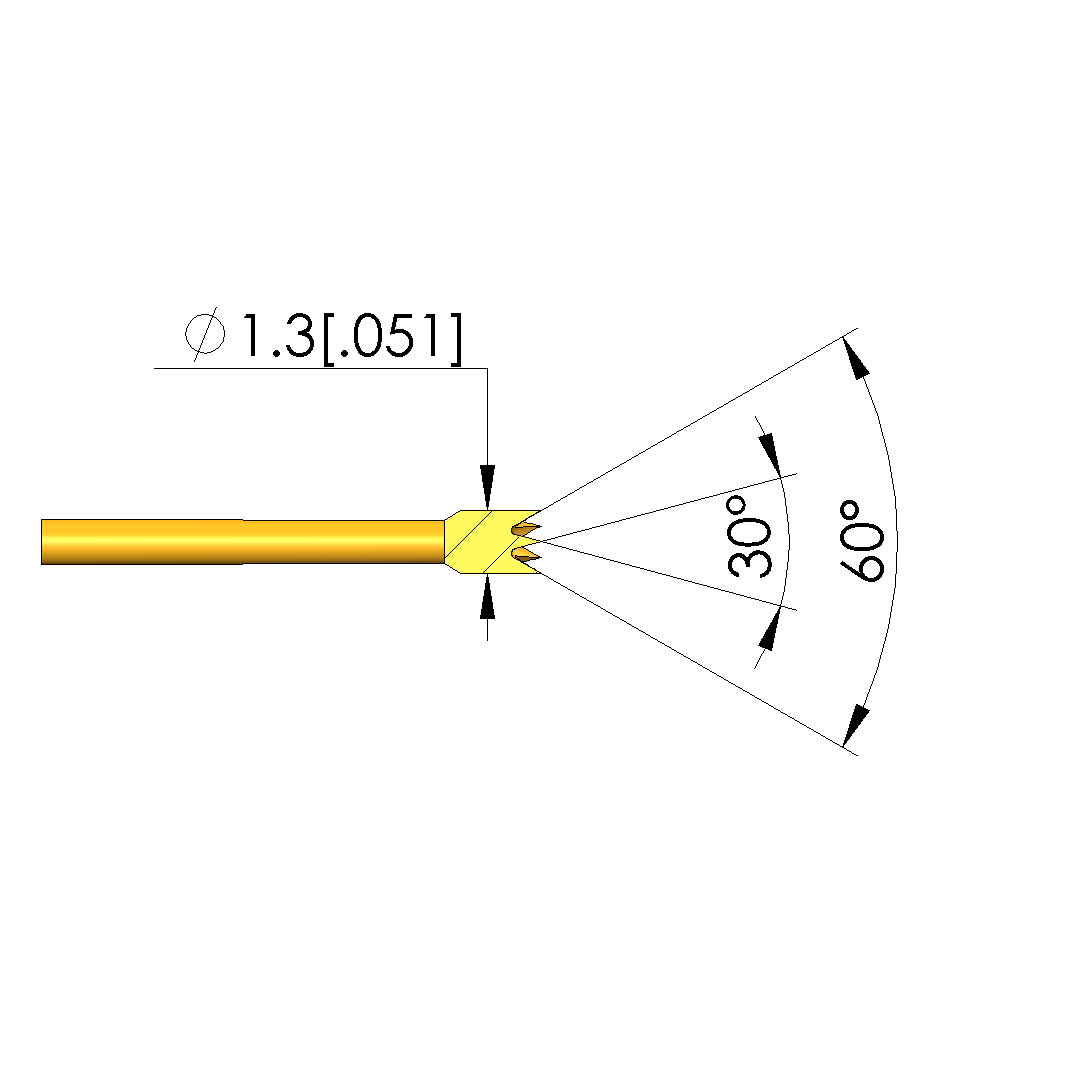

| Tip diameter : | 1.3 mm |
| Tip style surface : | A gold |
| Tip style material : | 2 steel |
