Product information "FB-LED-D-MAxx14"
- Functional unit for individually configurable upgrade
- Signalling of the test results (pass/fail) on the test fixture
- Illumination of the test fixture interior
- Includes dimmer for adjusting the brightness
- Green: wavelength = 515-525 nm (light intensity = 800 mcd)
- Red: wavelength = 620-635 nm ( light intensity = 300 mcd)
| Accessory type: | Additional function |
|---|---|
| Bestückung: | 1KOhm Trimm-Poti |
| Cable length: | 1 mm [.039 in] |
| Connection: | Cable (3x 0.14 mm²) |
| Exchangeable kits version: | No limitations |
| Height: | 25 mm [.984 in] |
| Length: | 15 mm [.59 in] |
| Manual test fixtures (MA): | MA xx14 |
| Max. current: | .2 A |
| Max. temperature: | 60 °C [140 °F] |
| Max. voltage: | 12 VDC |
| Min. temperature: | 10 °C [50 °F] |
| Number of poles: | 3 |
| Outer dimensionS (WxDxH): | 606 x 15 x 25 mm [23.8 x .59 x .984 in] |
| Product group: | Functional units |
| RoHS-compliant: | Yes |
| Scope of delivery: | Partially assembled |
| Series: | FB-MAxxxx |
| Type: | Pass/fail LED display |
| Version: | Green/red incl. dimmer |
| Width: | 606 mm [23.8 in] |
Login
Product Details

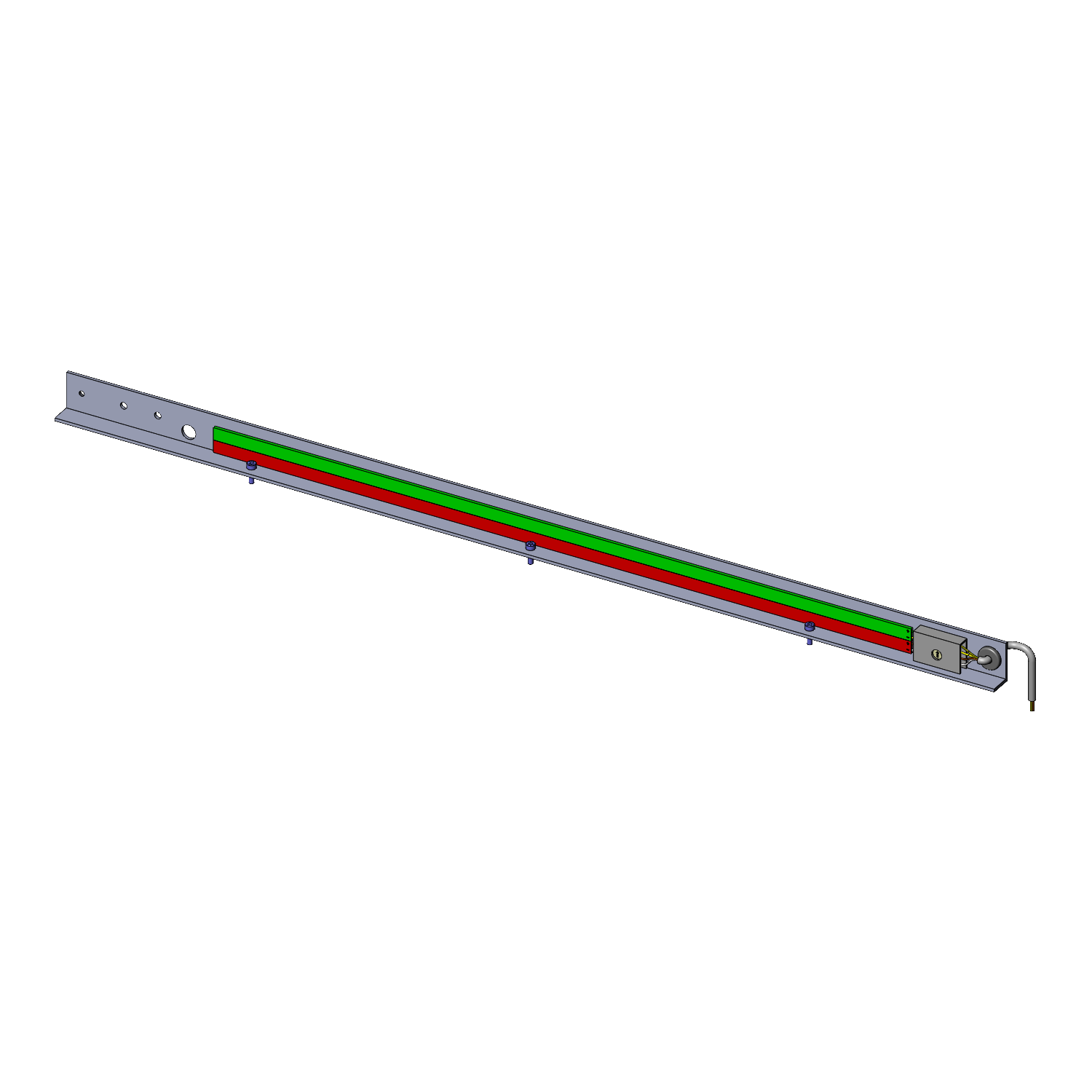

- Functional unit for individually configurable upgrade
- Signalling of the test results (pass/fail) on the test fixture
- Illumination of the test fixture interior
- Includes dimmer for adjusting the brightness
- Green: wavelength = 515-525 nm (light intensity = 800 mcd)
- Red: wavelength = 620-635 nm ( light intensity = 300 mcd)
Other products in this series:
Technical data
General data
- Max. temperature: 60 °C [140 °F]
- Width: 606 mm [23.8 in]
- Accessory type: Additional function
- Min. temperature: 10 °C [50 °F]
- Product group: Functional units
- RoHS-compliant: Yes
- Series: FB-MAxxxx
- Height: 25 mm [.984 in]
- Type: Pass/fail LED display
- Bestückung: 1KOhm Trimm-Poti
- Scope of delivery: Partially assembled
- Version: Green/red incl. dimmer
Technical data
- Max. current: .2 A
- Max. voltage: 12 VDC
- Number of poles: 3
- Outer dimensionS (WxDxH): 606 x 15 x 25 mm [23.8 x .59 x .984 in]
- Connection: Cable (3x 0.14 mm²)
- Length: 15 mm [.59 in]
- Cable length: 1 mm [.039 in]
Compatible with
- Exchangeable kits version: No limitations

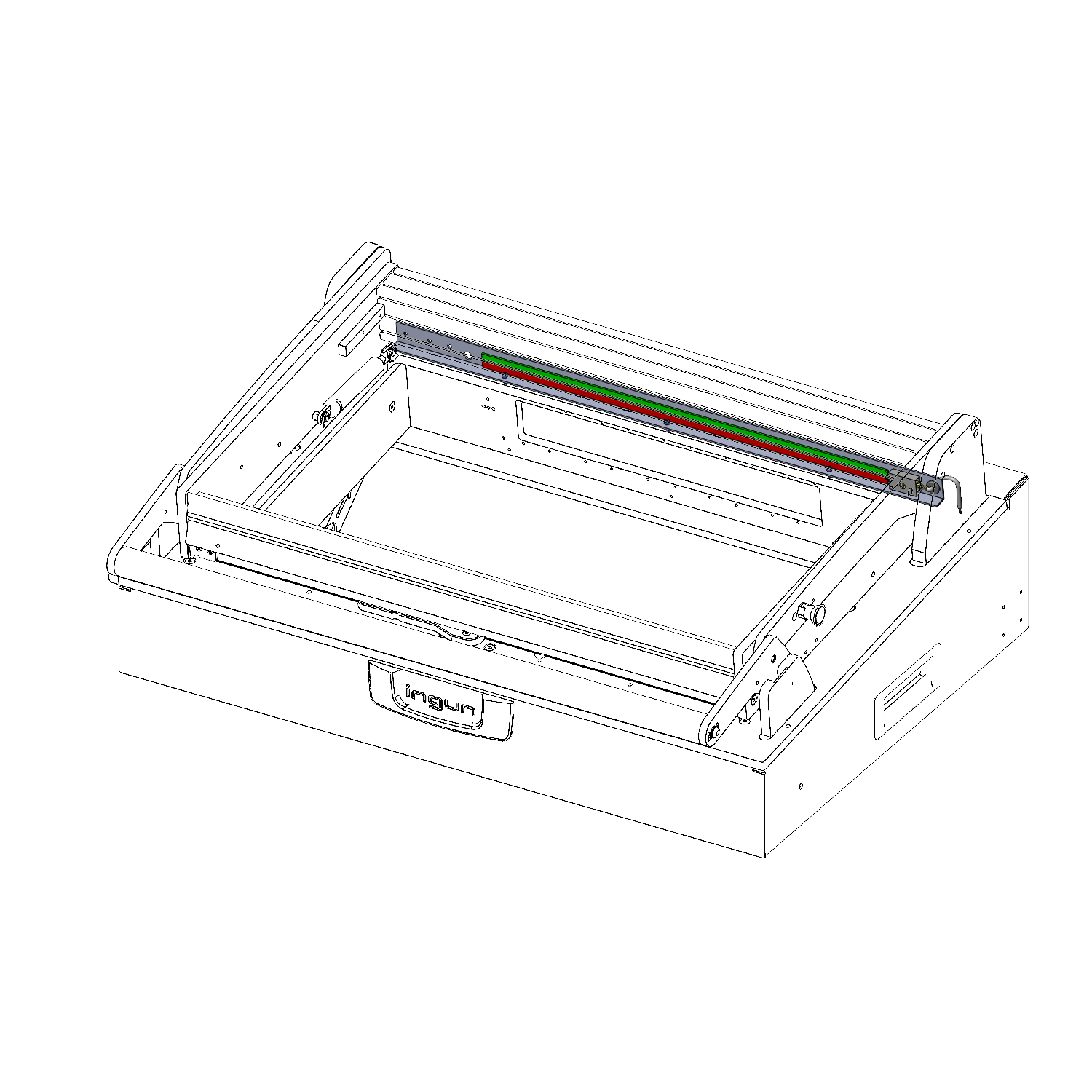

- Manual test fixtures (MA): MA xx14
