PET
138 Product series
INGUN SELECTION
High-current test probe
HSS-150
- Grid 5.08 mm [200 mil]
- Total length 38.5 mm [1.51 in]
INGUN SELECTION
High-Frequency Probe
HFS-810 4M
- Grid 6.5 mm [255 mil] – 7 mm [275 mil]
- Total length 43 mm [1.69 in] – 45 mm [1.77 in]
- Frequency range up to 2 GHz
- Interface of compatible assembly MCX 50 Ohm
INGUN SELECTION
Test Probe
GKS-412
- Grid 2.54 mm [100 mil]
- Total length 37.8 mm [1.48 in] – 45.6 mm [1.79 in]
INGUN SELECTION
High-Frequency Probe
HFS-840 M
- Grid 5.9 mm [232 mil] – 13.5 mm [531 mil]
- Total length 42.2 mm [1.66 in] – 45.9 mm [1.8 in]
- Frequency range up to 4 GHz
- Interface of compatible assembly MCX 50 Ohm
High-Frequency Probe
HFS-810 M
- Grid 6.5 mm [255 mil] – 10.5 mm [413 mil]
- Total length 42.2 mm [1.66 in] – 45.9 mm [1.8 in]
- Frequency range up to 2 GHz
- Interface of compatible assembly MCX 50 Ohm
High-Frequency Probe
HFS-890
- Grid 5.8 mm [228 mil] – 8 mm [314 mil]
- Total length 39.2 mm [1.54 in] – 43.9 mm [1.72 in]
- Frequency range up to 6 GHz – 20 GHz
- Interface of compatible assembly SMPM 50 Ohm
INGUN SELECTION
Test Probe
GKS-075
- Grid 1.91 mm [75.1 mil]
- Total length 33.1 mm [1.3 in] – 35.5 mm [1.39 in]

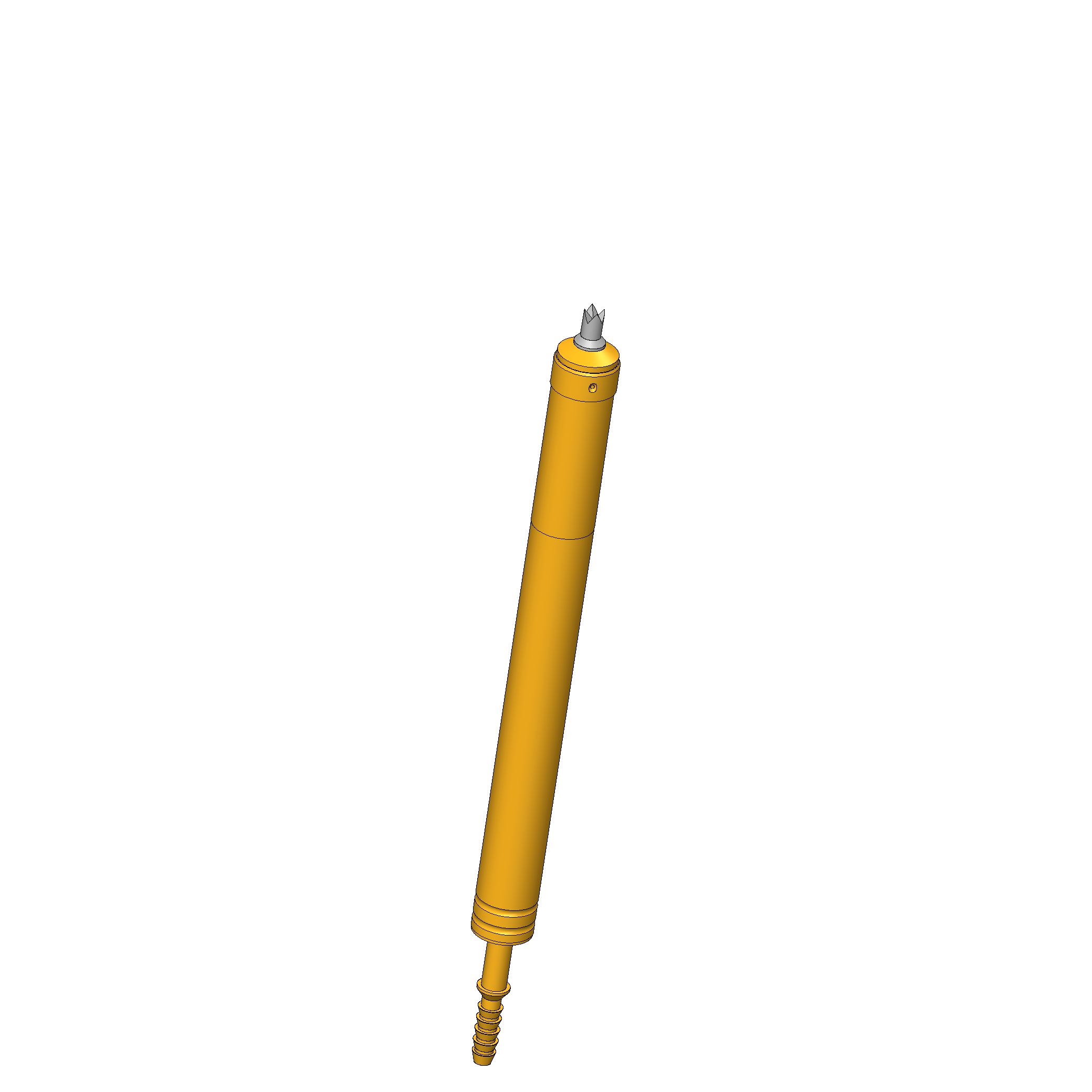

Pneumatic Test Probe
PKS-399 1H
- Grid 4.5 mm [177 mil]
- Total length 54.1 mm [2.12 in] – 55.4 mm [2.18 in]

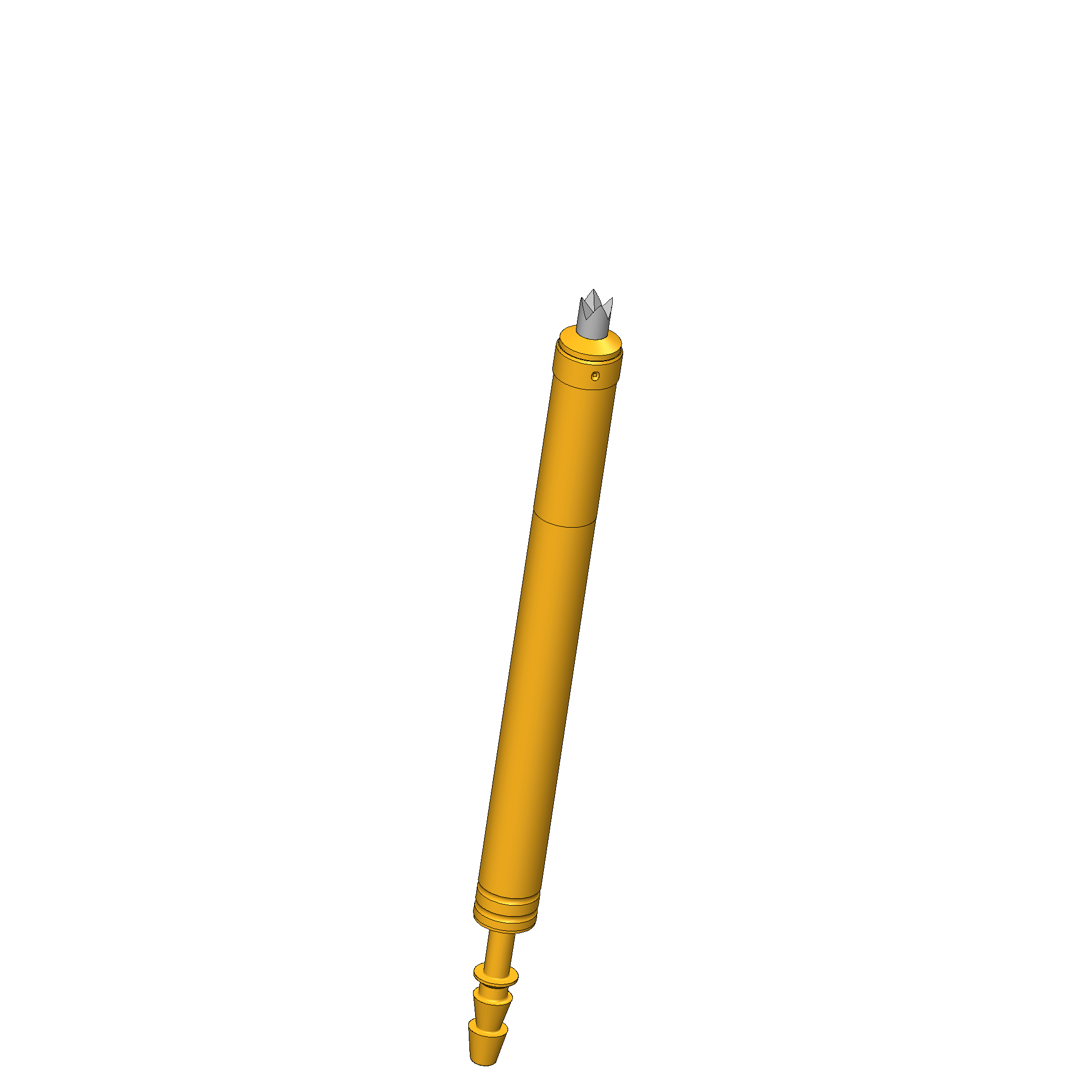

Pneumatic Test Probe
PKS-399 2
- Grid 4.5 mm [177 mil]
- Total length 55 mm [2.16 in] – 56.2 mm [2.21 in]
High-Frequency Probe
HFS-837
- Grid 4.5 mm [177 mil]
- Total length 24.1 mm [.948 in] – 32.2 mm [1.26 in]
- Frequency range up to 6 GHz – 12 GHz
- Interface of compatible assembly SMPM 50 Ohm
High-Frequency Probe
HFS-110 B
- Grid 4.5 mm [177 mil]
- Total length 34.5 mm [1.35 in]
- Frequency range up to .7 GHz
- Total spring force at working stroke 4.5 N [16.1 ozf]

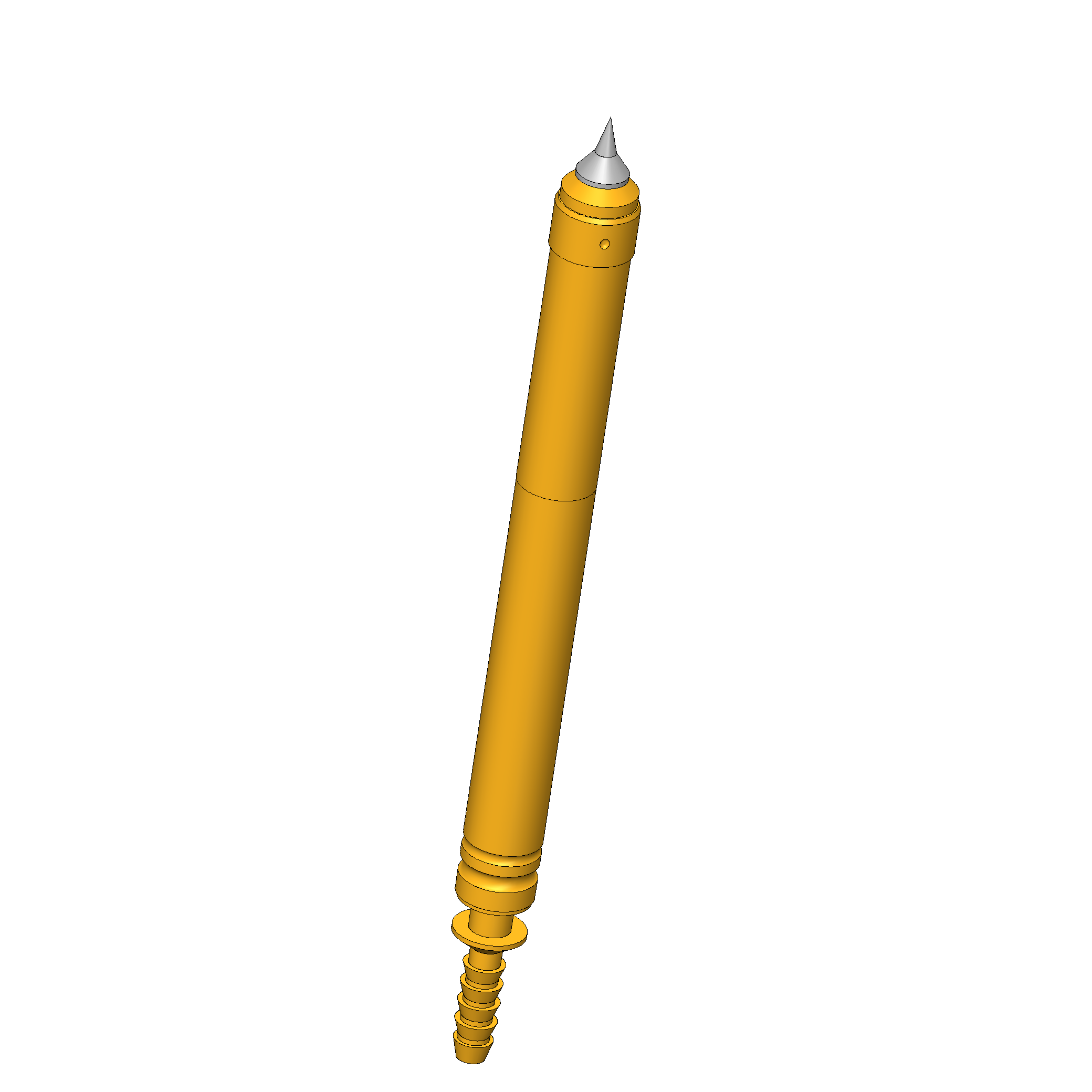

Pneumatic Test Probe
PKS-300 AH
- Grid 3.5 mm [137 mil] – 4 mm [157 mil]
- Total length 40 mm [1.57 in] – 41 mm [1.61 in]
High-Frequency Probe
HFS-860 M
- Grid 6.5 mm [255 mil] – 12.5 mm [492 mil]
- Total length 40.9 mm [1.61 in] – 49.4 mm [1.94 in]
- Frequency range up to 6 GHz
- Interface of compatible assembly MCX 50 Ohm
INGUN SELECTION
Test Probe
GKS-135
- Grid 2.54 mm [100 mil] – 3 mm [118 mil]
- Total length 38.7 mm [1.52 in] – 40.7 mm [1.6 in]
High-Frequency Probe
HFS-890 M
- Grid 6.5 mm [255 mil] – 8 mm [314 mil]
- Total length 39.2 mm [1.54 in] – 43.9 mm [1.72 in]
- Frequency range up to 6 GHz – 20 GHz
- Interface of compatible assembly SMPM 50 Ohm
