HFS-890 Products
4 Products

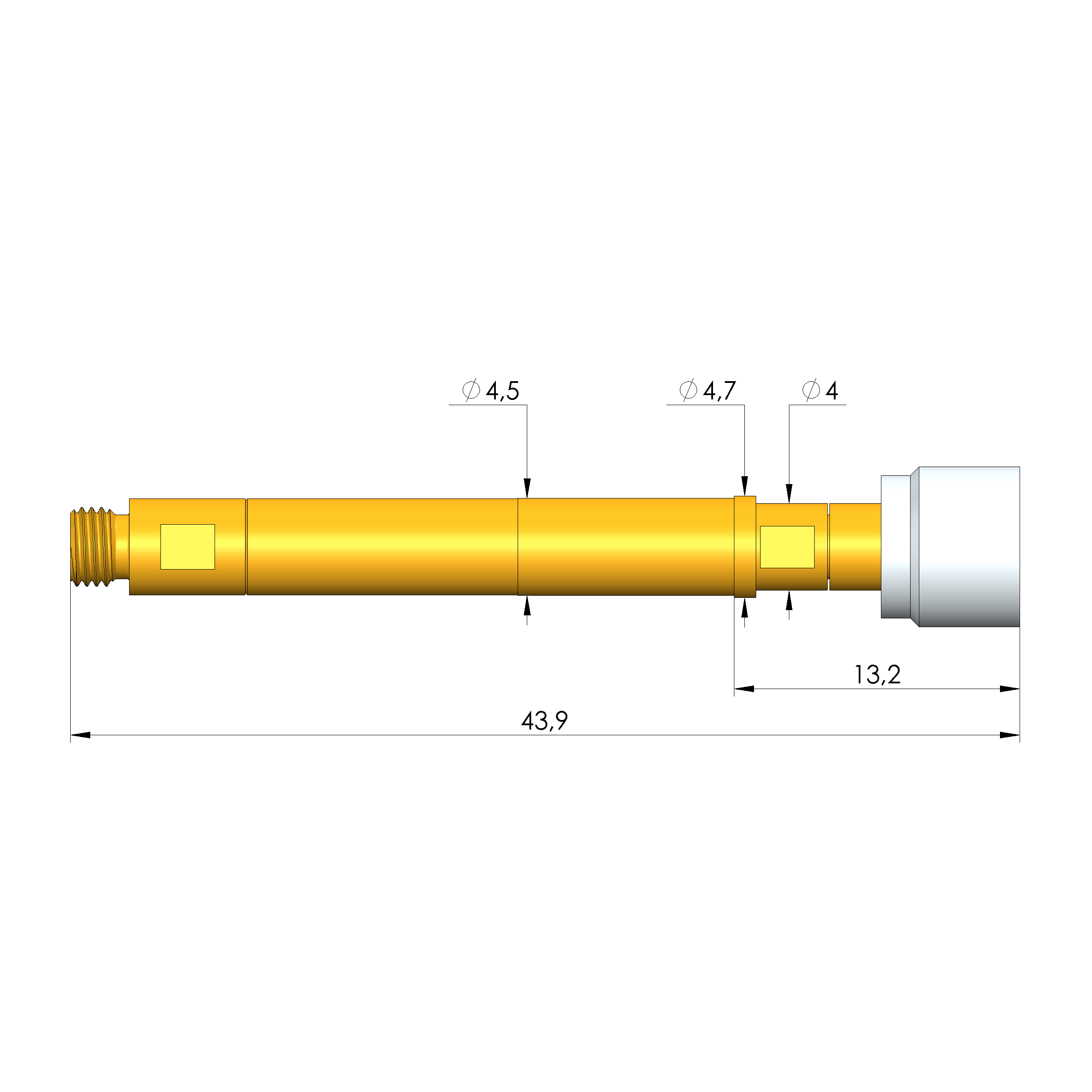

- Frequency range up to 20 GHz
- Total spring force at working stroke 9.3 N [33.4 ozf]
- Grid 8 mm [314 mil]
- Total length 43.9 mm [1.72 in]
- Interface of compatible assembly SMPM 50 Ohm
- Total spring force at working stroke 9.3 N [33.4 ozf]

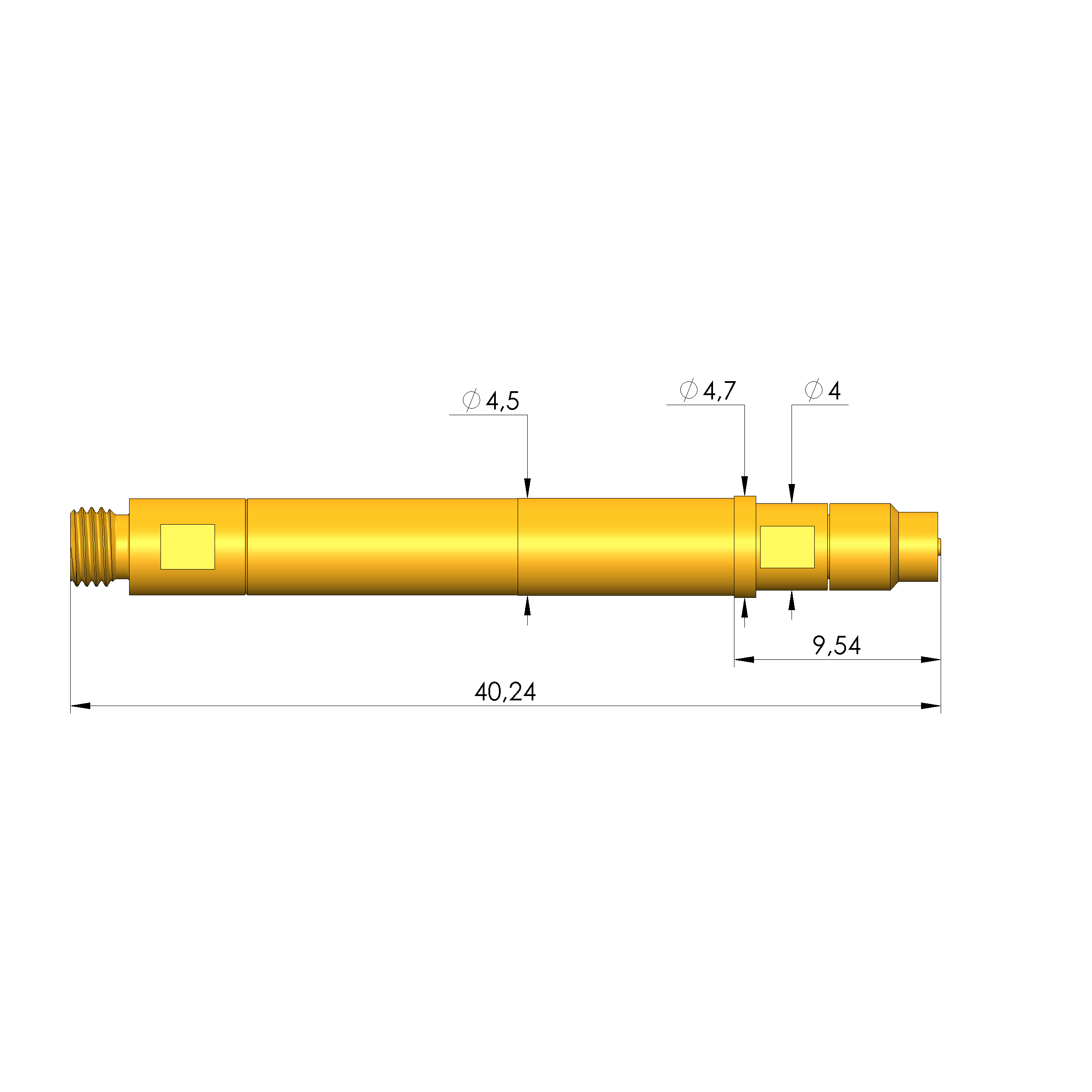

- Frequency range up to 12 GHz
- Interface of compatible assembly SMPM 50 Ohm
- Total length 40.2 mm [1.58 in]
- Grid 5.8 mm [228 mil]
- Total length 43.2 mm [1.7 in]

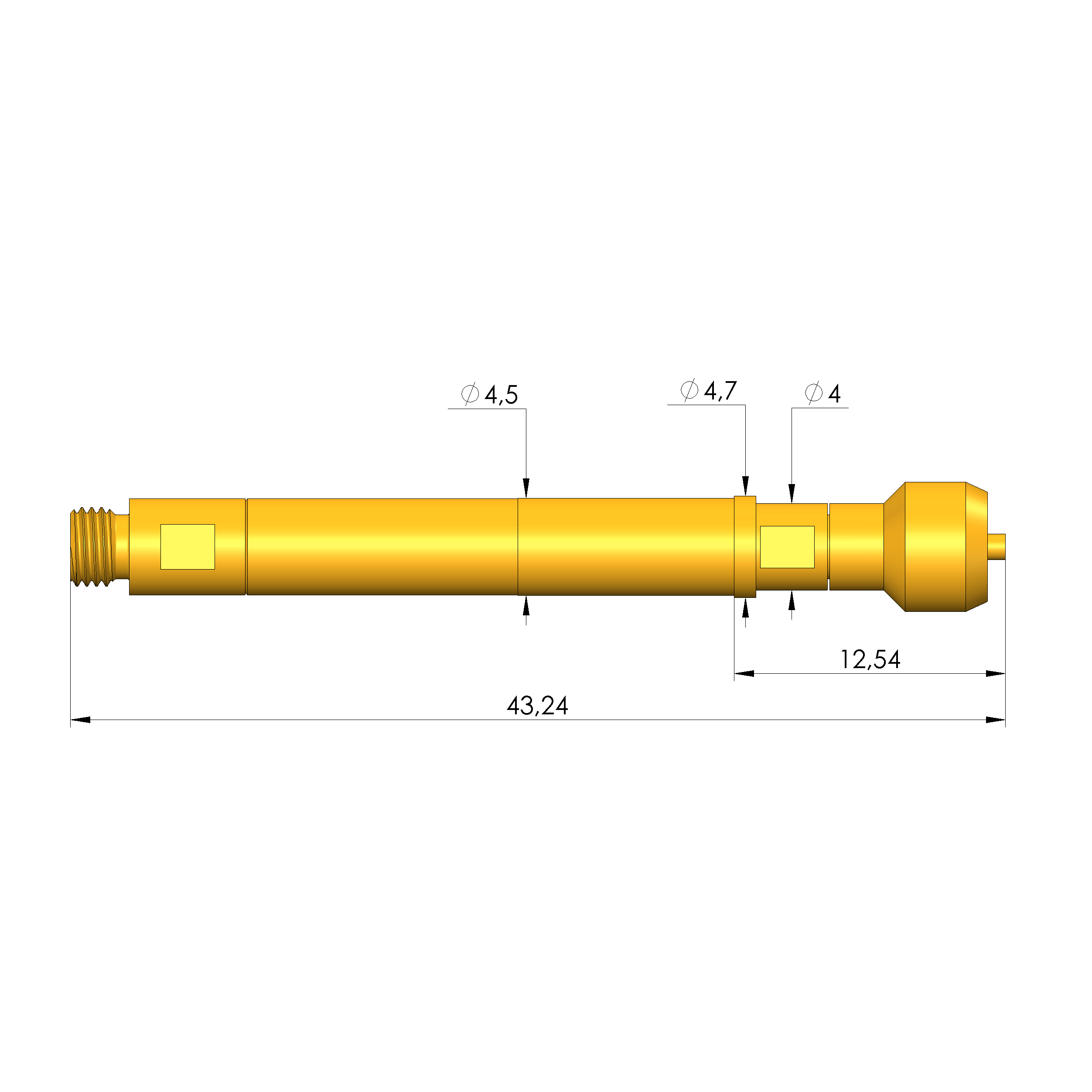

- Frequency range up to 6 GHz
- Total spring force at working stroke 9.3 N [33.4 ozf]
- Grid 6.5 mm [255 mil]
- Interface of compatible assembly SMPM 50 Ohm

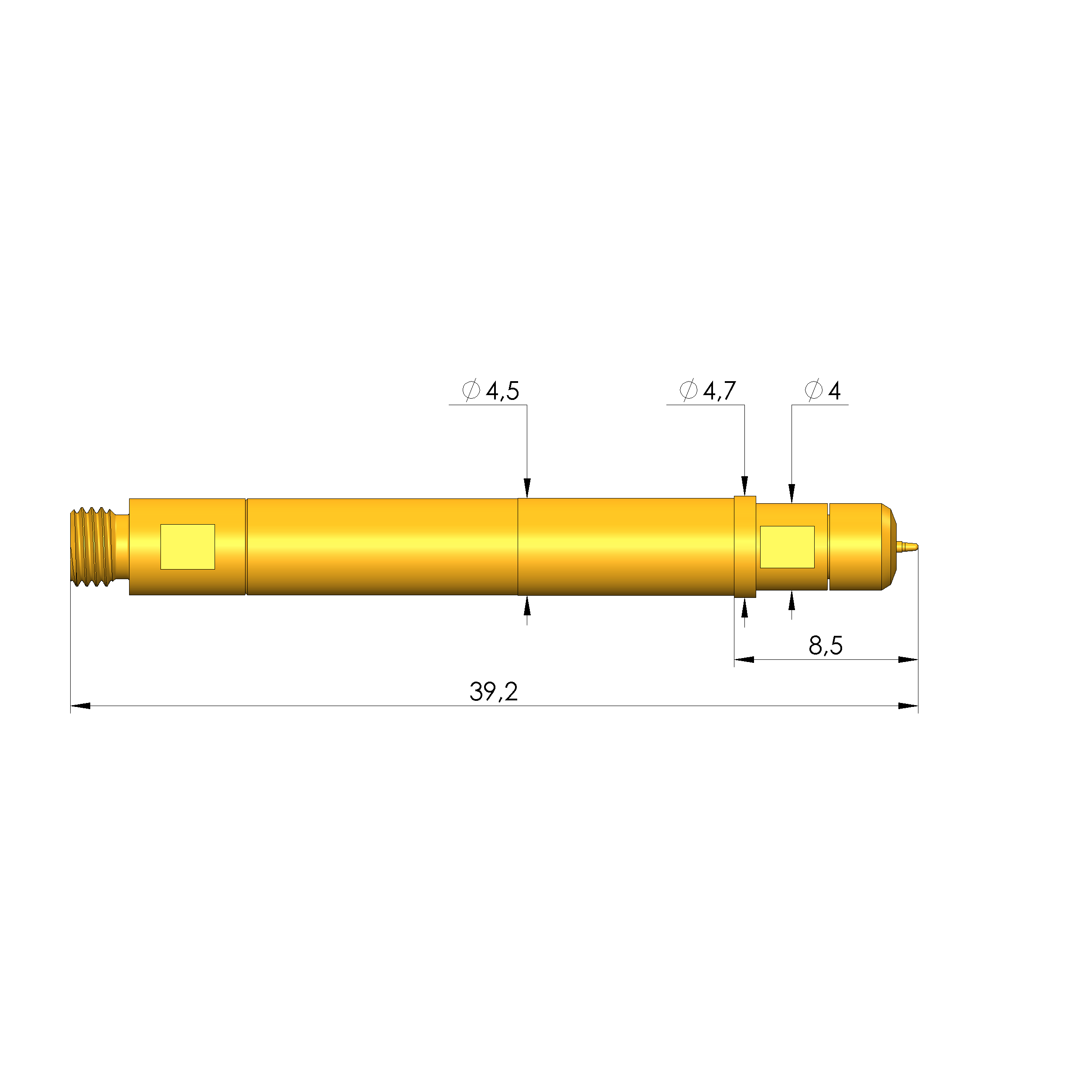

- Frequency range up to 11 GHz
- Total spring force at working stroke 9.3 N [33.4 ozf]
- Interface of compatible assembly SMPM 50 Ohm
- Grid 5.8 mm [228 mil]
- Total length 39.2 mm [1.54 in]
