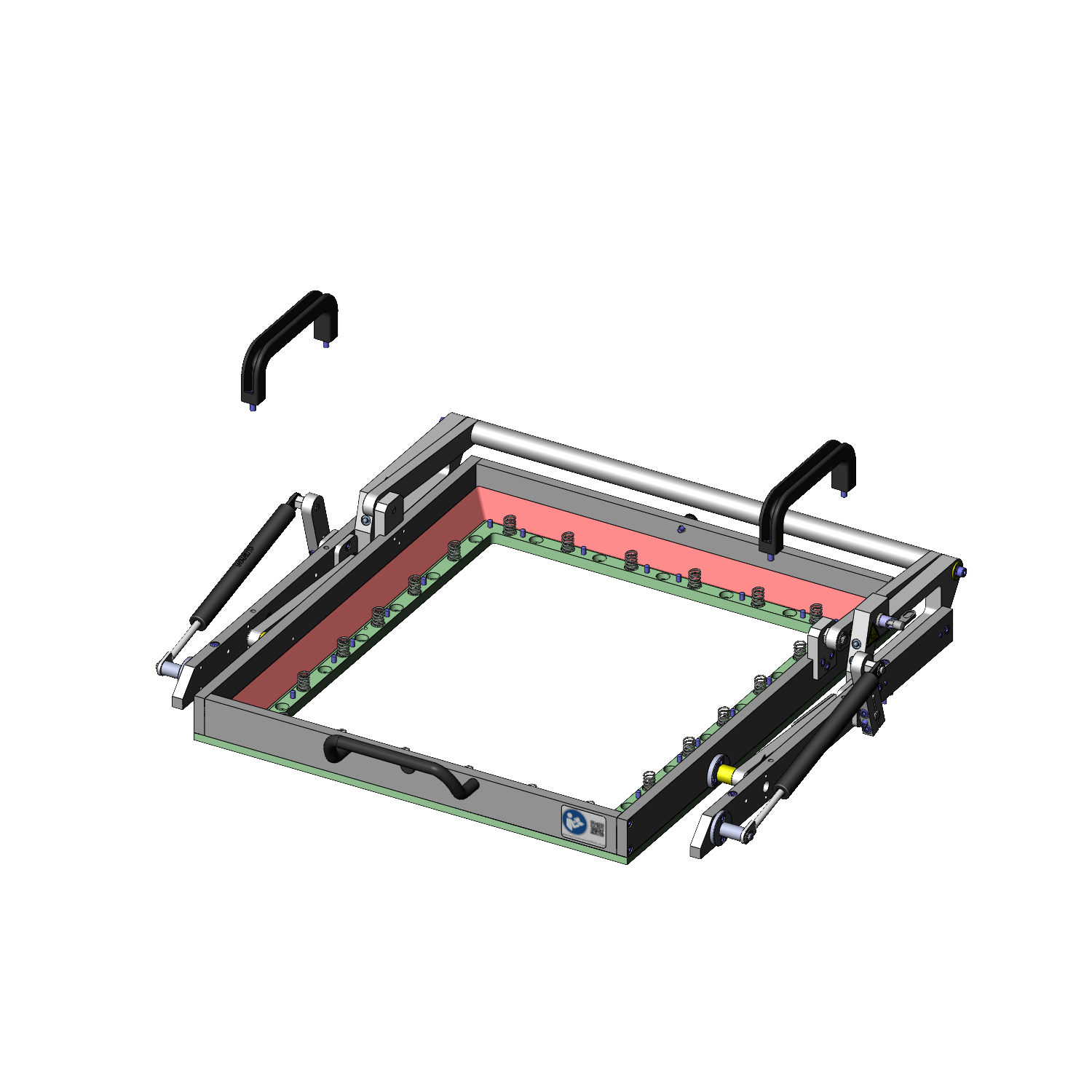

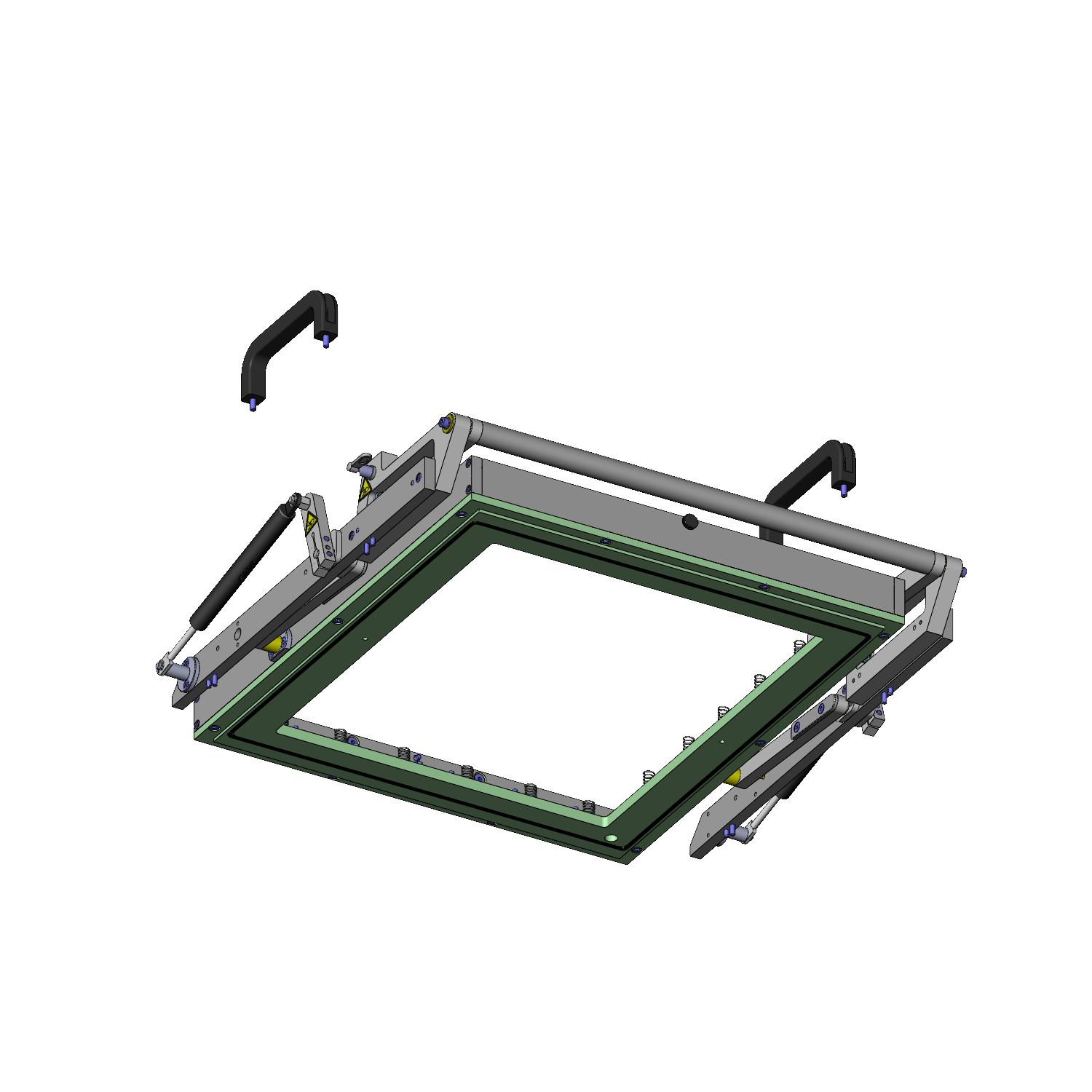

Product information "ZSK-10P-VAxx70S"
| Accessory type: | Additional function |
|---|---|
| Contact stroke generation: | Vacuum |
| Exchangeable kits version: | No limitations |
| Force: | 100 N [359 ozf] |
| Free space above PCB: | 13 mm [.511 in] |
| Height: | 91 mm [3.58 in] |
| Length: | 539 mm [21.2 in] |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 567 x 539 x 91 mm [22.3 x 21.2 x 3.58 in] |
| Product group: | Mounted units |
| Pushrod length: | 15 mm [.59 in] |
| RoHS-compliant: | Yes |
| Series: | ZSK-VAxxxx |
| Stroke: | 60 mm [2.36 in] |
| Test probe installation height, top: | 16 mm [.629 in] |
| Type: | Excl. ATS ZSK2070 |
| Useable area (WxD): | 280 x 350 mm [11 x 13.7 in] |
| Version: | Parallel opening |
| Weight: | 5.4 kg [11.9 lbs] |
| Width: | 567 mm [22.3 in] |
Login
Other products in this series:
Technical data
General data
- Product group: Mounted units
- Series: ZSK-VAxxxx
- Type: Excl. ATS ZSK2070
- Version: Parallel opening
- Accessory type: Additional function
- Contact stroke generation: Vacuum
- Width: 567 mm [22.3 in]
- Height: 91 mm [3.58 in]
- Weight: 5.4 kg [11.9 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data
- Stroke: 60 mm [2.36 in]
- Force: 100 N [359 ozf]
- Pushrod length: 15 mm [.59 in]
- Test probe installation height, top: 16 mm [.629 in]
- Free space above PCB: 13 mm [.511 in]
- Useable area (WxD): 280 x 350 mm [11 x 13.7 in]
- Length: 539 mm [21.2 in]
- Outer dimensionS (WxDxH): 567 x 539 x 91 mm [22.3 x 21.2 x 3.58 in]
Compatible with
- Exchangeable kits version: No limitations
