Product information "WS KEYSIGHT/i1000FE"
- Inline interchangeable kit for Keysight test system i1000 FlexiCore, designed as an extended version
- Precise, reliable contacting with peRFectly configured guides

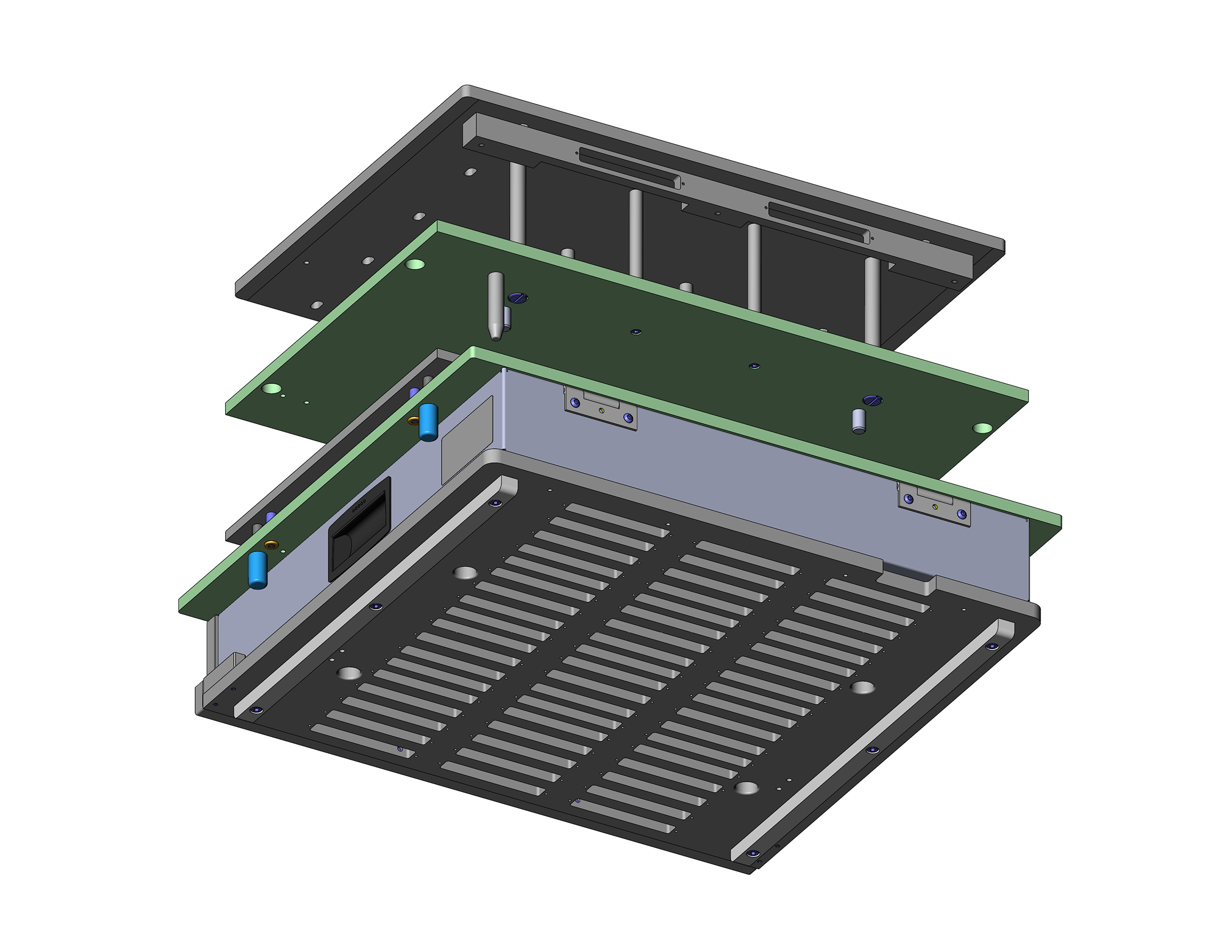

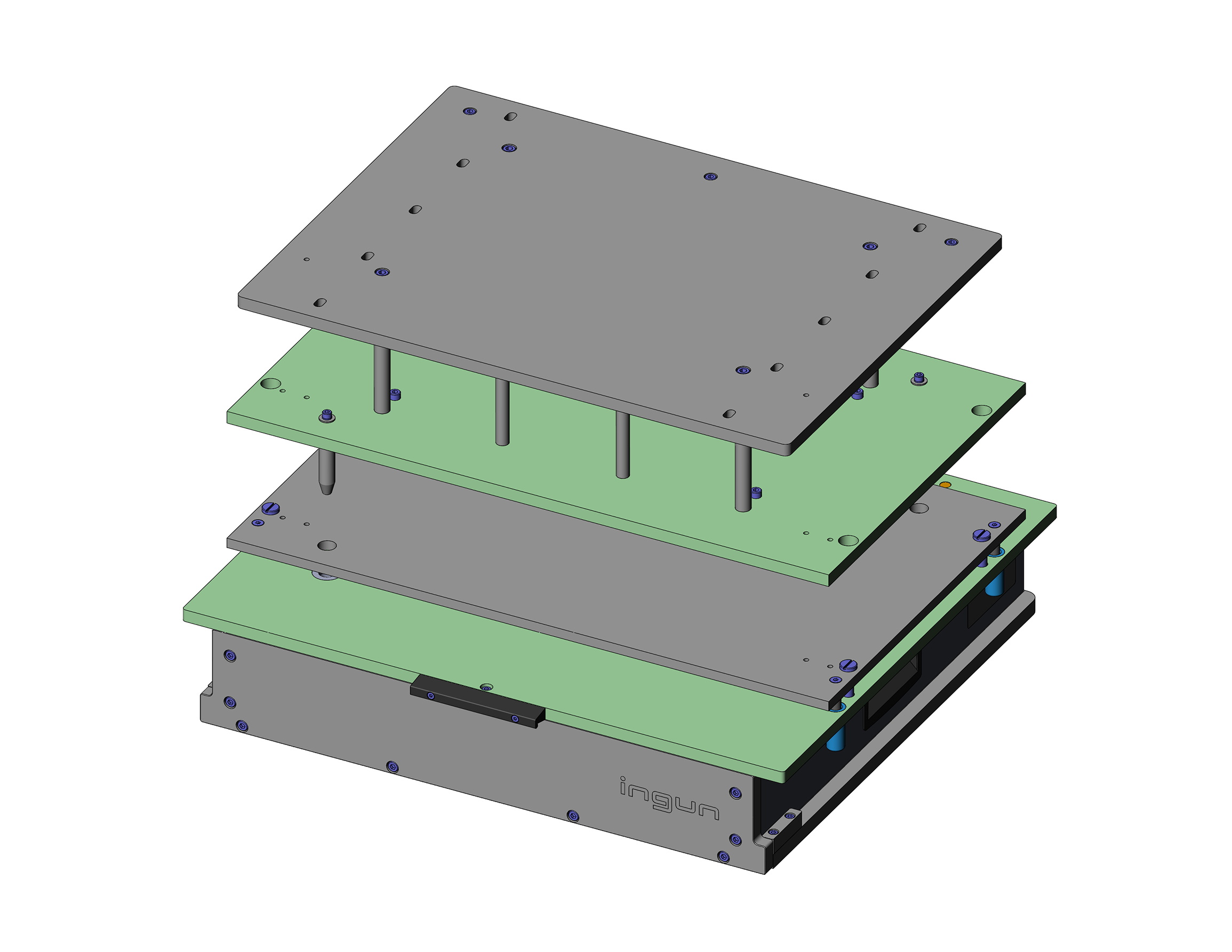

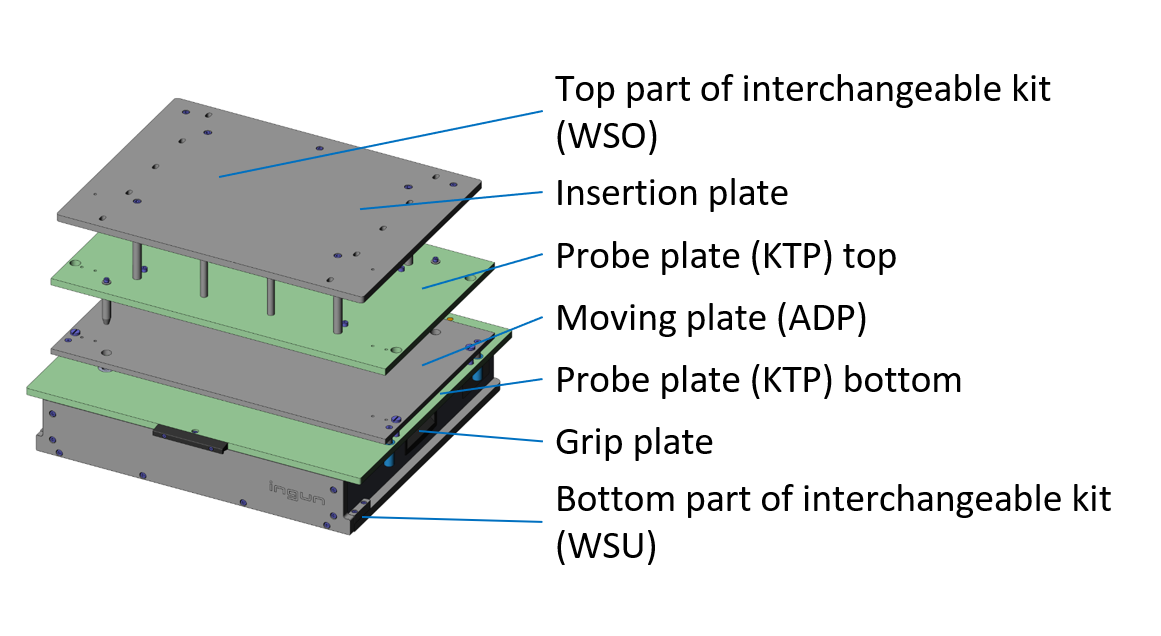

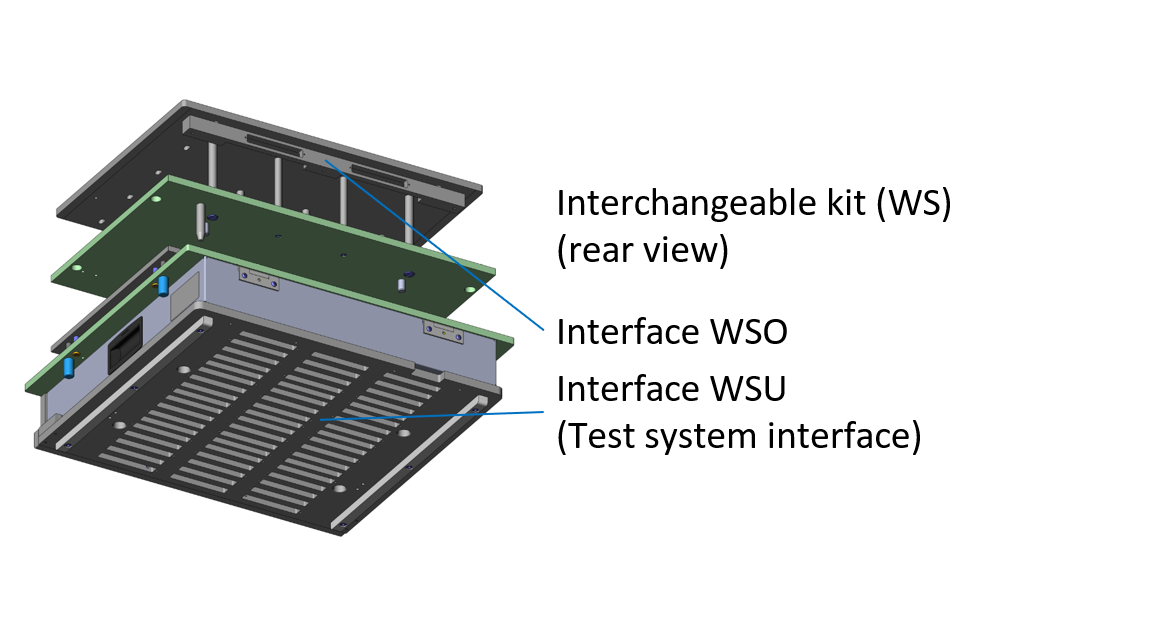

- Modular design with bottom interchangeable kit (WSU) and top interchangeable kit (WSO)
- Robust, durable design with outstanding service life
| Double-sided contact: | Yes |
|---|---|
| Dual-stage contacting: | Yes |
| Free space above PCB: | 11 mm [.433 in] |
| Interface blocks required: | No |
| Low voltage: | No |
| Max. interface signals: | 5.184 |
| Max. temperature: | 45 °C [113 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 500 x 451 x 259 mm [19.6 x 17.7 x 10.1 in] |
| Product group: | Inline interchangeable kit (WS) |
| Pushrod length: | 20 mm [.787 in] |
| RoHS-compliant: | Yes |
| Scope of delivery: | Partially assembled |
| Series: | WS Keysight |
| Subseries: | WS Keysight |
| Test probe installation height, bottom: | 16 mm [.629 in] |
| Test probe installation height, dual-stage, bottom: | 21.5 mm [.846 in] |
| Test probe installation height, top: | 16 mm [.629 in] |
| Test systems: | KEYSIGHT i1000 FlexiCore |
| Useable area (WxD): | 348 x 320 mm [13.7 x 12.5 in] |
| Version: | With interface |
| Weight: | 21.9 kg [48.2 lbs] |
Login
Product Details
- Inline interchangeable kit for Keysight test system i1000 FlexiCore, designed as an extended version
- Precise, reliable contacting with peRFectly configured guides
- Modular design with bottom interchangeable kit (WSU) and top interchangeable kit (WSO)
- Robust, durable design with outstanding service life
Other products in this series:
Technical data
Technical data
- Test probe installation height, top: 16 mm [.629 in]
- Test probe installation height, bottom: 16 mm [.629 in]
- Useable area (WxD): 348 x 320 mm [13.7 x 12.5 in]
- Free space above PCB: 11 mm [.433 in]
- Test probe installation height, dual-stage, bottom: 21.5 mm [.846 in]
- Pushrod length: 20 mm [.787 in]
- Outer dimensionS (WxDxH): 500 x 451 x 259 mm [19.6 x 17.7 x 10.1 in]
General data
- Interface blocks required: No
- Weight: 21.9 kg [48.2 lbs]
- Scope of delivery: Partially assembled
- Dual-stage contacting: Yes
- Low voltage: No
- Version: With interface
- Min. temperature: 10 °C [50 °F]
- Max. interface signals: 5.184
- Double-sided contact: Yes
- Product group: Inline interchangeable kit (WS)
- Max. temperature: 45 °C [113 °F]
- Subseries: WS Keysight
- RoHS-compliant: Yes
- Series: WS Keysight
Compatible with
- Test systems: KEYSIGHT i1000 FlexiCore
