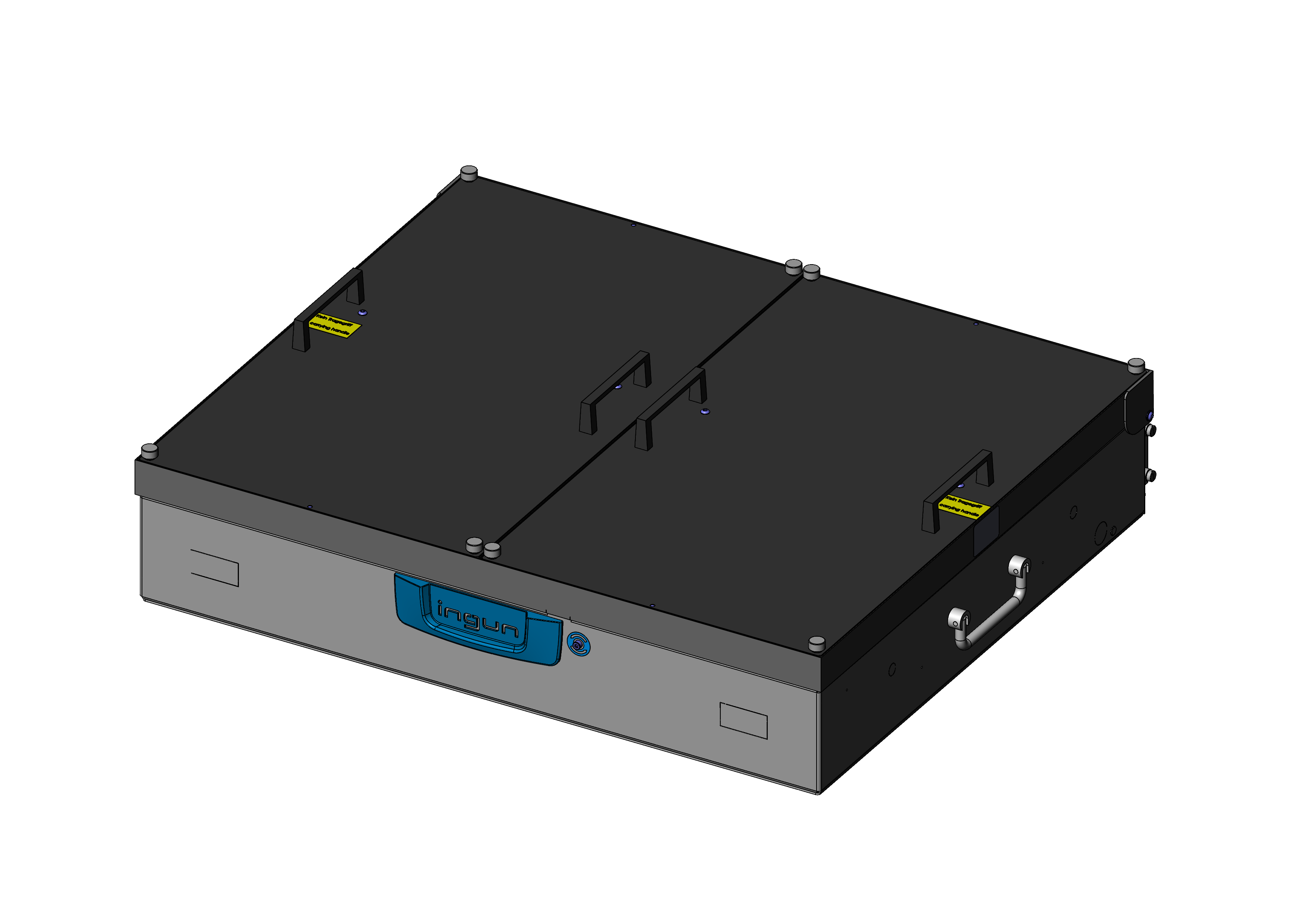

Product information "VA 4060T/F/H/VPC-G12"
- Vacuum test fixture with parallel lifting vacuum cassette
- Robust, maintenance-friendly design with outstanding service life
- Increased ease of use thanks to simple, intuitive handling
- Easy access to housing interior thanks to wide opening angle
- Vacuum cassette can be upgraded for dual-stage contacting
- For the assembly of items delivered unassembled, Refer to the drawings of the items specified in the parts list to assemble items
| Additional contacting unit (ZSK), top: | Yes, with suitable additional option |
|---|---|
| Approx. parallel contact stroke: | 12.8 mm [.503 in] |
| Contacting direction: | 1-stage / 2-stage |
| Contact stroke generation: | Vacuum |
| Dual-stage version: | Yes, with compatible additional option |
| ESD version: | No |
| Force of gas pressure springs: | 400 N (L: 200 N / R: 200 N) |
| Housing type: | Flat housing |
| Main series: | VA xxxx |
| Max. contact force: | 10,000 N [35,969 ozf] |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensions, closed (WxDxH): | 675 x 600 x 164 mm [26.5 x 23.6 x 6.45 in] |
| Product group: | Vacuum test fixture (VA) |
| Radio frequency version: | No |
| Rigid pin version: | No |
| RoHS-compliant: | Yes |
| Series: | VA 4060T |
| Size: | xx60T |
| Standard version: | Yes |
| Subseries: | VA 40xx |
| Test fixture type: | Tandem stand-alone test fixture |
| Test probe installation height, bottom: | 16 mm [.629 in] |
| Test probe installation height, dual-stage, bottom: | 21.3 mm [.838 in] |

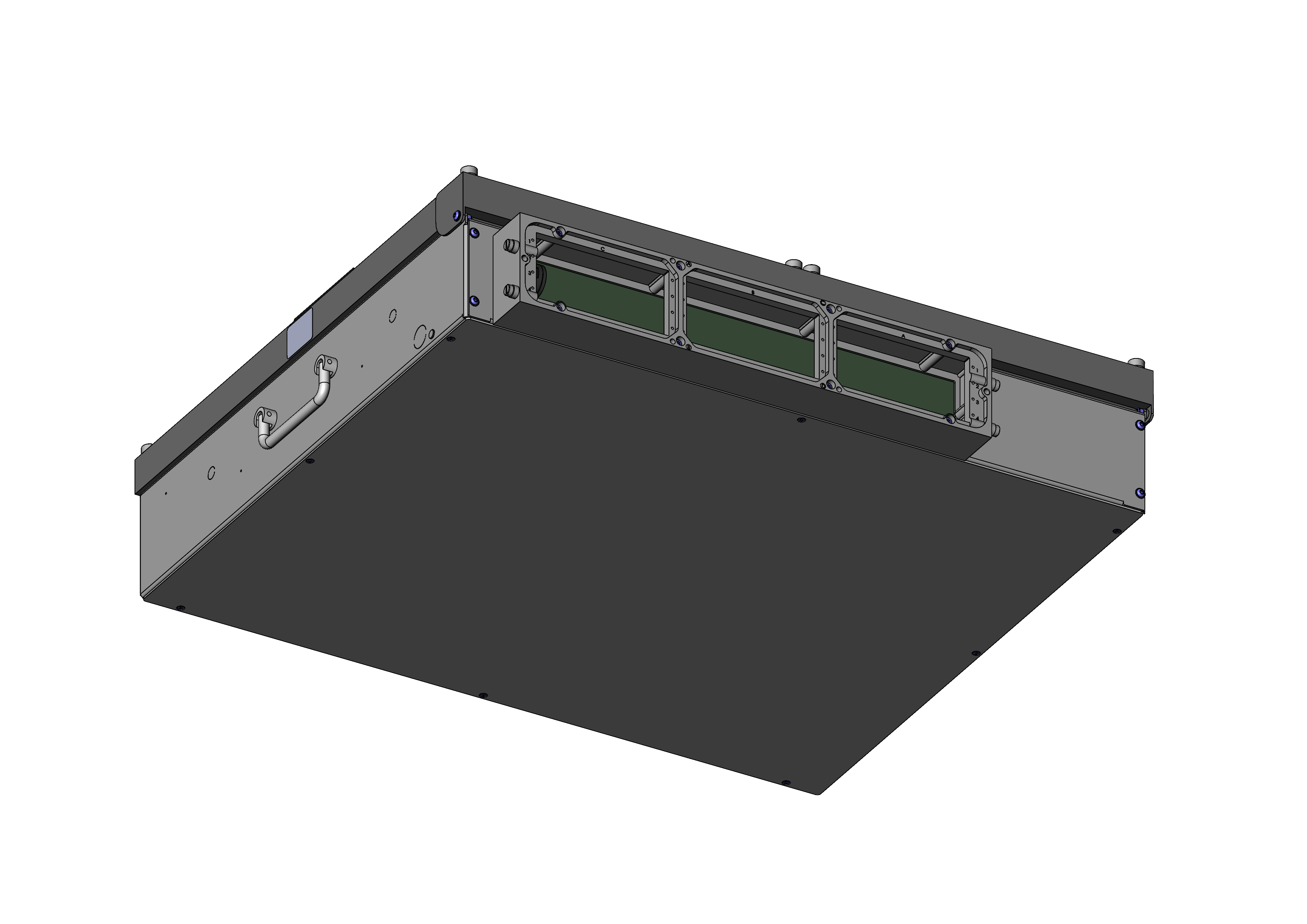

| Test system interface: | VPC-G12 |
| Useable area, dual-stage (WxD): | 2 x 205 x 430 mm [.078 x 8.07 x 16.9 in] |
| Useable area, standard (WxD): | 2 x 225 x 430 mm [.078 x 8.85 x 16.9 in] |
| Useable area: long edge: | 225 mm [8.85 in], 430 mm [16.9 in] |
| Useable area: short edge: | 205 mm [8.07 in], 430 mm [16.9 in] |
| Weight: | 16.1 kg [35.4 lbs] |
Login
Product Details
- Vacuum test fixture with parallel lifting vacuum cassette
- Robust, maintenance-friendly design with outstanding service life
- Increased ease of use thanks to simple, intuitive handling
- Easy access to housing interior thanks to wide opening angle
- Vacuum cassette can be upgraded for dual-stage contacting
- For the assembly of items delivered unassembled, Refer to the drawings of the items specified in the parts list to assemble items
Other products in this series:
Technical data
General data
- Product group: Vacuum test fixture (VA)
- Series: VA 4060T
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
- Size: xx60T
- Main series: VA xxxx
- Max. contact force: 10,000 N [35,969 ozf]
- Contact stroke generation: Vacuum
- Subseries: VA 40xx
- Approx. parallel contact stroke: 12.8 mm [.503 in]
- Test fixture type: Tandem stand-alone test fixture
- Test system interface: VPC-G12
- Housing type: Flat housing
- Weight: 16.1 kg [35.4 lbs]
- Contacting direction: 1-stage / 2-stage
Technical data
- Radio frequency version: No
- Dual-stage version: Yes, with compatible additional option
- Outer dimensions, closed (WxDxH): 675 x 600 x 164 mm [26.5 x 23.6 x 6.45 in]
- Useable area, dual-stage (WxD): 2 x 205 x 430 mm [.078 x 8.07 x 16.9 in]
- Rigid pin version: No
- Force of gas pressure springs: 400 N (L: 200 N / R: 200 N)
- Additional contacting unit (ZSK), top: Yes, with suitable additional option
- Useable area, standard (WxD): 2 x 225 x 430 mm [.078 x 8.85 x 16.9 in]
- Test probe installation height, bottom: 16 mm [.629 in]
- ESD version: No
- Test probe installation height, dual-stage, bottom: 21.3 mm [.838 in]
- Standard version: Yes
