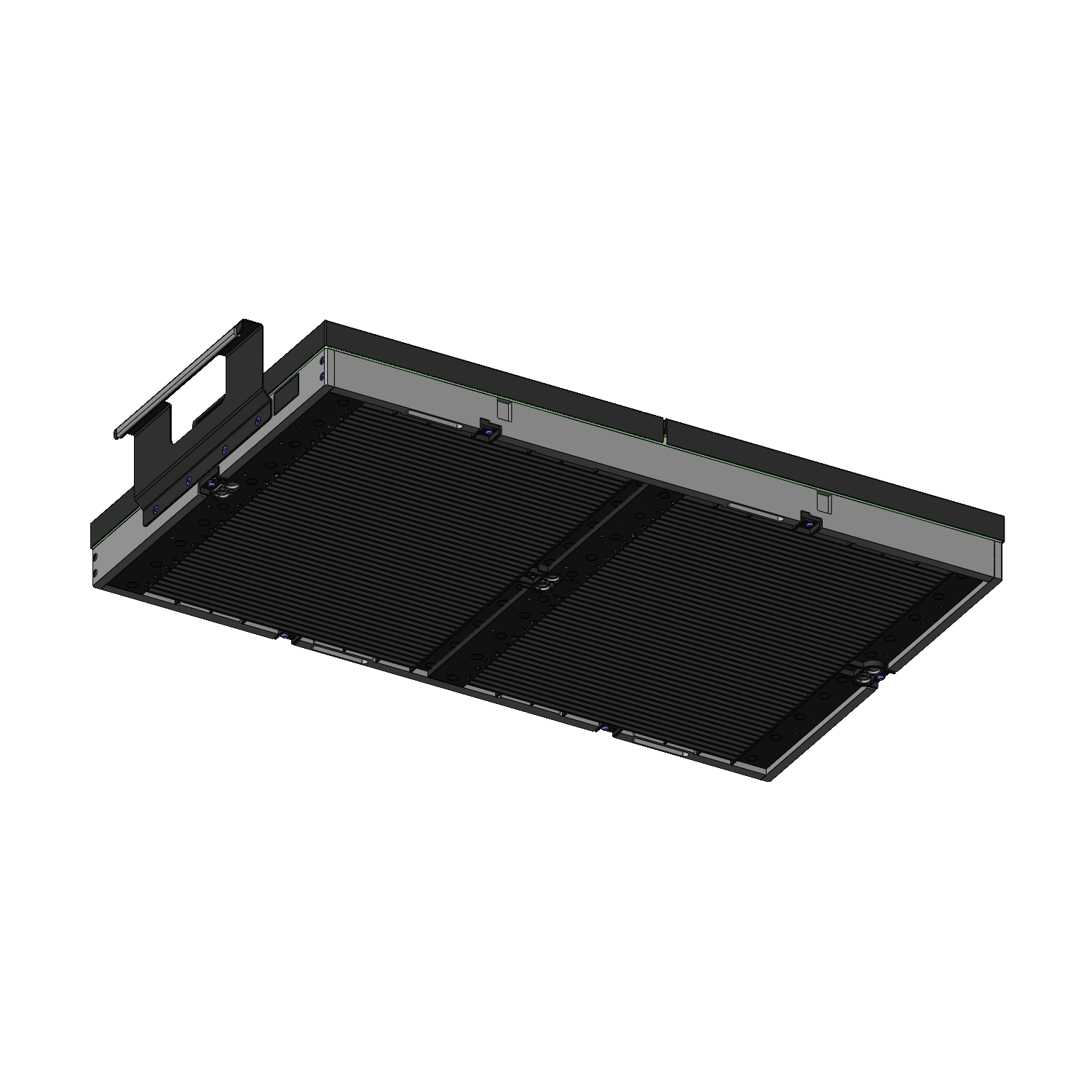

Product information "VA 3070LT/i3070"
- Vacuum test fixture with parallel lifting vacuum cassette
- Incl. fixture interface for Keysight-Testsystem i3070
- Incl. Alum-A transport handles
- Robust, maintenance-friendly design with outstanding service life
- Increased ease of use thanks to simple, intuitive handling
- For the assembly of items delivered unassembled, Refer to the drawings of the items specified in the parts list to assemble items
| Additional contacting unit (ZSK), top: | Yes, with suitable additional option |
|---|---|
| Approx. parallel contact stroke: | 7 mm [.275 in] |
| Contacting direction: | ICT bottom |
| Contact stroke generation: | Vacuum |
| Dual-stage version: | No |
| ESD-compliant: | No |
| ESD version: | No |
| Housing type: | Flat housing |
| Interface blocks required: | No |
| Low voltage: | No |
| Main series: | VA xxxx |
| Max. contact force: | 12 N [43.1 ozf] |
| Max. interface signals: | no name, 7.104 |
| Max. internal interface blocks: | no name |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensions, closed (WxDxH): | 840 x 460 x 117 mm [33 x 18.1 x 4.6 in] |
| Product group: | Vacuum test fixture (VA) |
| Radio frequency version: | No |
| Rigid pin version: | No |
| RoHS-compliant: | Yes |
| Series: | VA 3070LT |
| Size: | xx70L |
| Standard version: | Yes |
| Subseries: | VA 30xx |
| Test fixture type: | Large tandem fixture, Keysight |
| Test probe installation height, bottom: | 16 mm [.629 in] |
| Test system interface: | Keysight i3070, large |
| Useable area, standard (WxD): | 2 x 295 x 400 mm [.078 x 11.6 x 15.7 in] |
| Useable area: long edge: | 400 mm [15.7 in] |
| Useable area: short edge: | 295 mm [11.6 in] |
| Weight: | 22.4 kg [49.3 lbs] |
Login
Product Details
- Vacuum test fixture with parallel lifting vacuum cassette
- Incl. fixture interface for Keysight-Testsystem i3070
- Incl. Alum-A transport handles
- Robust, maintenance-friendly design with outstanding service life
- Increased ease of use thanks to simple, intuitive handling
- For the assembly of items delivered unassembled, Refer to the drawings of the items specified in the parts list to assemble items
Other products in this series:
Technical data
General data
- Max. internal interface blocks: no name
- Max. temperature: 60 °C [140 °F]
- Subseries: VA 30xx
- Approx. parallel contact stroke: 7 mm [.275 in]
- Interface blocks required: No
- Main series: VA xxxx
- Test fixture type: Large tandem fixture, Keysight
- Test system interface: Keysight i3070, large
- Low voltage: No
- Contacting direction: ICT bottom
- Contact stroke generation: Vacuum
- Max. contact force: 12 N [43.1 ozf]
- Max. interface signals: no name
- Max. interface signals: 7.104
- ESD-compliant: No
- Min. temperature: 10 °C [50 °F]
- Size: xx70L
- RoHS-compliant: Yes
- Housing type: Flat housing
- Product group: Vacuum test fixture (VA)
- Weight: 22.4 kg [49.3 lbs]
- Series: VA 3070LT
Technical data
- Useable area, standard (WxD): 2 x 295 x 400 mm [.078 x 11.6 x 15.7 in]
- Radio frequency version: No
- Test probe installation height, bottom: 16 mm [.629 in]
- Rigid pin version: No
- Additional contacting unit (ZSK), top: Yes, with suitable additional option
- Dual-stage version: No
- ESD version: No
- Outer dimensions, closed (WxDxH): 840 x 460 x 117 mm [33 x 18.1 x 4.6 in]
- Standard version: Yes
