Product information "TF-X-SI-010"

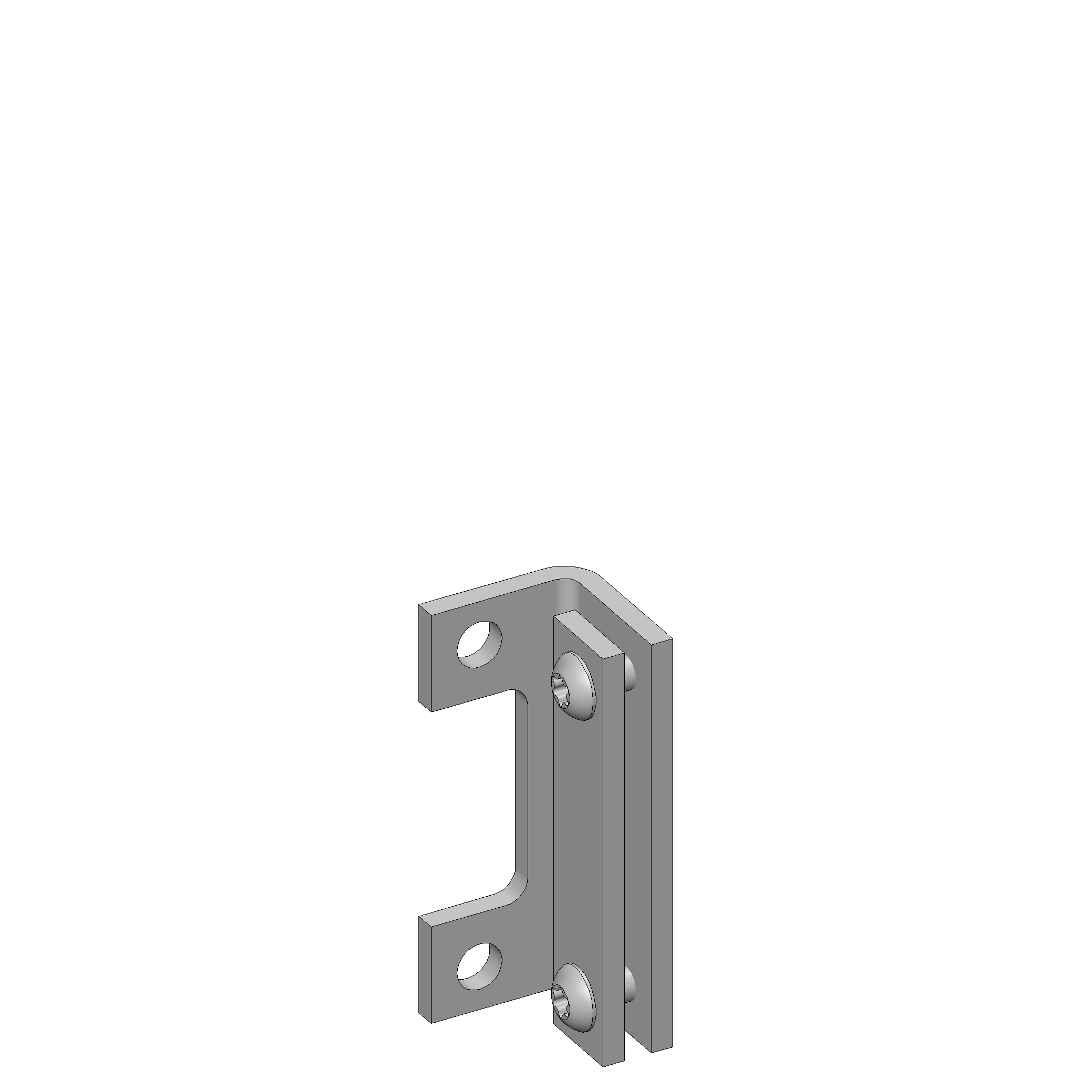

- Strain relief for 10-pole transfer field
- To secure connection cables and avoid unintentional disconnection
| Accessory type: | Customising accessories |
|---|---|
| Height: | 15 mm [.59 in] |
| Length: | 38 mm [1.49 in] |
| MA exchangeable kits (ATS MA): | ATS MAxx, ATS MAxxx |
| Manual test fixtures (MA): | MA 2009, MA 2011, MA 2012, MA 2013, MA 2013T, MA 2014 |
| Material: | 3.3535 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 38 x 15 x 15 mm [1.49 x .59 x .59 in] |
| PA exchangeable kits (ATS PA): | ATS PAZxxx, ATS PAxxxx |
| Product group: | Transfer fields |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | TF-SI |
| Type: | Strain relief |
| Version: | 10-pole transfer field |
| Weight: | 0.01 kg [.022 lbs] |
| Width: | 15 mm [.59 in] |
Login
Product Details
- Strain relief for 10-pole transfer field
- To secure connection cables and avoid unintentional disconnection
Other products in this series:
Technical data
General data
- Product group: Transfer fields
- Series: TF-SI
- Type: Strain relief
- Version: 10-pole transfer field
- Accessory type: Customising accessories
- Scope of delivery: Unassembled
- Material: 3.3535
- Width: 15 mm [.59 in]
- Height: 15 mm [.59 in]
- Weight: 0.01 kg [.022 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Manual test fixtures (MA): MA 2014
- Manual test fixtures (MA): MA 2009
- Manual test fixtures (MA): MA 2013
- Manual test fixtures (MA): MA 2011
- Manual test fixtures (MA): MA 2013T
- Manual test fixtures (MA): MA 2012
- MA exchangeable kits (ATS MA): ATS MAxxx
- MA exchangeable kits (ATS MA): ATS MAxx
- PA exchangeable kits (ATS PA): ATS PAxxxx
- PA exchangeable kits (ATS PA): ATS PAZxxx
Technical data
- Length: 38 mm [1.49 in]

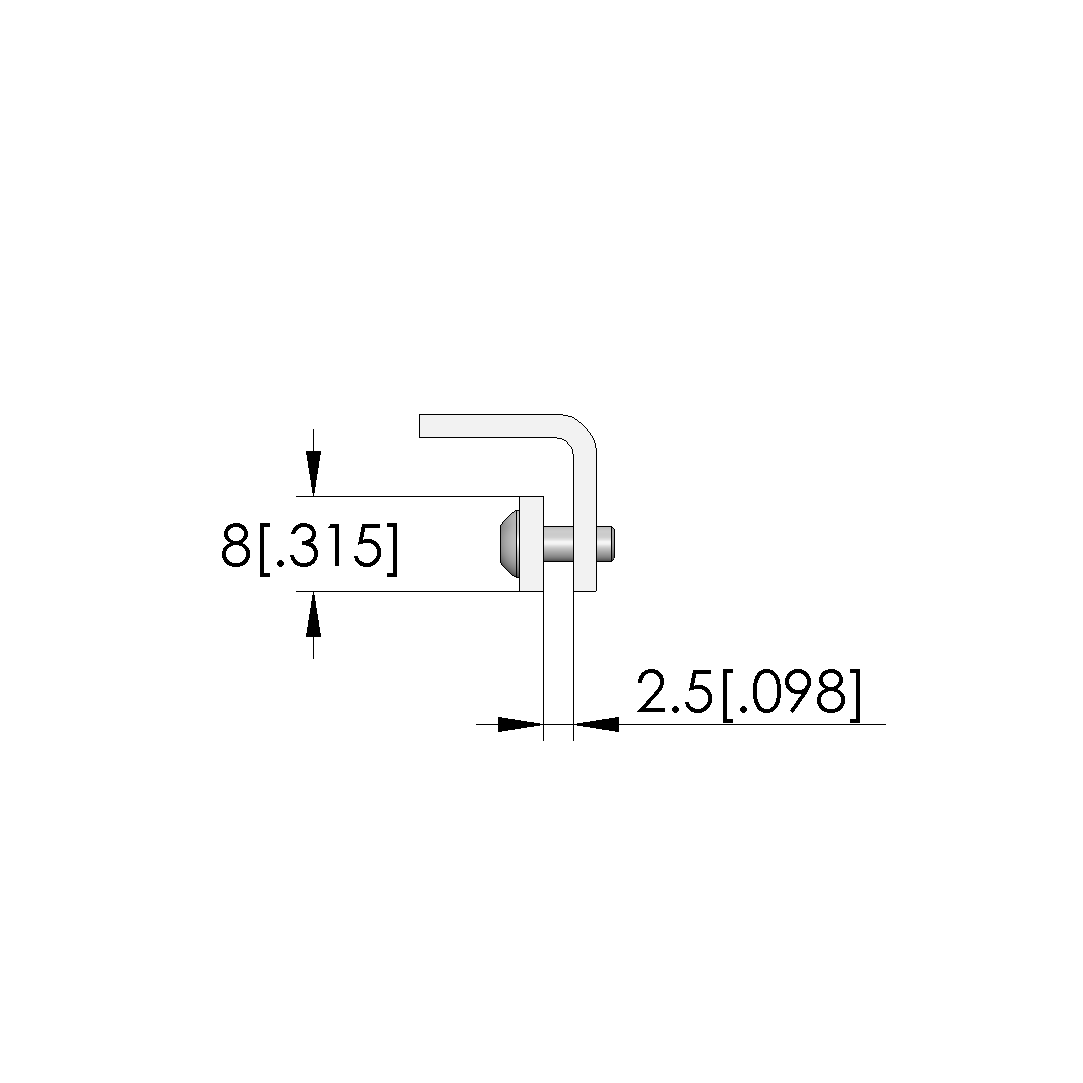

- Outer dimensionS (WxDxH): 38 x 15 x 15 mm [1.49 x .59 x .59 in]
