Product information "TF-P-SI-040-WW"

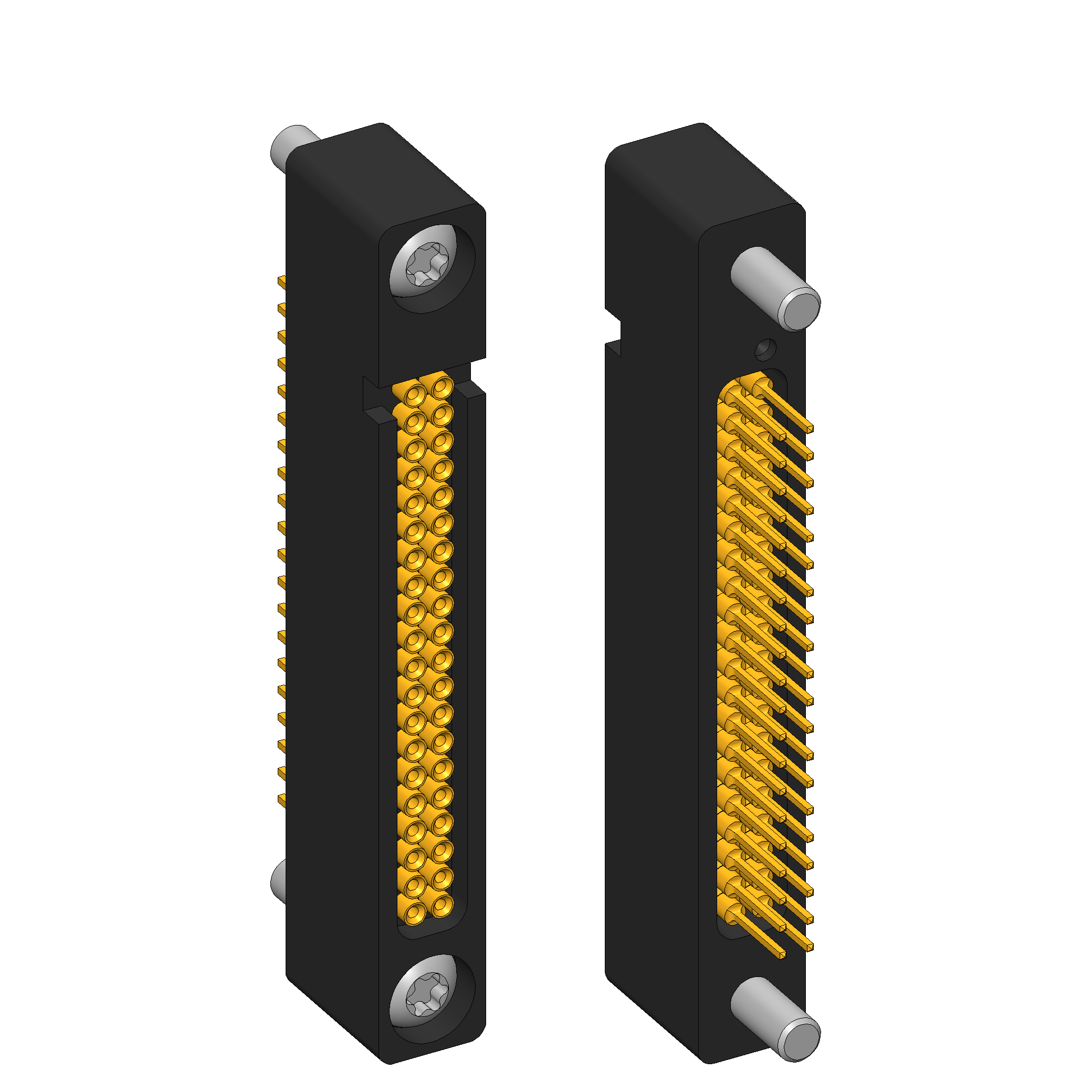

- Contact module for reliable transmission of signals wheen contacting from the top side
- Quick, easy, freely adjustable installation
- Equipped with INGUN contact terminals
| Accessory type: | Customising accessories |
|---|---|
| Connection: | Wire-wrap posts |
| Exchangeable kits version: | No limitations |
| For dual-stage contacting: | Yes |
| Height: | 15 mm [.59 in] |
| Installation grid: | 2.54 mm [.1 in] |
| Length: | 78 mm [3.07 in] |
| MA exchangeable kits (ATS MA): | ATS MAxx |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Number of poles: | 40 |

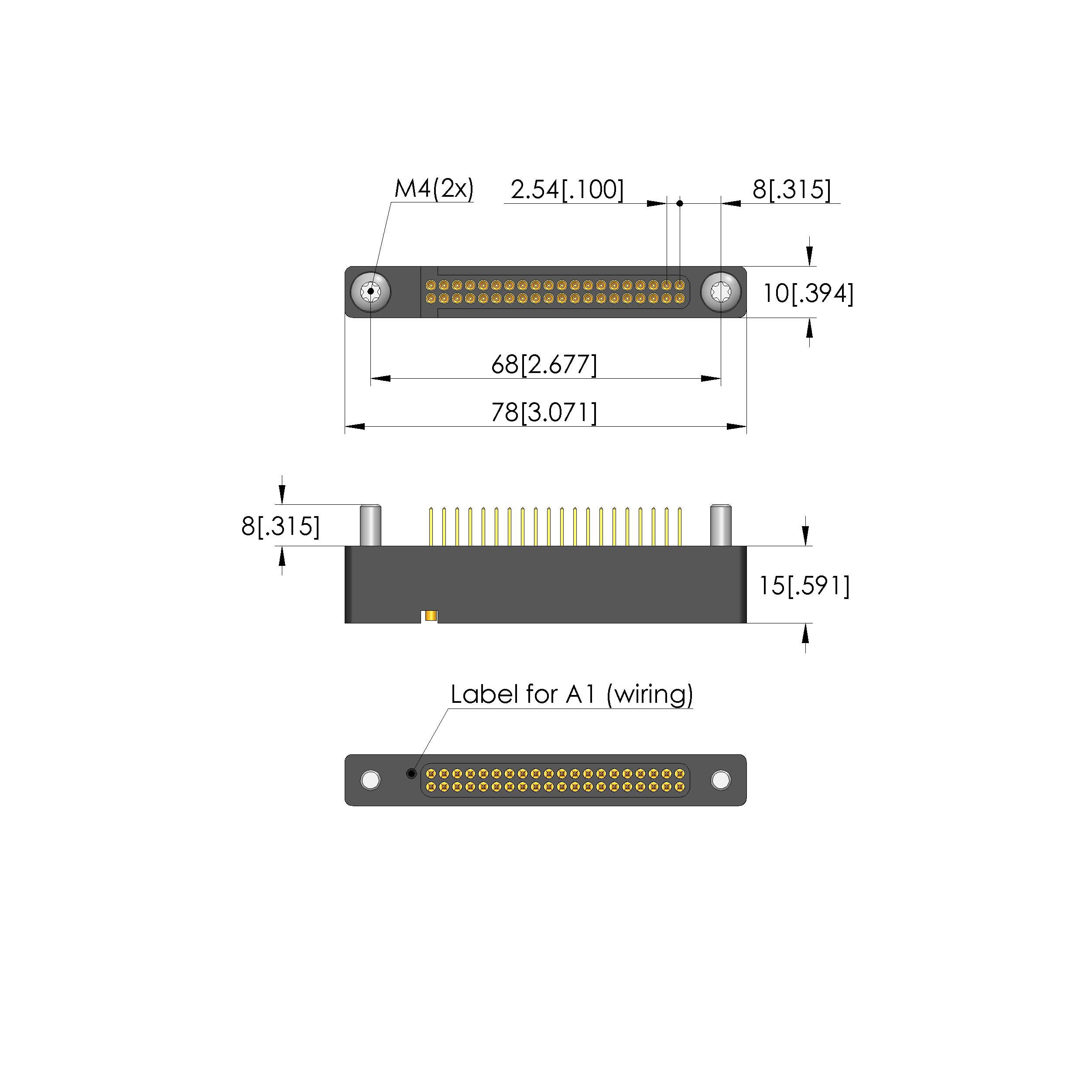

| Outer dimensionS (WxDxH): | 78 x 10 x 15 mm [3.07 x .393 x .59 in] |
| Product group: | Transfer fields |
| RoHS-compliant: | Yes |
| Scope of delivery: | Fully loaded with KT-254 W3 E02 |
| Series: | TF-SI |
| Type: | Kontaktmodul |
| Version: | Device under test (DUT) side |
| Weight: | 0.03 kg [.066 lbs] |
| Width: | 10 mm [.393 in] |
Login
Product Details
- Contact module for reliable transmission of signals wheen contacting from the top side
- Quick, easy, freely adjustable installation
- Equipped with INGUN contact terminals
Other products in this series:
Technical data
General data
- Product group: Transfer fields
- Series: TF-SI
- Type: Kontaktmodul
- Version: Device under test (DUT) side
- Accessory type: Customising accessories
- Scope of delivery: Fully loaded with KT-254 W3 E02
- Width: 10 mm [.393 in]
- Height: 15 mm [.59 in]
- Weight: 0.03 kg [.066 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data
- Connection: Wire-wrap posts
- Number of poles: 40
- Installation grid: 2.54 mm [.1 in]
- Length: 78 mm [3.07 in]
- Outer dimensionS (WxDxH): 78 x 10 x 15 mm [3.07 x .393 x .59 in]
Compatible with
- Exchangeable kits version: No limitations
- MA exchangeable kits (ATS MA): ATS MAxx
- For dual-stage contacting: Yes
