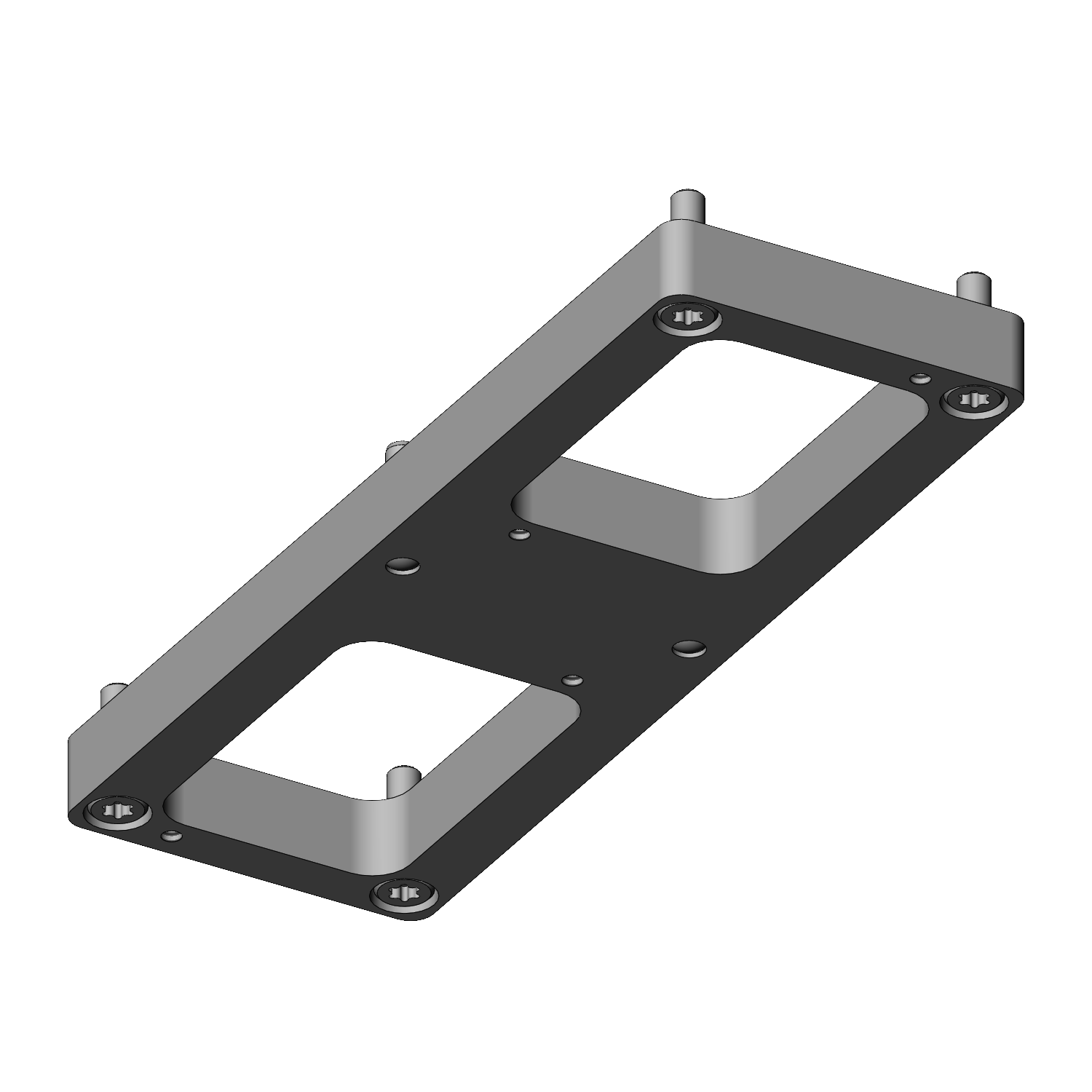

Product information "TF-P-SI-340-ASYS"
- Contact module for reliable transmission of signals wheen contacting from the top side
- Unpopoulated, to be populated with DUT-side (SB-P-...) interface blocks
- Suitable for inline interchageable kits WS ASYS/ATH01/173,5 and WS ASYS/ATH01/210,5
- Quick, easy installation
| Accessory type: | Additional function |
|---|---|
| Height: | 10 mm [.393 in] |
| Interchangeable kits (WS): | WS ASYS/ATH01/... |
| Length: | 141 mm [5.55 in] |
| Max. interface signals: | 340 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Number of poles: | 2 |
| Outer dimensionS (WxDxH): | 141 x 48 x 10 mm [5.55 x 1.88 x .393 in] |
| Product group: | Transfer fields |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unpopulated, max. 2 interface blocks |
| Series: | TF-SI |
| Type: | Pylon-WSO-ASYS |
| Version: | Interface blocks (SB) |
| Weight: | 0.07 kg [.154 lbs] |
| Width: | 48 mm [1.88 in] |
Login
Product Details
- Contact module for reliable transmission of signals wheen contacting from the top side
- Unpopoulated, to be populated with DUT-side (SB-P-...) interface blocks
- Suitable for inline interchageable kits WS ASYS/ATH01/173,5 and WS ASYS/ATH01/210,5
- Quick, easy installation
Other products in this series:
Technical data
Technical data
- Number of poles: 2
- Length: 141 mm [5.55 in]
- Outer dimensionS (WxDxH): 141 x 48 x 10 mm [5.55 x 1.88 x .393 in]
General data
- Product group: Transfer fields
- Series: TF-SI
- Type: Pylon-WSO-ASYS
- Version: Interface blocks (SB)
- Accessory type: Additional function
- Scope of delivery: Unpopulated, max. 2 interface blocks
- Max. interface signals: 340
- Width: 48 mm [1.88 in]
- Height: 10 mm [.393 in]
- Weight: 0.07 kg [.154 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Interchangeable kits (WS): WS ASYS/ATH01/...
