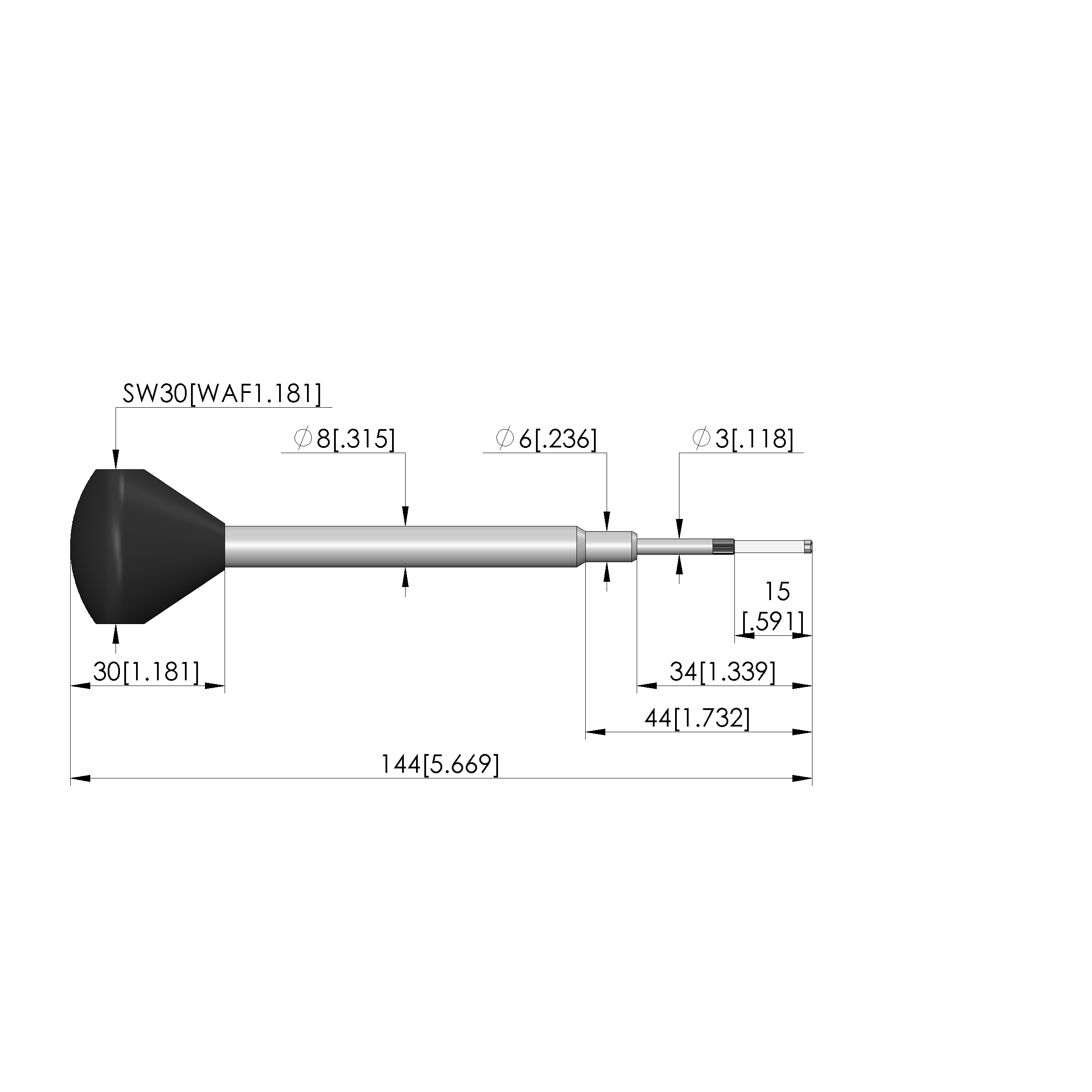

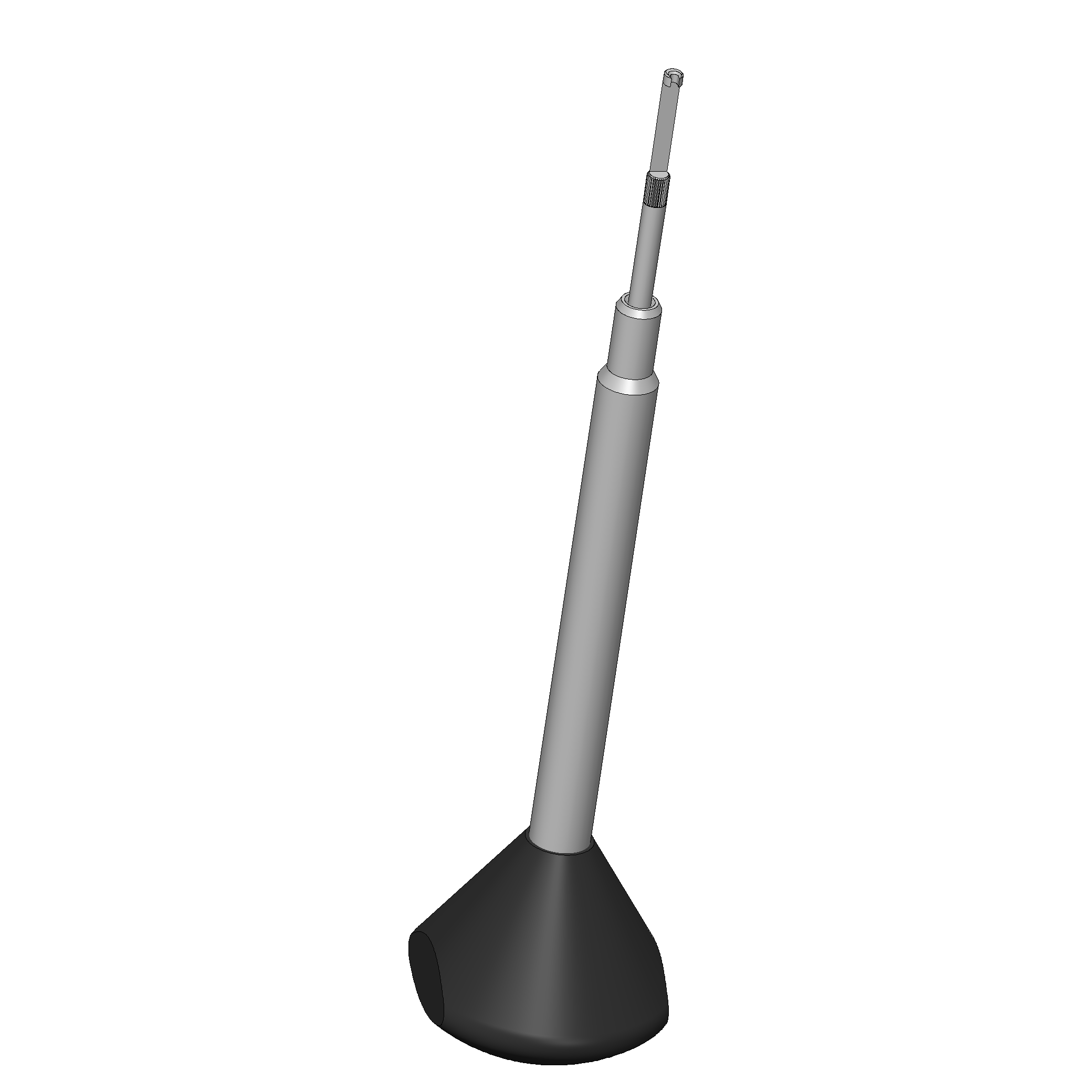

Product information "SW-ZW-GKS-112"
| Compatible test probe(s) / receptacle(s): | 505 BCP-118, GKS-102, GKS-112, GKS-412, GKS-502, HSS-118, SKS-215 |
|---|---|

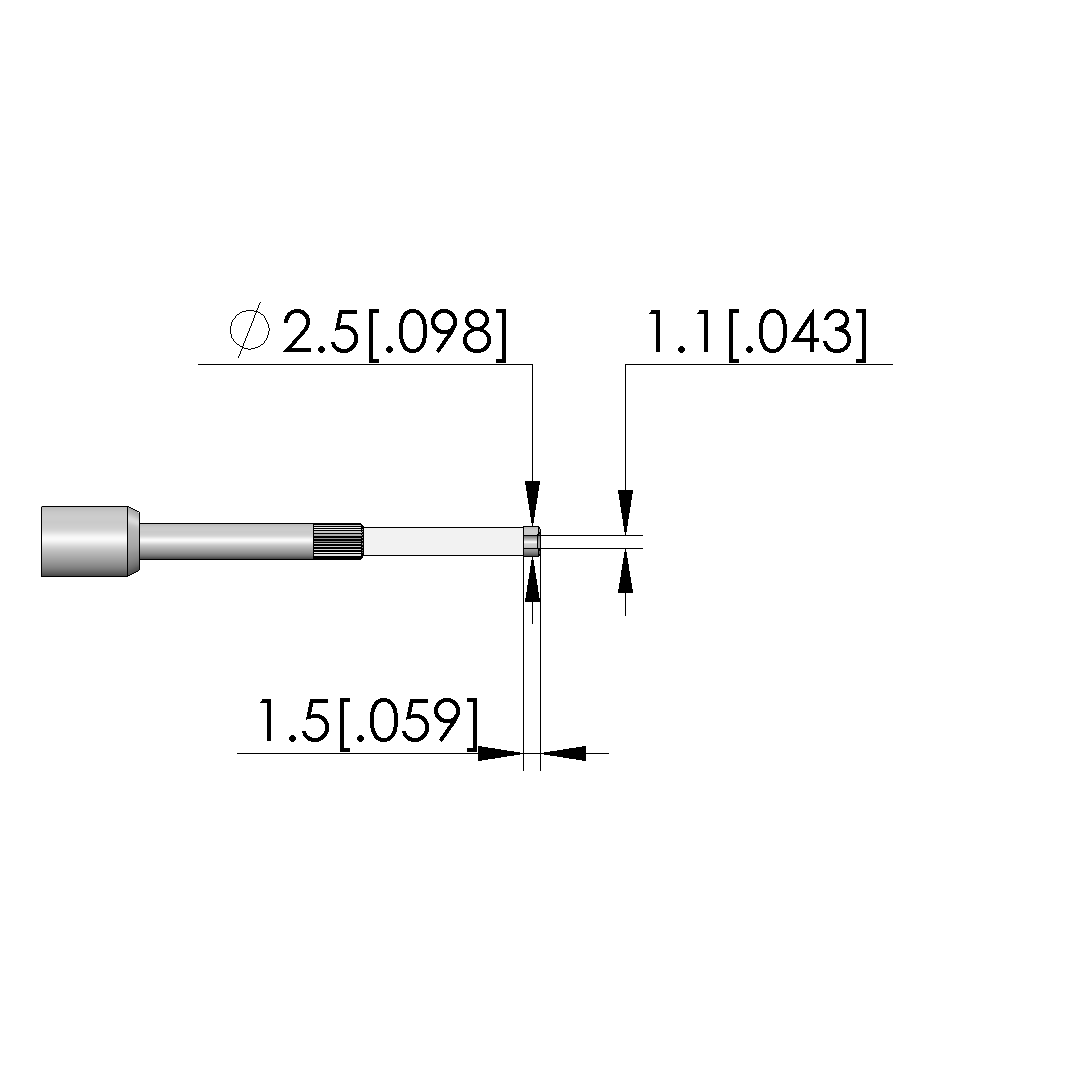

| Max. tip diameter: | 1.8 mm [.07 in] |
| Min. tip diameter: | 0 mm [0 in] |
| Product group: | Insertion and extraction tools (SW-ZW) |
| RoHS-compliant: | Yes |
| Series: | SW-GKS |
| Test probe installation type: | Plug-in |
| Tool for receptacle (KS): | No |
| Tool for test probe (GKS): | Yes |
| Tool version: | Rigid |
Login
Other products in this series:
Technical data
General data
- Product group: Insertion and extraction tools (SW-ZW)
- Compatible test probe(s) / receptacle(s): HSS-118
- Compatible test probe(s) / receptacle(s): 505 BCP-118
- Compatible test probe(s) / receptacle(s): GKS-102
- Compatible test probe(s) / receptacle(s): GKS-502
- Compatible test probe(s) / receptacle(s): SKS-215
- Compatible test probe(s) / receptacle(s): GKS-112
- Compatible test probe(s) / receptacle(s): GKS-412
- Series: SW-GKS
- Tool for receptacle (KS): No
- Tool for test probe (GKS): Yes
- Test probe installation type: Plug-in
- Min. tip diameter: 0 mm [0 in]
- Max. tip diameter: 1.8 mm [.07 in]
- Tool version: Rigid
- RoHS-compliant: Yes
