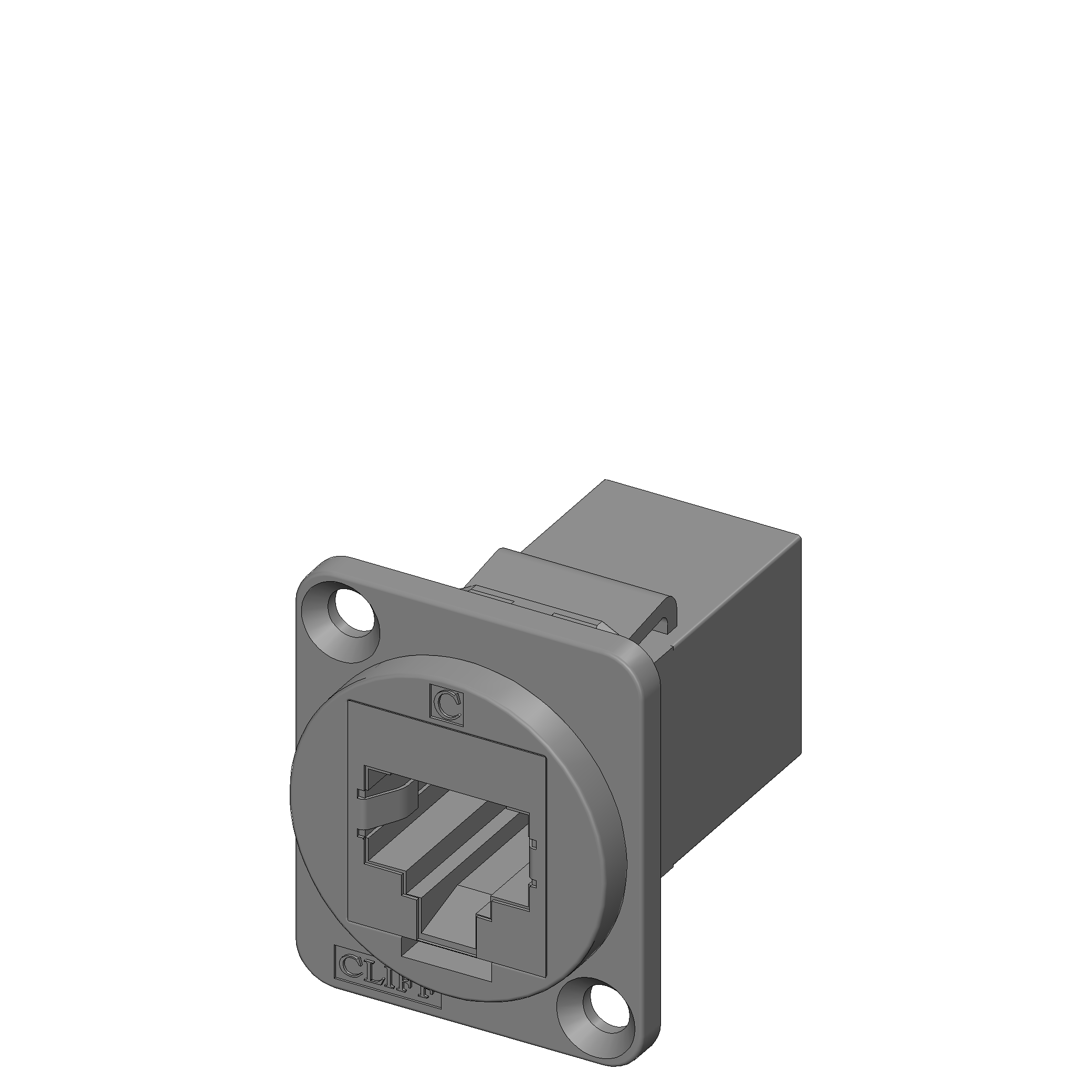

Product information "STV-RJ45CAT05-F-EB-SR"
- Built-in connector

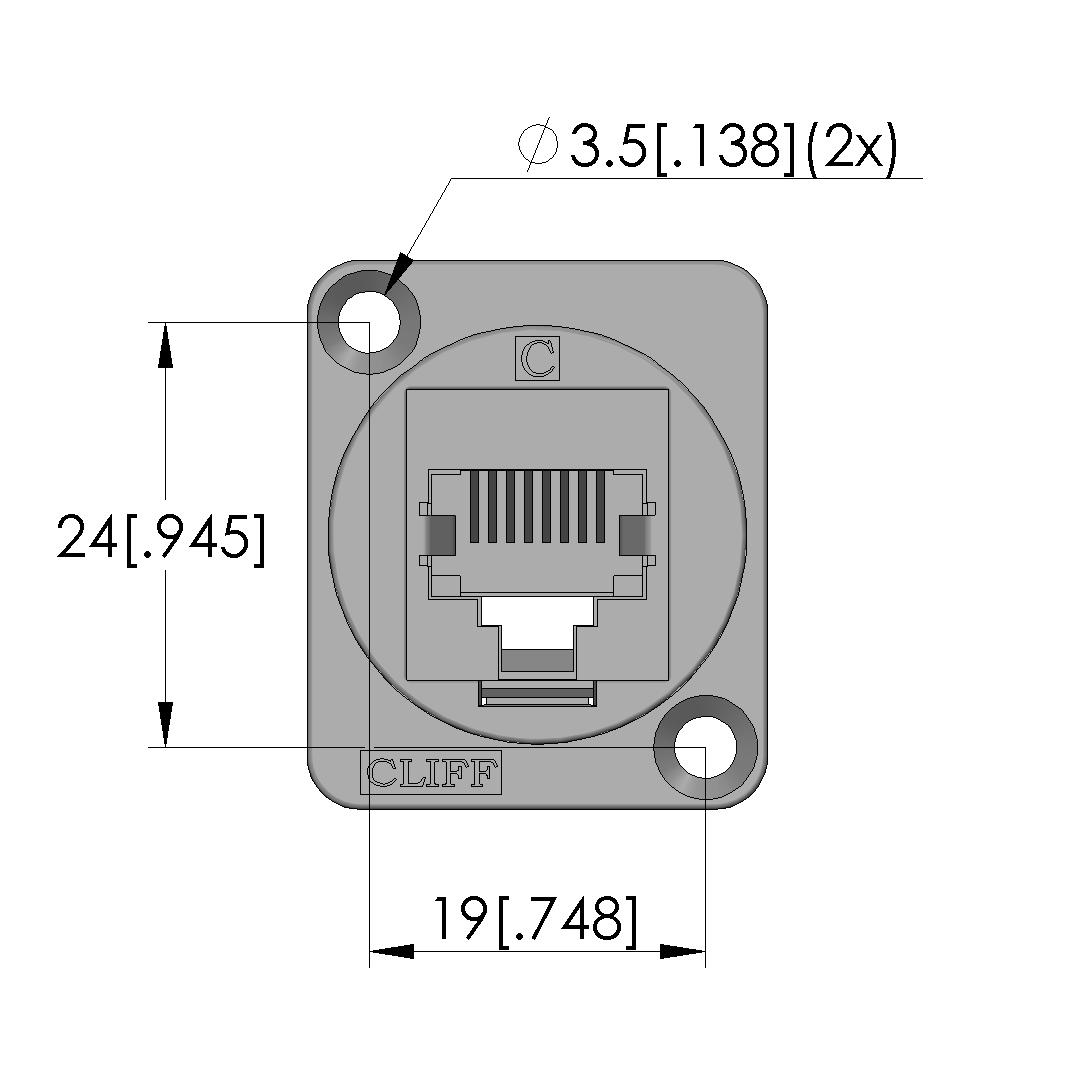

- Compatible with standard XLR cut-outs (Ø 24 mm)
- No soldering or punching required
- Use of standard cables
| Accessory type: | Customising accessories |
|---|---|
| Bestückung: | Female |
| Colour: | Silver |
| Connection: | RJ45 plug connector |
| Height: | 31 mm [1.22 in] |

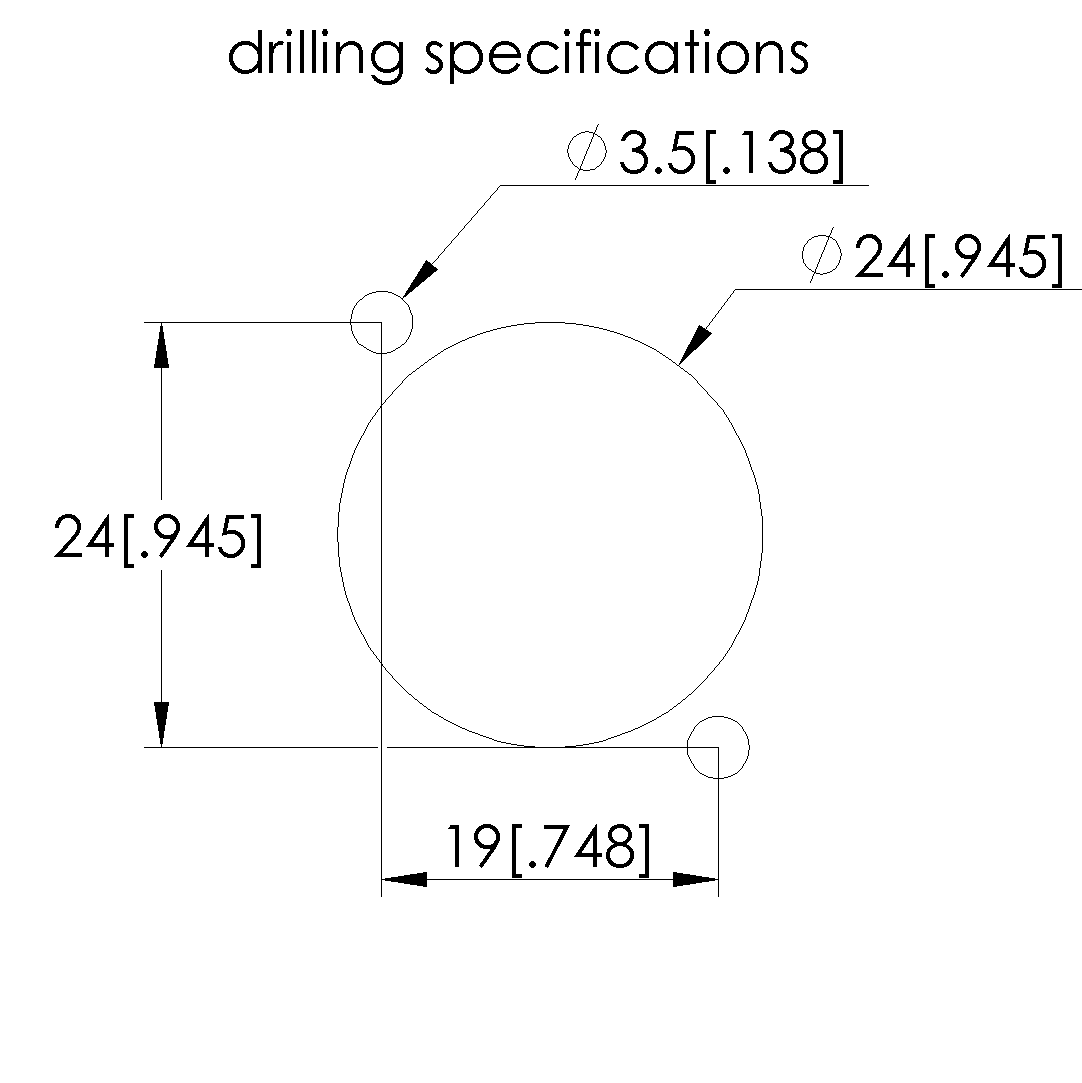

| Installation: | Bore D = 3.5 mm |
| Interface blocks (SB): | SB-P-SO-002-USB-RJ45 |
| Length: | 33 mm [1.29 in] |
| Material: | Metal |
| Max. temperature: | 50 °C [122 °F] |
| Min. temperature: | -20 °C [-4 °F] |
| Number of poles: | 1 |

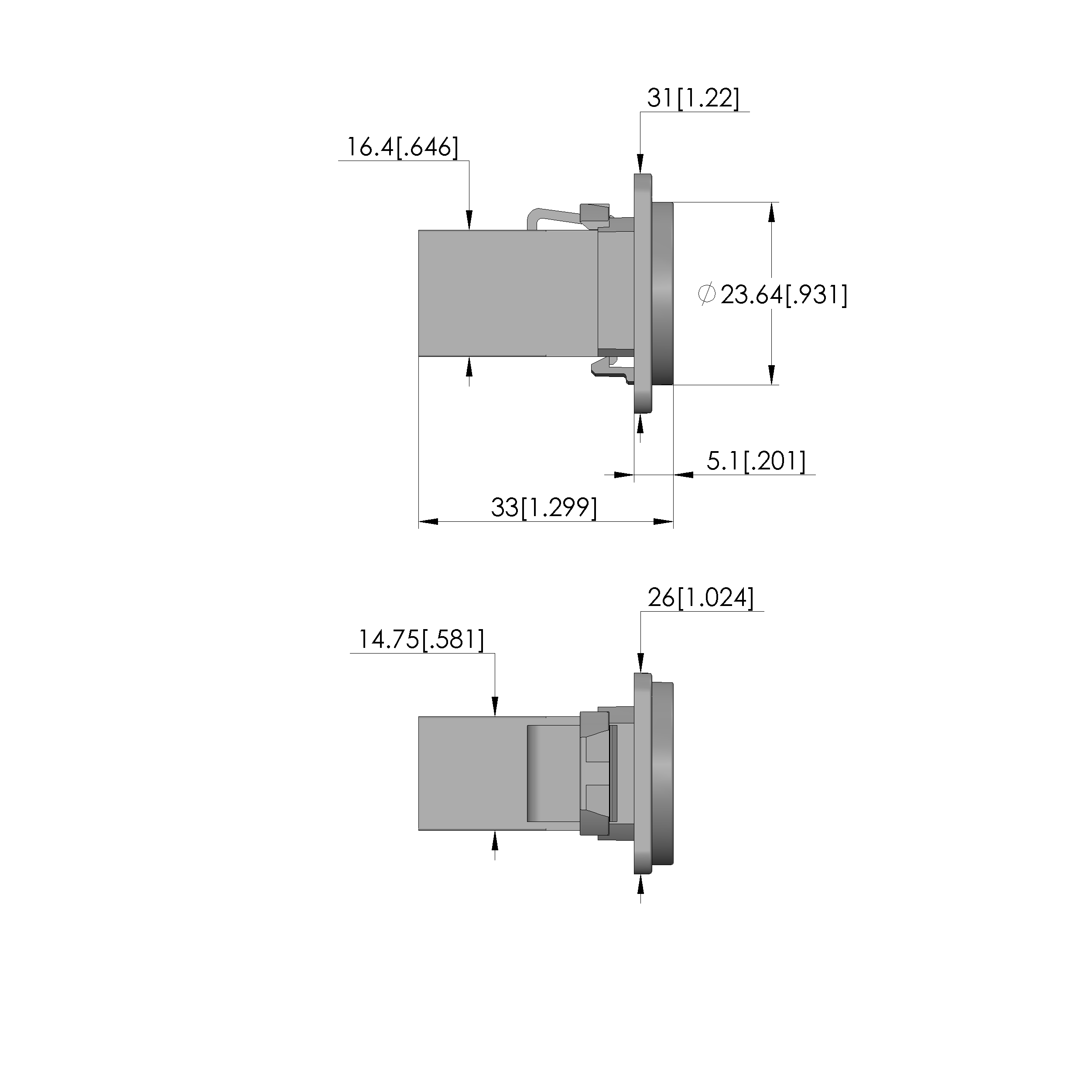

| Outer dimensionS (WxDxH): | 26 x 33 x 31 mm [1.02 x 1.29 x 1.22 in] |
| Product group: | Electric accessory |
| RoHS-compliant: | Yes |
| Series: | STV |
| Type: | Mounting socket |
| Version: | RJ45-CAT5e |
| Weight: | 0.01 kg [.022 lbs] |
| Width: | 26 mm [1.02 in] |
Login
Product Details
- Built-in connector
- Compatible with standard XLR cut-outs (Ø 24 mm)
- No soldering or punching required
- Use of standard cables
Other products in this series:
Technical data
Compatible with
- Interface blocks (SB): SB-P-SO-002-USB-RJ45
General data
- Min. temperature: -20 °C [-4 °F]
- Max. temperature: 50 °C [122 °F]
- Bestückung: Female
- Accessory type: Customising accessories
- Height: 31 mm [1.22 in]
- Product group: Electric accessory
- Width: 26 mm [1.02 in]
- RoHS-compliant: Yes
- Version: RJ45-CAT5e
- Material: Metal
- Type: Mounting socket
- Series: STV
- Colour: Silver
- Weight: 0.01 kg [.022 lbs]
Technical data
- Outer dimensionS (WxDxH): 26 x 33 x 31 mm [1.02 x 1.29 x 1.22 in]
- Length: 33 mm [1.29 in]
- Number of poles: 1
- Installation: Bore D = 3.5 mm
- Connection: RJ45 plug connector
