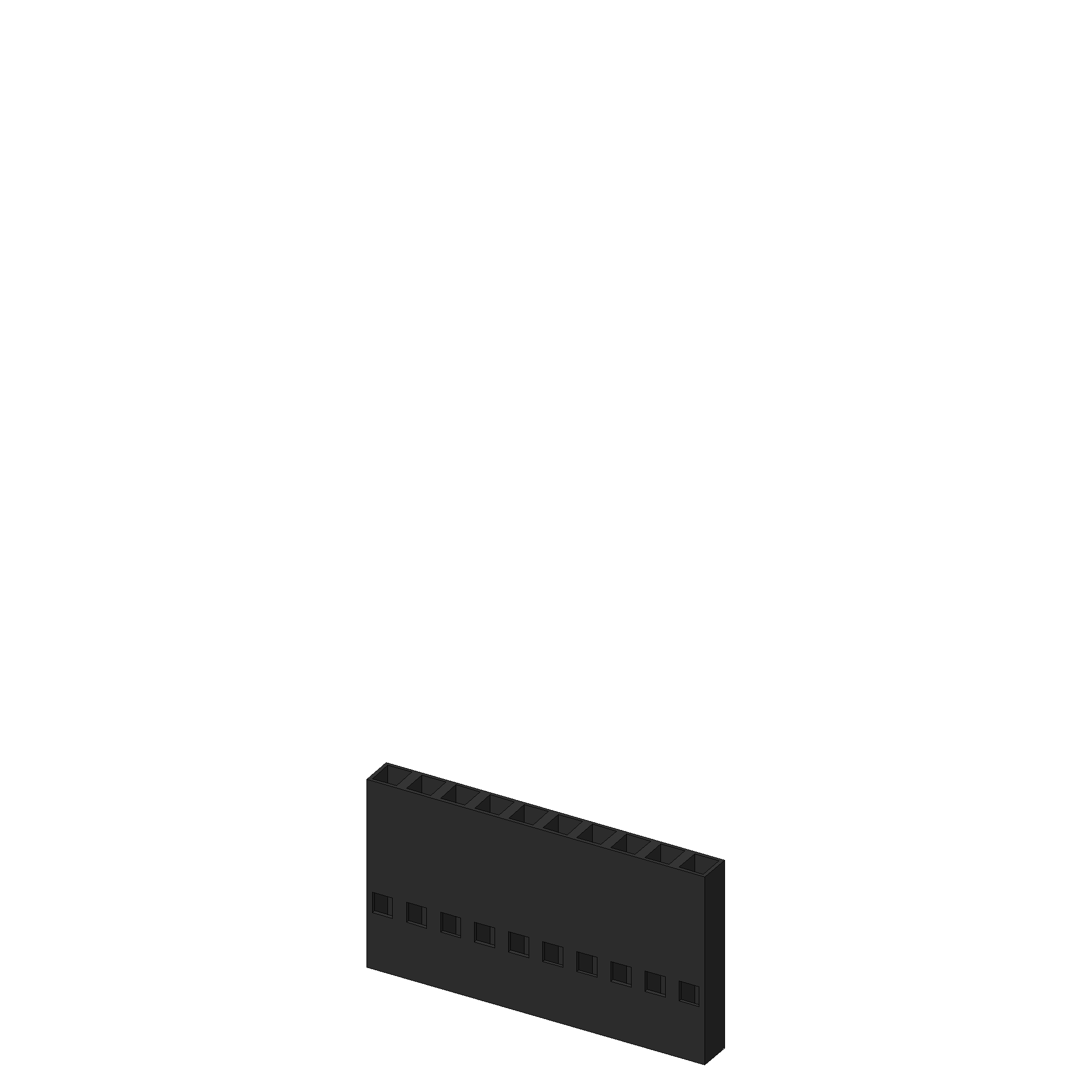

Product information "STV-BL10-F-C"
- Single-row connector housing for use with stranded wires with crimp connection
- Consistently precise external dimensions
| Accessories: | SLL-CK-AWG26 |
|---|---|
| Accessory type: | Customising accessories |
| Bestückung: | Female |
| Colour: | Black |
| Connection: | Plug connection |
| Height: | 2.5 mm [.098 in] |

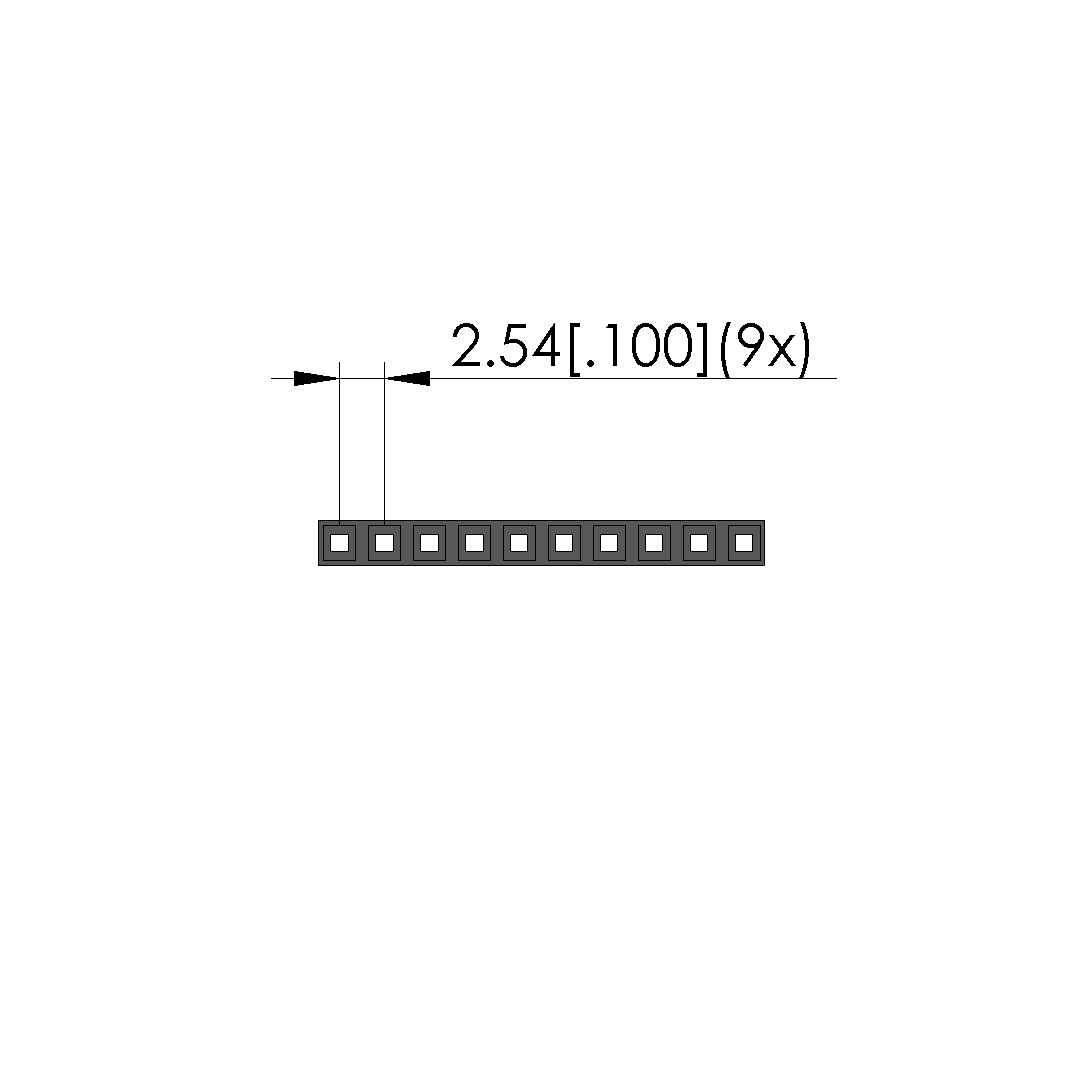

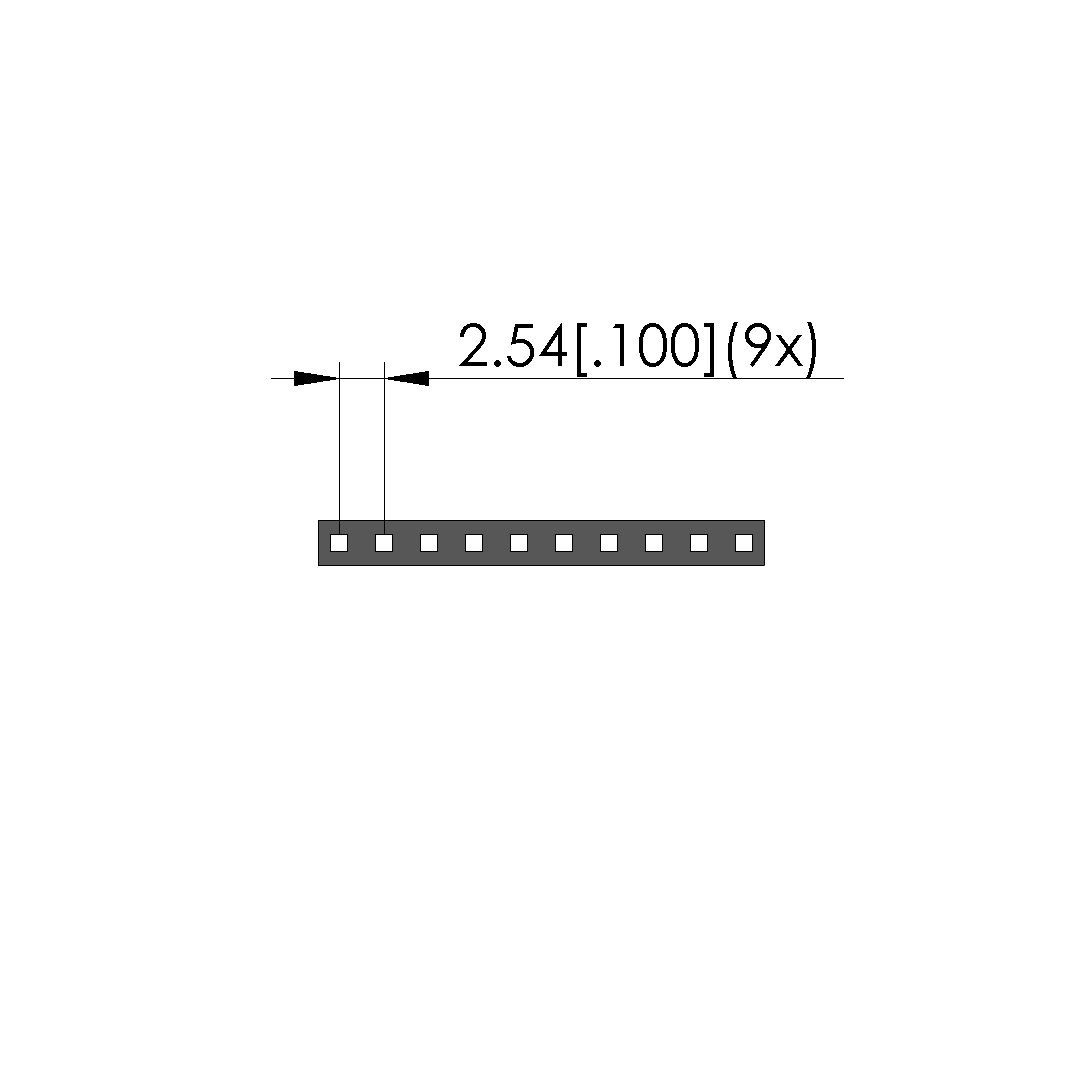

| Installation grid: | 2.54 mm [.1 in] |
| Interface blocks (SB): | SB-SI-170/085 |
| Length: | 25.2 mm [.992 in] |
| Material: | Plastic |
| Max. temperature: | 105 °C [221 °F] |
| Min. temperature: | -40 °C [-40 °F] |
| Number of poles: | 10 |

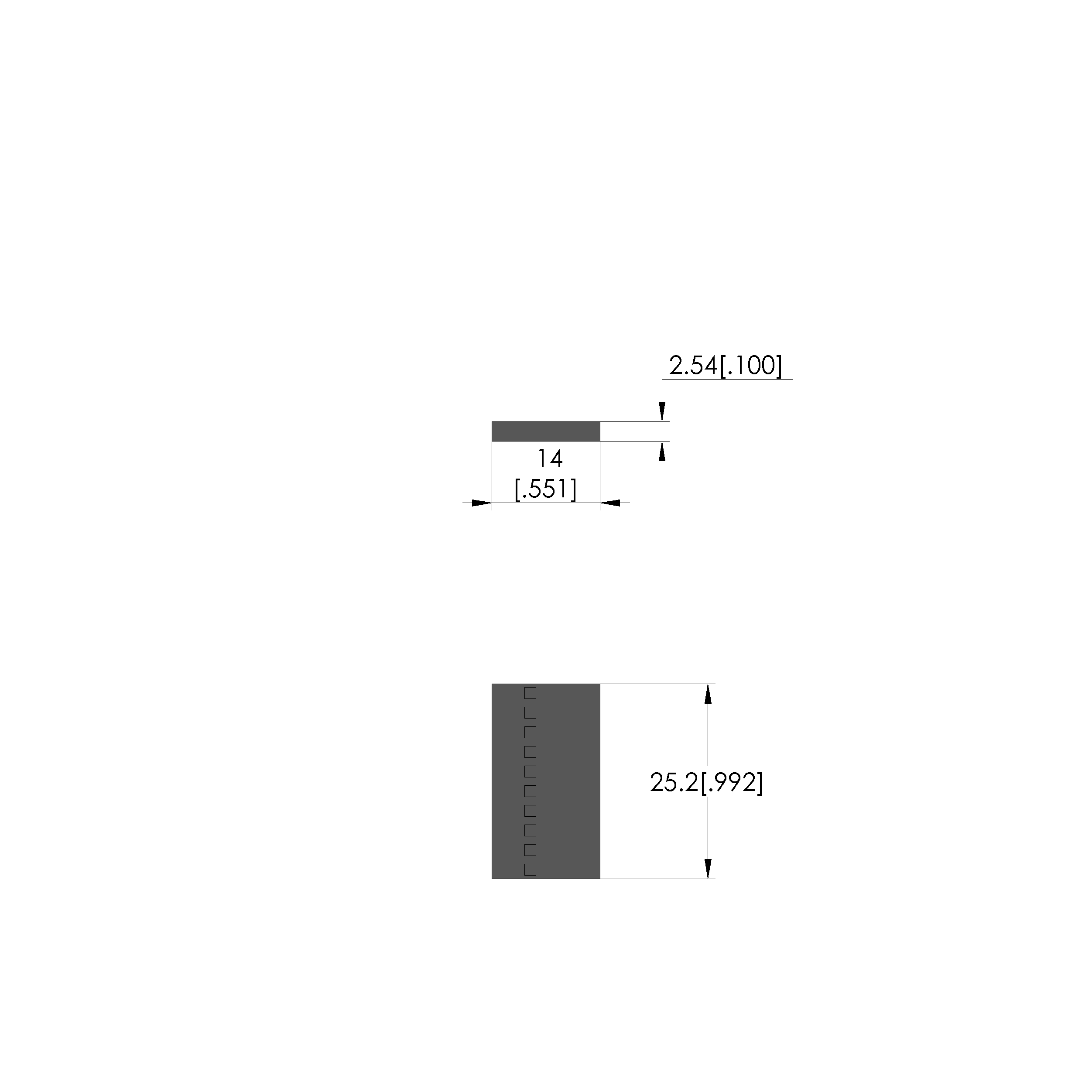

| Outer dimensionS (WxDxH): | 25.2 x 14 x 2.54 mm [.992 x .551 x .1 in] |
| Product group: | Electric accessory |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unpopulated, without crimp connection |
| Series: | STV |
| Type: | Connector housing |
| Version: | Single-row |
| Weight: | 0.01 kg [.022 lbs] |
| Width: | 14 mm [.551 in] |
Login
Product Details
- Single-row connector housing for use with stranded wires with crimp connection
- Consistently precise external dimensions
Other products in this series:
Technical data
Compatible with

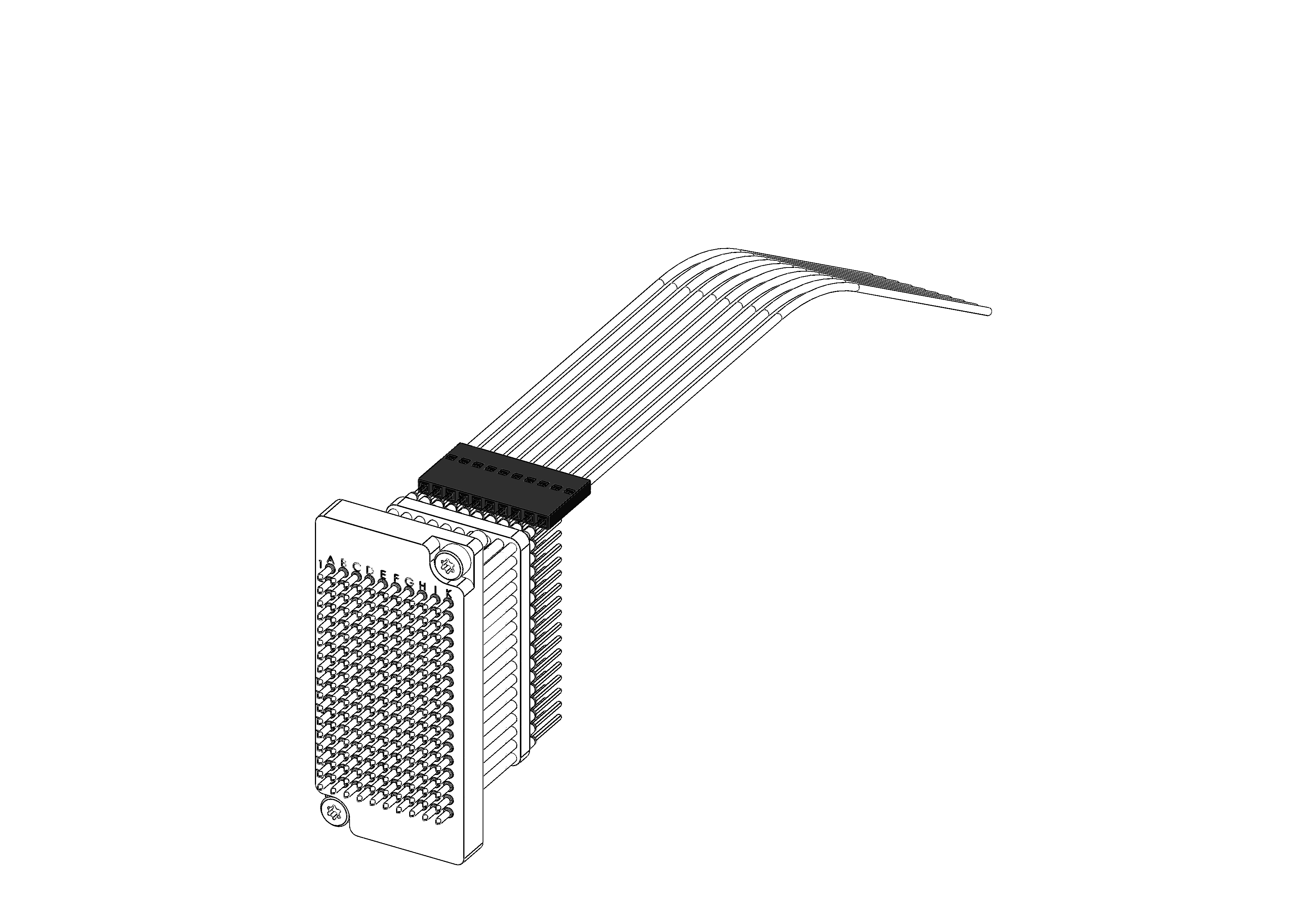

- Interface blocks (SB): SB-SI-170/085
- Accessories: SLL-CK-AWG26
General data
- Bestückung: Female
- Width: 14 mm [.551 in]
- Accessory type: Customising accessories
- Colour: Black
- Material: Plastic
- Product group: Electric accessory
- Version: Single-row
- Max. temperature: 105 °C [221 °F]
- RoHS-compliant: Yes
- Min. temperature: -40 °C [-40 °F]
- Type: Connector housing
- Height: 2.5 mm [.098 in]
- Scope of delivery: Unpopulated, without crimp connection
- Series: STV
- Weight: 0.01 kg [.022 lbs]
Technical data
- Installation grid: 2.54 mm [.1 in]
- Connection: Plug connection
- Length: 25.2 mm [.992 in]
- Outer dimensionS (WxDxH): 25.2 x 14 x 2.54 mm [.992 x .551 x .1 in]
- Number of poles: 10
