Product information "STV-SUBD-F-009-WW-G13"

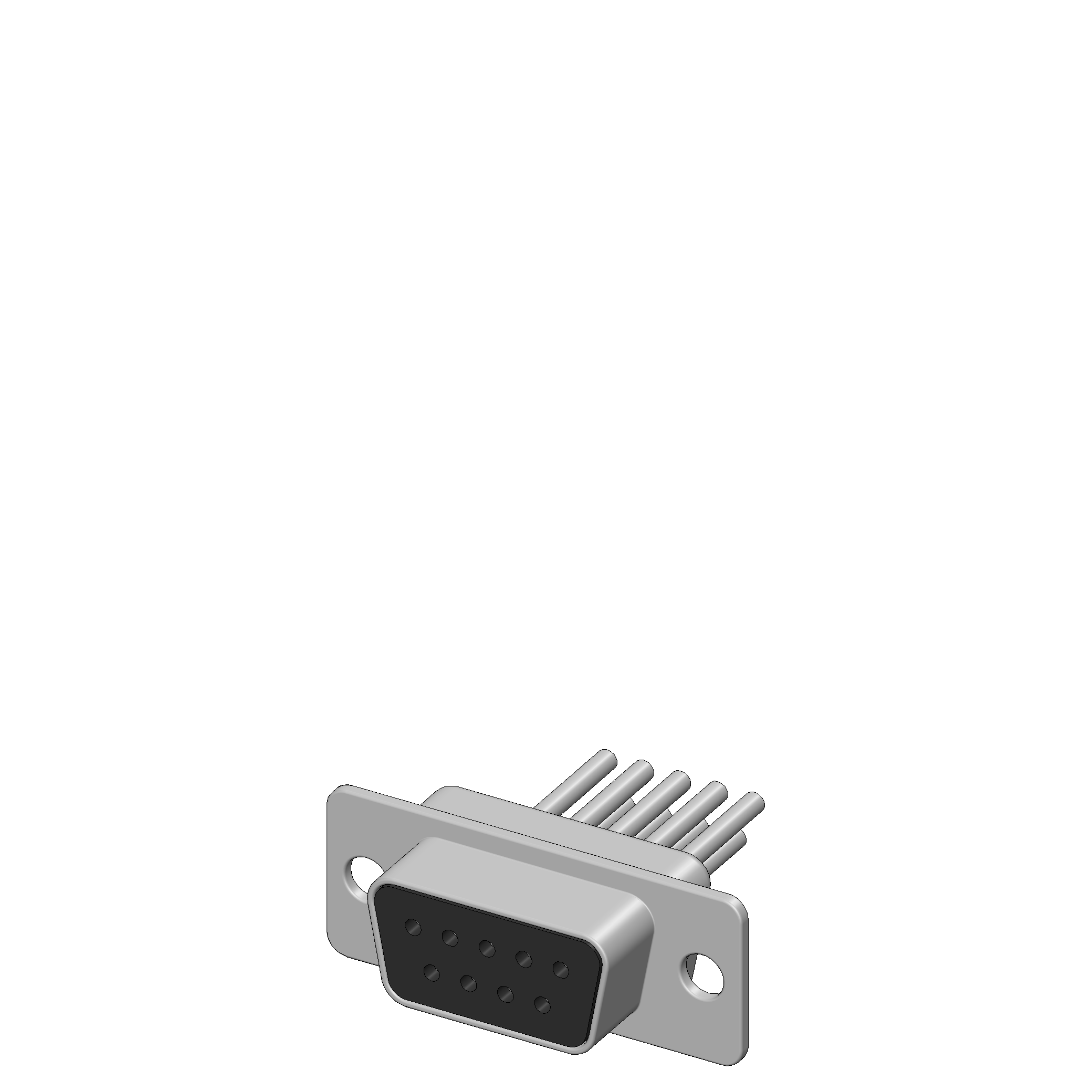

- Sub-D plug connector socket
- Table installation possible.
- 9-pole, 2.74 mm grid, wire-wrap connection
| Accessory type: | Customising accessories |
|---|---|
| Bestückung: | Female |
| Connection: | Wire-wrap posts |
| Current rating: | 7 A |
| Height: | 12.4 mm [.488 in] |

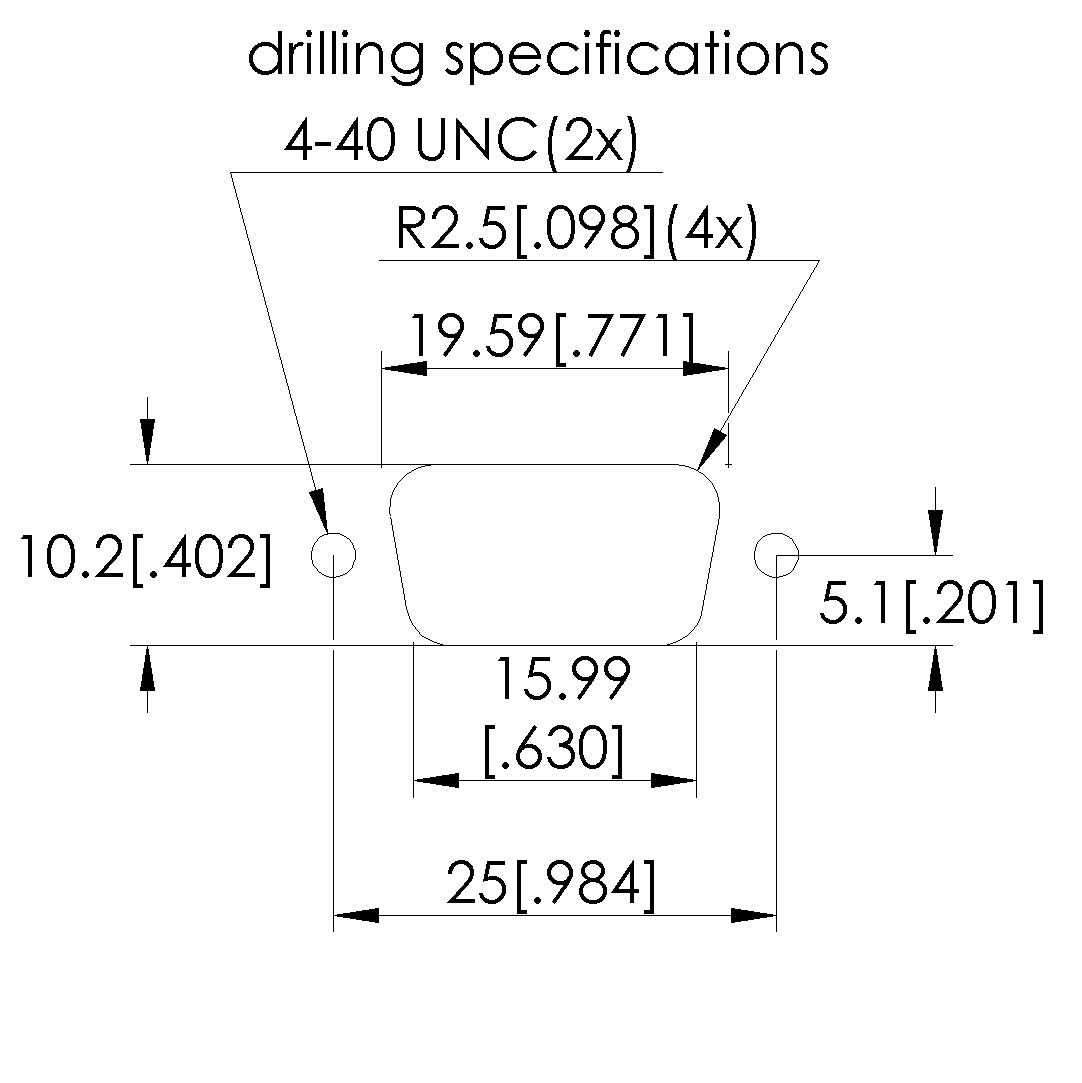

| Installation: | Bore D = 3.1 mm |
| Installation grid: | 2.74 mm [.107 in] |
| Interface blocks (SB): | SB-P-SO-009-SUB-D |
| Length: | 31 mm [1.22 in] |
| Material: | Metal |
| Max. temperature: | 125 °C [257 °F] |
| Max. voltage: | 1,0 kV |
| Min. temperature: | -55 °C [-67 °F] |
| Number of poles: | 9 |

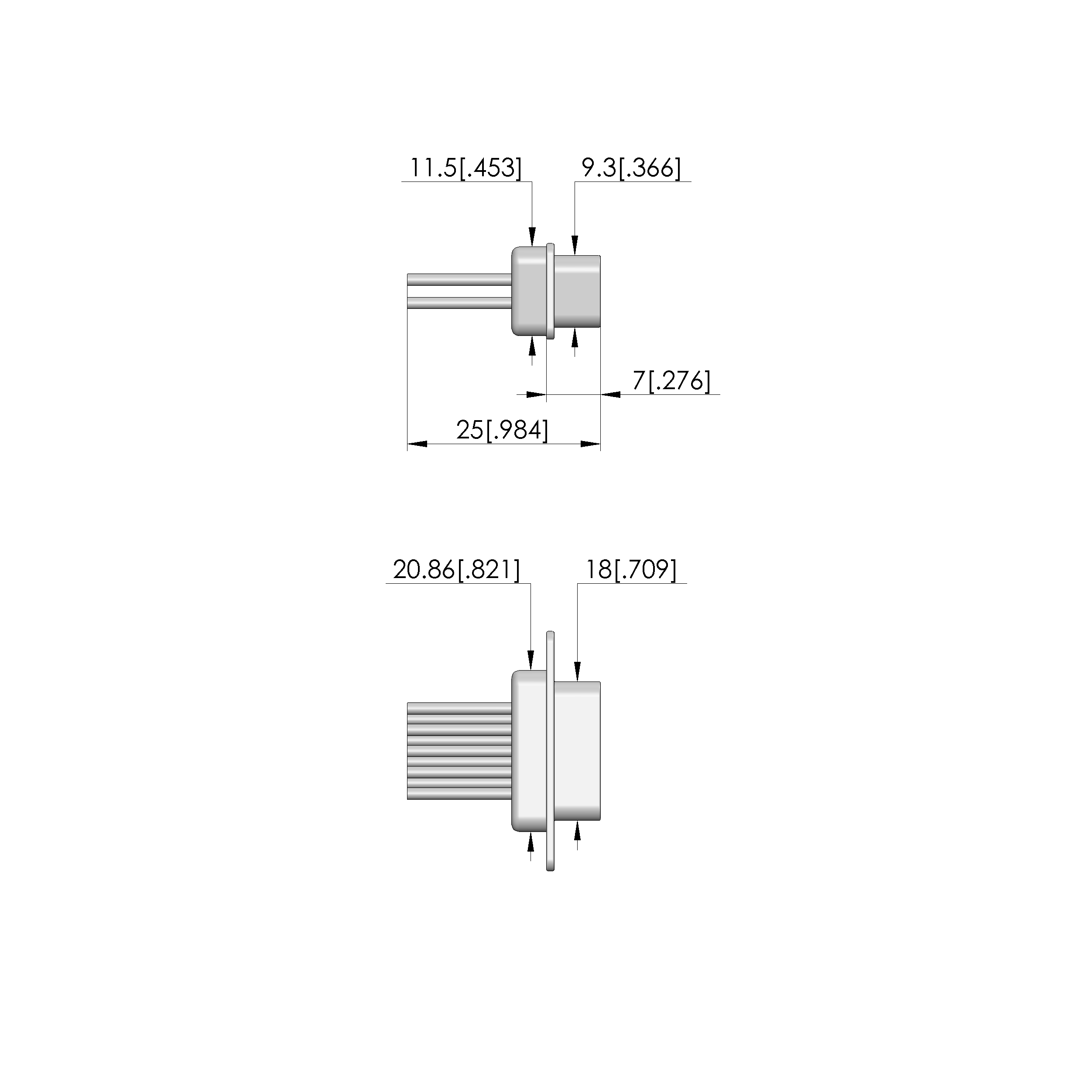

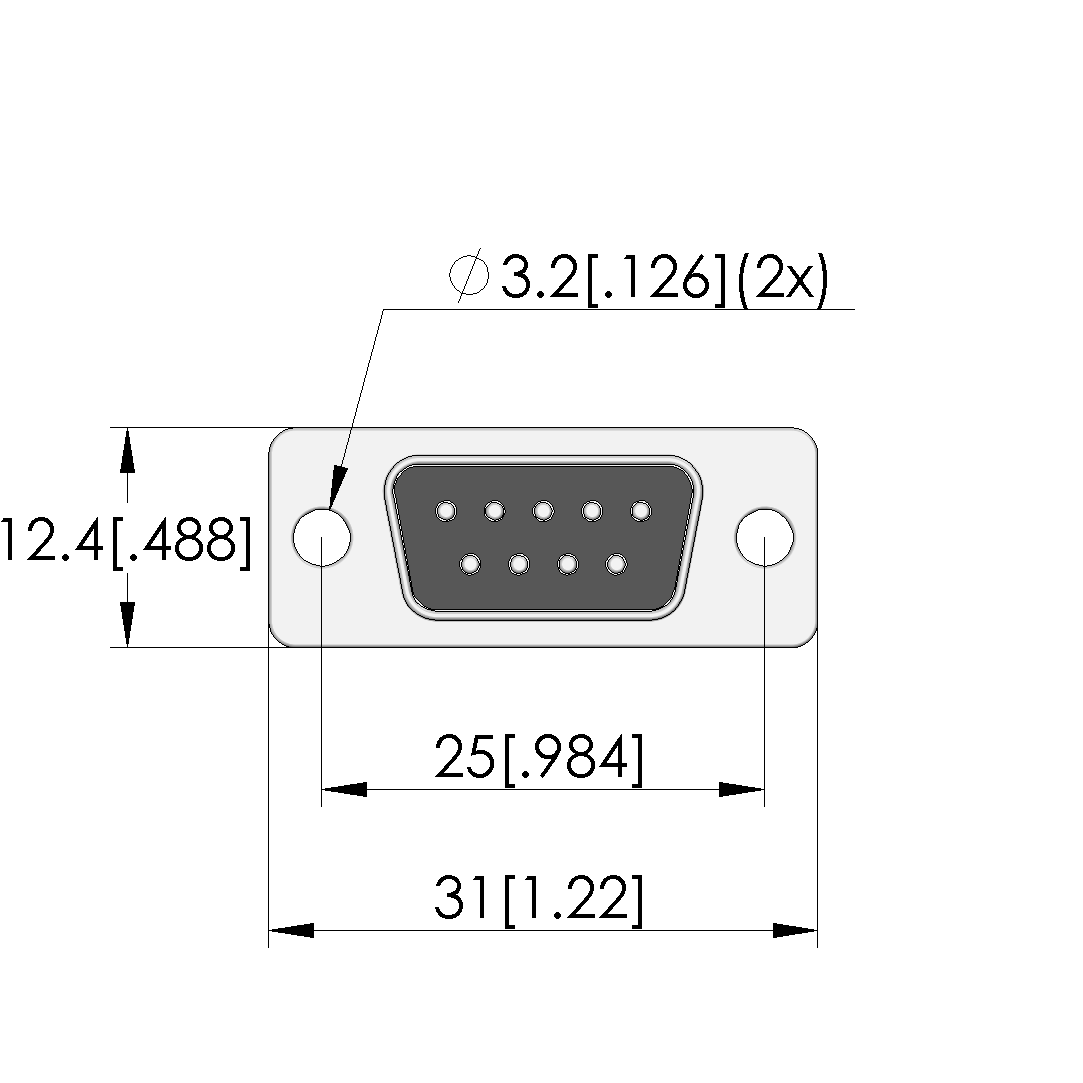

| Outer dimensionS (WxDxH): | 31 x 12.4 x 25 mm [1.22 x .488 x .984 in] |
| Product group: | Electric accessory |
| RoHS-compliant: | Yes |
| Series: | STV |
| Type: | Mounting socket |
| Version: | SUB-D |
| Weight: | 0.01 kg [.022 lbs] |
| Width: | 25 mm [.984 in] |
Login
Product Details
- Sub-D plug connector socket
- Table installation possible.
- 9-pole, 2.74 mm grid, wire-wrap connection
Other products in this series:
Technical data
Technical data
- Outer dimensionS (WxDxH): 31 x 12.4 x 25 mm [1.22 x .488 x .984 in]
- Connection: Wire-wrap posts
- Max. voltage: 1,0 kV
- Current rating: 7 A
- Installation: Bore D = 3.1 mm
- Number of poles: 9
- Installation grid: 2.74 mm [.107 in]
- Length: 31 mm [1.22 in]
General data
- Bestückung: Female
- Accessory type: Customising accessories
- Max. temperature: 125 °C [257 °F]
- Product group: Electric accessory
- Height: 12.4 mm [.488 in]
- RoHS-compliant: Yes
- Material: Metal
- Version: SUB-D
- Type: Mounting socket
- Width: 25 mm [.984 in]
- Series: STV
- Weight: 0.01 kg [.022 lbs]
- Min. temperature: -55 °C [-67 °F]
Compatible with
- Interface blocks (SB): SB-P-SO-009-SUB-D
