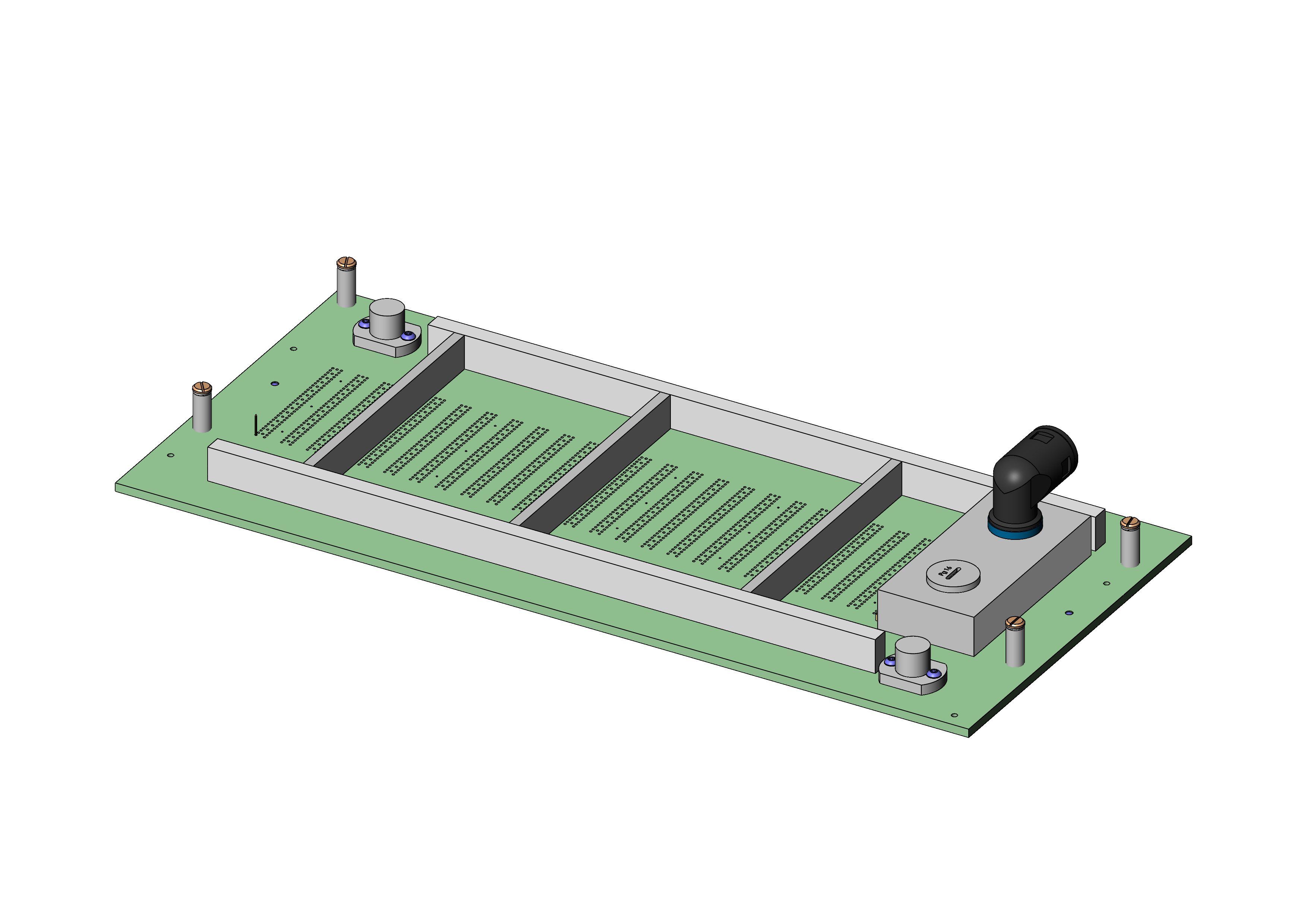

Product information "SST-88xx-S"
- TERADYNE (Spectrum) 88xx-S interface
- Reliable connection from test fixture to system interface
- Quick, easy installation on the bottom of the test fixture using a compatible interface
| Accessories: | SSA-88xx-S |
|---|---|
| Accessory type: | Additional function |
| Height: | 69 mm [2.71 in] |
| Length: | 505 mm [19.8 in] |
| Manual test fixtures (MA): | MA xx13 |
| Max. interface signals: | 1280 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 505 x 228 x 69 mm [19.8 x 9 x 2.71 in] |
| Product group: | Fixture interfaces |
| RoHS-compliant: | Yes |
| Scope of delivery: | Equipped, 1950 KT-158 |
| Series: | SST |
| Type: | Teradyne (Spectrum) |
| Vacuum test fixtures (VA): | 4060, VA 4040 |
| Version: | 88xx-S |
| Weight: | 2.2 kg [4.85 lbs] |
| Width: | 228 mm [9 in] |
Login
Product Details
- TERADYNE (Spectrum) 88xx-S interface
- Reliable connection from test fixture to system interface
- Quick, easy installation on the bottom of the test fixture using a compatible interface
Other products in this series:
Technical data
Compatible with
- Manual test fixtures (MA): MA xx13
- Vacuum test fixtures (VA): VA 4040, 4060
- Accessories: SSA-88xx-S
General data
- Product group: Fixture interfaces
- Series: SST
- Type: Teradyne (Spectrum)
- Version: 88xx-S
- Accessory type: Additional function
- Scope of delivery: Equipped, 1950 KT-158
- Max. interface signals: 1280
- Width: 228 mm [9 in]
- Height: 69 mm [2.71 in]
- Weight: 2.2 kg [4.85 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data
- Length: 505 mm [19.8 in]
- Outer dimensionS (WxDxH): 505 x 228 x 69 mm [19.8 x 9 x 2.71 in]
