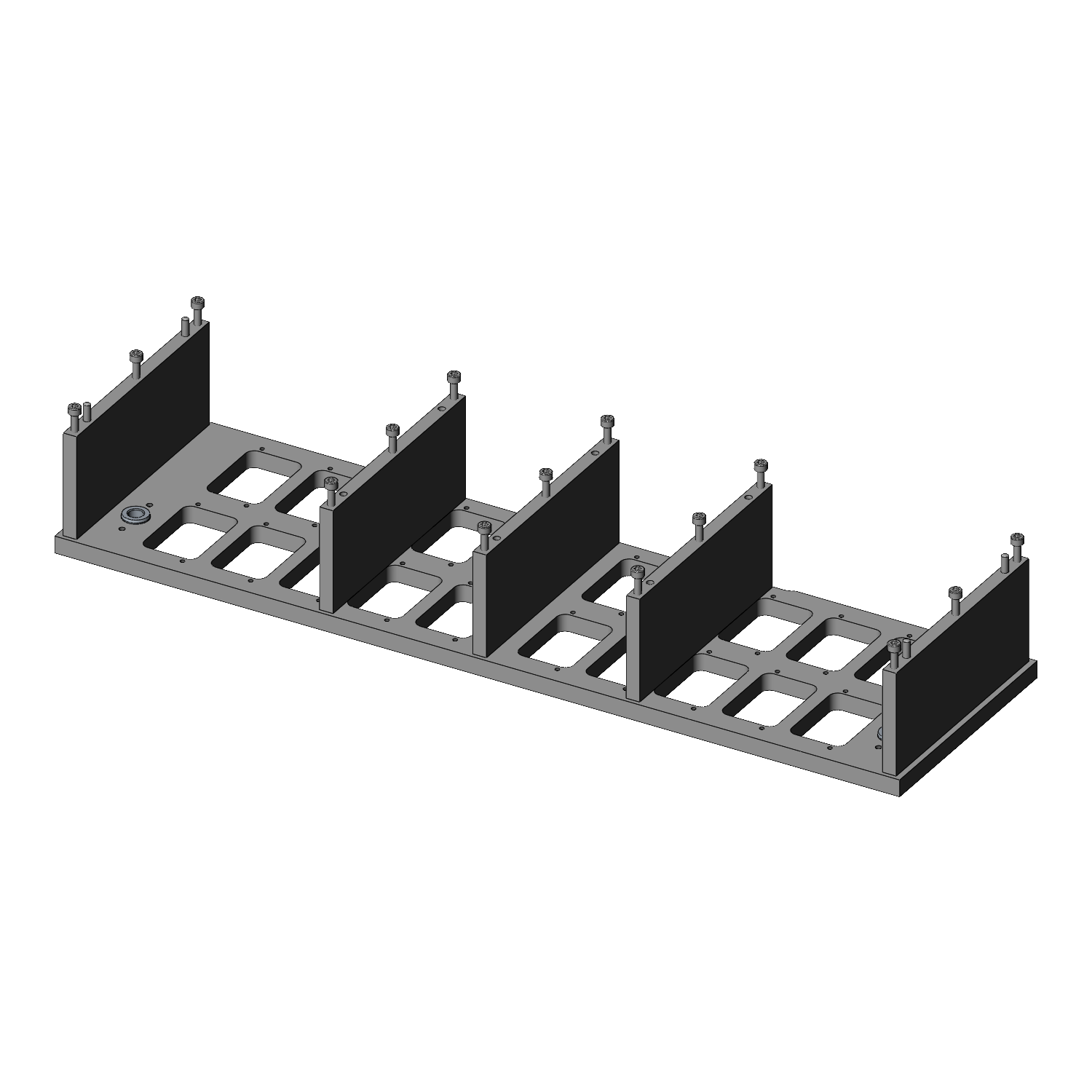

Product information "SST-PYLON-20-WSO-ASYS"
- The Pylon interface for the top interchangeable kit WSO ASYS/ATH01/173,5 und WSO ASYS/ATH01/210,5 for individually configurable upgrade
- Reliable connection of top interchangeable kit (WSO) to system interface
- Quick, easy installation on the top interchangeable kit (WSO)
| Accessory type: | Additional function |
|---|---|
| Height: | 73.3 mm [2.88 in] |
| Interchangeable kits (WS): | WS ASYS/ATH01/... |
| Length: | 496 mm [19.5 in] |
| Max. interface signals: | 3400 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 496 x 140 x 73.3 mm [19.5 x 5.51 x 2.88 in] |
| Product group: | Fixture interfaces |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unpopulated, max. 20 interface blocks |
| Series: | SST |
| Type: | Pylon-WSO-ASYS |
| Version: | Interface blocks (SB) |
| Weight: | 1.95 kg [4.29 lbs] |
| Width: | 140 mm [5.51 in] |
Login
Product Details
- The Pylon interface for the top interchangeable kit WSO ASYS/ATH01/173,5 und WSO ASYS/ATH01/210,5 for individually configurable upgrade
- Reliable connection of top interchangeable kit (WSO) to system interface
- Quick, easy installation on the top interchangeable kit (WSO)
Other products in this series:
Technical data
Technical data
- Length: 496 mm [19.5 in]
- Outer dimensionS (WxDxH): 496 x 140 x 73.3 mm [19.5 x 5.51 x 2.88 in]
General data
- Product group: Fixture interfaces
- Series: SST
- Type: Pylon-WSO-ASYS
- Version: Interface blocks (SB)
- Accessory type: Additional function
- Scope of delivery: Unpopulated, max. 20 interface blocks
- Max. interface signals: 3400
- Width: 140 mm [5.51 in]
- Height: 73.3 mm [2.88 in]
- Weight: 1.95 kg [4.29 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Interchangeable kits (WS): WS ASYS/ATH01/...
