Product information "SST-KMFT"

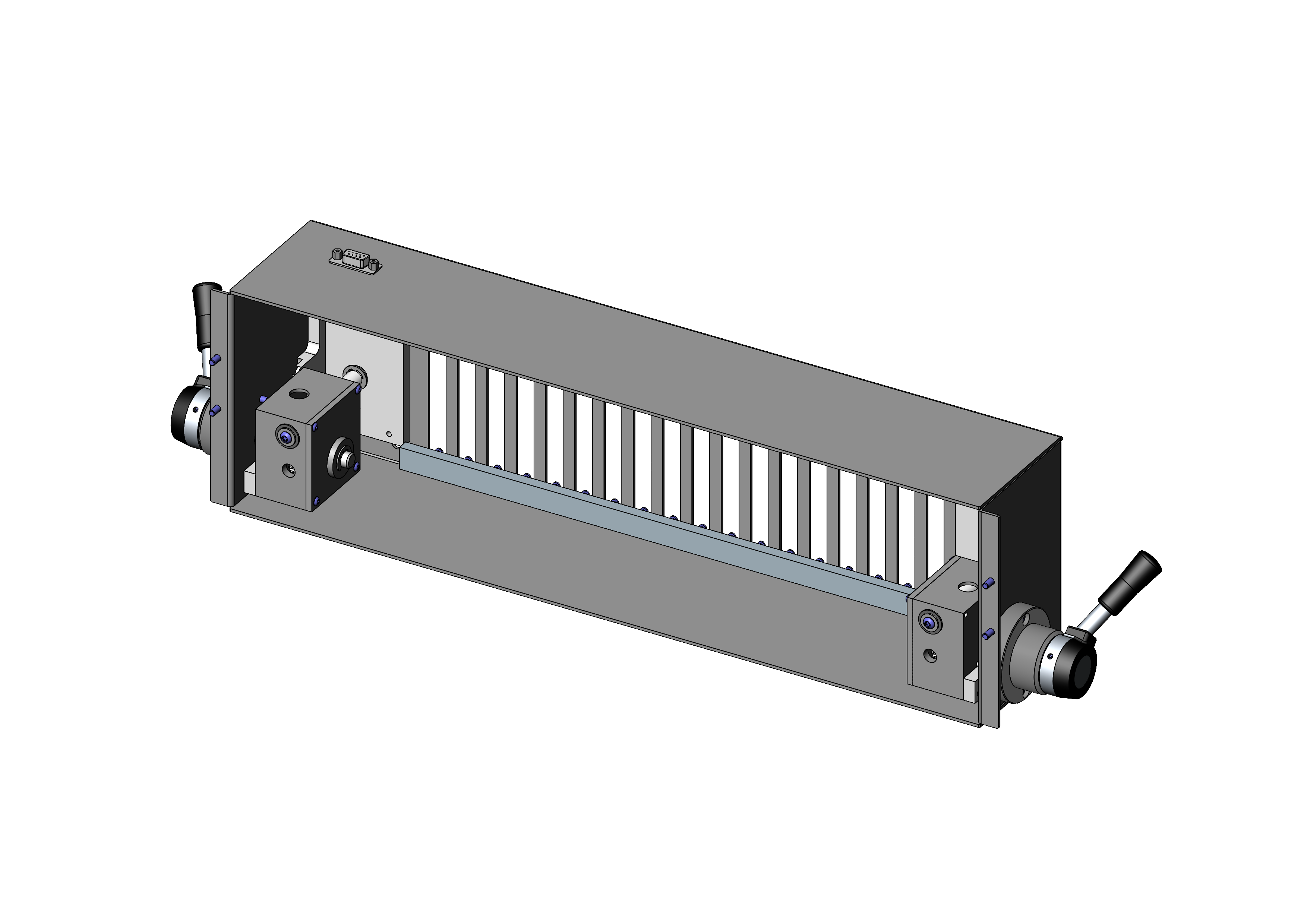

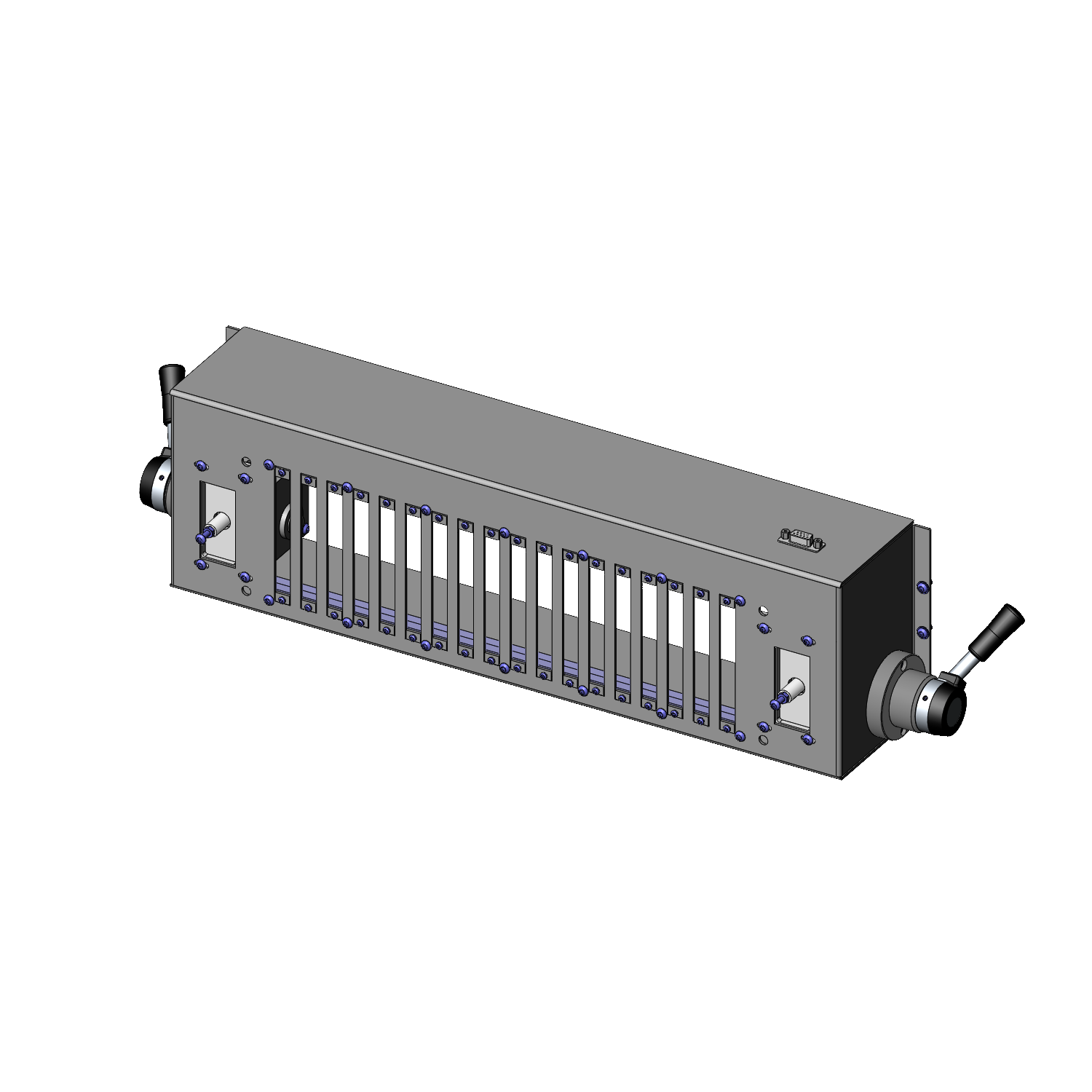

- REINHARDT KMFT interface
- Reliable connection from test fixture to system interface
- Quick, easy installation on the back of the test fixture using a compatible interface
| Accessories: | SSA-KMFT |
|---|---|
| Accessory type: | Additional function |
| Height: | 153 mm [6.02 in] |
| Length: | 520 mm [20.4 in] |
| Manual test fixtures (MA): | MA xx12, MA xx13 |
| Max. interface signals: | 1728 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 520 x 100 x 153 mm [20.4 x 3.93 x 6.02 in] |
| Product group: | Fixture interfaces |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unpopulated, max. 18x 96-pole VG |
| Series: | SST |
| Type: | Reinhardt |
| Vacuum test fixtures (VA): | VA 4040 |
| Version: | KMFT |
| Weight: | 4.9 kg [10.8 lbs] |
| Width: | 100 mm [3.93 in] |
Login
Product Details
- REINHARDT KMFT interface
- Reliable connection from test fixture to system interface
- Quick, easy installation on the back of the test fixture using a compatible interface
Other products in this series:
Technical data
Compatible with
- Manual test fixtures (MA): MA xx13, MA xx12
- Vacuum test fixtures (VA): VA 4040
- Accessories: SSA-KMFT
General data
- Product group: Fixture interfaces
- Series: SST
- Type: Reinhardt
- Version: KMFT
- Accessory type: Additional function
- Scope of delivery: Unpopulated, max. 18x 96-pole VG
- Max. interface signals: 1728
- Width: 100 mm [3.93 in]
- Height: 153 mm [6.02 in]
- Weight: 4.9 kg [10.8 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data
- Length: 520 mm [20.4 in]
- Outer dimensionS (WxDxH): 520 x 100 x 153 mm [20.4 x 3.93 x 6.02 in]
