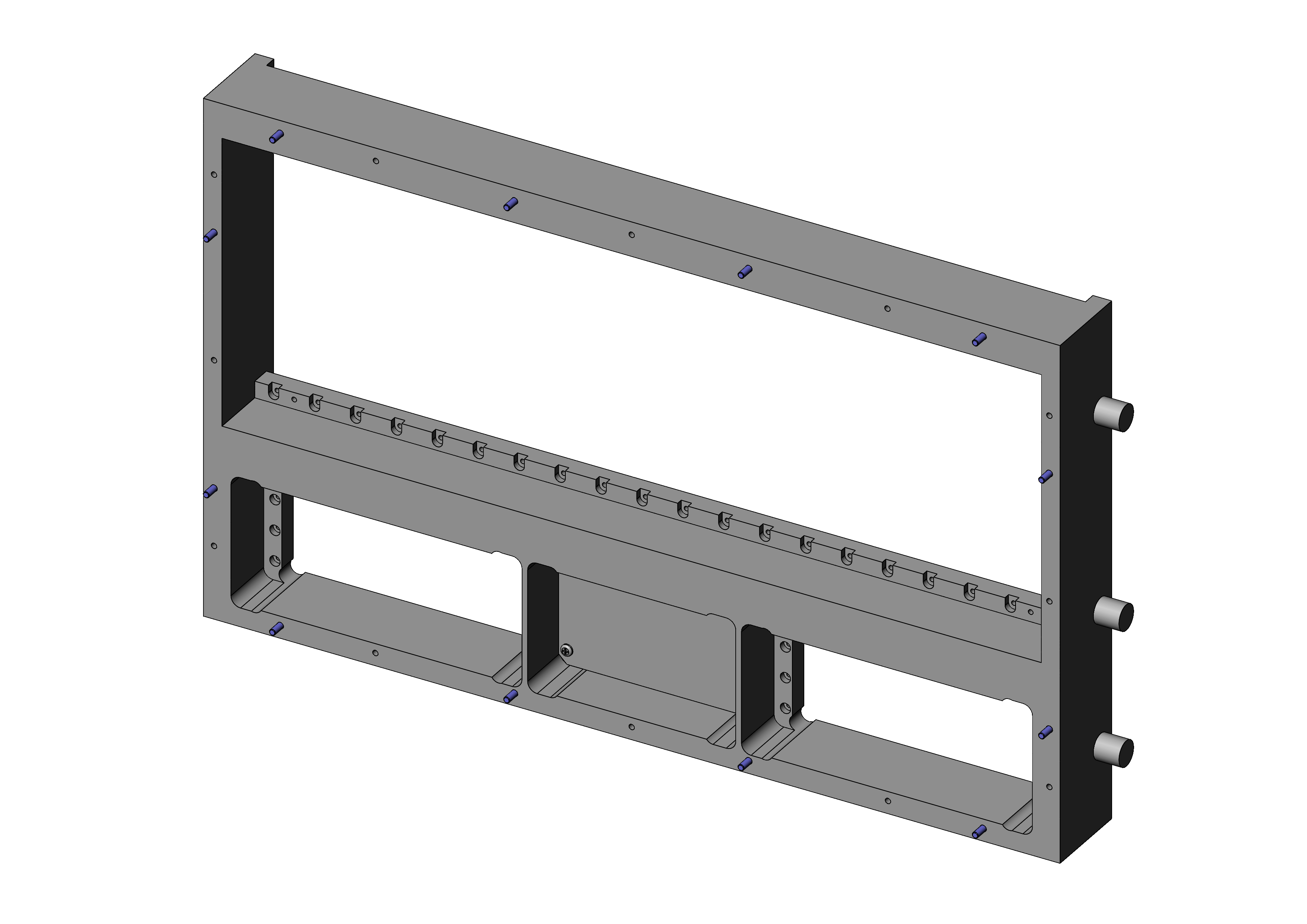

Product information "SST-VPC-G20X"
- VIRGINIA PANEL VPC-G20x interface
- Reliable connection from test fixture to system interface
- Quick, easy installation on the back of the test fixture using a compatible interface
| Accessories: | SSA-VPC-G20X |
|---|---|
| Accessory type: | Additional function |
| Height: | 257 mm [10.1 in] |
| Length: | 452 mm [17.8 in] |
| Manual test fixtures (MA): | MA xx12, MA xx13, MA xx14 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 452 x 44.5 x 257 mm [17.8 x 1.75 x 10.1 in] |
| Product group: | Fixture interfaces |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unpopulated, 28 free slots |
| Series: | SST |
| Type: | Virginia Panel Corporation |
| Vacuum test fixtures (VA): | 4040, 4060, VA 4030 |
| Version: | VPC-G20x |
| Weight: | 2.95 kg [6.5 lbs] |
| Width: | 44.5 mm [1.75 in] |
Login
Product Details
- VIRGINIA PANEL VPC-G20x interface
- Reliable connection from test fixture to system interface
- Quick, easy installation on the back of the test fixture using a compatible interface
Other products in this series:
Technical data
Compatible with
- Manual test fixtures (MA): MA xx13, MA xx12, MA xx14
- Vacuum test fixtures (VA): VA 4030, 4040, 4060
- Accessories: SSA-VPC-G20X
General data
- Product group: Fixture interfaces
- Series: SST
- Type: Virginia Panel Corporation
- Version: VPC-G20x
- Accessory type: Additional function
- Scope of delivery: Unpopulated, 28 free slots
- Width: 44.5 mm [1.75 in]
- Height: 257 mm [10.1 in]
- Weight: 2.95 kg [6.5 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data
- Length: 452 mm [17.8 in]
- Outer dimensionS (WxDxH): 452 x 44.5 x 257 mm [17.8 x 1.75 x 10.1 in]
