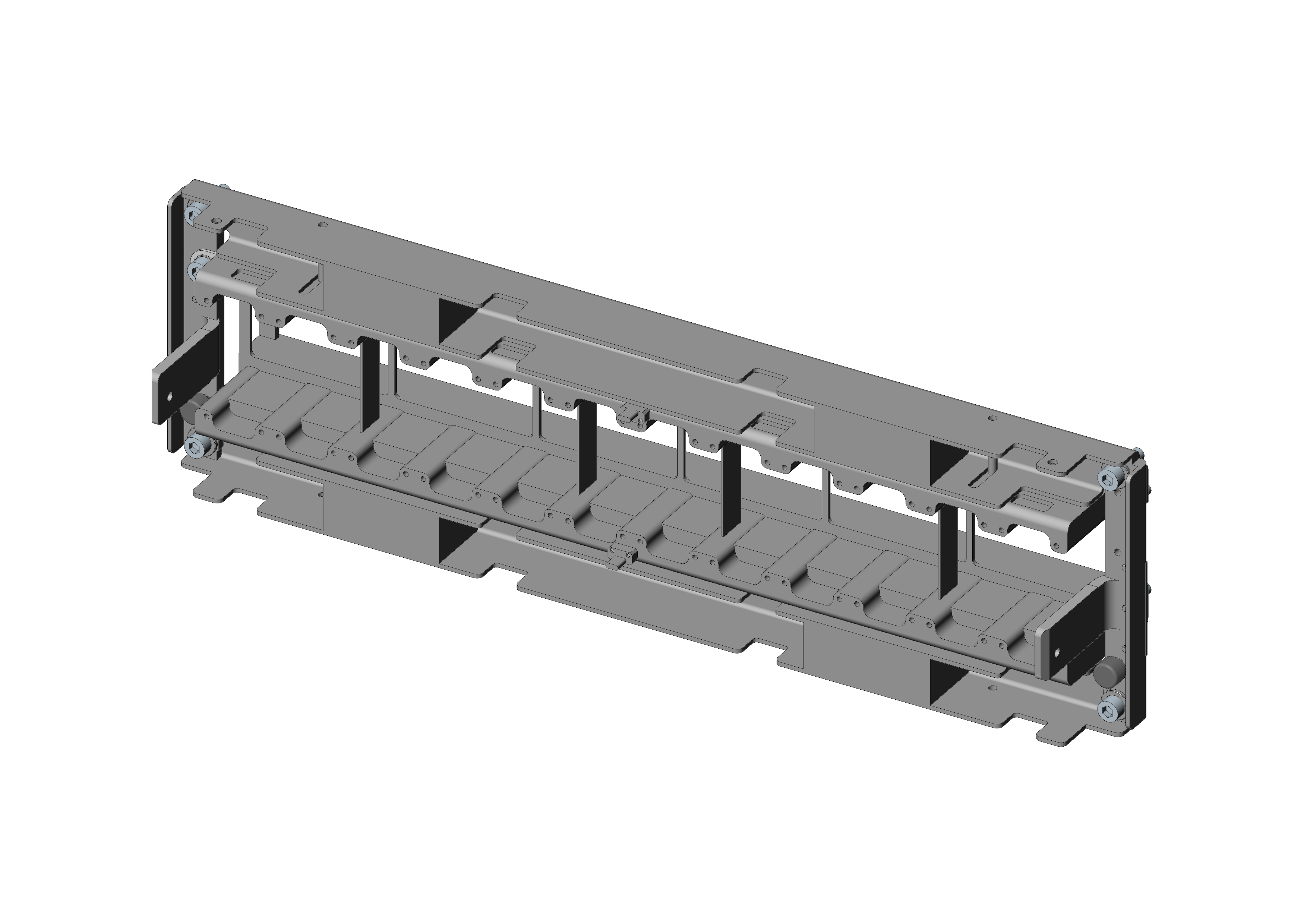

Product information "SST-ODU-TWO-M"
- ODU-MAC® Mass Interconnect interface
- Reliable connection from test fixture to system interface
- Quick, easy installation on the back of the test fixture using a compatible interface
| Accessories: | SSA-ODU-TWO-M |
|---|---|
| Accessory type: | Additional function |
| Height: | 135 mm [5.31 in] |
| Length: | 474 mm [18.6 in] |
| Manual test fixtures (MA): | MA xx12, MA xx13, MA xx14 |
| Max. interface signals: | 2160 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 474 x 97.1 x 135 mm [18.6 x 3.82 x 5.31 in] |
| Product group: | Fixture interfaces |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unpopulated, 12 free slots |
| Series: | SST |
| Type: | ODU |
| Vacuum test fixtures (VA): | 4040, 4060, VA 4030 |
| Version: | 12-Flex TWO M |
| Weight: | 3.4 kg [7.49 lbs] |
| Width: | 97.1 mm [3.82 in] |
Login
Product Details
- ODU-MAC® Mass Interconnect interface
- Reliable connection from test fixture to system interface
- Quick, easy installation on the back of the test fixture using a compatible interface
Other products in this series:
Technical data
General data
- Product group: Fixture interfaces
- Series: SST
- Type: ODU
- Version: 12-Flex TWO M
- Accessory type: Additional function
- Scope of delivery: Unpopulated, 12 free slots
- Max. interface signals: 2160
- Width: 97.1 mm [3.82 in]
- Height: 135 mm [5.31 in]
- Weight: 3.4 kg [7.49 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Manual test fixtures (MA): MA xx13, MA xx12, MA xx14
- Vacuum test fixtures (VA): VA 4030, 4040, 4060
- Accessories: SSA-ODU-TWO-M
Technical data
- Length: 474 mm [18.6 in]
- Outer dimensionS (WxDxH): 474 x 97.1 x 135 mm [18.6 x 3.82 x 5.31 in]
