Product information "SST-PYLON-16"
- Robust design for high stability with low deflection when fully loaded

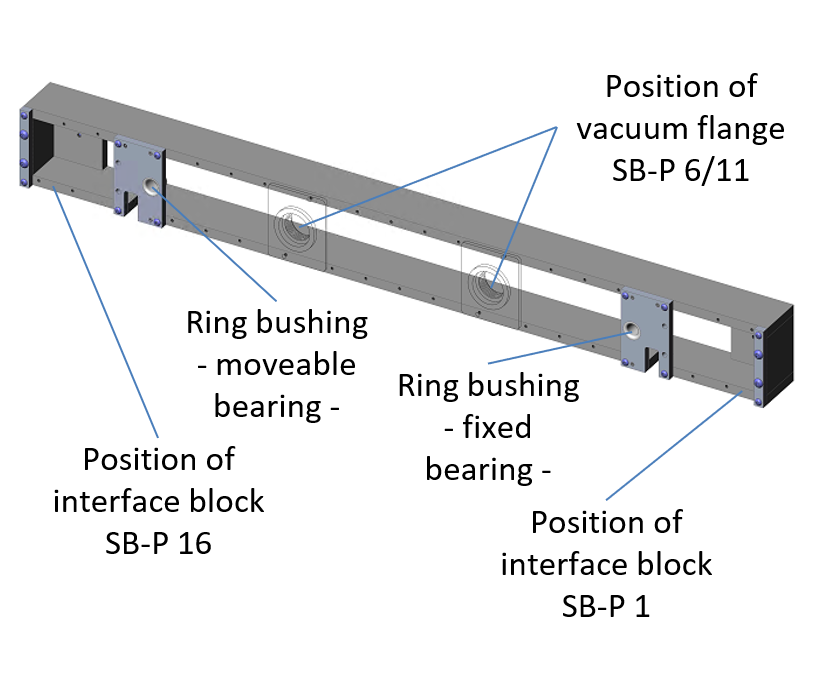

- Centring via hardened bore bushes for optimum accuracy with high contact quality
- Floating suspension on the test fixture for optimum alignment and centring on the receiver
- High flexibility and modularity in terms of signal transmission using interface blocks
| Accessories: | SSA-PYLON-16 |
|---|---|
| Accessory type: | Additional function |
| Height: | 64 mm [2.51 in] |
| Length: | 648 mm [25.5 in] |
| Manual test fixtures (MA): | MA xx13, MA xx14 |
| Max. interface signals: | 1700 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 648 x 46 x 64 mm [25.5 x 1.81 x 2.51 in] |
| Product group: | Fixture interfaces |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unpopulated, max. 16 SB |
| Series: | SST |
| Type: | Pylon |
| Vacuum test fixtures (VA): | VA 4060 |
| Version: | Interface blocks (SB) |
| Weight: | 1.5 kg [3.3 lbs] |
| Width: | 46 mm [1.81 in] |
Login
Product Details
- Robust design for high stability with low deflection when fully loaded
- Centring via hardened bore bushes for optimum accuracy with high contact quality
- Floating suspension on the test fixture for optimum alignment and centring on the receiver
- High flexibility and modularity in terms of signal transmission using interface blocks
Other products in this series:
Technical data
Compatible with
- Manual test fixtures (MA): MA xx13, MA xx14
- Vacuum test fixtures (VA): VA 4060
- Accessories: SSA-PYLON-16
Technical data
- Length: 648 mm [25.5 in]
- Outer dimensionS (WxDxH): 648 x 46 x 64 mm [25.5 x 1.81 x 2.51 in]
General data
- Product group: Fixture interfaces
- Series: SST
- Type: Pylon
- Version: Interface blocks (SB)
- Accessory type: Additional function
- Scope of delivery: Unpopulated, max. 16 SB
- Max. interface signals: 1700
- Width: 46 mm [1.81 in]
- Height: 64 mm [2.51 in]
- Weight: 1.5 kg [3.3 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
