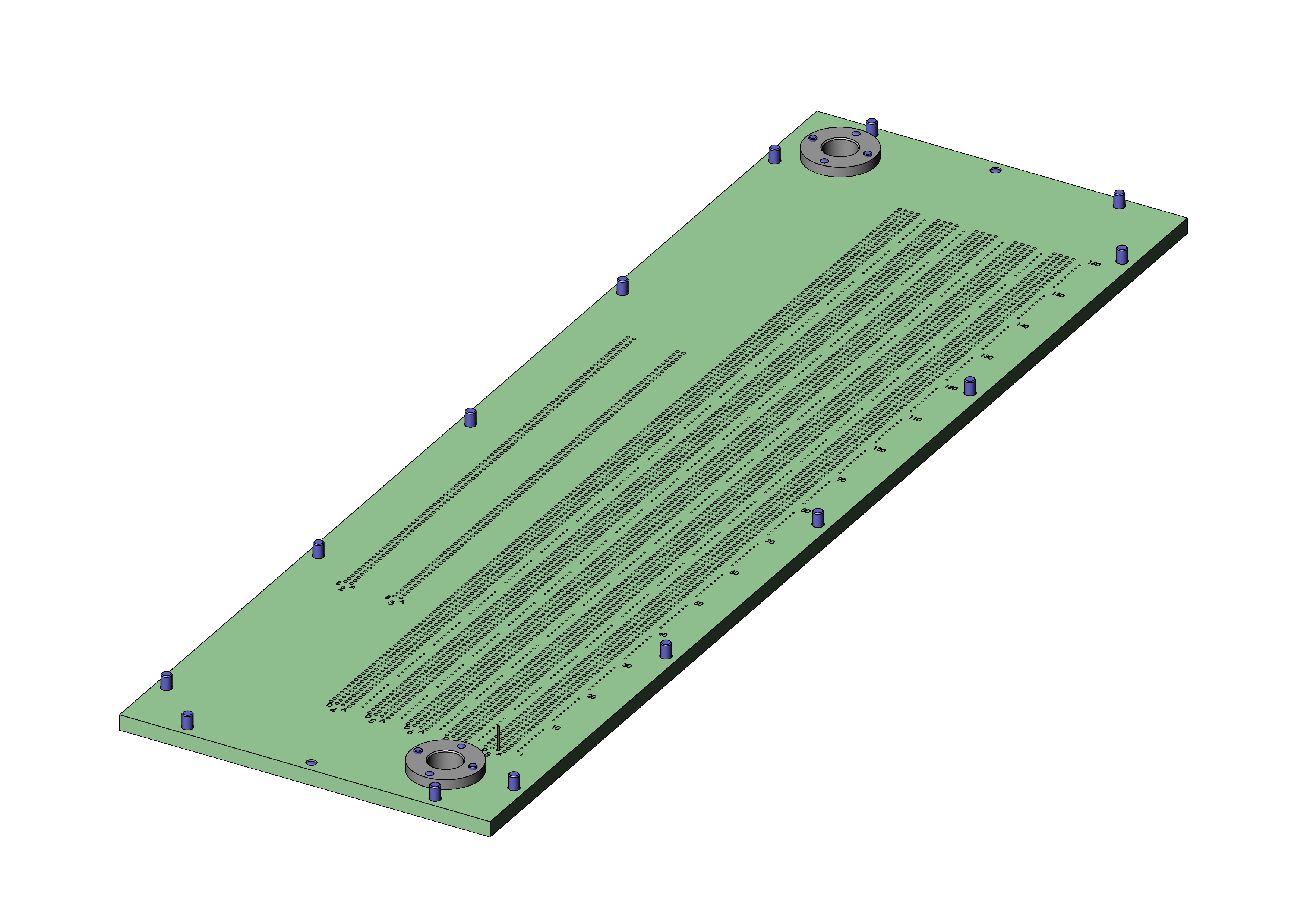

Product information "SST-TSO5x-2560"
- TERADYNE TSO5x interface
- Reliable connection from test fixture to system interface
- Quick, easy installation on the bottom of the test fixture using a compatible interface
| Accessories: | SSA-TSO5x |
|---|---|
| Accessory type: | Additional function |
| Height: | 6.5 mm [.255 in] |
| Length: | 496 mm [19.5 in] |
| Max. interface signals: | 2560 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 152 x 496 x 6.5 mm [5.98 x 19.5 x .255 in] |
| Product group: | Fixture interfaces |
| RoHS-compliant: | Yes |
| Scope of delivery: | Equipped, 3520 KT-158 02 |
| Series: | SST |
| Type: | Teradyne |
| Vacuum test fixtures (VA): | VA 4060 |
| Version: | TSO5x |
| Weight: | 0.95 kg [2.09 lbs] |
| Width: | 152 mm [5.98 in] |
Login
Product Details
- TERADYNE TSO5x interface
- Reliable connection from test fixture to system interface
- Quick, easy installation on the bottom of the test fixture using a compatible interface
Other products in this series:
Technical data
Technical data
- Length: 496 mm [19.5 in]
- Outer dimensionS (WxDxH): 152 x 496 x 6.5 mm [5.98 x 19.5 x .255 in]
General data
- Product group: Fixture interfaces
- Series: SST
- Type: Teradyne
- Version: TSO5x
- Accessory type: Additional function
- Scope of delivery: Equipped, 3520 KT-158 02
- Max. interface signals: 2560
- Width: 152 mm [5.98 in]
- Height: 6.5 mm [.255 in]
- Weight: 0.95 kg [2.09 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Vacuum test fixtures (VA): VA 4060
- Accessories: SSA-TSO5x
