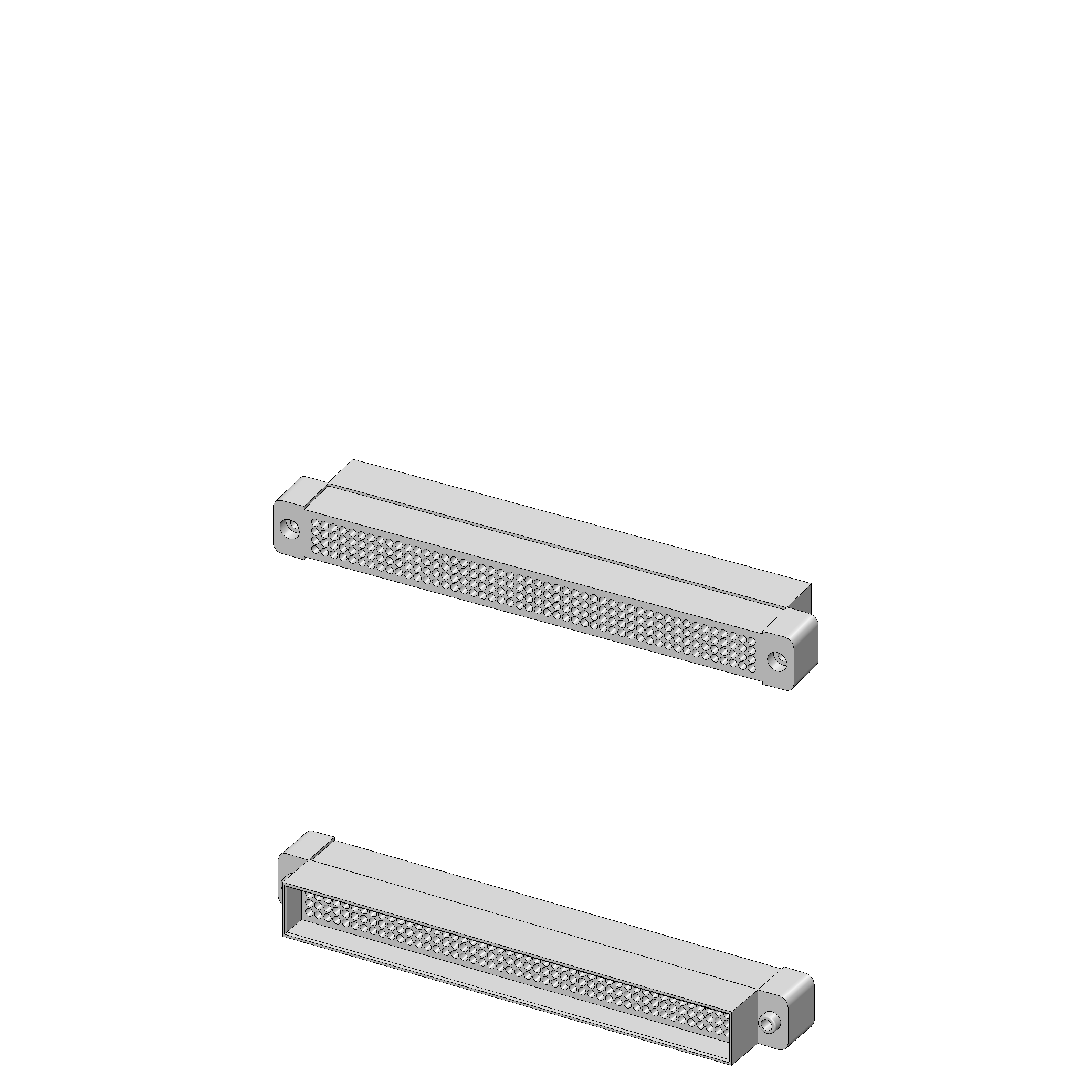

Product information "SSM-P-192-VPC-QP"
- VPC QuadraPaddle Signal module
- 192 freely assignable slots
- Compatible with ST-VPC
| Accessories: | SST VPC |
|---|---|
| Accessory type: | Customising accessories |
| Height: | 25.3 mm [.996 in] |
| Length: | 142 mm [5.61 in] |
| Material: | Crystal polymer, black |
| Max. temperature: | 125 °C [257 °F] |
| Max. voltage: | 1500 VDC |
| Min. temperature: | -55 °C [-67 °F] |
| Number of poles: | 192 |
| Outer dimensionS (WxDxH): | 142 x 15 x 25.3 mm [5.61 x .59 x .996 in] |
| Product group: | Fixture interfaces |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unpopulated |
| Series: | SSM |
| Type: | VPC QuadraPaddle Signal module |
| Version: | ITA 90 series |
| Weight: | 0.02 kg [.044 lbs] |
| Width: | 15 mm [.59 in] |
Login
Product Details
- VPC QuadraPaddle Signal module
- 192 freely assignable slots
- Compatible with ST-VPC
Other products in this series:
Technical data
General data
- Product group: Fixture interfaces
- Series: SSM
- Type: VPC QuadraPaddle Signal module
- Version: ITA 90 series
- Accessory type: Customising accessories
- Scope of delivery: Unpopulated
- Material: Crystal polymer, black
- Width: 15 mm [.59 in]
- Height: 25.3 mm [.996 in]
- Weight: 0.02 kg [.044 lbs]
- Min. temperature: -55 °C [-67 °F]
- Max. temperature: 125 °C [257 °F]
- RoHS-compliant: Yes
Technical data
- Max. voltage: 1500 VDC
- Number of poles: 192
- Length: 142 mm [5.61 in]
- Outer dimensionS (WxDxH): 142 x 15 x 25.3 mm [5.61 x .59 x .996 in]
Compatible with
- Accessories: SST VPC
