Product information "SSM-P-019-VPC-MP"

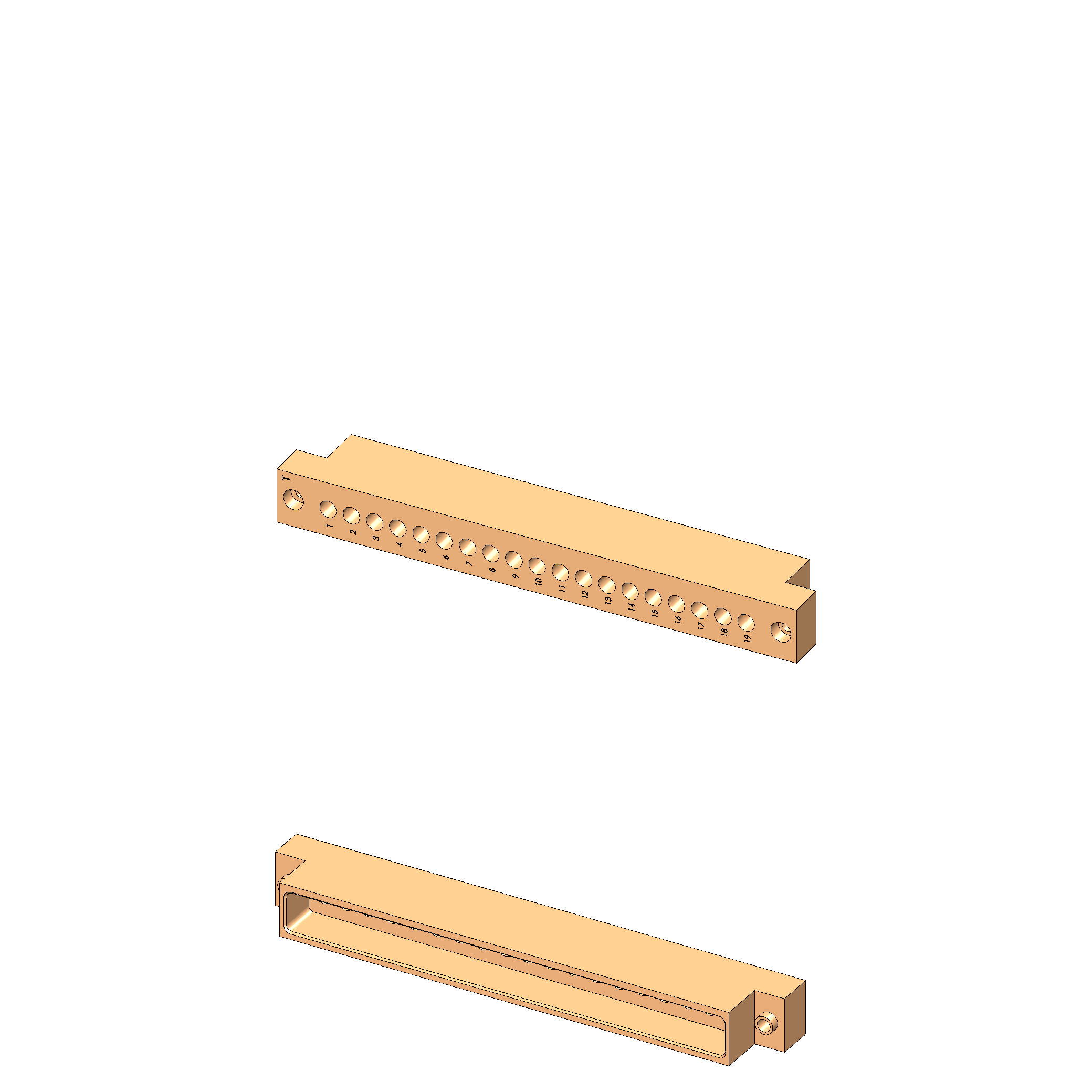

- VPC Mini Power module
- 19 freely assignable slots
- Compatible with ST-VPC
| Accessories: | SST VPC |
|---|---|
| Accessory type: | Customising accessories |
| Height: | 22.7 mm [.893 in] |
| Length: | 142 mm [5.59 in] |
| Material: | Ryton R-7 |
| Max. temperature: | 125 °C [257 °F] |
| Max. voltage: | 1500 VDC |
| Min. temperature: | -55 °C [-67 °F] |
| Number of poles: | 19 |

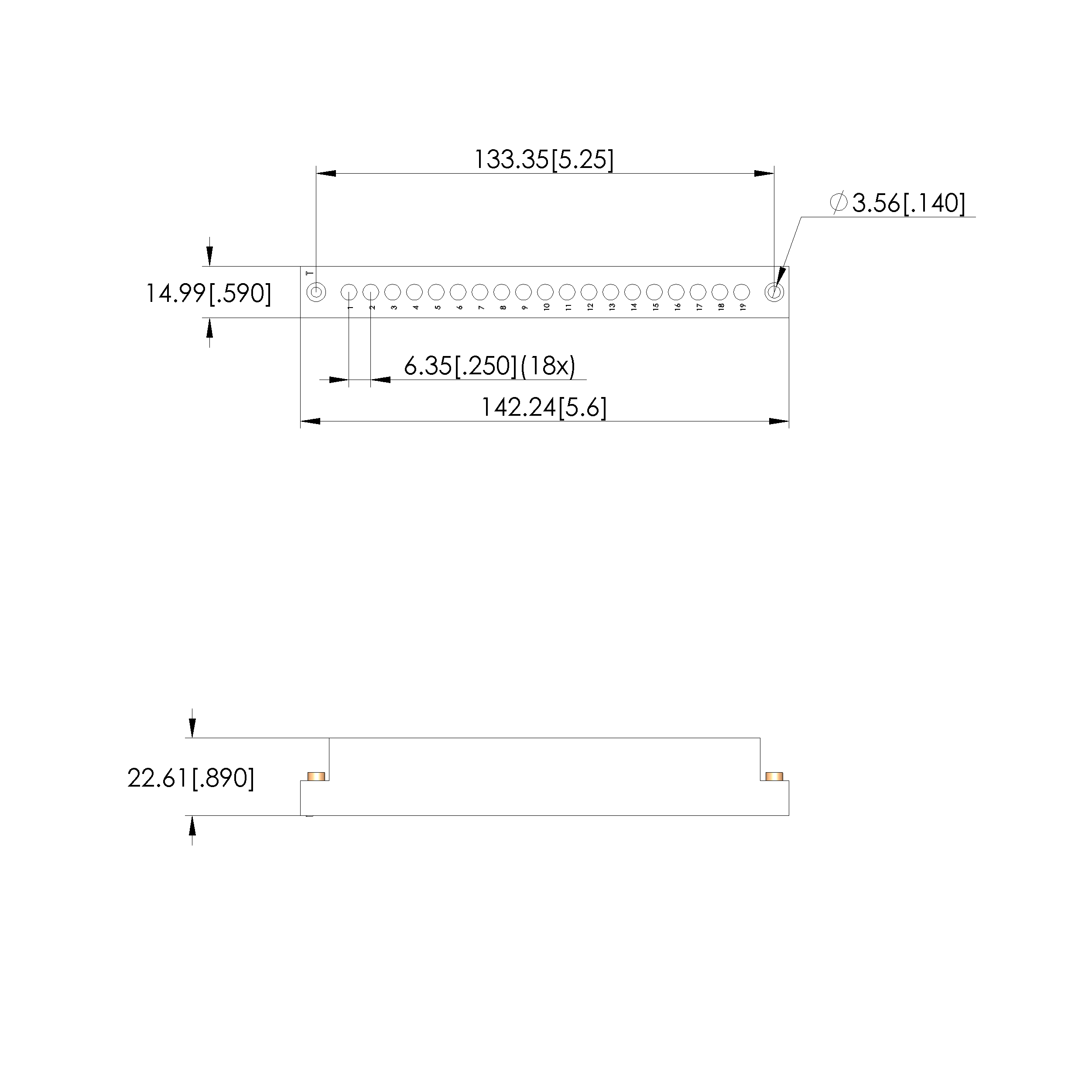

| Outer dimensionS (WxDxH): | 142 x 15 x 22.7 mm [5.59 x .59 x .893 in] |
| Product group: | Fixture interfaces |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unpopulated |
| Series: | SSM |
| Type: | VPC Mini Power module |
| Version: | ITA 90 series |
| Weight: | 0.02 kg [.044 lbs] |
| Width: | 15 mm [.59 in] |
Login
Product Details
- VPC Mini Power module
- 19 freely assignable slots
- Compatible with ST-VPC
Other products in this series:
Technical data
General data
- Series: SSM
- Accessory type: Customising accessories
- Height: 22.7 mm [.893 in]
- Scope of delivery: Unpopulated
- Product group: Fixture interfaces
- Max. temperature: 125 °C [257 °F]
- Version: ITA 90 series
- Material: Ryton R-7
- Width: 15 mm [.59 in]
- RoHS-compliant: Yes
- Weight: 0.02 kg [.044 lbs]
- Type: VPC Mini Power module
- Min. temperature: -55 °C [-67 °F]
Technical data
- Outer dimensionS (WxDxH): 142 x 15 x 22.7 mm [5.59 x .59 x .893 in]
- Length: 142 mm [5.59 in]
- Number of poles: 19
- Max. voltage: 1500 VDC
Compatible with
- Accessories: SST VPC
